VT Series Vertical Axis Wind Turbine Generator with Motor Kit and Lighting for Camping and Home Use

Product Details

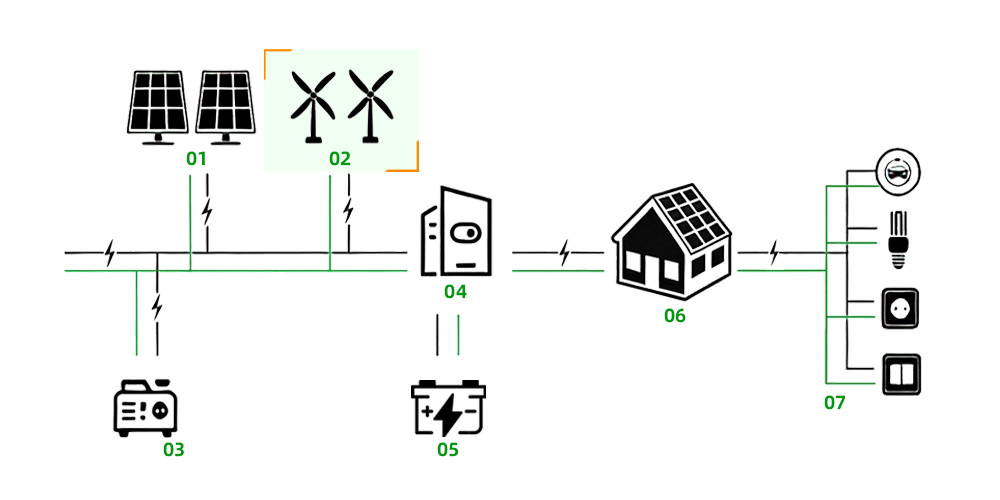

Integrated Housing Solutions

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

Product Description

This VT series Wind Turbine Generator adopts a three-phase AC permanent magnet generator with magnetic levitation technology, enabling low start-up wind speed and stable operation. The vertical axis design automatically adapts to changing wind directions without manual adjustment. Equipped with a motor kit and lighting system, it can supply power for lighting, battery storage, and small household appliances, making it an ideal solution for home distributed wind energy systems and outdoor camping power needs.

Key Advantages

1. Low-noise operation, ideal for home and outdoor use;
2. Starts generating in light winds, high efficiency;
3. Aerodynamic design for maximum wind energy utilization;
4. Aluminum alloy and carbon steel body with triple-layer protection against corrosion and leakage;
5. Automatic wind tracking ensures stable power supply;
6. Waterproof and dustproof, suitable for residential and outdoor installation.

Product Parameters

Model	VT300	VT400	VT500	VT600	VT800	VT1000
Rated power	300W	400W	450W	600W	800W	1000W
Max power	350W	350W	500W	650W	850W	1050W
Rated voltage	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V	12V
Start-up wind speed	2m/s	2m/s	2m/s	2m/s	2m/s	1.3m/s
Rated wind speed	12m/s	12m/s	12m/s	12m/s	12m/s	12m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s	45m/s	45m/s
Net weight of main engine	12kg	12kg	12kg	12kg	12kg	12kg
Number of blades	5 pieces	5 pieces	5 pieces	5 pieces	5 pieces	3 pieces
Blades material	nylon fiber	nylon fiber	nylon fiber	nylon fiber	nylon fiber	nylon fiber
Body material	nylon fiber	nylon fiber	nylon fiber	nylon fiber	nylon fiber	nylon fiber
Generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator
Control System	electromagnetic brake	electromagnetic brake	electromagnetic brake	electromagnetic brake	electromagnetic brake	electromagnetic brake
Yaw Mode	automatic windward angle	automatic windward angle	automatic windward angle	automatic windward angle	automatic windward angle	automatic windward angle
Lubrication mode	self lubrication	self lubrication	self lubrication	self lubrication	self lubrication	self lubrication
Working temperature	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃

Dimensions

Tower & Mounting Solution

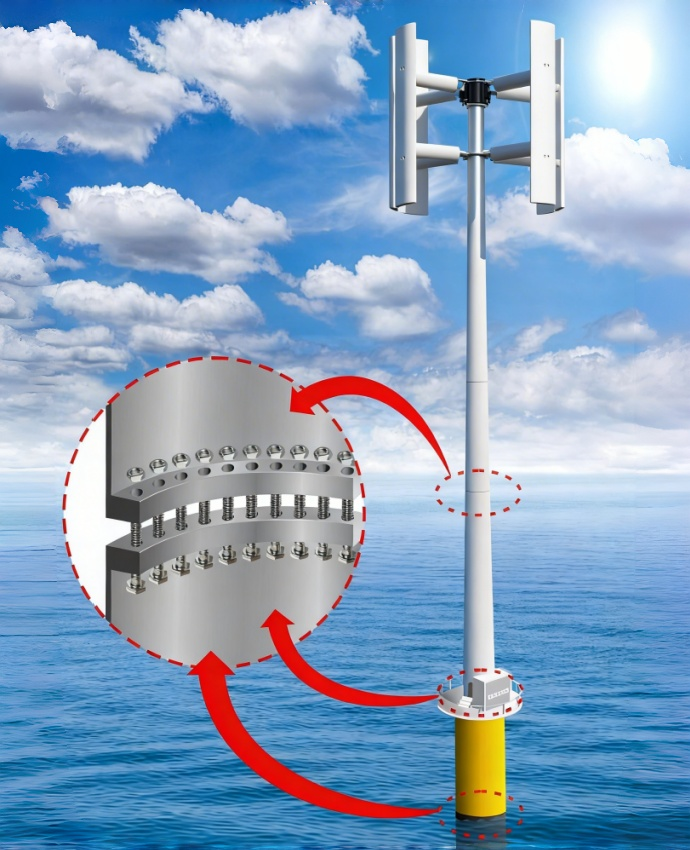

① Installation System

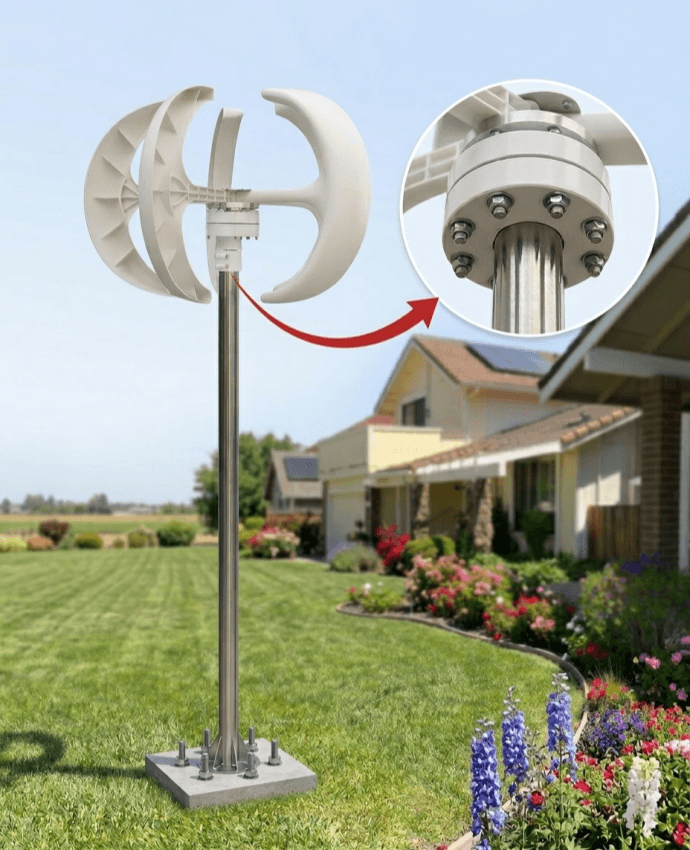

Designed with a standard flange mounting system, the turbine can be securely bolted to poles or tower structures, ensuring superior stability and durability in various environments. Insertion mounting is available as a custom option for selected low-power applications.

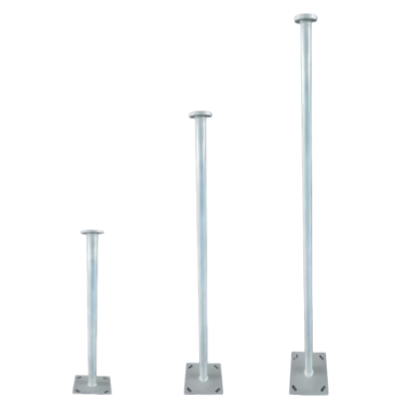

② Recommended Pole Configuration

Power Range	Recommended Pole Diameter	Suggested Height
100W - 500W	50mm	3 - 6m
500W - 1000W	60mm	6 - 10m
1000W - 2000W	89mm	8 - 12m

③ We offer matching poles, guy wire kits, and complete installation solutions. Customized wind-solar-storage systems are available upon request.

Applications

Widely used in camping power supply, home backup power, off-grid houses, container houses, mobile homes, and modular buildings. It can be integrated with solar systems and battery storage systems to provide a one-stop clean energy and housing power solution, supporting lighting, basic appliances, and daily electricity needs.
