VH Series Vertical Axis Wind Turbine Generator

Integrated Housing Solutions

The VH Series vertical axis wind turbine is designed as part of an integrated energy solution for modular buildings, prefab homes, and off-grid living projects.
Combined with solar panels, energy storage batteries, and intelligent controllers, it creates a complete off grid solar and wind hybrid system to provide reliable electricity for lighting, appliances, and daily household needs.

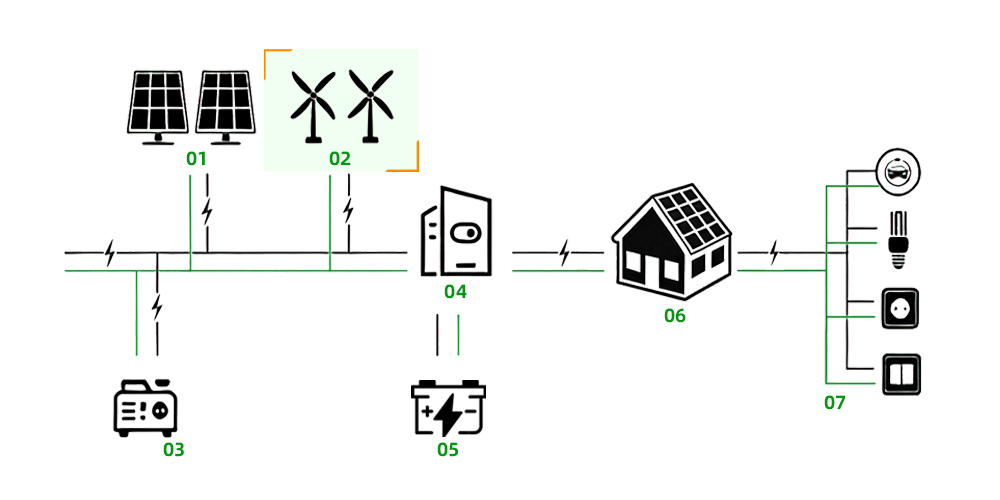

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit



Product Description

The VH Series vertical axis wind turbine (VAWT wind turbine) provides a compact and efficient renewable energy solution with power options from 100W to 5KW and voltage configurations from 12V to 380V.
Designed for residential, outdoor, and off-grid applications, this wind turbine can be integrated with solar panels and battery storage systems to create reliable off grid solar and wind systems for homes, cabins, container houses, and remote locations. With its vertical axis structure, low start-up wind speed, and stable performance in multi-directional wind conditions, the VH Series vertical wind generator is an ideal choice for wind power for off grid homes and small-scale clean energy projects.


Key Advantages

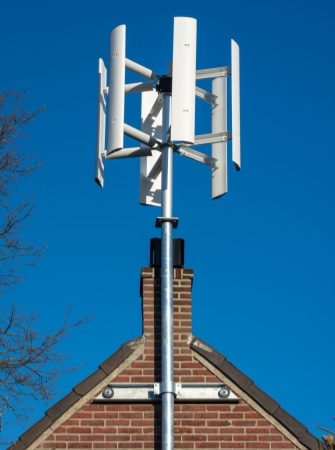

1. Compact Vertical Axis Design
H-type vertical axis wind turbine structure captures wind from different directions without a yaw adjustment system, providing stable operation in changing wind environments.
2. Low Start-Up Wind Speed
Starts generating power at wind speeds as low as 2.5m/s, making it suitable for residential and small-scale renewable energy applications.
3. Quiet Operation for Residential Use
Low-noise operation allows installation near homes, cabins, campsites, and outdoor living spaces.
4. Flexible Power Options
Available from 100W to 5KW with multiple voltage configurations, suitable for mini wind turbine applications and larger off-grid wind power systems.
5. Durable Outdoor Construction
The combination of aluminum alloy housing and carbon steel structure provides corrosion resistance, waterproof protection, and long-term outdoor durability.

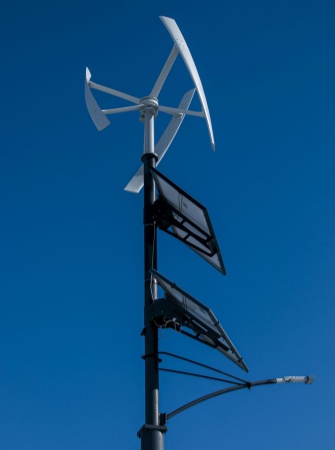

6. Easy Integration with Solar Energy
Designed to work together with photovoltaic panels and battery storage, creating off grid hybrid power systems and solar wind generator off grid systems.

Product Parameters

Product Detail

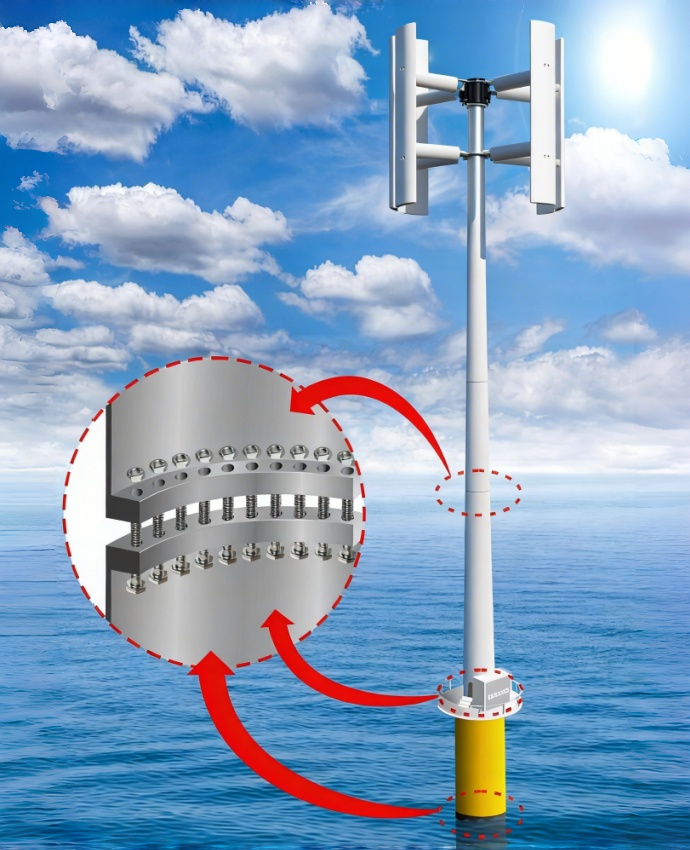

Tower & Mounting Solution

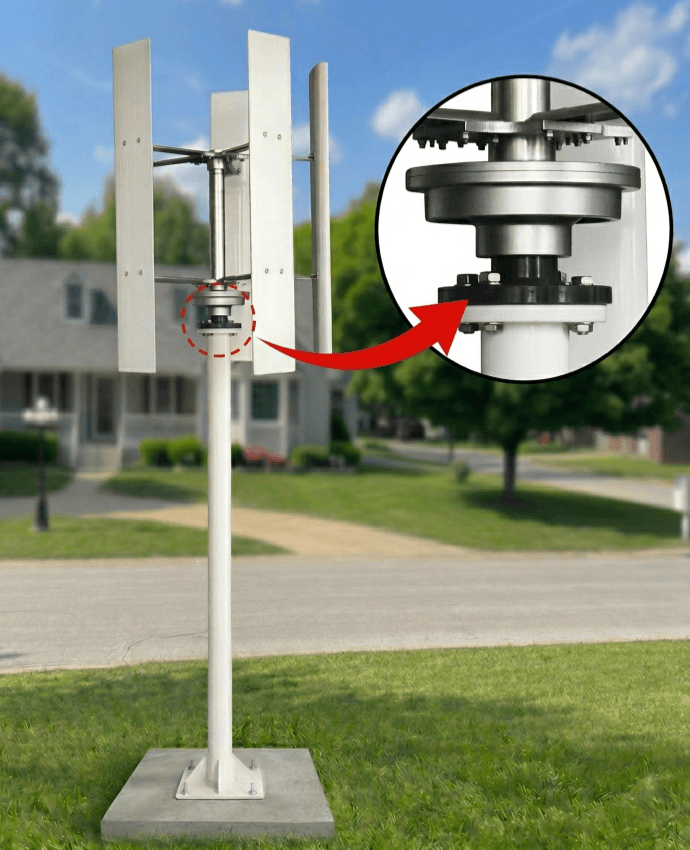

① Installation System
Designed with a standard flange mounting system, the turbine can be securely bolted to poles or tower structures, ensuring superior stability and durability in various environments. Insertion mounting is available as a custom option for selected low-power applications.

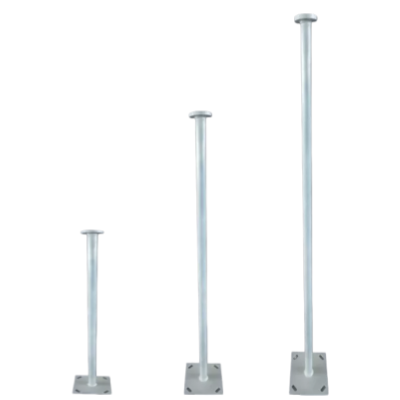

② Recommended Pole Configuration

Power Range	Recommended Pole Diameter	Suggested Height
100W - 500W	50mm	3 - 6m
500W - 1000W	60mm	6 - 10m
1000W - 2000W	89mm	8 - 12m

③ We offer matching poles, guy wire kits, and complete installation solutions. Customized wind-solar-storage systems are available upon request.

Applications

The VH series wind turbine generator is widely used in home backup power systems, camping and outdoor electricity supply, off-grid houses, container houses, mobile homes, and small modular building projects. It can be integrated with solar power systems and battery storage units to provide a one-stop clean energy and housing power solution, meeting daily electricity needs for lighting and basic household appliances. By combining wind power and solar energy, the VH Series provides a flexible clean energy solution for users seeking reliable off grid wind power systems and solar wind hybrid systems.
