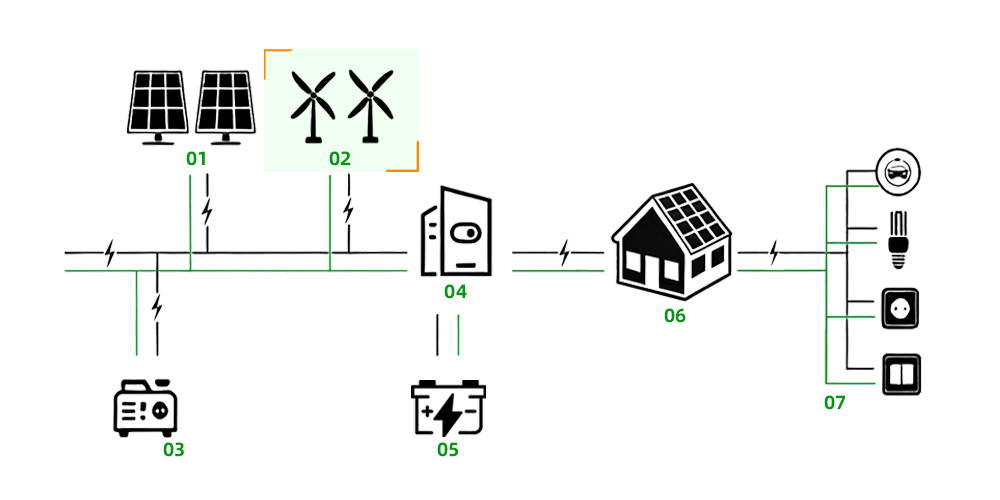

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads
01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

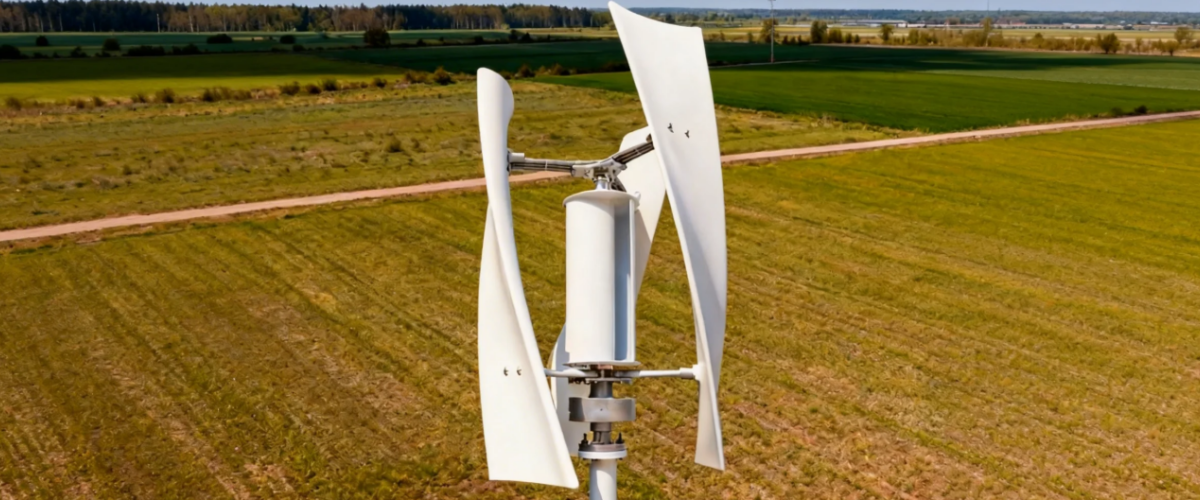

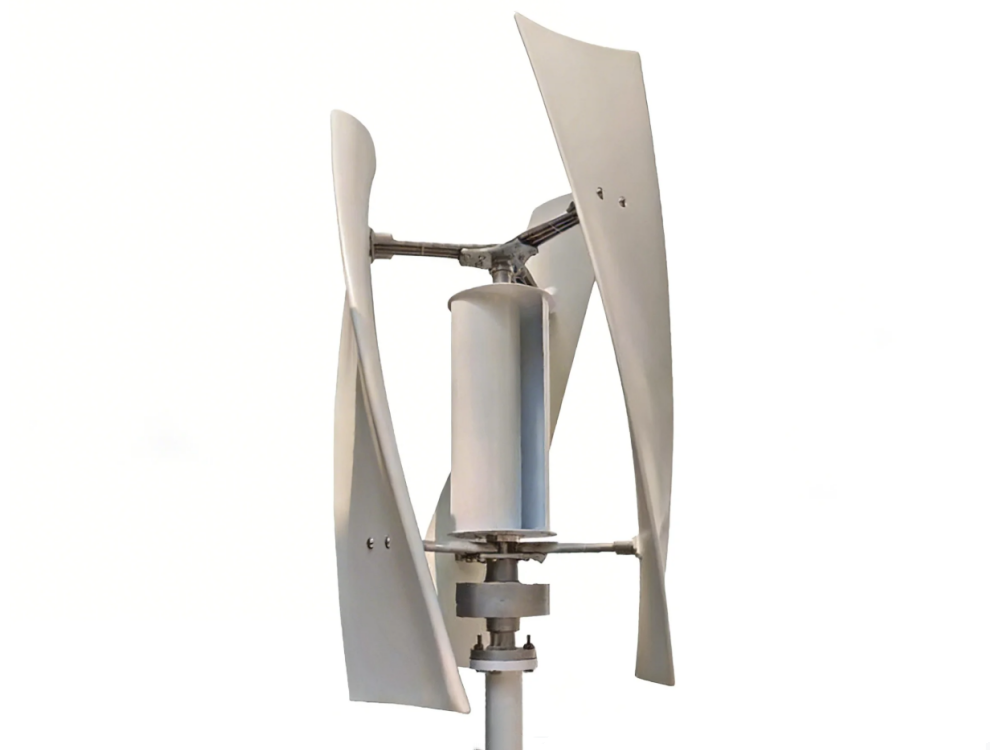

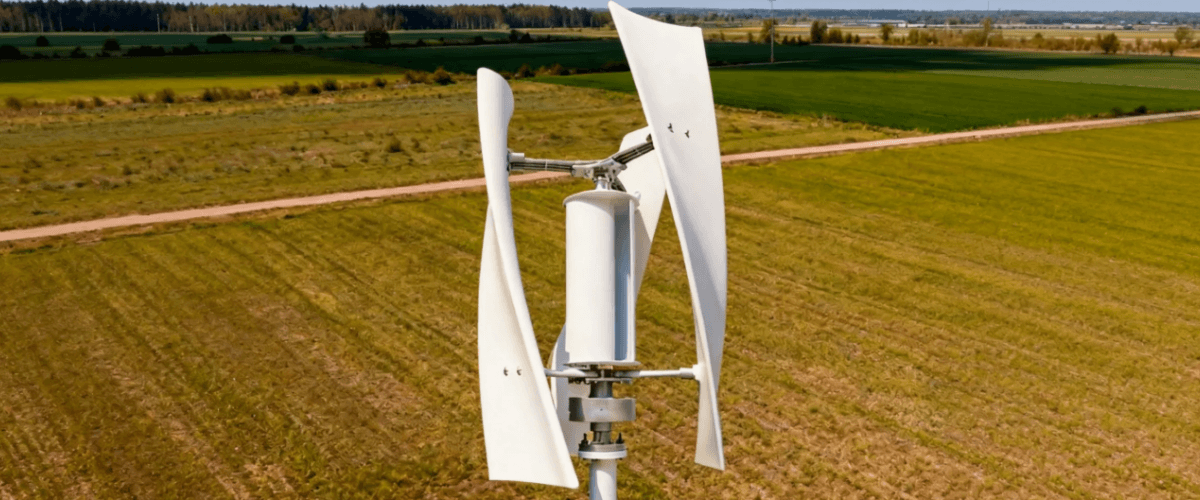

The X-type wind turbine is a compact vertical-axis wind turbine designed for efficient power generation in low- to medium-wind-speed conditions. Its unique cross-shaped blade configuration captures wind from any direction without the need for yaw control and ensures stable performance in turbulent environments. With a low cut-in speed and quiet operation, this model is ideal for residential, off-grid, and small-scale commercial applications.

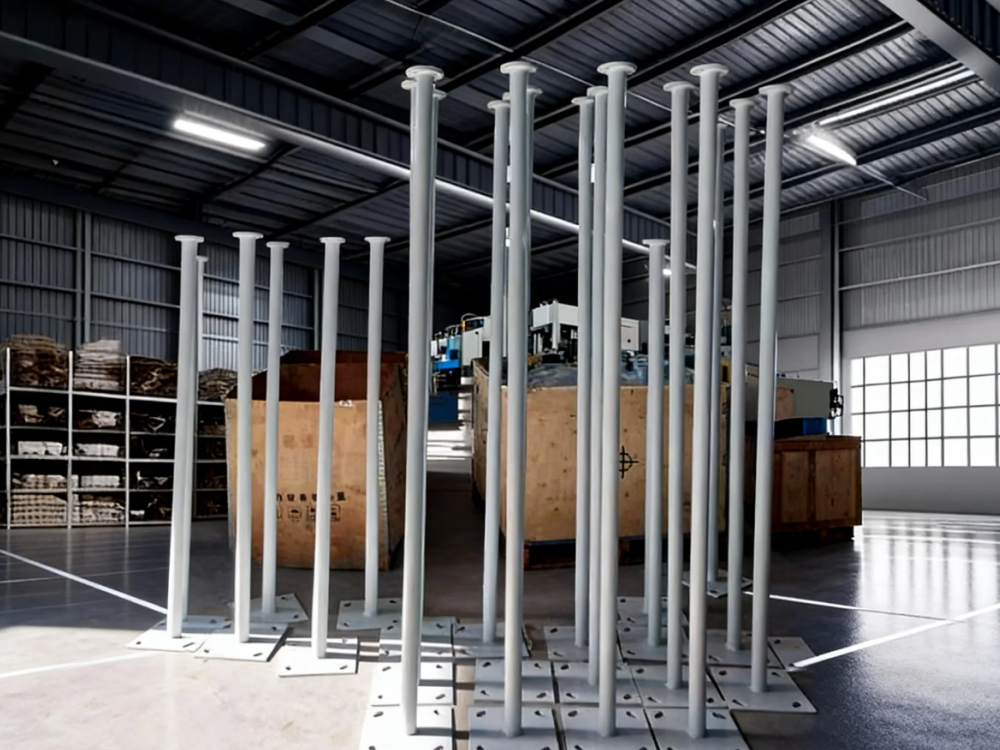

This wind turbine mounting pole is designed to provide a stable and durable support structure for small to medium-sized wind generators. Made of high-strength steel and treated with anti-corrosion coating, it ensures long-term performance in outdoor environments.Ideal for off-grid systems, residential use, and hybrid wind-solar installations.
1 kW fan + 6 m pole
3 kW fan + 9 m pole
5 kW fan + 12 m pole
Double-row deep groove ball bearings
feature a larger width and low operational vibration
High groove capacity and large diameter
| Model | NE-100 | NE-200 | NE-300 | NE-400 |
| Rated Power | 100W | 200W | 300W | 400W |
| Maximum Power | 130W | 220W | 320W | 420W |
| Rated Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Start-up Wind Speed | 3.0m/s | 3.0m/s | 3.0m/s | 3.0m/s |
| Rated Wind Speed | 10m/s | 11.5m/s | 11.5m/s | 11.5m/s |
| Safe Wind Speed | 45m/s | 45m/s | 45m/s | 45m/s |
| Net Weight of Main Unit | 9kg | 10kg | 11kg | 12kg |
| Rotor Diameter | 0.53m | 0.53m | 0.53m | 0.53m |
| Number of Blades | 3 | |||
| Blade Material | Nylon fiber | |||
| Generator | Three-phase AC permanent magnet generator | |||
| Braking Method | Electromagnetic brake | |||
| Operating Temperature | -40°C—80°C | |||
| Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
| 300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
| 600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
| 2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
| 5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
| 10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |
① Wind turbine
② Solar panel
③ Photovoltaic controller
④ Wind turbine controller
⑤ Battery bank
⑥ Various home appliances for prefabricated villas

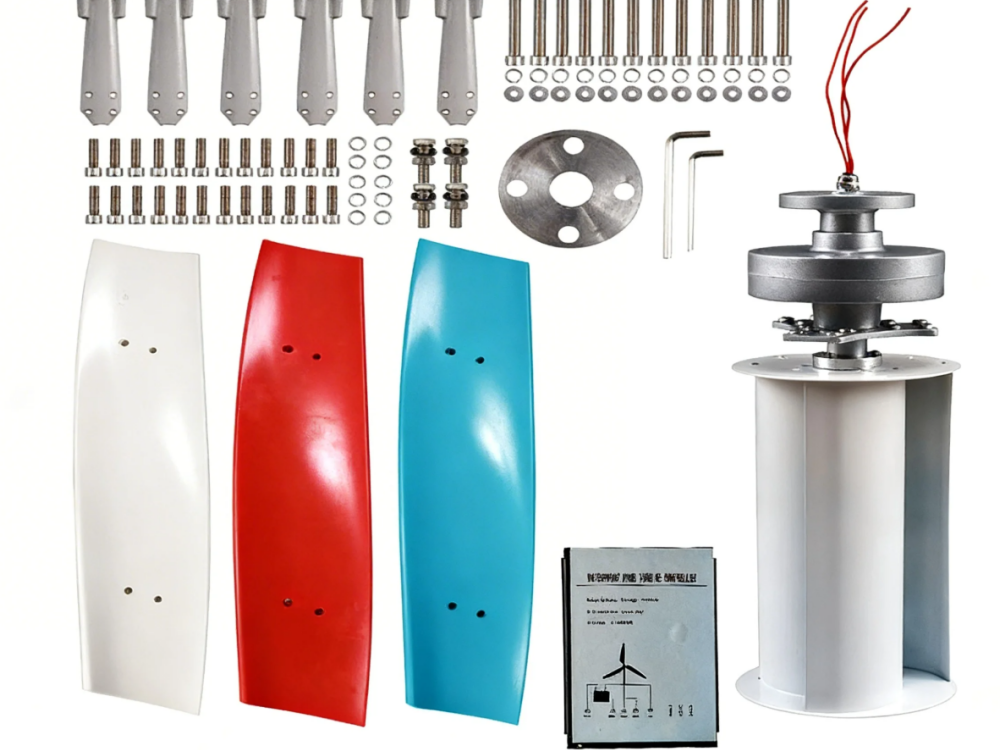

Generator
Rare Earth Permanent Magnet Generator
Fan Blade
New Plastic/Fiberglass Reinforced Plastic Blade
Flange Connection
Secure and Stable
Ideal for off-grid, remote, and distributed energy applications , including islands, rural homes, farms, and telecom systems.
