VL Series Vertical Axis Wind Turbine Generator with Motor Kit and Lighting for Camping and Home Use

Product Details

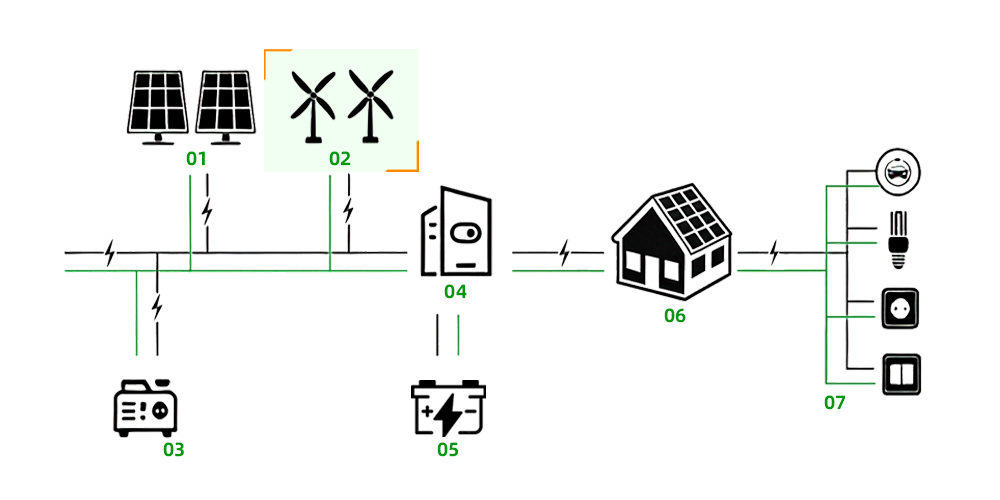

Integrated Housing Solutions

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

Product Description

The VL series wind turbine generator features a three-phase AC permanent magnet generator combined with magnetic levitation technology, ensuring low start-up wind speed and reliable performance. Its vertical axis structure allows automatic adaptation to varying wind directions without manual alignment. With an integrated motor kit and lighting system, it is capable of supplying power to lighting devices, battery storage systems, and small household appliances, making it a dependable option for home distributed wind power systems and outdoor camping electricity supply.

Key Advantages

1. Low-noise operation, ideal for home and outdoor use;
2. Starts generating in light winds, high efficiency;
3. Aerodynamic design for maximum wind energy utilization;
4. Aluminum alloy and carbon steel body with triple-layer protection against corrosion and leakage;
5. Automatic wind tracking ensures stable power supply;
6. Waterproof and dustproof, suitable for residential and outdoor installation.

Product Parameters

Model	VL300	VL400	VL500	VL600	VL800	VL1000
Rated power	300W	400W	450W	600W	800W	1000W
Max power	350W	350W	500W	650W	850W	1050W
Rated voltage	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V	12V
Start-up wind speed	2m/s	2m/s	2m/s	2m/s	2m/s	1.3m/s
Rated wind speed	12m/s	12m/s	12m/s	12m/s	12m/s	12m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s	45m/s	45m/s
Net weight of main engine	12kg	12kg	12kg	12kg	12kg	12kg
Number of blades	5 pieces	5 pieces	5 pieces	5 pieces	5 pieces	3 pieces
Blades material	nylon fiber	nylon fiber	nylon fiber	nylon fiber	nylon fiber	nylon fiber
Body material	nylon fiber	nylon fiber	nylon fiber	nylon fiber	nylon fiber	nylon fiber
Generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator	three phase AC permanent magnet generator/maglev generator
Control System	electromagnetic brake	electromagnetic brake	electromagnetic brake	electromagnetic brake	electromagnetic brake	electromagnetic brake
Yaw Mode	automatic windward angle	automatic windward angle	automatic windward angle	automatic windward angle	automatic windward angle	automatic windward angle
Lubrication mode	self lubrication	self lubrication	self lubrication	self lubrication	self lubrication	self lubrication
Working temperature	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃

Product Detail

Tower & Mounting Solution

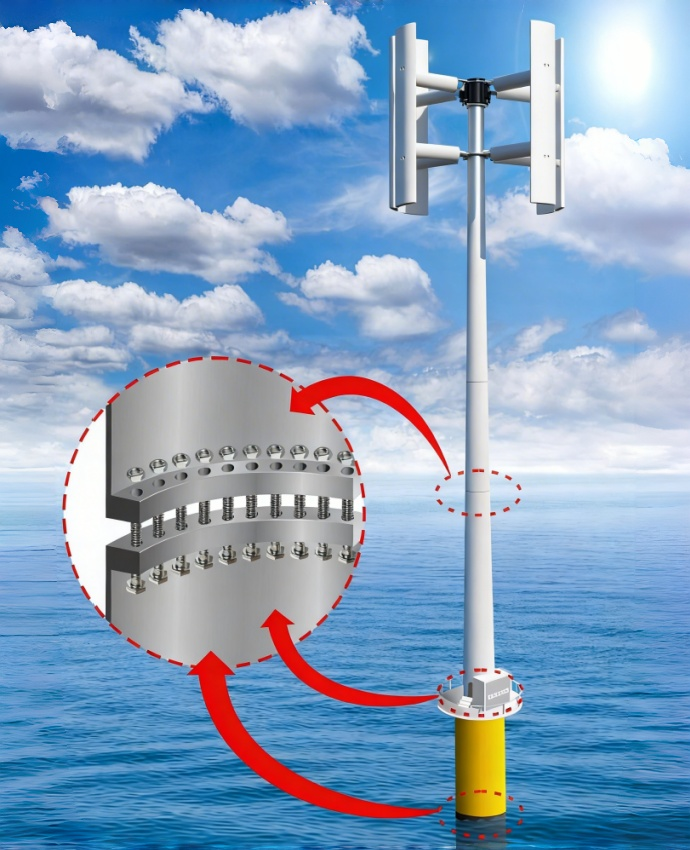

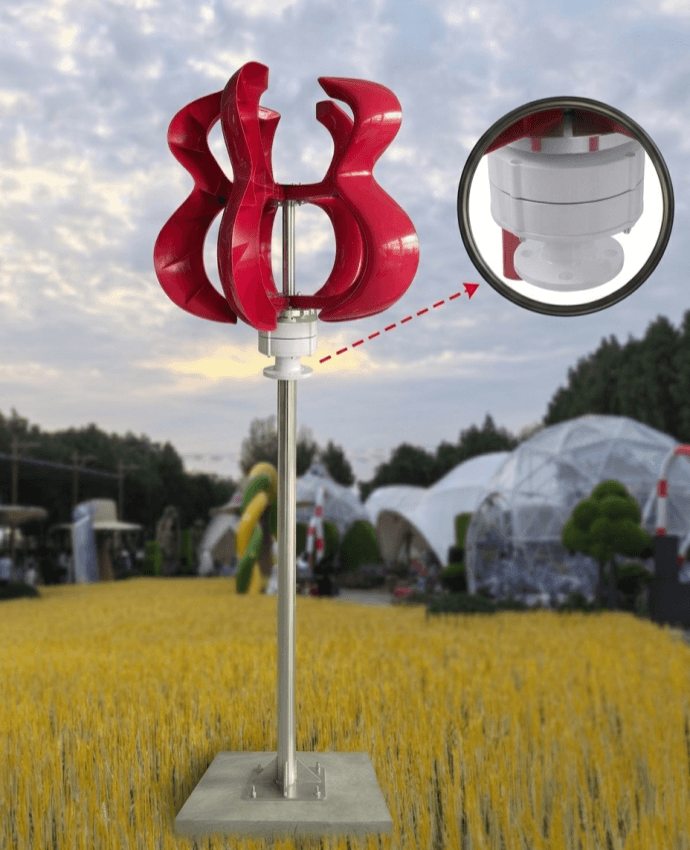

① Installation System
Designed with a standard flange mounting system, the turbine can be securely bolted to poles or tower structures, ensuring superior stability and durability in various environments. Insertion mounting is available as a custom option for selected low-power applications.

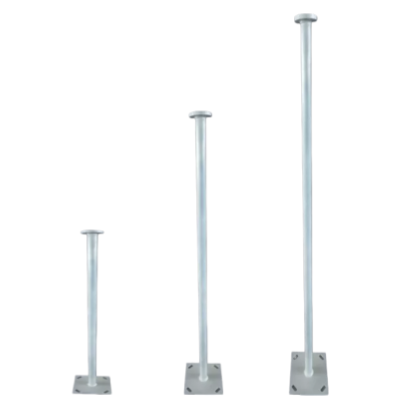

② Recommended Pole Configuration

Power Range	Recommended Pole Diameter	Suggested Height
100W - 500W	50mm	3 - 6m
500W - 1000W	60mm	6 - 10m
1000W - 2000W	89mm	8 - 12m

③ We offer matching poles, guy wire kits, and complete installation solutions. Customized wind-solar-storage systems are available upon request.

Applications

This product is suitable for camping power supply, home backup electricity, off-grid residences, container houses, mobile homes, and modular buildings. It can work together with solar power systems and battery storage units to deliver a one-stop clean energy and housing power solution, covering lighting and basic household electricity requirements.
