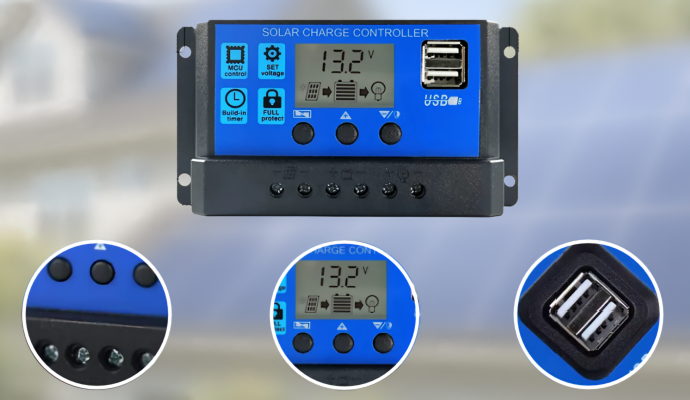

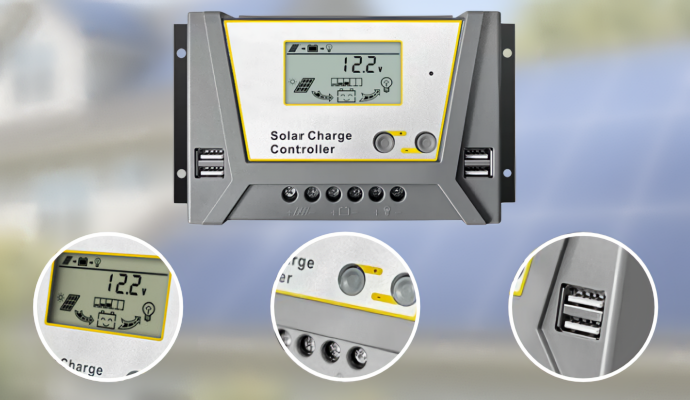

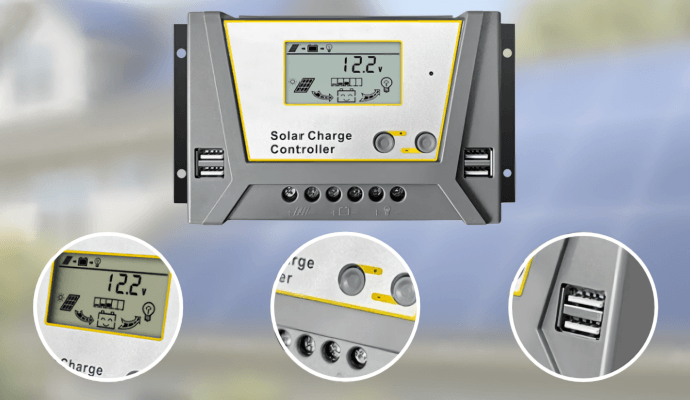

This solar charge controller is designed to provide safe, stable, and efficient charging for off-grid solar systems. Equipped with a large LCD display, it allows real-time monitoring of system status and easy parameter adjustment. The controller supports multiple battery types including lead-acid and lithium batteries, ensuring flexible application. Built-in intelligent protection functions effectively prevent overcharge, over-discharge, overload, and short circuits, extending battery lifespan. With dual USB ports and multiple load working modes (24H, light control, light + delay), it is ideal for home solar systems, lighting, and small power applications.
1. The LCD screen clearly shows voltage, current, and system status;
2. Multiple intelligent protections ensure safe operation and extend battery life;
3. Dual USB ports allow convenient charging for phones, tablets, and other devices;
4. The alloy backplate provides efficient heat dissipation for stable performance;
5. Flexible load modes support 24H, light control, and light+timer operation;
6. Durable ABS housing is impact-resistant, flame-retardant, and long-lasting.

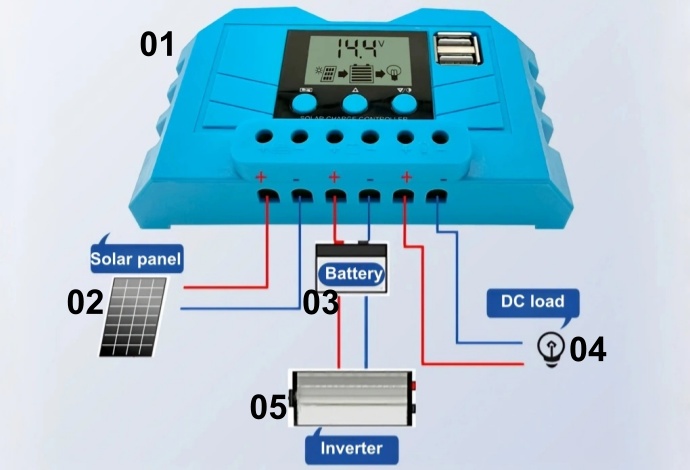

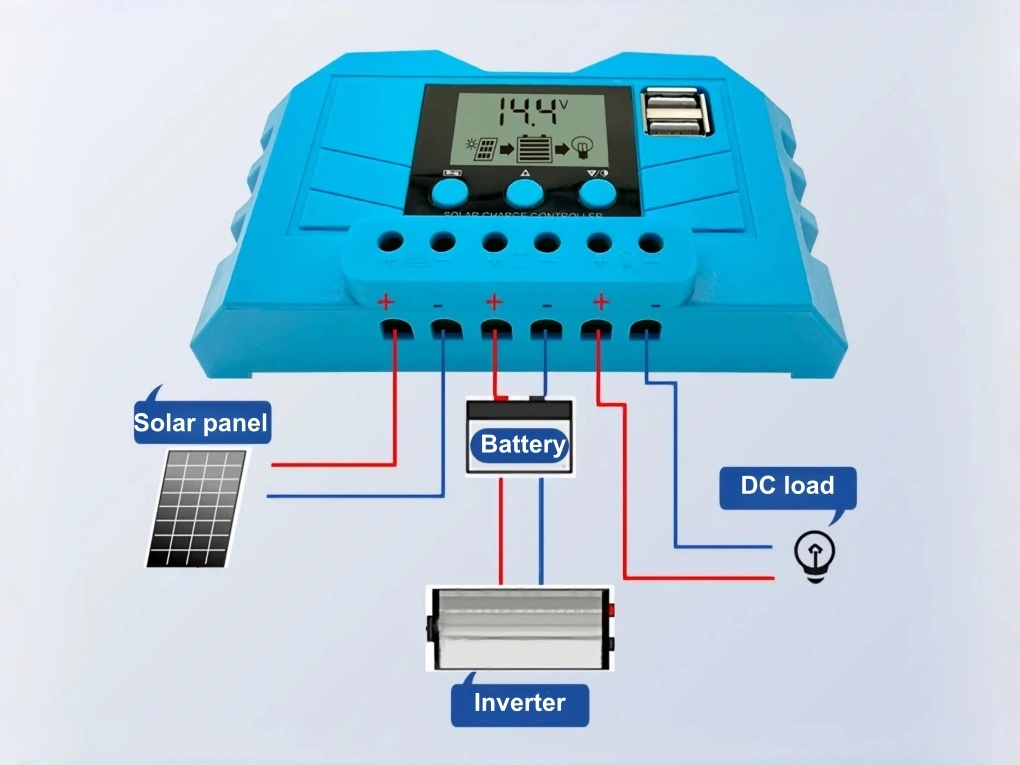

Step1: Connect the 03battery to the 01controller first (correct polarity required).
Step2: Connect the 04load to the 01controller (ensure correct polarity).
Step3: Connect the 02solar panel to the 01controller.
Important: Always follow this connection sequence to avoid damage to the controller.
| Series | Current Range | System Voltage | Max PV Voltage | Battery Type | USB | Features |
| Basic PWM | 10A – 30A | 12V / 24V Auto | 50V | Lead-acid / Lithium | 5V/1A | Cost-effective, simple control |
| Standard PWM | 10A – 60A | 12V / 24V Auto | 50V | Lead-acid / GEL / Flooded | 5V/2A | Adjustable parameters, stable performance |
| Advanced PWM | 10A – 80A | 12V / 24V / 48V Auto | 100V | Multiple battery types | 5V/2A | High voltage input, wider application |
| Solar Panel Power | Battery System | Recommended Controller | Typical Application |
| 100W – 200W | 12V | 10A – 20A | Small lighting / RV |
| 200W – 400W | 12V / 24V | 20A – 30A | Home backup / street light |
| 400W – 800W | 24V | 30A – 40A | Small house system |

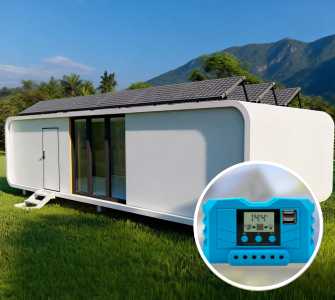

| 800W – 1200W | 24V | 40A – 50A | Modular house / cabin |
| 1200W – 2000W | 24V / 48V | 50A – 60A | Off-grid home |
| 2000W+ | 48V | 60A – 80A | Large system / island / remote |
Different systems require different controllers. That's why we offer multiple PWM series - from basic to advanced - to ensure the right balance between cost, performance, and system compatibility.
Our PWM controllers are categorized into three series:

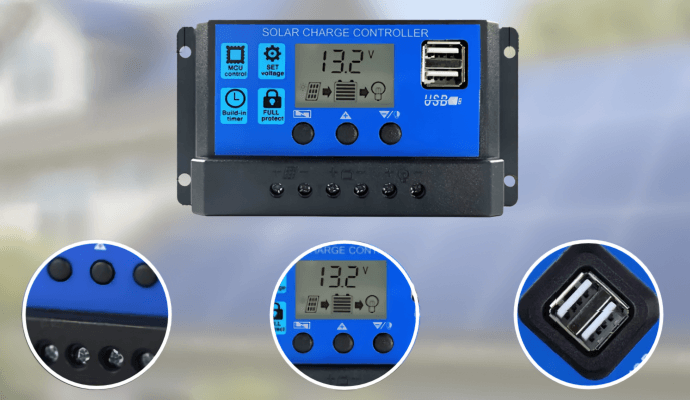

Basic PWM Solar Charge Controller
Cost-effective PWM controller designed for small off-grid solar systems such as lighting, street lamps, and entry-level applications.
Key Features
1. 12V / 24V automatic voltage recognition
2. Simple and stable charging control
3. Built-in basic protection functions
4. Low self-consumption (<10mA)
5. Dual USB output (5V/1A)

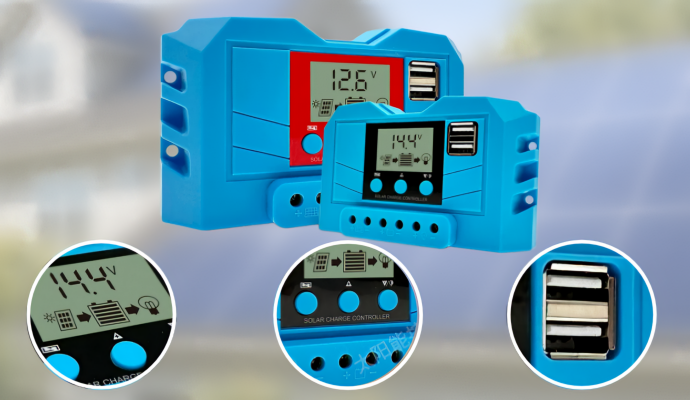

Standard PWM Solar Charge Controller
Reliable and versatile PWM controller for small to medium off-grid solar systems, offering adjustable parameters and stable performance.
Key Features
1. 12V / 24V automatic system recognition
2. Adjustable charging and discharging parameters
3. Supports multiple battery types (Sealed, Gel, Flooded)
4. Enhanced load output capacity
5. Dual USB output (5V/2A)
6. Stable performance for daily residential use
Advanced PWM Solar Charge Controller
High-performance PWM controller with extended voltage range, designed for larger and more demanding solar systems.
Key Features
1. 12V / 24V / 48V system support
2. Higher PV input voltage (up to 100V)
3. Wide current range up to 80A
4. Advanced charging management
5. Compatible with multiple battery types
6. Designed for high-power applications
