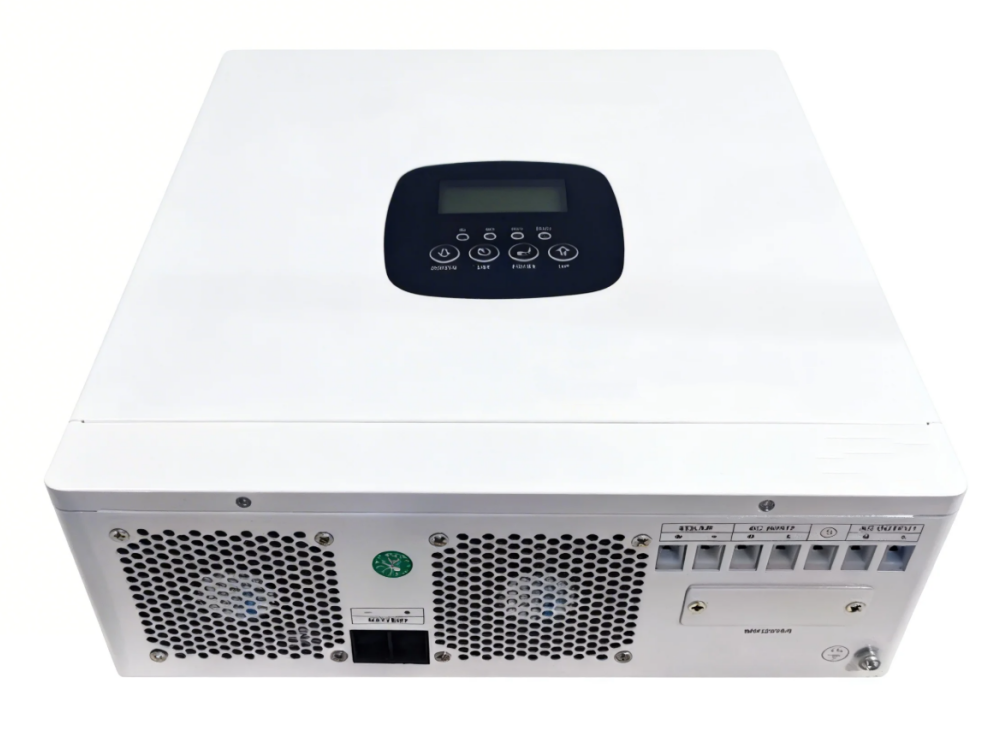

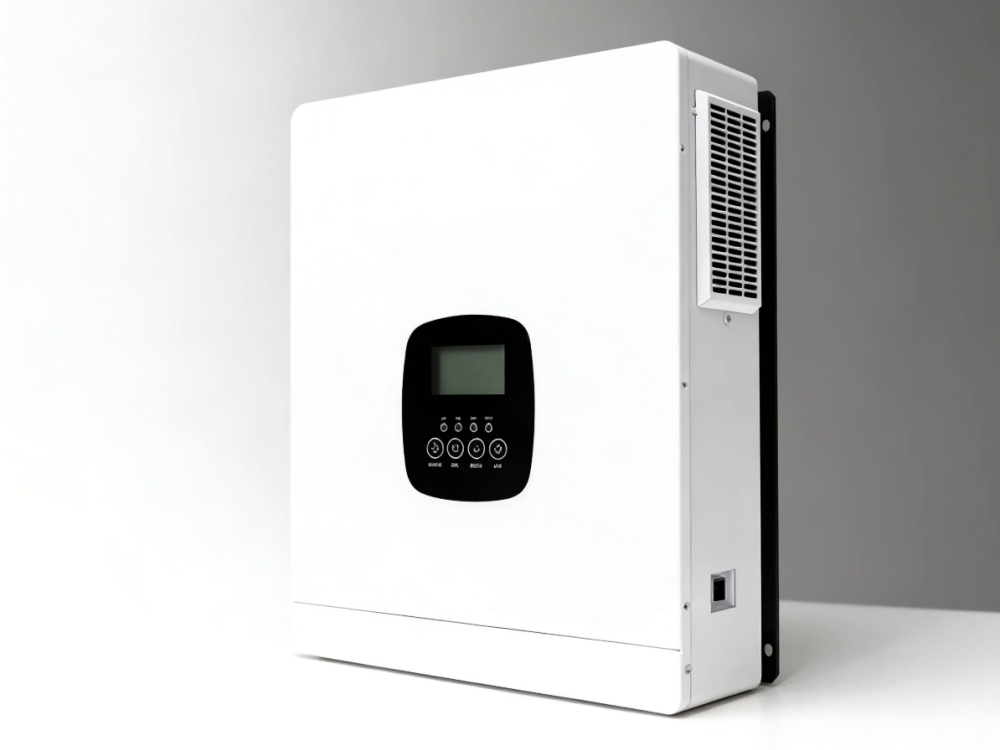

Off-Grid Solar Hybrid Inverter 2KW–12KW | 12V 24V 48V All-in-One MPPT Inverter

Product Details

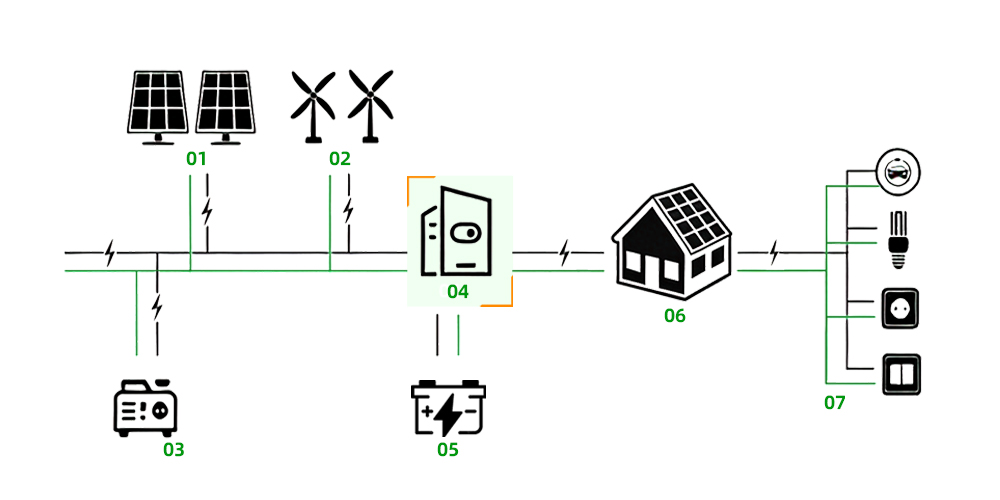

Integrated Housing Solutions

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

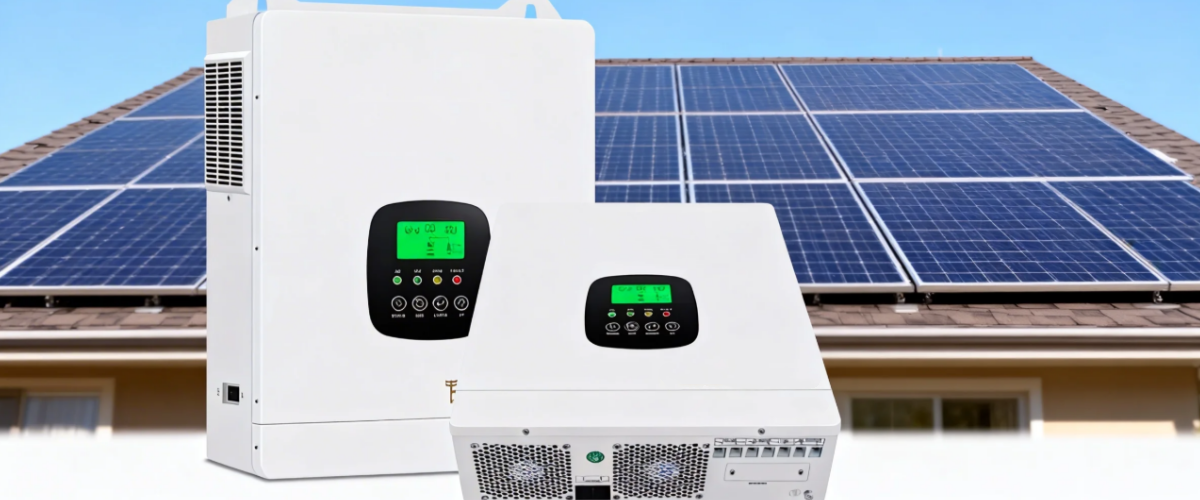

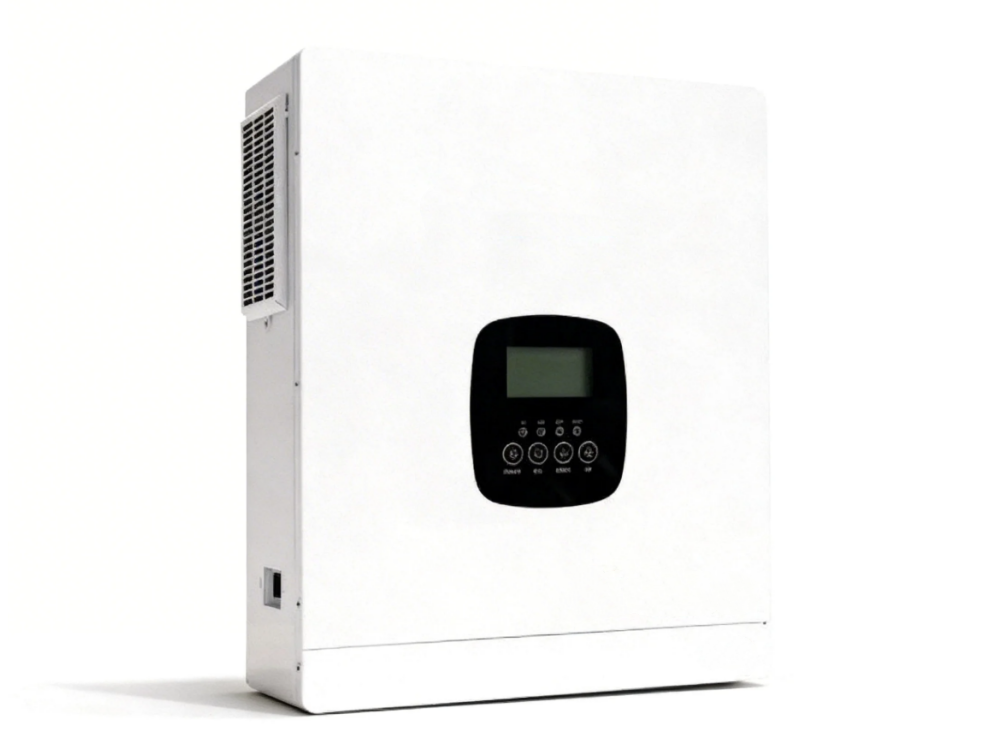

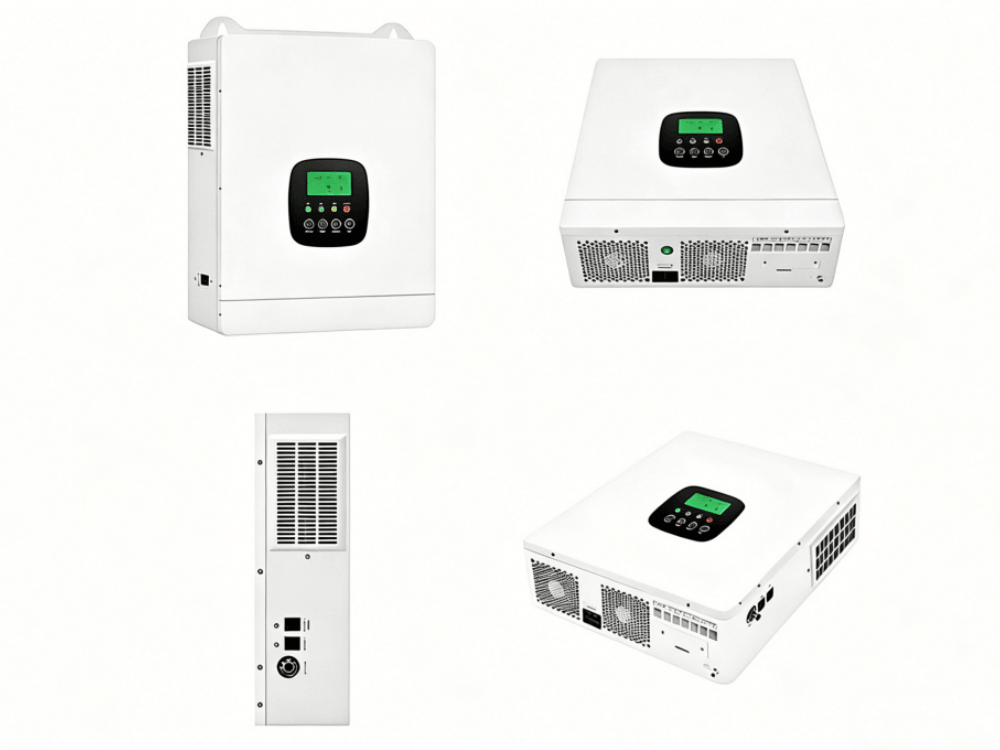

Product Description

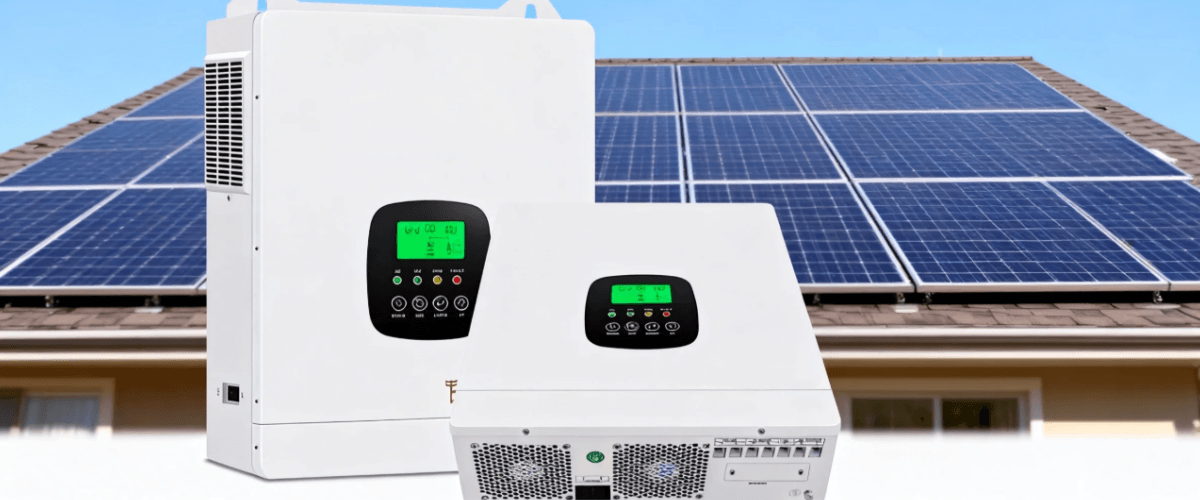

This integrated system brings together advanced MPPT solar charging, pure sine wave inversion, and AC input/charging functions into a single compact unit, reducing the need for multiple devices and simplifying installation. It efficiently manages energy flow between solar panels, batteries, and backup power sources, ensuring stable and reliable electricity supply in off-grid and backup applications.

Key Advantages

1.Cost-effective all-in-one solution
2.Simplified installation and wiring
3.Stable performance in off-grid environments
4.Flexible system expansion
5.Suitable for both entry-level and mid-range users
6.Ensure operational safety
Battery low voltage alarm & Battery low voltage protection
Anti-islanding protection & Overload power protection
Output short circuit protection & Temperature protection

Flexible Power Modes for Different Energy Needs

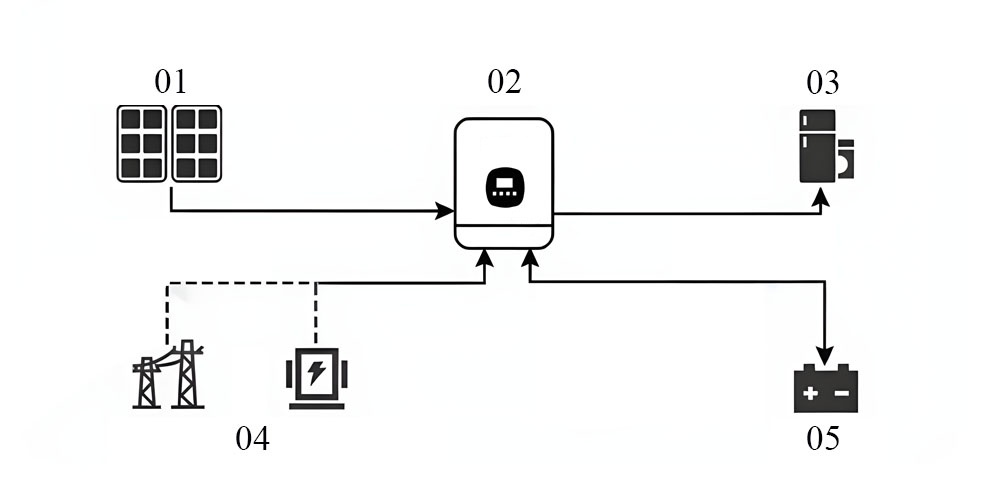

1.Off-Grid Mode (Independent Power Supply)

01 Solar Panels
02 Inverter
03 AC Loads
04 Power Grid or Generator
05 Battery

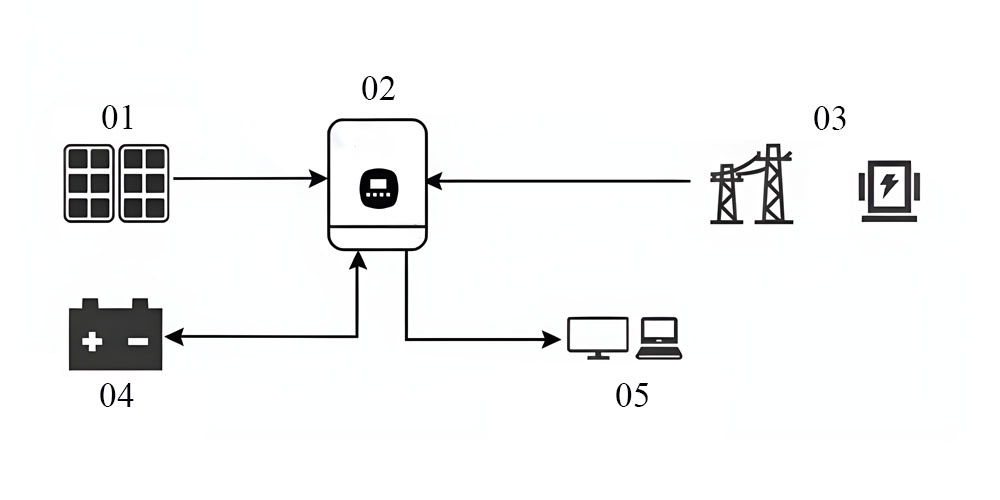

2.Hybrid Mode (Solar + Battery + Grid / Generator)

01 Solar Panels
02 Inverter
03 Power Grid or Generator
04 Battery
05 AC Load

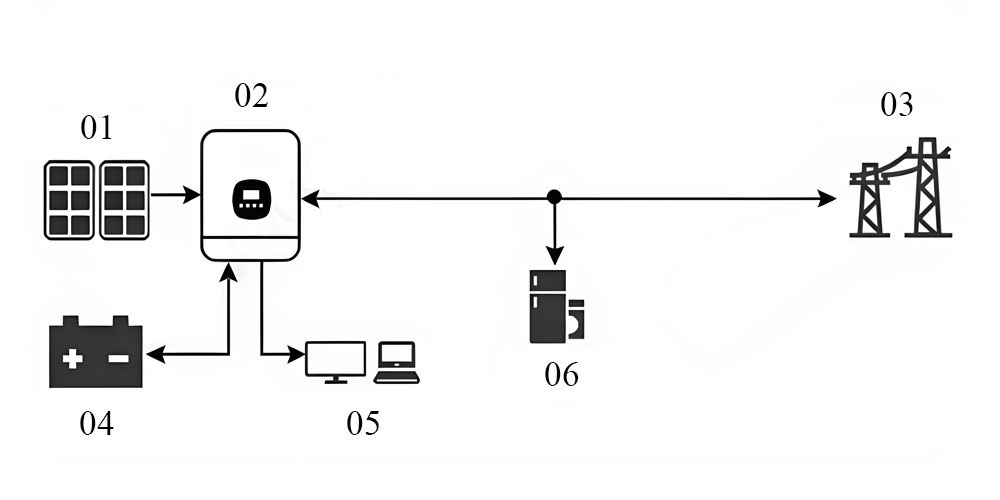

3.Grid-Tied Mode (Connected to Utility Grid)

01 Solar Panels
02 Inverter
03 Power Grid
04 Battery
05 AC Loads
06 AC Loads

Parameter Table

Model	1300H	2300H	4300H	6300H	8300H	10300H	12300H
Rated Power	1300W	2300W	4300W	6300W	8300W	10300W	12300W
Output Waveform	Pure Sine Wave
Output Voltage	230V	230V	230V	230V	230V	230V	230V
Battery Voltage	DC 12V	DC 24V	DC 24V	DC 48V	DC 48V	DC 48V	DC 48V
AC Input Voltage	AC 230V	AC 230V	AC 230V	AC 230V	AC 230V	AC 230V	AC 230V
AC Charging Current	50A	50A	100A	80A	100A	120A	150A
PV Input Voltage	30-300V	40-500V	40-450V	80-450V	80-450V	80-450V	80-450V
PV Input Power	2000W	3000W	5000W	7000W	4500W*2	6000W*2	6000W*2
PV Charging Current	80A	80A	150A	120A	150A	180A	200A
Dimensions(mm)	28525091		375297102	390320112	515365117	535462117	630540130
Weight(kg)	5	5.5	8	9.5	15	17	25
Noise	≤55dB
Operating Temperature	-10℃~50℃

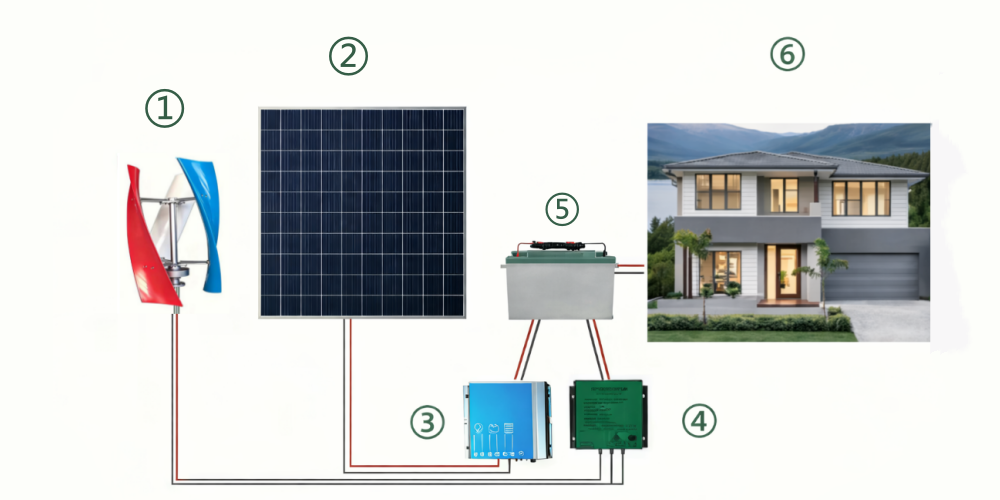

① Wind Turbine
② Solar Panel
③ Photovoltaic Controller
④ Wind turbine Controller
⑤ Battery Bank
⑥ Various Home Appliances For Prefabricated Villas

Application Scenarios

Ideal for off-grid, marine, and remote power systems where reliable and sustainable energy is essential, combined with a wind turbine and battery system, this setup provides basic power for lighting, refrigerators, communication equipment, and more.

Light-Gauge Steel Villas

Modular Container Homes

Space Capsules

Houseboats
