450W–650W Solar Panel Mounting System Kit for Roof & Ground | Rails, Brackets, Clamps

High-efficiency solar panels, paired with durable mounting systems, rails, clamps, and connectors, deliver reliable and long-lasting power generation. Our comprehensive photovoltaic solutions are designed for both residential and commercial applications,
Maximum Power: 450 / 550 / 650 W
Maximum Conversion Efficiency: 23 / 23.2 / 24.1%
Current at Maximum Power Point: 10.88 / 13.17 / 11.69A
SEND INQUIRY WHATSAPP

Product Details

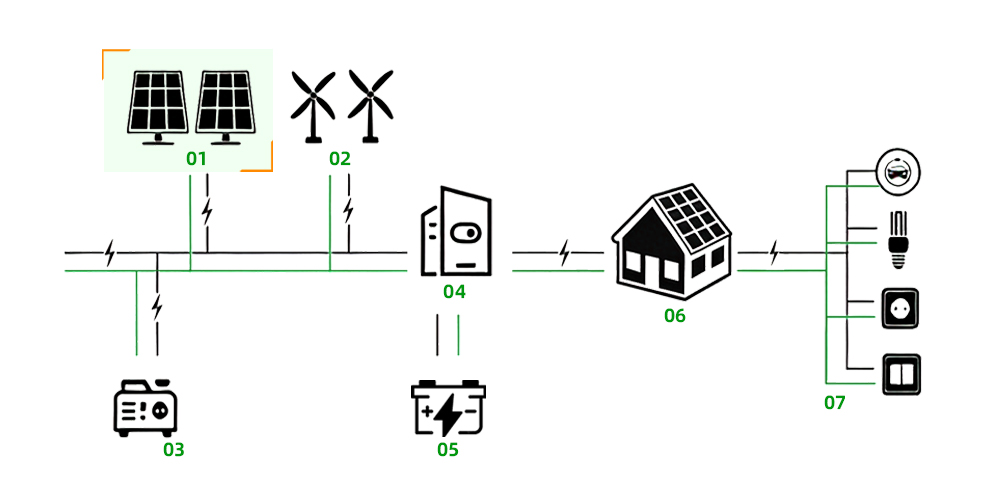

Integrated Housing Solutions


01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit



Product Description



This solar mounting system is designed to securely install 440–450W photovoltaic panels on various surfaces, including metal roofs, tile roofs, and ground structures.
It includes mounting rails, brackets, mid clamps, end clamps, and grounding clips, ensuring both structural stability and electrical safety.
Ideal for:

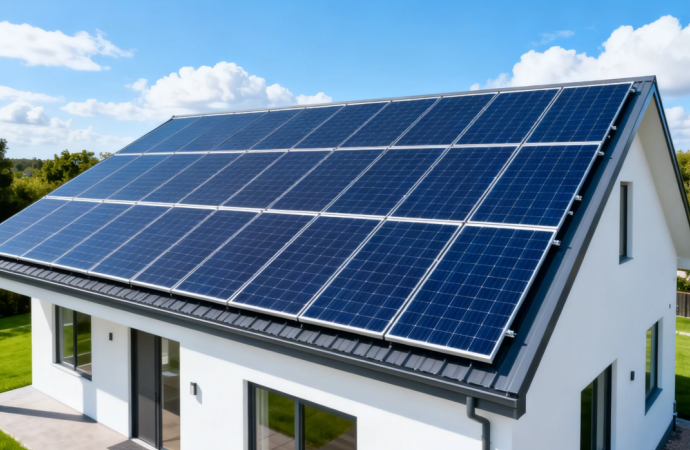

Residential solar systems
Off-grid living solutions
Small commercial solar projects




Key Advantages


1.Easy Installation
Pre-assembled components reduce installation time and labor cost.
2.High Durability
Corrosion-resistant aluminum and stainless steel materials ensure long-term outdoor use.
3.Strong Load Capacity
Designed to withstand wind load up to 2400Pa and snow load up to 5400Pa.
4.Universal Compatibility
Fits most standard framed solar panels (440–450W range).
5.Safe Electrical Grounding
Integrated grounding clips improve system safety and compliance.

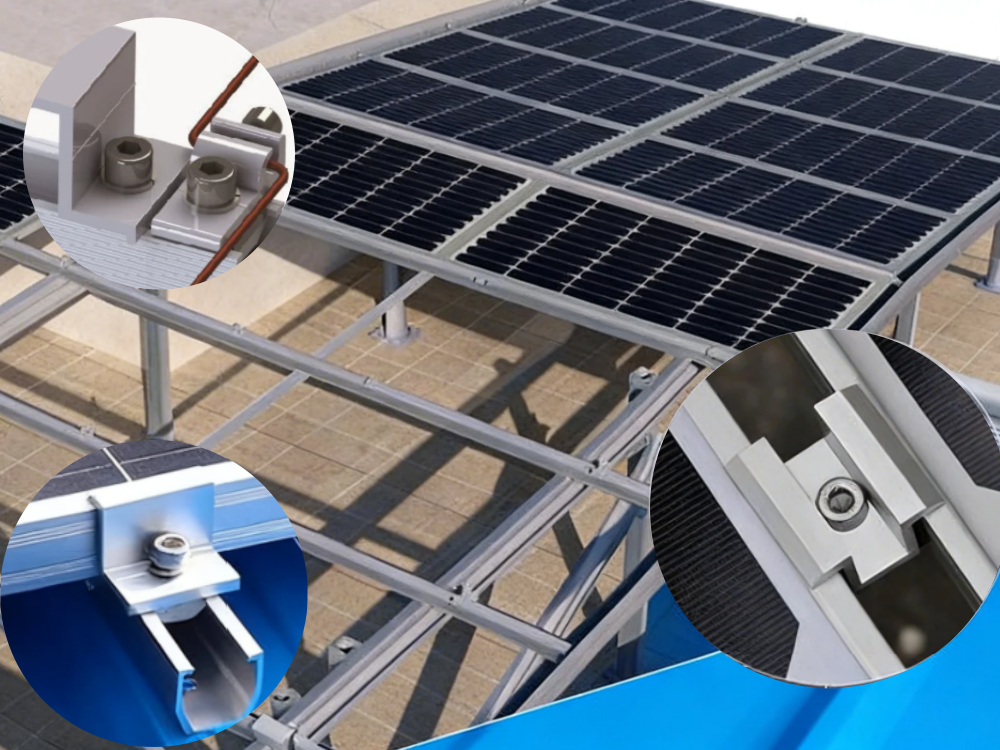

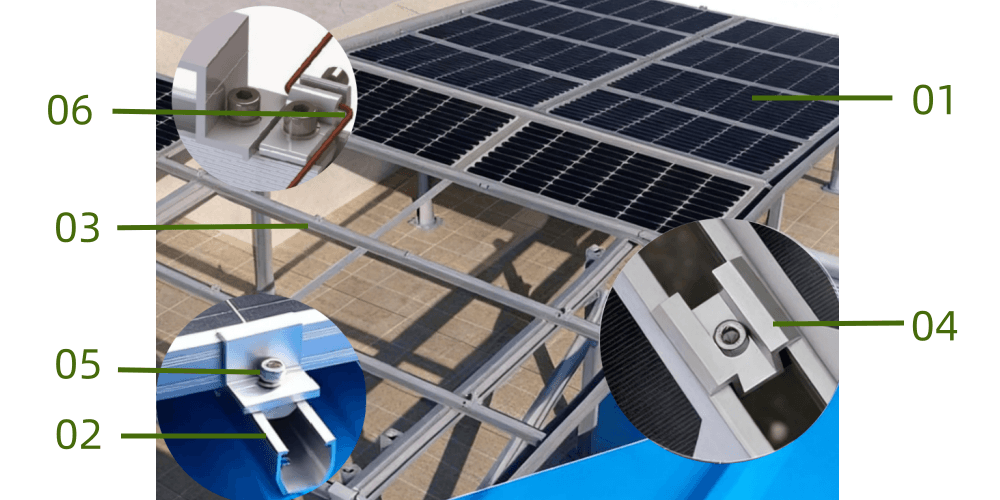

System Components

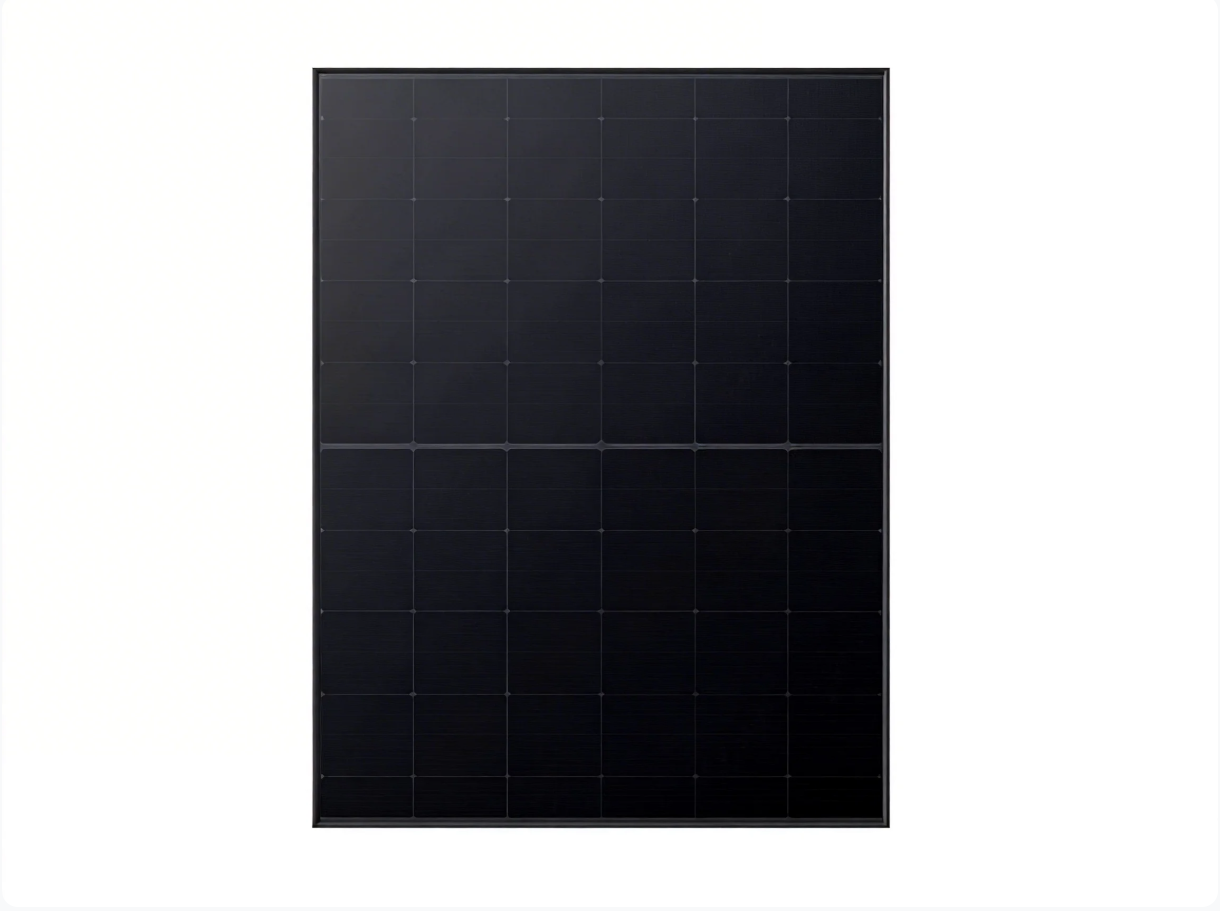

01 Solar PV Panels
High-efficiency mono solar panels with stable output and long lifespan.
02 Mounting Rails
Lightweight yet strong aluminum rails for panel support.
03 Mounting Brackets

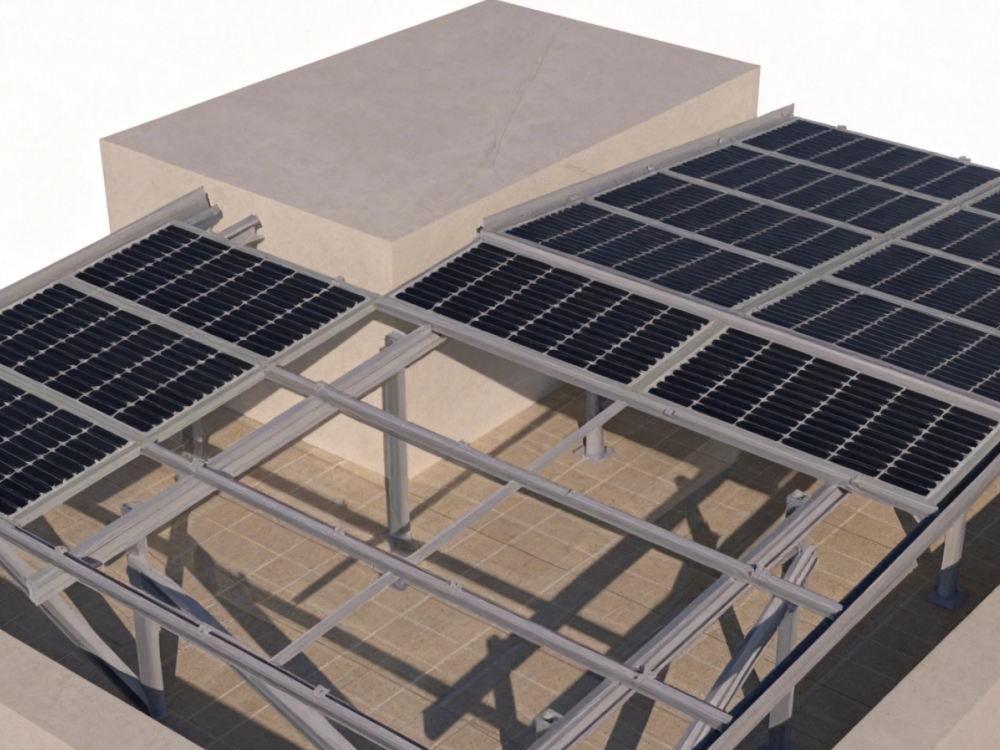

Designed for roof or ground installation with strong load resistance.

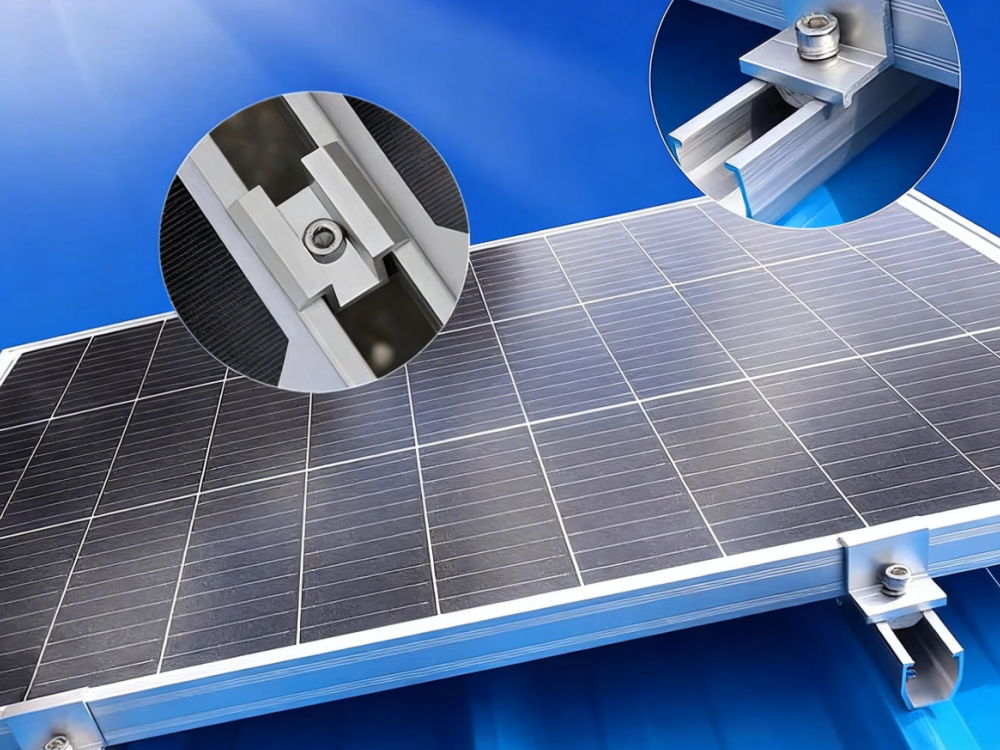

04 Mid Clamps
Used between panels to secure and align modules.
05 End Clamps
Used at the edge of panels for firm fixation.

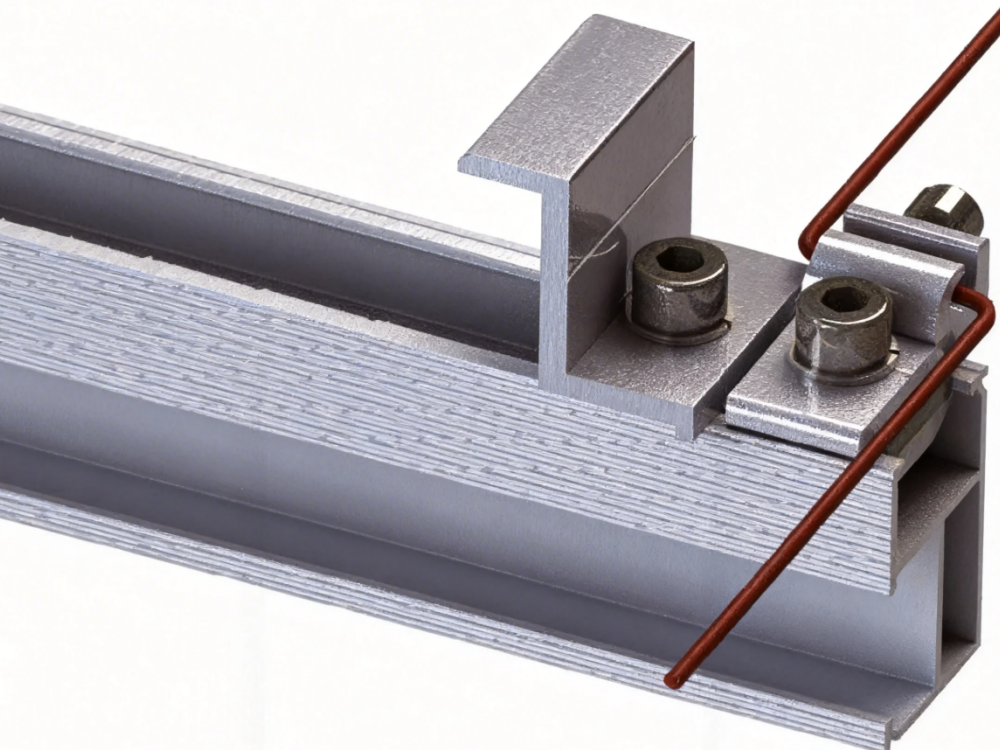

06 Grounding Clips
Ensure electrical continuity and system safety.



Parameter Table

Model M450 M550 M650
Conversion Efficiency 23% 23.20% 24.10%
Maximum Power 450W 550W 650W
Number of Cells 108 144 144
Dimensions (mm) 1722*1134*30 2279*1134*30/35 2382*1134*30
Module Weight (KG) 20.8 29.5 28.5
Current at Maximum Power Point(A) 10.88 13.17 11.69
Operating Temperature -40℃~+85℃
Power Tolerance 0-3% ±3% 0-3%
Maximum Static Load on the Front 5400Pa


① Wind Turbine
② Solar Panel
③ Photovoltaic Controller
④ Wind turbine Controller
⑤ Battery Bank

⑥ Various Home Appliances For Prefabricated Villas



Installation Guide


Basic Steps:
1.Install mounting brackets on roof or ground
2.Fix aluminum rails onto brackets
3.Place solar panels on rails
4.Secure with mid clamps and end clamps
5.Install grounding clips for safety


Application Scenarios

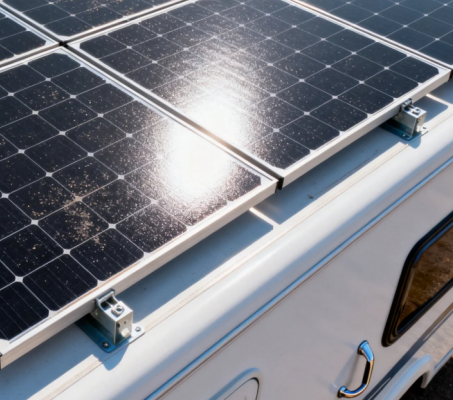

Monocrystalline solar panels are widely used in residential, off-grid, agricultural, and integrated energy systems, including modular homes, camping setups, RVs, and houseboats, delivering efficient and reliable power across diverse application scenarios.
