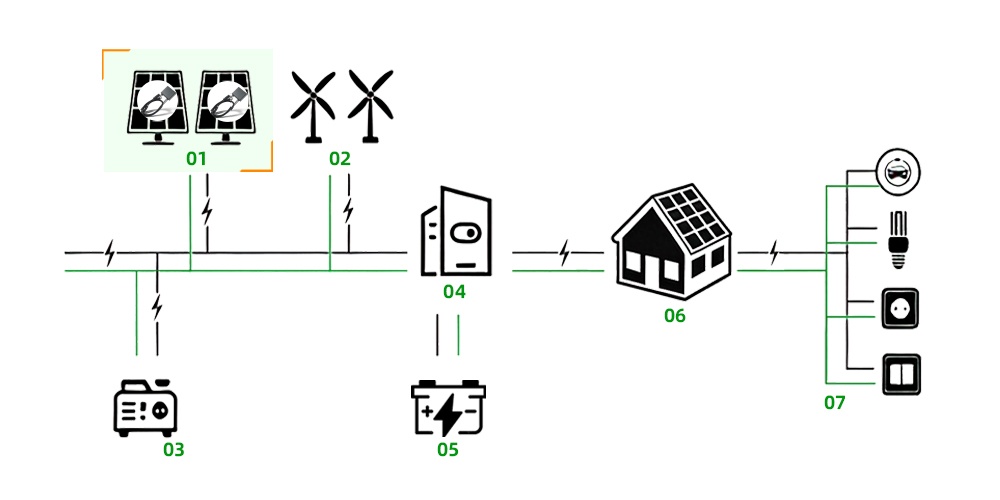

Integrated Housing Solutions

01 Solar Panel (with optimizer)
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

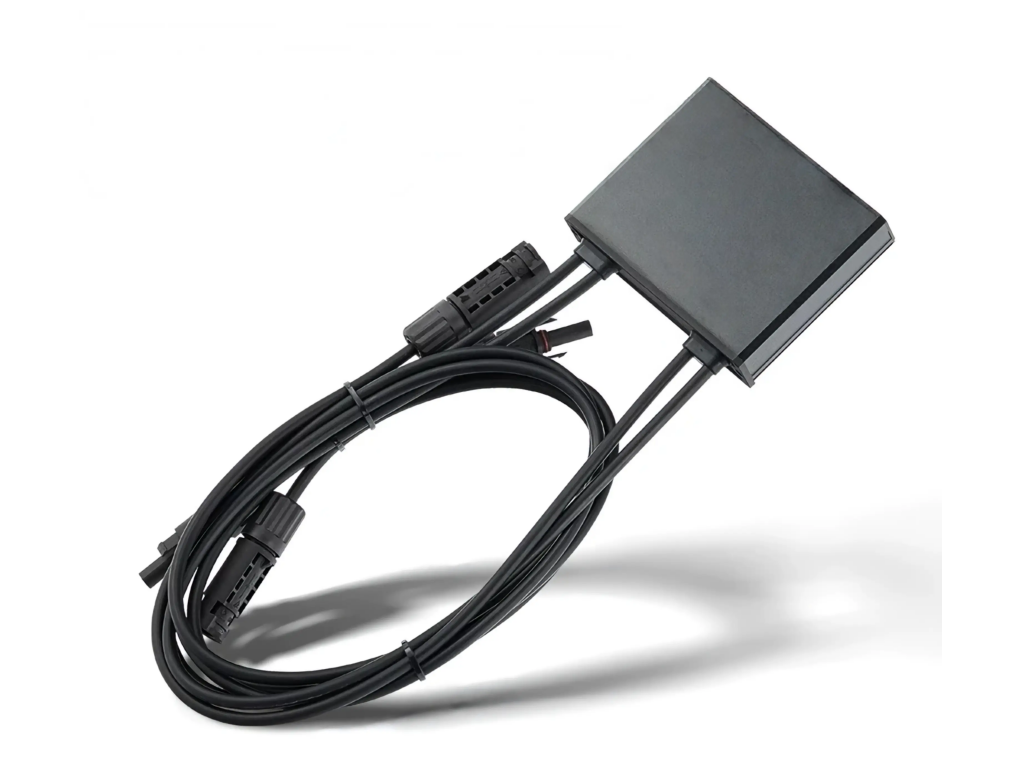

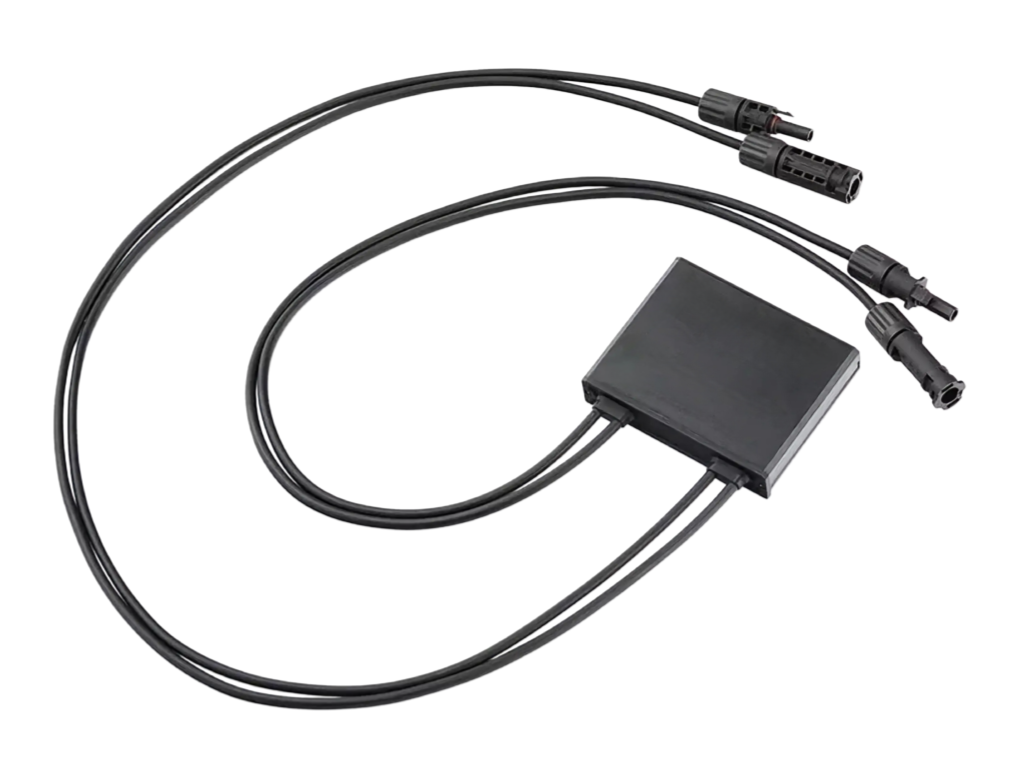

Product Description

This solar optimizer utilizes module-level MPPT technology to independently optimize each solar panel, preventing performance loss of a single module from affecting the entire string. It significantly improves overall system efficiency under complex conditions such as shading, mismatch, orientation differences, and aging, ensuring stable and higher energy output. It is also compatible with hybrid inverters and battery systems, enabling complete home energy solutions.



Product Advantages


1. Module-level MPPT reduces shading impact and increases energy yield by 5 - 30%;
2. Independent optimization for each panel eliminates the “weakest link” effect;
3. Dual installation methods (screw & clip) for fast and easy setup;
4. IP68 protection for harsh outdoor environments

5. Long lifespan of over 25 years with high reliability;
6. Compatible with mainstream solar panels and inverters;
7. Maximizes rooftop utilization and system efficiency;
8. Supports integrated solar + storage + energy system solutions.

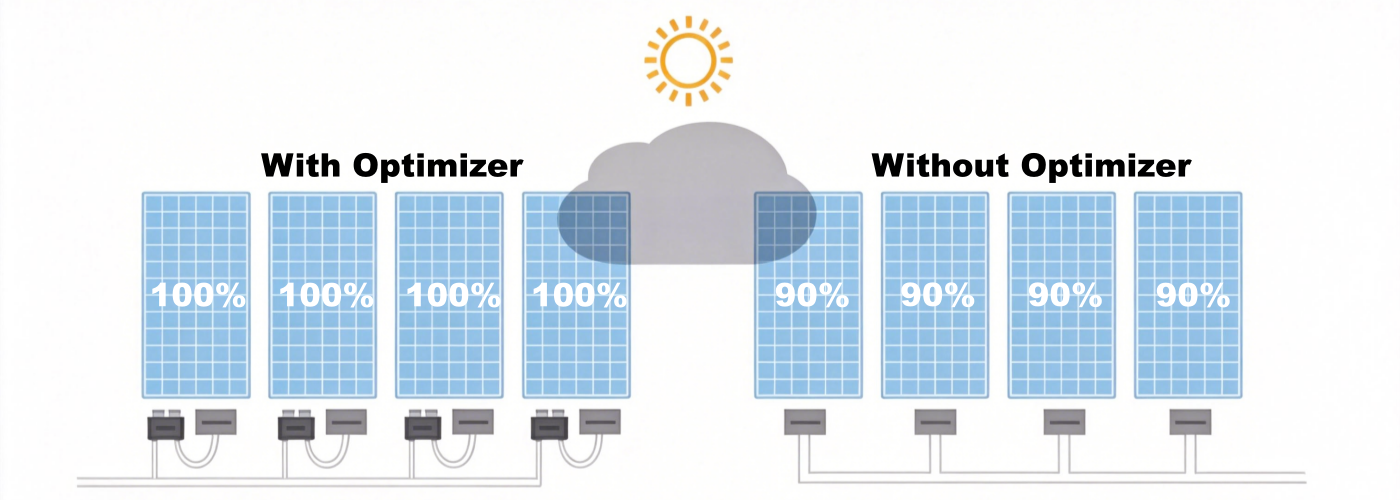

Working Principle

The optimizer is installed on each solar panel and uses an internal MPPT algorithm to track the maximum power point of each module in real time. It independently regulates voltage and current, preventing underperforming panels from reducing the output of the entire string, thereby improving overall system efficiency.

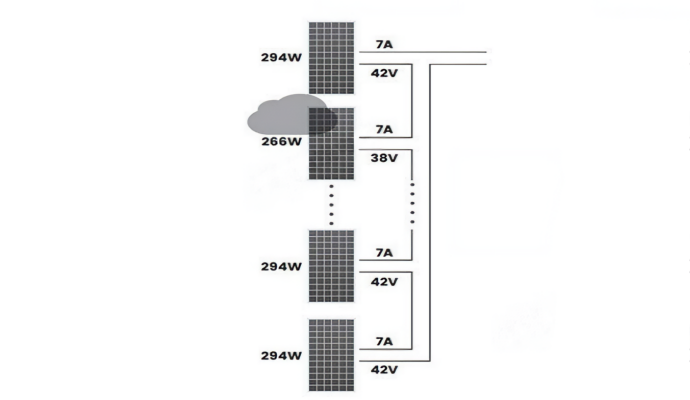

Shaded PV System (without optimizer)

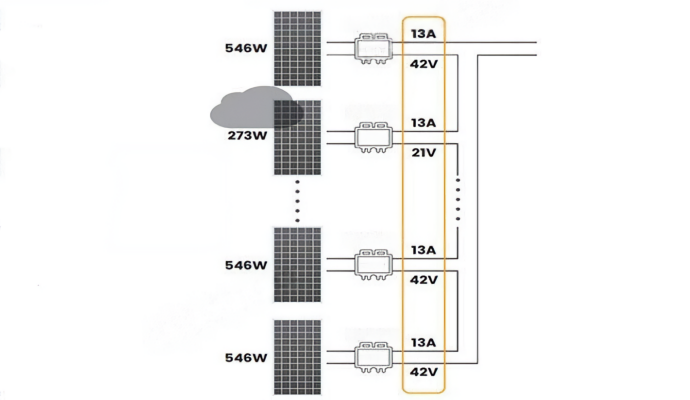

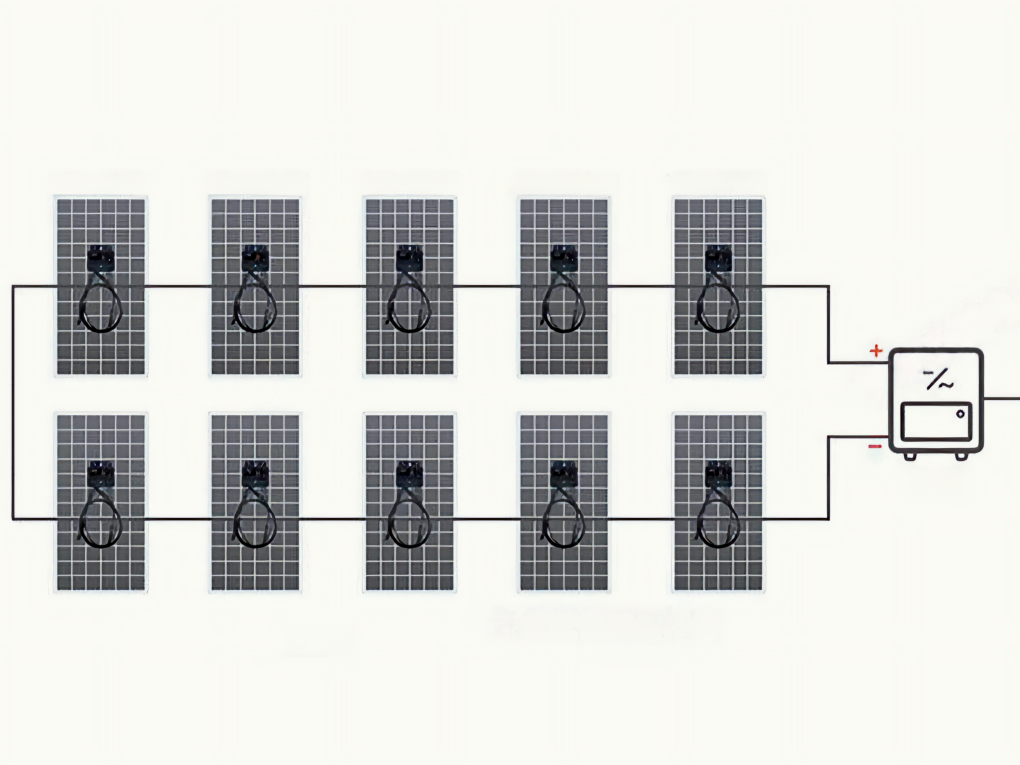

Shaded PV System with Optimizer

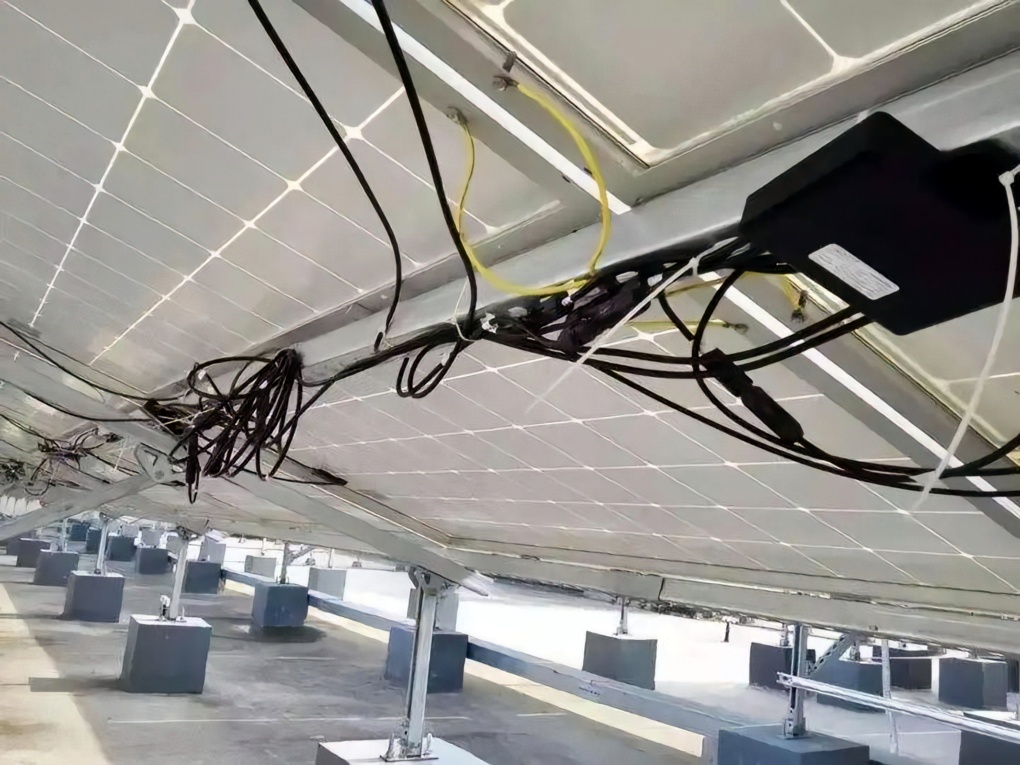

Installation Guide

For best performance, it is recommended to install optimizers on every panel, especially in systems with shading or module mismatch. For budget-limited projects, prioritize installation on shaded panels and adjacent modules to reduce string losses.
Selection Guide:
· ≥550W panels: choose 800W optimizer
· 300W–550W panels: choose 600W optimizer

Not Recommended When:
· No shading and all panels have identical orientation
· Low-power panels below 300W (limited improvement)
· Small-scale or budget-limited projects


Applications

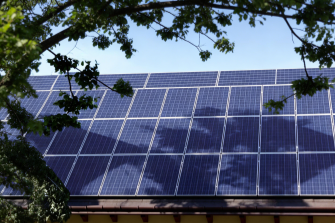

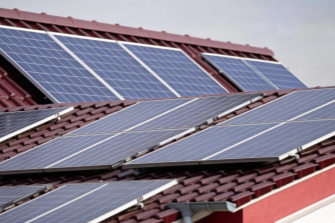

Shading

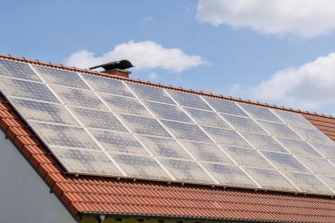

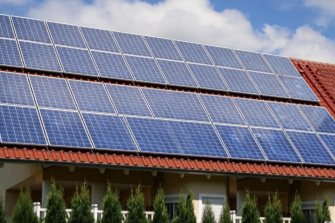

Soiling

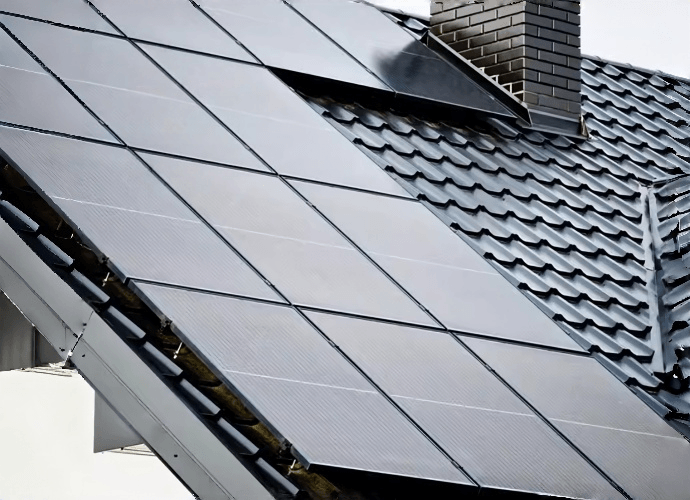

Orientation Mismatch

Module Degradation
