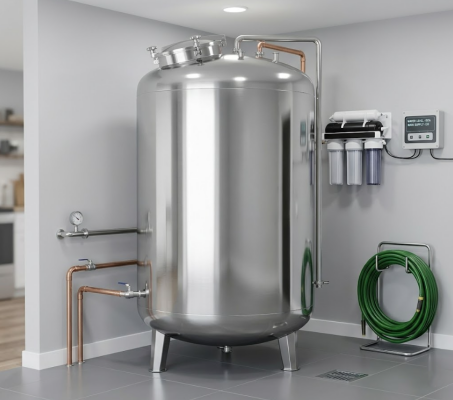

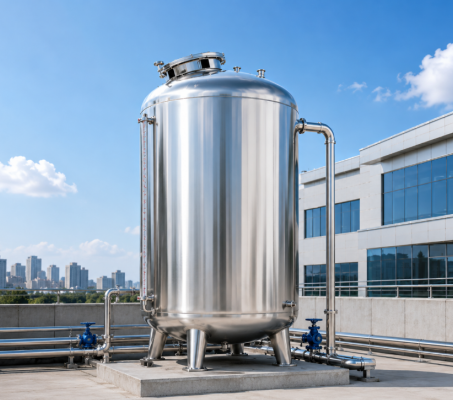

304/316 Stainless Steel Vertical Water Storage Tank with Immersion-Type UV Sterilization Lamp

The system consists of a food-grade stainless steel water storage tank and a submersible UV sterilizer, designed to store and disinfect domestic water.
Water Tank Capacity: 0.5/1/1.5/2/3/4/5/6.5/8/10 T
UV Sterilization Lamp Length: 300/350/550/650/950/1300/1650/1700 mm
SEND INQUIRY WHATSAPP

Product Details

Integrated Housing Solutions



01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit



Product Description


The system consists of a food-grade stainless steel water storage tank and a submersible UV sterilizer, designed to store and disinfect domestic water.The storage tank ensures safe water storage, while the UV sterilizer uses 254nm UVC technology to continuously sterilize and disinfect the water, effectively inhibiting the growth of bacteria, viruses, and algae to ensure water safety.


Key Advantages


1.Food-Grade Water Storage
Made of 304/316 stainless steel for safety and reliability.
2.High-Efficiency UV Sterilization
Utilizes the 254nm UVC wavelength for highly effective sterilization.
3.Easy Installation
The UV lamp can be installed directly inside the water tank.
4.Low Maintenance Costs
Requires only periodic lamp replacement.
5.Versatile Applications
Suitable for homes, farms, outdoor systems, and more.

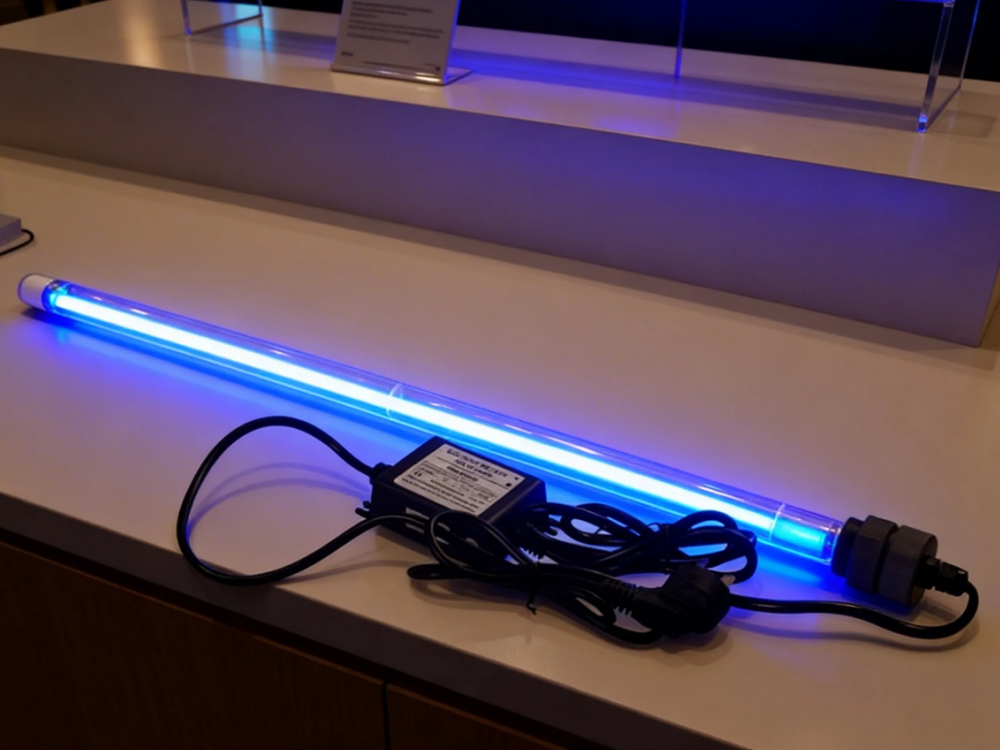

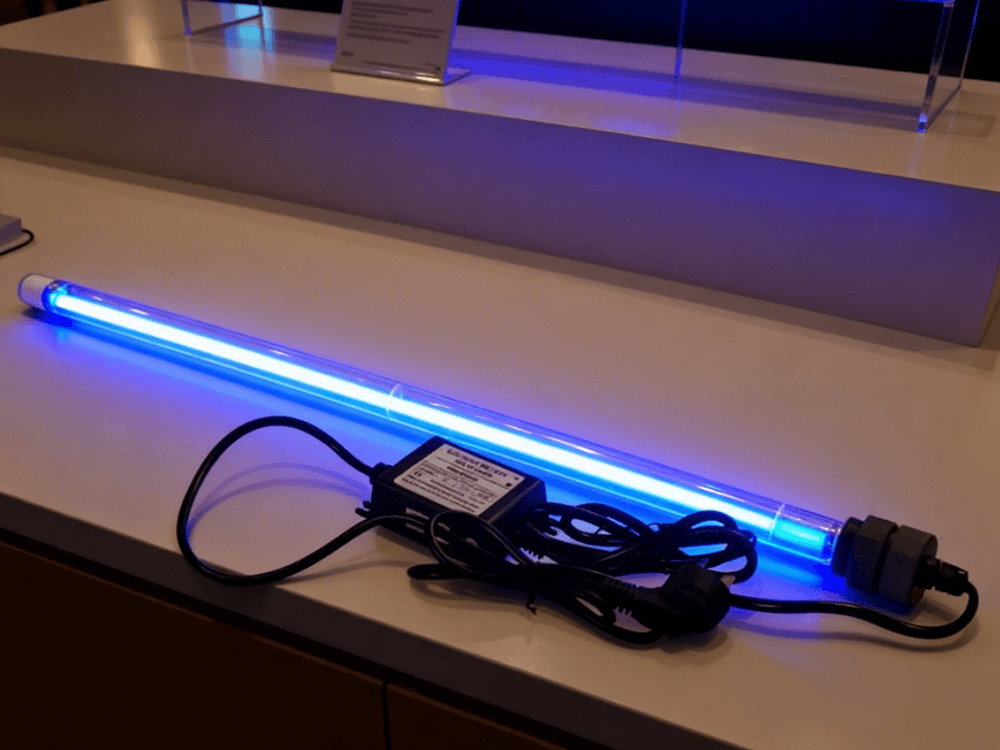

Working Principle of the UV Sterilizer


As water flows through the UV sterilizer, brief exposure to ultraviolet light damages the DNA and RNA of microorganisms, preventing cell regeneration and rendering them incapable of reproducing, thereby achieving the goal of disinfecting and purifying the water. The ultraviolet light is emitted in a straight line, with an irradiation range of 0.3 to 0.5 meters.


Product Dimensions

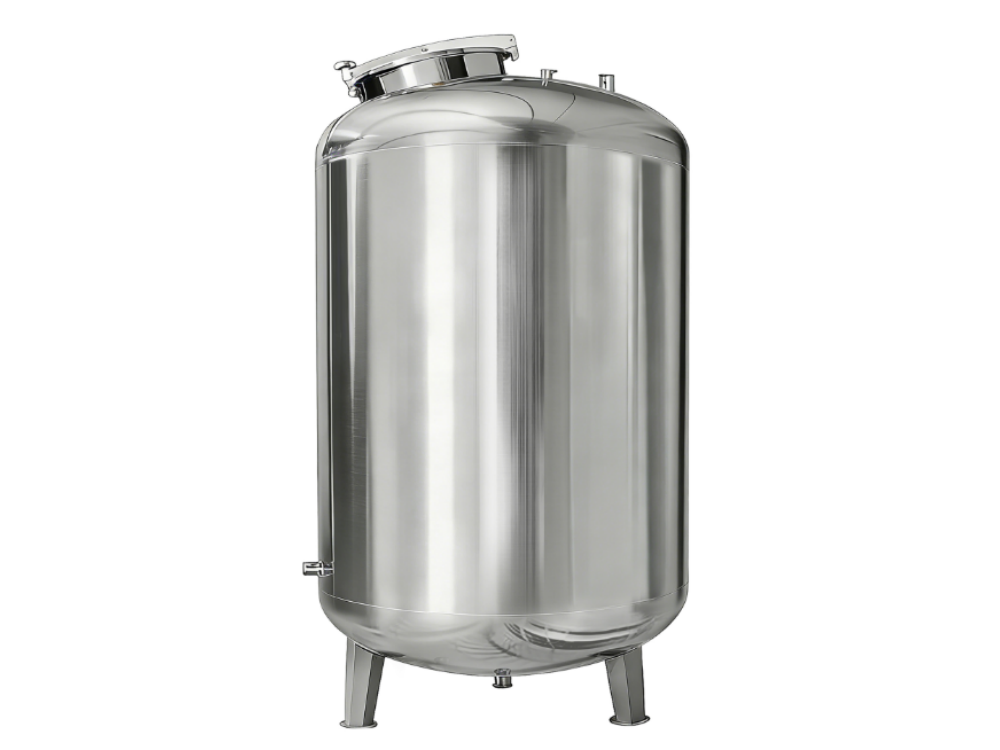

Water Tank：

Model Effective Volume (m³) Diameter Inner Height Overall Height Wall Thickness Material
TK-0.5 0.5 700 1220 1850 1.5 SUS304
TK-1 1 1000 1220 2000 1.5 SUS304
TK－1.5 1.5 1200 1220 2220 1.5 SUS304
TK-2 2 1400 1220 2320 2 SUS304
TK-3 3 1500 1500 2820 2 SUS304
TK-4 4 1600 1500 2730 3 SUS304
TK-5 5 1800 1500 2910 3 SUS304
TK－6.5 6.5 2000 1500 3010 3 SUS304
TK－8 8 2200 1500 3140 3 SUS304
TK－10 10 2400 1500 3240 3 SUS304

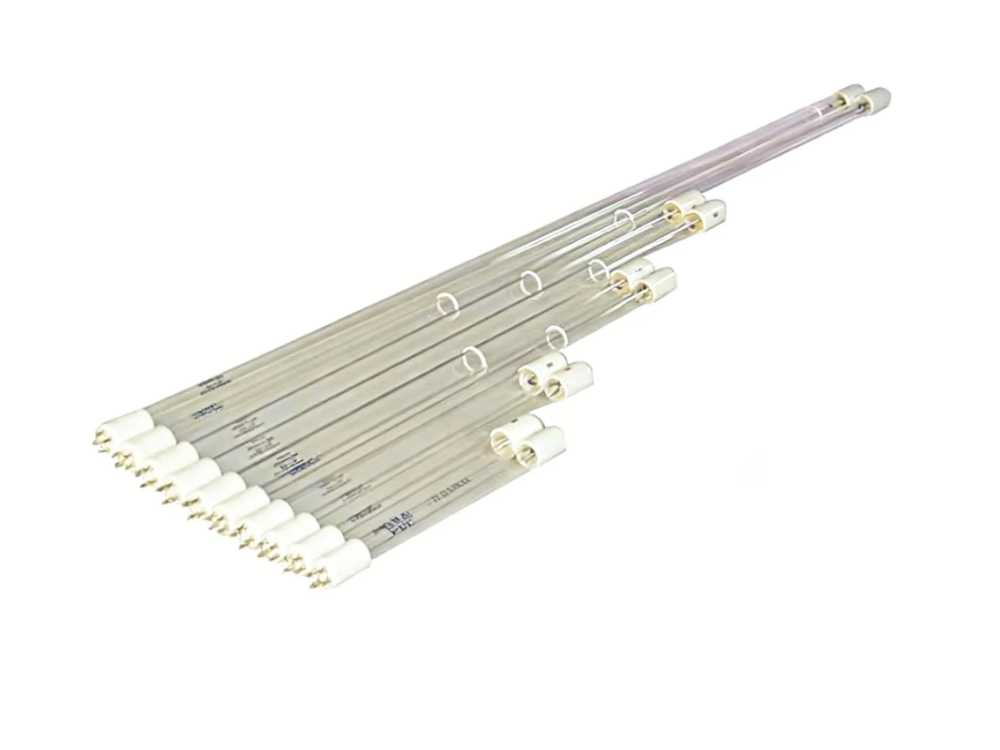

UV Sterilization Lamp：

Specifications Length Cutout Dimensions
UV10w 300mm DN25
UV14W 350mm DN25
UV23w 550mm DN25
UV28w 650mm DN25
UV40w 950mm DN25
UV120w 1300mm DN25
UV150w 1650mm DN25
UV320w 1700mm DN32

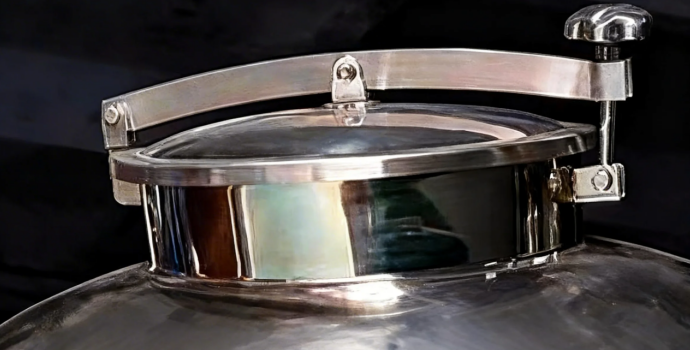

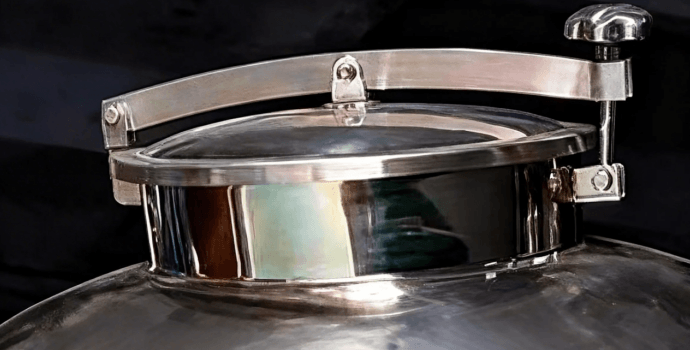

Sealed Access Cover

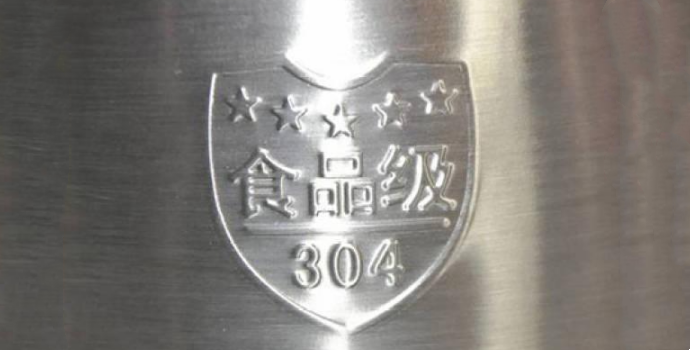

Food-grade Material
