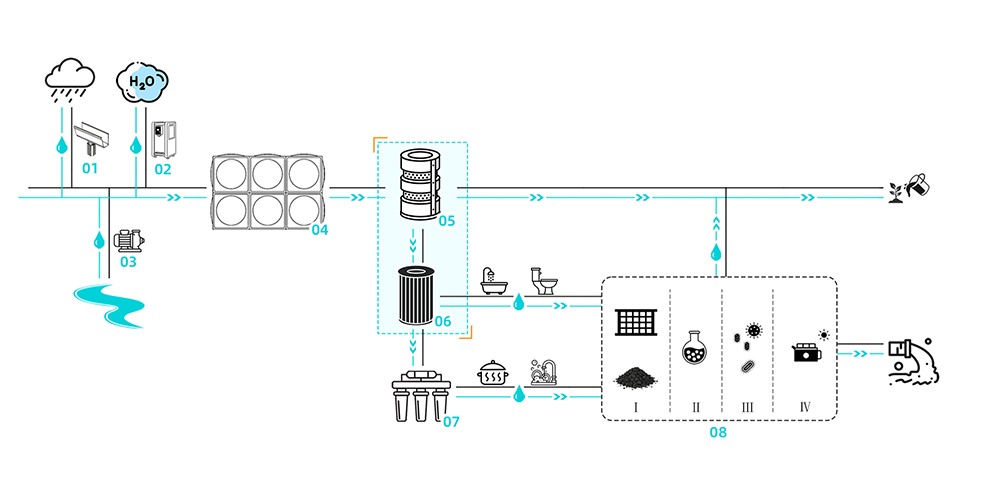

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit
Designed to transform natural water sources into clean and reliable water supply, this integrated water purification system enables independent water access without relying on traditional water infrastructure.
Ideal for self-sufficient living, remote projects, and outdoor applications, this system provides a complete solution for collecting, purifying, and supplying clean water directly from natural sources.

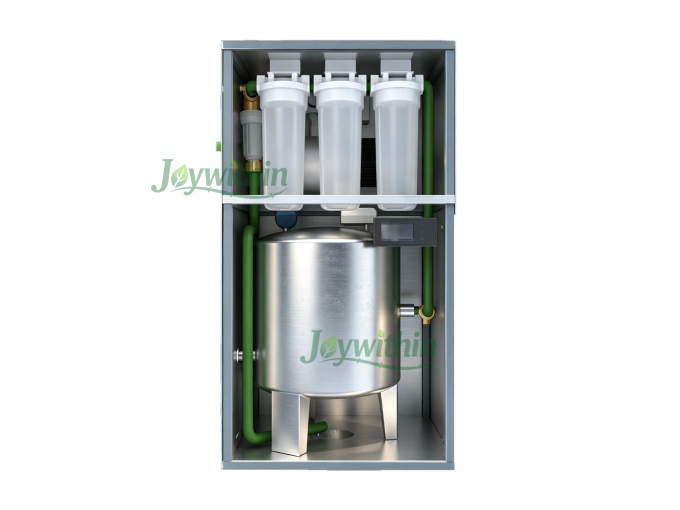

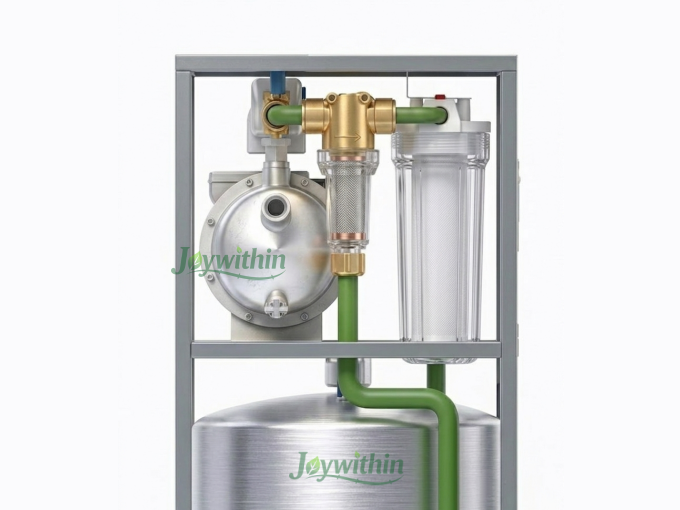

1.All-in-One Integrated System
Filtration, pumping, and storage combined into one compact unit for easy transportation and installation.

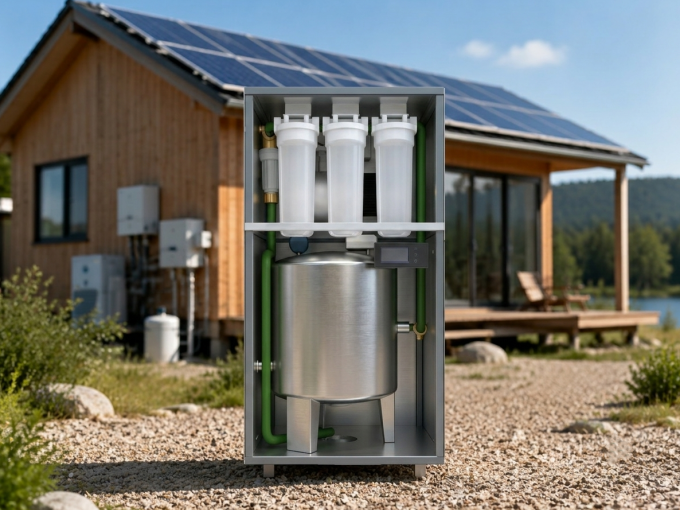

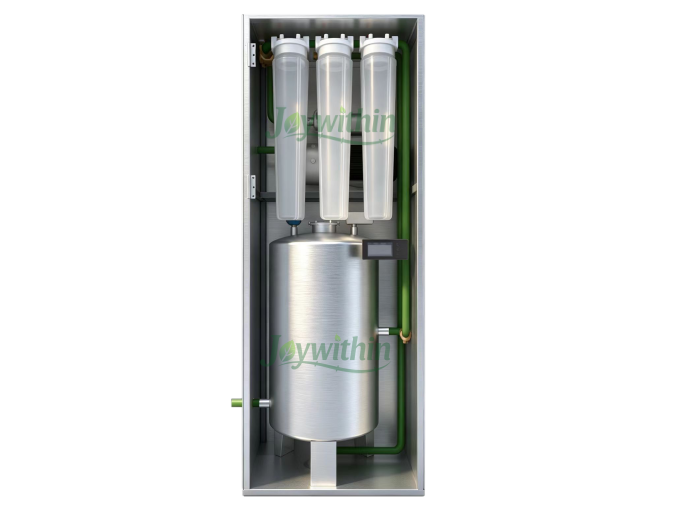

2.Multi-stage Water Purification
Combines sediment filtration, activated carbon, and ultrafiltration technologies for improved water quality.
3.Portable & Easy Deployment
No complicated infrastructure required. Simply connect the water source and start operation.
4.Reduce Total Water Cost
Tiered water design: Basic filtration for irrigation, deep purification for domestic water. Avoiding high-cost filtration for low-requirement scenarios.
5.Flexible Configuration
Filter stages, tank capacity, pump power, and system capacity can be customized according to application needs.

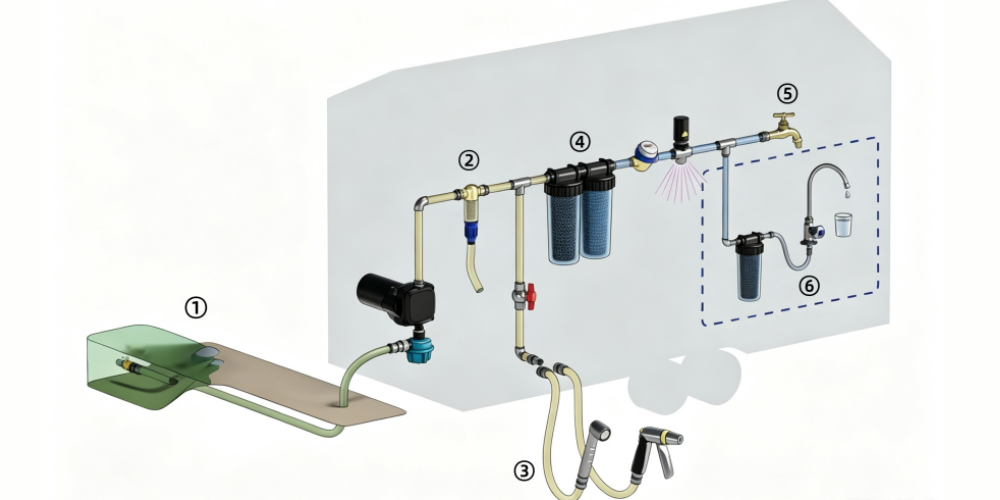

Natural Water Source → Pre-filtration → Multi-stage Purification → Storage → Pressurized Water Supply → Clean Water Anywhere
| Parameter | Specification |
| Water Source | River / Lake / Well / Rainwater |
| Frame Material | Aluminum Alloy |
| Hinges Material | Stainless Steel Alloy |

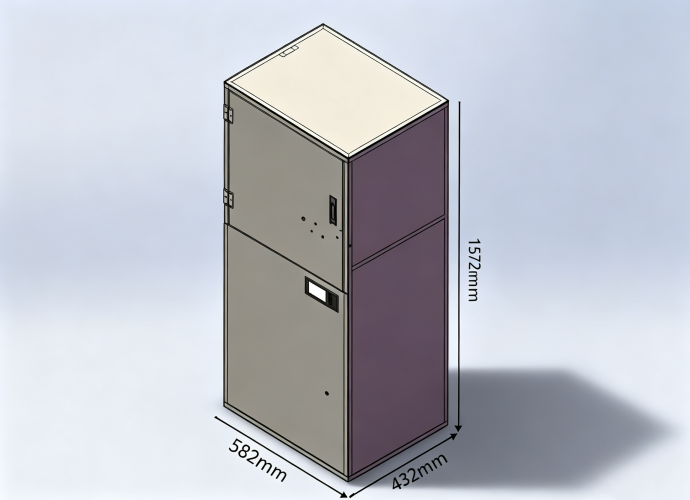

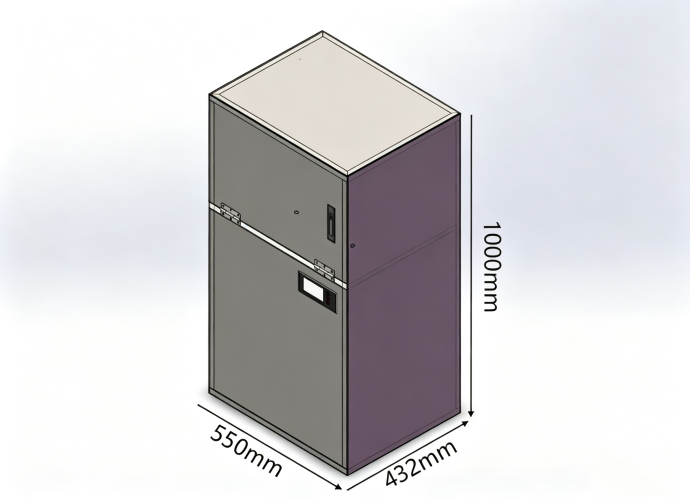

| Dimensions(mm) | 550*432*1100 / 580*432*1580 |
| Water Flow Rate | 1~1.2 / 1.5~1.8 m³/h |
| Working Voltage | 220V |
| Pump Power | 370W / 550W |
| Maximum pump head | 38m / 40m |
| Filter Material | Pre-filter，PP Cotton，Activated Carbon, Ultrafiltration Membrane（Customized according to water source） |
| Storage Tank Capacity | 60-1000L |

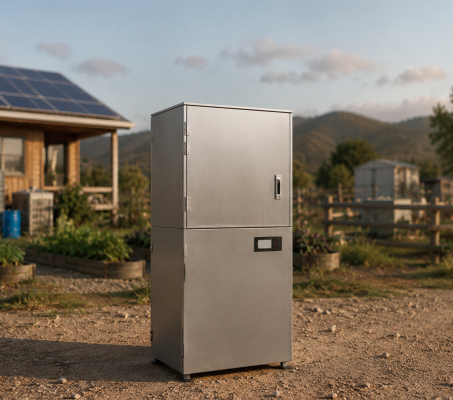

| Application | Off-grid / Outdoor / Residential / Homestay / Emergency |
| Model | Storage Capacity | Recommended Applications |
| WP60 | 35L | Small Residential Homes, 1–2 People |
| WP100 | 60L | Small Family Homes / Apartments / Tiny Houses, 2–4 People |
| WP300 | 180L | Family Homes / Farm Houses / Remote Housing，4-6 People |
| WP500 | 300L | Large Family Homes / Guest Houses / Vacation Homes，6-8 People |
| WP1000 | 600L | Large Homes / Guest Houses / Small Resorts，8-12 People |
| *For larger projects, customized solutions are available based on your specific water consumption needs. | ||
60L
100L

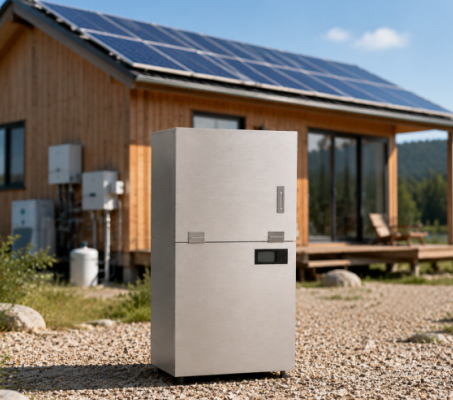

Combine our water purification system with:
✓ Wind-Solar Hybrid Energy System
✓ Modular Housing
to create a complete independent living solution with power, water, and shelter anywhere.
1.Grid Power — Standard Solution
Suitable for areas with a stable municipal power grid; the equipment connects directly to the grid, making installation and use simpler.
2.Off-Grid Power — Optional
Suitable for areas without a stable power grid; can be paired with solar power, energy storage, and other systems based on project requirements.Depending on peak water demand and daily water consumption.

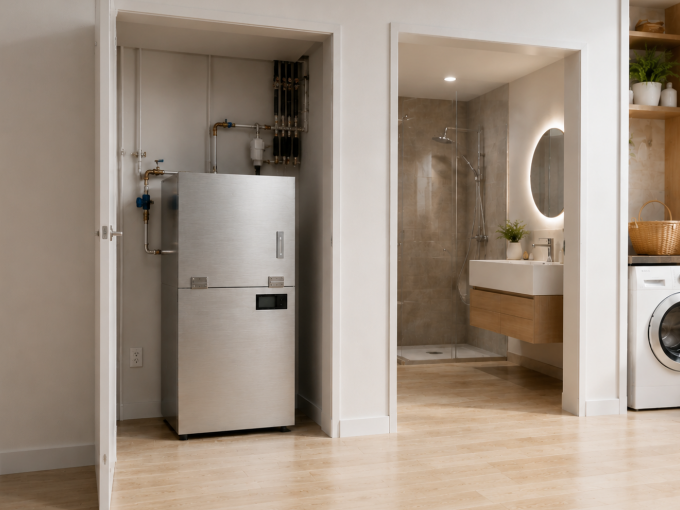

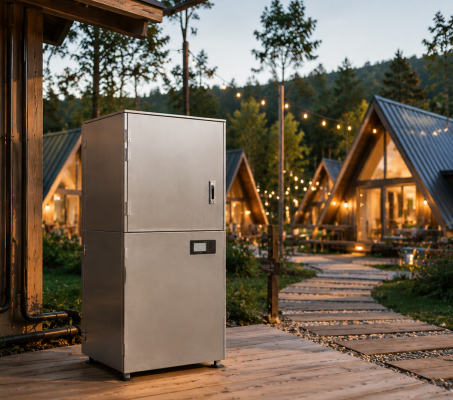

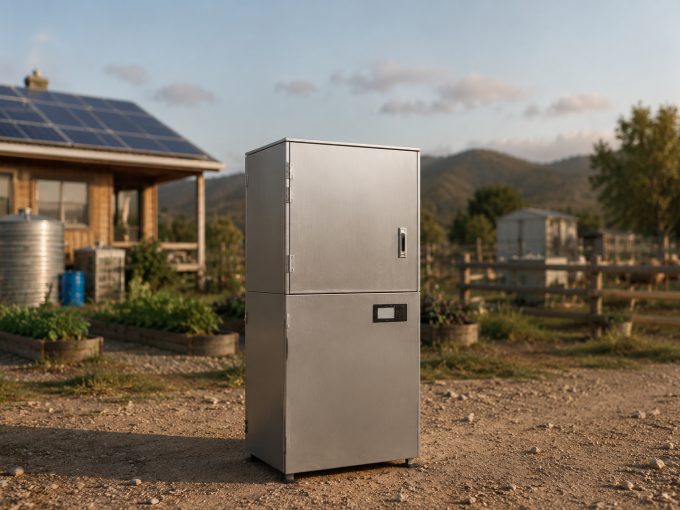

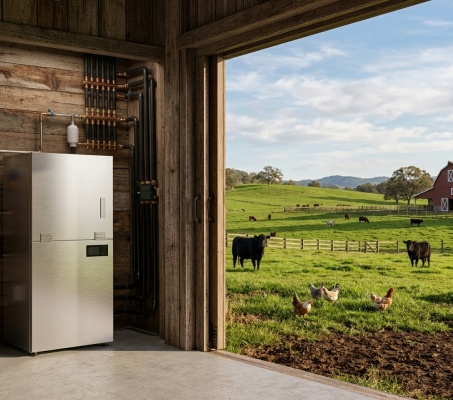

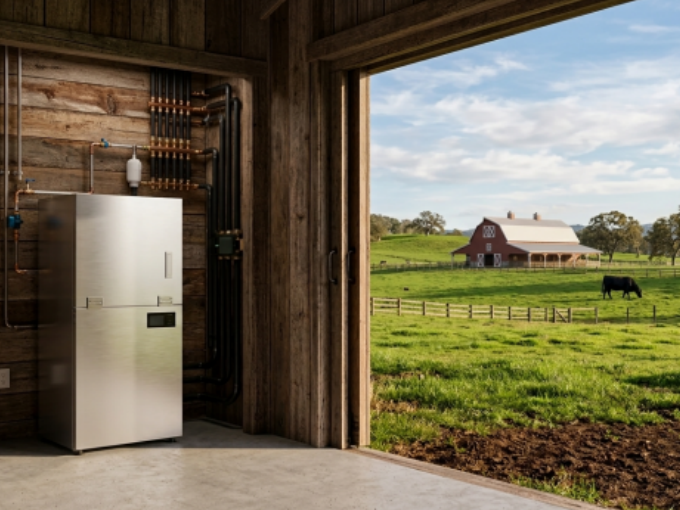

Application Scenarios
This two-stage water filtration system is suitable for various water usage scenarios, from residential use to self-sufficient outdoor applications, from small-scale agriculture to light commercial facilities, and can efficiently meet different water quality requirements.
