Booster Pumps, Self-Priming Pumps 50G/75G/400G/600G/800G 24V Self-Priming Pumps

Product Details

Integrated Housing Solutions

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

Product Description

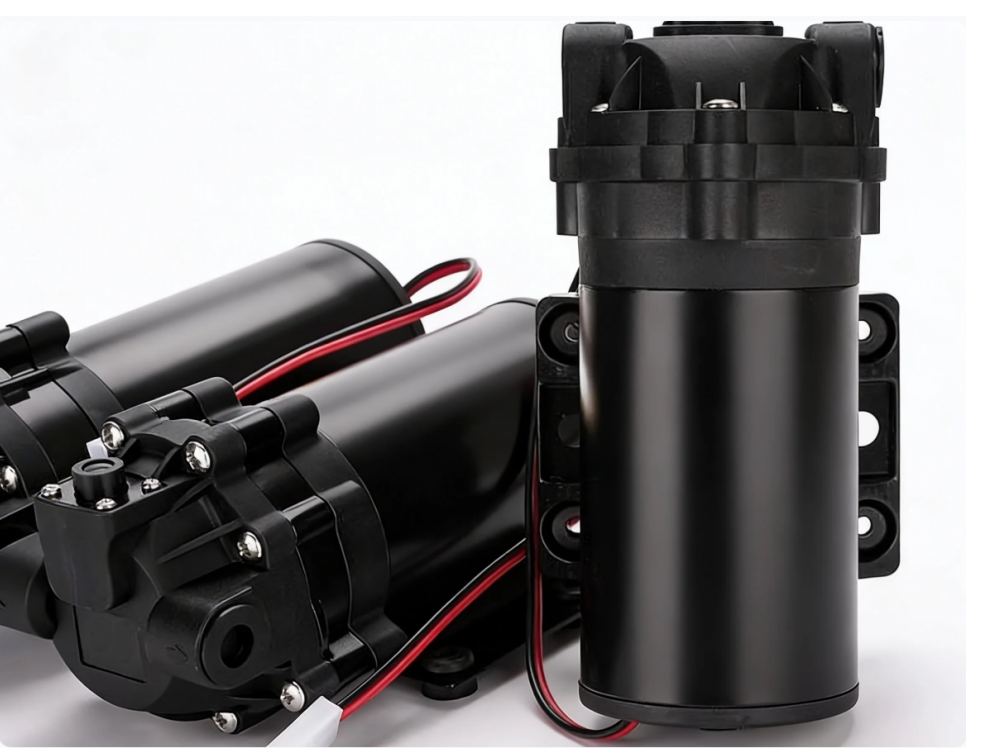

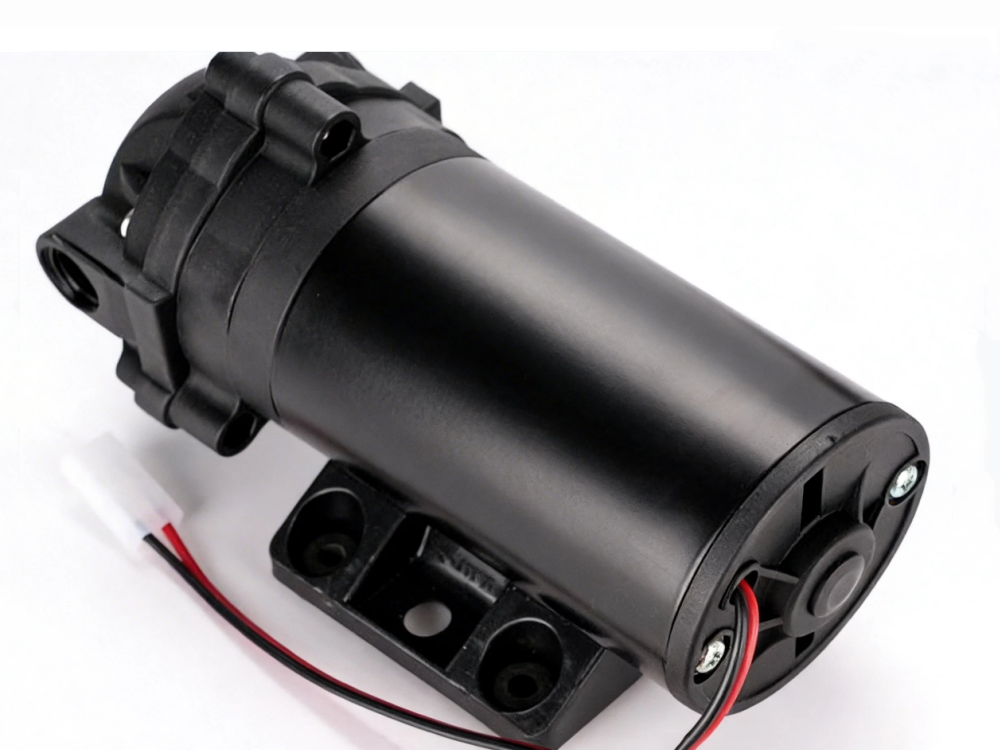

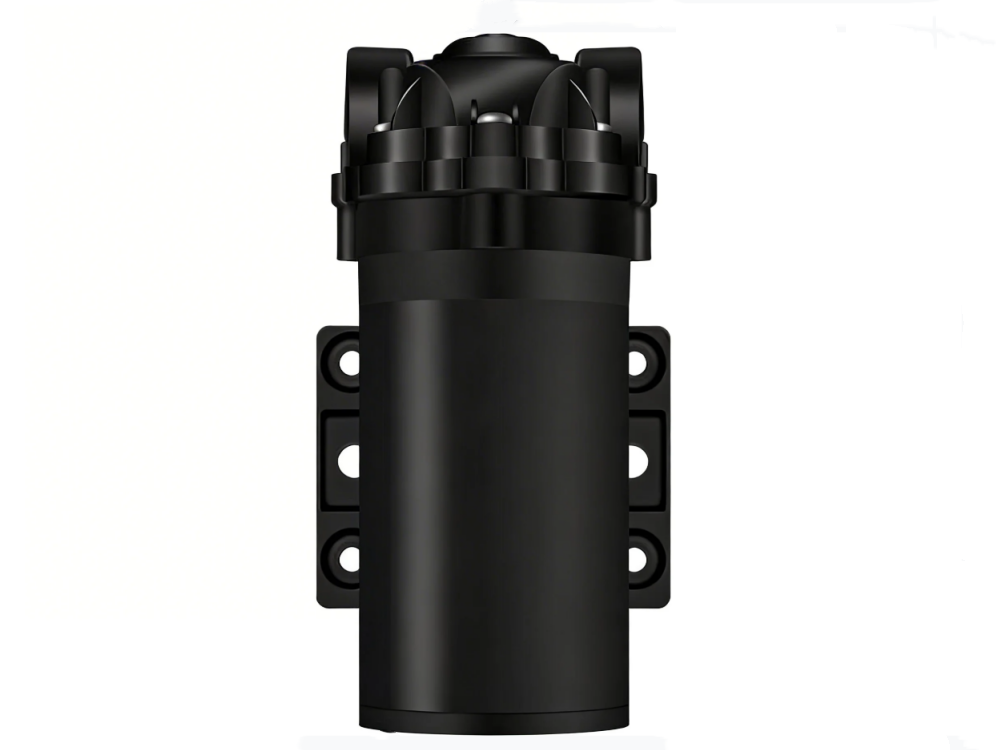

High-performance 24V diaphragm booster pump for household RO systems. Designed for kitchen pure water filtration, it ensures stable pressure, efficient self-priming, and quiet operation, providing consistent clean water for drinking and cooking. Compact, durable, and energy-efficient, ideal for residential reverse osmosis setups.
Boost pumps are primarily used in municipal water supply systems; pressure-stabilizing pumps are mainly used in residential settings to maintain a constant pressure and protect RO membranes; and self-priming pumps are used in situations where the raw water pressure is low.
A high-pressure switch is installed on the RO membrane outlet line (either directly adjacent to the membrane or near the water tank) to monitor the line pressure. When the water tank is full or the pressure becomes too high, the switch is triggered and cuts off the pump’s power supply.

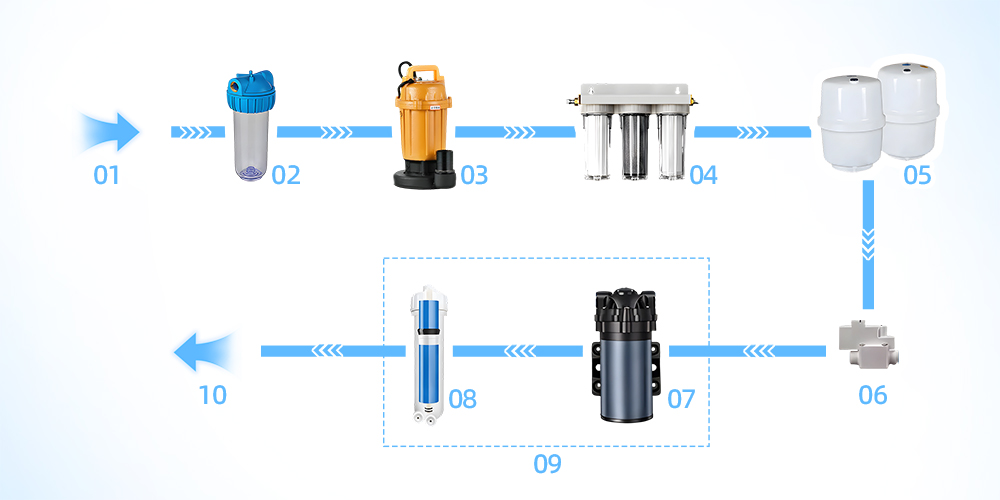

01 Water Inlet
02 Stage‑1 Filter (Pre‑Filter)
03 Booster Pump
04 Stage‑2 Filter (Domestic Water Filter)
05 Pressure Tank
06 High & Low Pressure Switches
07 Water Pump
08 RO Reverse Osmosis Membrane and RO Housing
09 Stage‑3 Filter (Drinking Water Filter)
10 Purified Water Outlet

Key Advantages

1. Low power consumption and high efficiency
2. Corrosion-resistant materials
3. Quiet and smooth operation
4. Universal and quick installation
5. Constant-voltage technology for stable current

Product Dimensions

Product Specifications	Inlet Pressure	Power Supply	Operating Current	Operating Pressure	Operating Flow Rate	Noise Level
Booster Pump 50G	30PSI	24V/1.0A	≤0.8A	70PSI	≥0.55L/M	≤ 60 dB
Booster Pump 75G	30PSI	24V/1.4A	≤1.0A	70PSI	≥0.85L/M	≤ 60 dB
Compact Booster Pump 75G	0PSI	24V/1.4A	≤1.2A	70PSI	≥0.8L/M	≤ 60 dB
Booster Pump 100G	30PSI	24V/1.8A	≤1.2A	70PSI	≥1.1L/M	≤ 60 dB
Self-Priming Pump 50G	0PSI	24V/1.2A	≤1.0A	70PSI	≥0.5L/M	≤ 60 dB
Self-Priming Pump 75G	0PSI	24V/1.5A	≤1.2A	70PSI	≥0.8L/M	≤ 60 dB
Compact Self-Priming Pump 75G	0PSI	24V/1.5A	≤1.2A	70PSI	≥0.8L/M	≤ 60 dB
Self-priming Pump 100G	0PSI	24V/2.0A	≤1.5A	70PSI	≥0.9L/M	≤ 60 dB
Self-priming Pump 200G	0PSI	24V/2.8A	≤2.4A	70PSI	≥1.4L/M	≤ 60 dB
Self-priming Pump 400G	0PSI	24V/5.0A	≤3.2A	70PSI	≥2.6L/M	≤ 60 dB
Pressure-regulating Pump 200G	30PSI	24V/2.2A	≤1.6A	70PSI	≥1.6L/M	≤ 60 dB
Pressure-regulating Pump 300G	30PSI	24V/2.8A	≤2.0A	70PSI	≥2.0L/M	≤ 60 dB
Pressure-regulating Pump 400G	30PSI	24V/3.0A	≤2.2A	80PSI	≥2.5L/M	≤ 60 dB
Pressure-regulating Pump 600G	30PSI	24V/4.2A	≤3.0A	80PSI	≥4.0L/M	≤ 60 dB
Commercial Pump 800G	30PSI	24V/7.0A	≤5.0A	80PSI	≥4.2L/M	≤ 60 dB

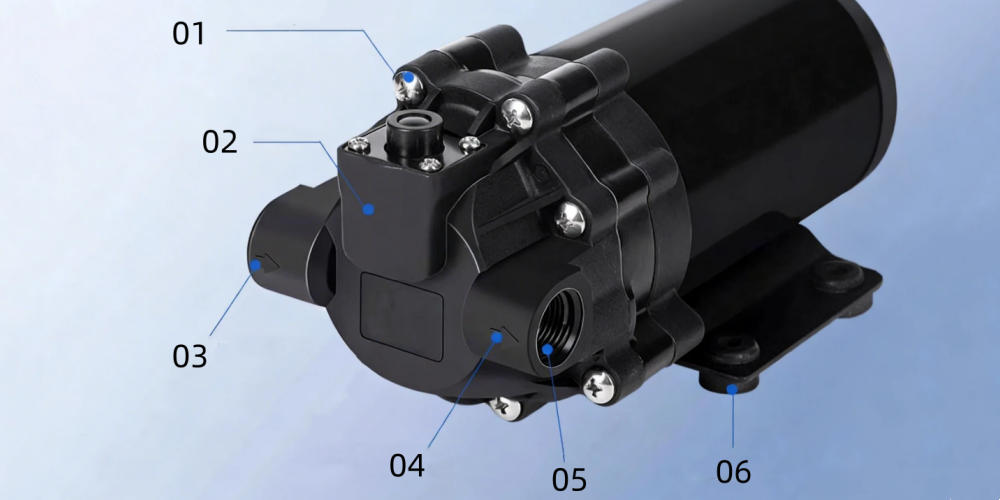

01 304 Stainless Steel Screw
02 Polyamide
03 Inlet
04 Outlet
05 3/4-inch Female Threaded Connector
06 Universal Mounting Point (with Shock-Absorbing Pad)

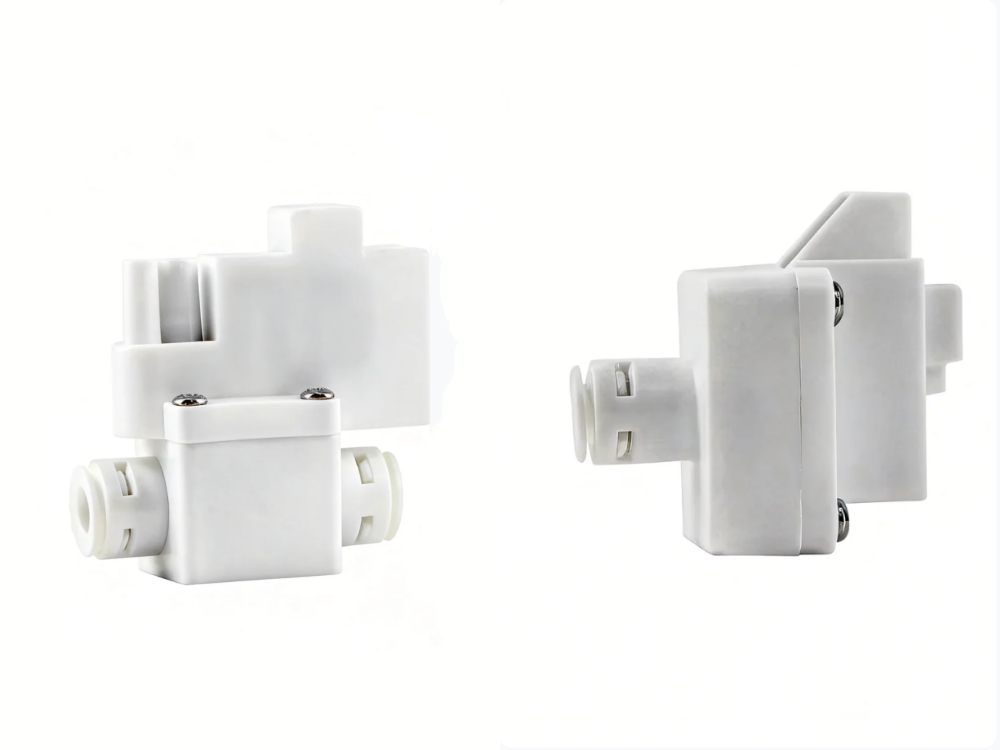

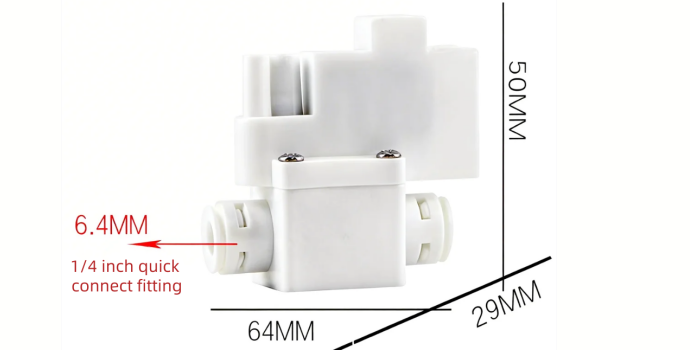

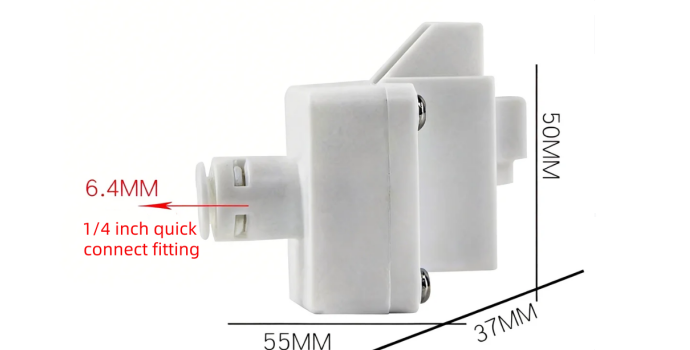

High-voltage Switch

Low-voltage Switch

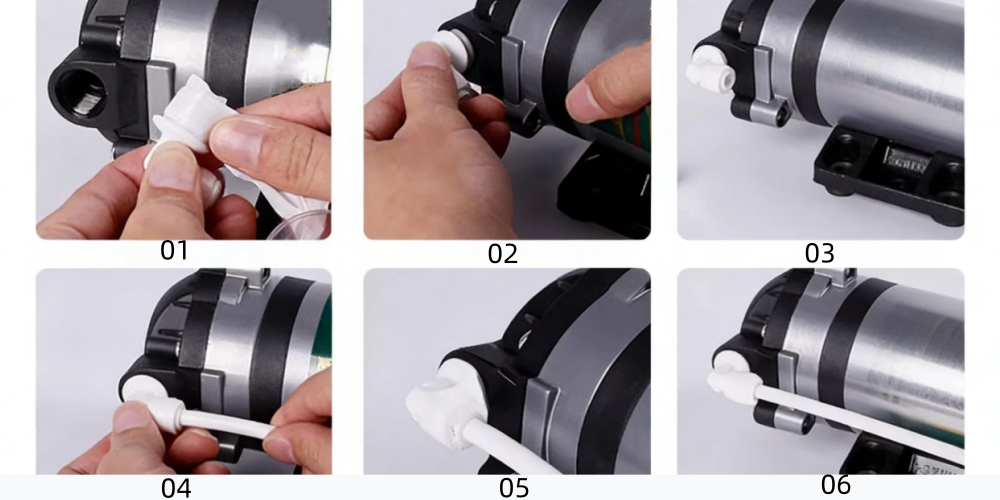

Installation Instructions

01 Wrap the fitting with Teflon tape
02 Tighten the fitting
03 Fitting installation complete
04 Insert the corresponding PE pipe
05 Insert the PE pipe 15–20 mm
06 Installation complete
