FRP Tanks, Quartz Sand, Manganese Sand, Activated Carbon Filter Tanks, and Resin Water Softening Systems

Multi-stage filtration with quartz sand, manganese sand, activated carbon, and ion exchange resin effectively removes sediment, chlorine, and scale-forming minerals, delivering clean and softened water for residential and commercial use.

FRP Tank Sizes: Φ150*450、Φ200*450、Φ200*890、Φ200*1100、Φ250*450、Φ250*890、Φ250*1400mm

Available Filter Media: quartz sand, manganese sand, activated carbon, ion exchange resin, etc.

SEND INQUIRY WHATSAPP

Product Details

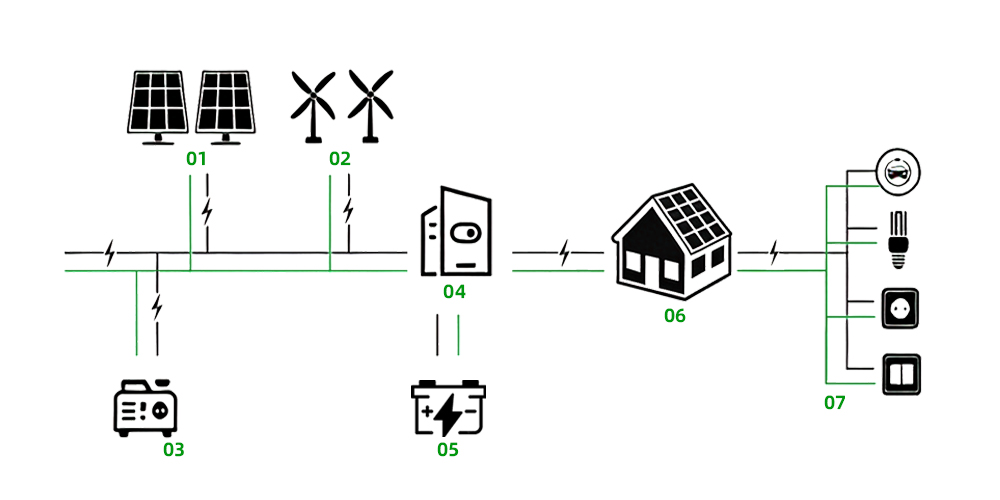

Integrated Housing Solutions

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

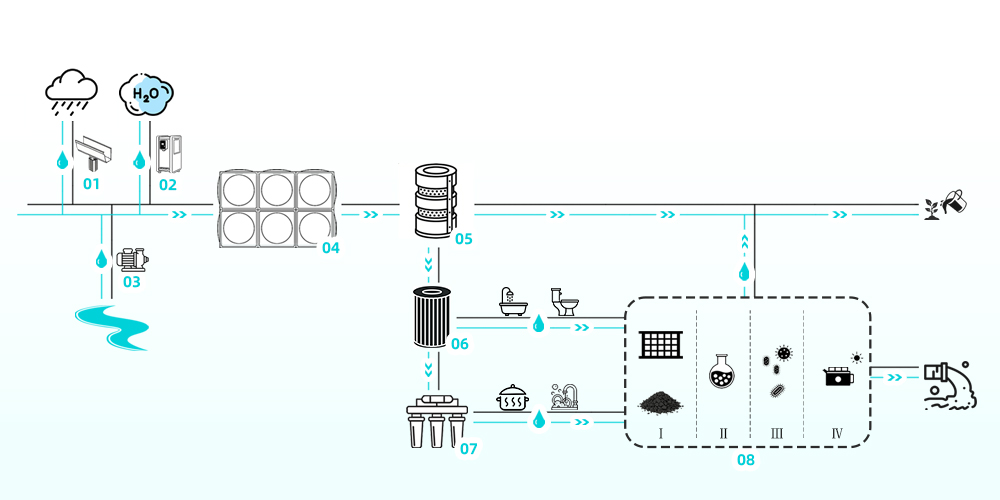

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

Product Description

This system adopts FRP pressure tanks combined with quartz sand, manganese sand, activated carbon, and ion-exchange resin. Through multi-stage filtration and softening, it effectively removes sediment, chlorine, hardness, and other impurities while retaining beneficial minerals. The system provides stable, clean water for residential, commercial, and outdoor water treatment applications.

Key Advantages

1.Ideal for commercial or industrial water treatment
2.Composite fiberglass construction with excellent corrosion resistance
3.High strength, lightweight, easy to transport, and simple to install
4.Rotationally molded liner with a seamless, leak-free design
5.High-strength RTM/SMC base, featuring high strength and excellent rigidity, and resistant to deformation even after prolonged use

Product Dimensions

Material	Lining material: High-performance PE (polyethylene) Winding material: High-performance epoxy resin and fiberglass Base material: Fiberglass composite
Working Pressure	<1.02 bar (150 psi) <0.78 bar (100 psi)
Working Temperature	<49°C (120°F) for threaded connections ≤65°C (150°F) for flanged connections
Maximum Vacuum	127 mmHg (5 mmHg)
Storage and Shipping Temperature	>-27°C (-16.6°F)
Minimum Burst Pressure	600 psi (150 psi specification) 400 psi (100 psi specification)

+	Resin	=	Water Softener
	Quartz sand		Quartz Sand Filter
	Manganese sand		Manganese Sand Filter
	Activated carbon		Activated Carbon Filter

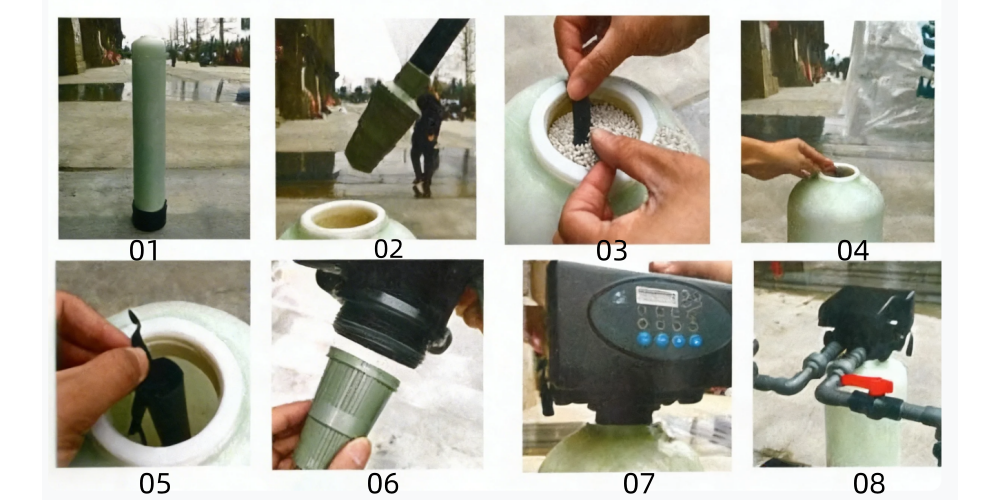

Installation Instructions

01 Position the unit in place
02 Connect the center tube to the lower distributor
03 Seal the center tube
04 Keep it centered and fill with filter media
05 Remove the seal from the center tube
06 Connect the upper distributor to the control valve
07 Install and tighten the control valve
08 Install the water supply lin
