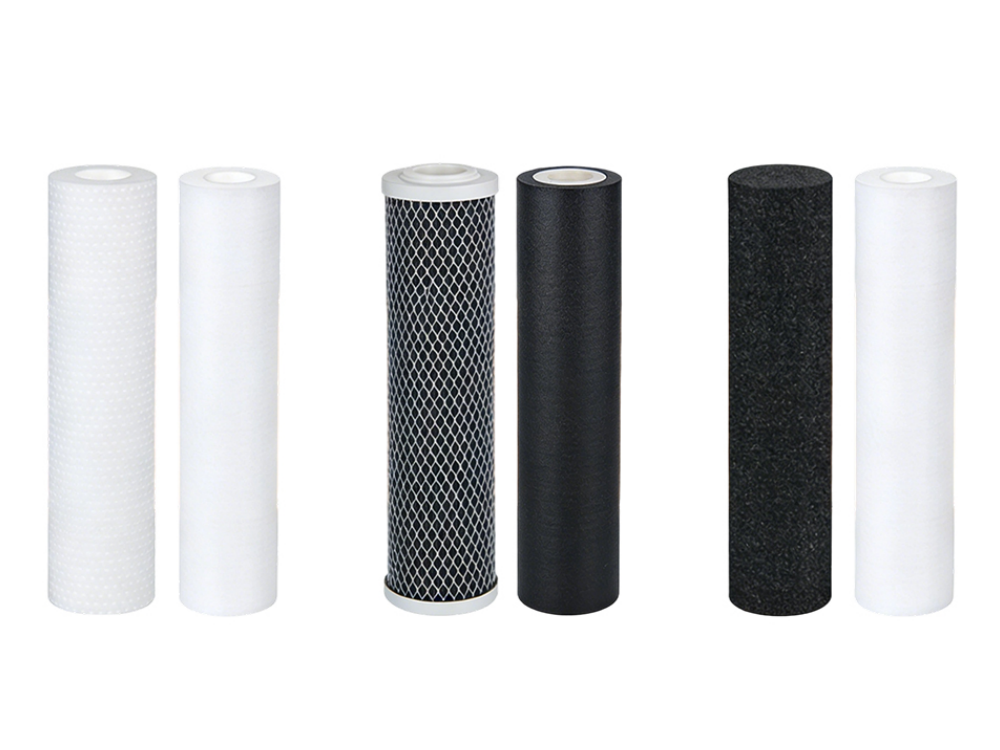

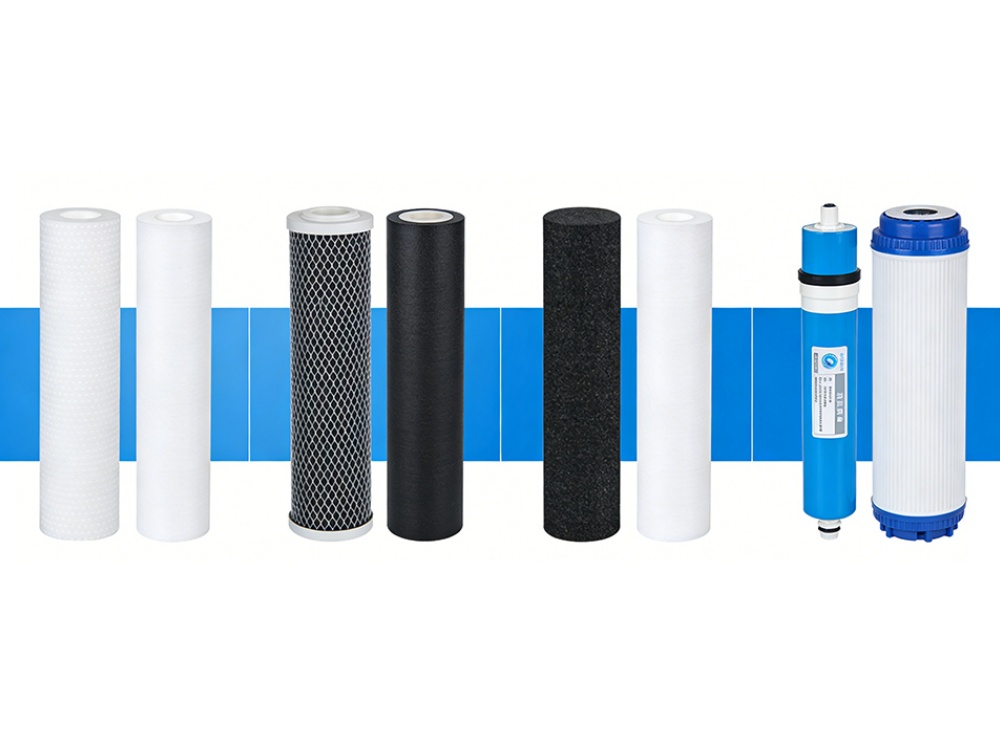

10-inch PP/UDF/CTO/Resin/UF Water Purifier with Multi-Stage Pre-Filter System

PP cotton, UDF, GAC, CTO, Resin,and UF filter cartridges are essential components in water filtration systems. We provide customers with the highest-performing filter cartridges and deliver optimal solutions for household water purification.

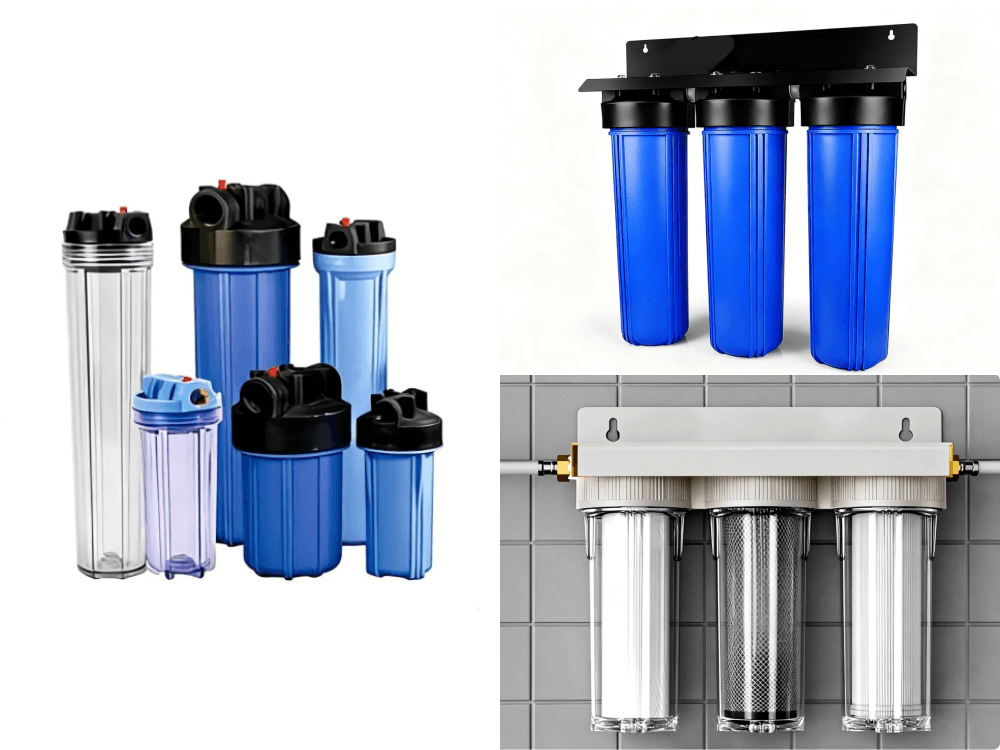

Available Materials: Plastic Housing, Plastic-Steel Composite
Available Filter Cartridges: PP Cotton, Granular Activated Carbon, CTO，Resin，UF Cartridges, etc.
Sizes: 10-inch
SEND INQUIRY WHATSAPP

Product Details

Integrated Housing Solutions



01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

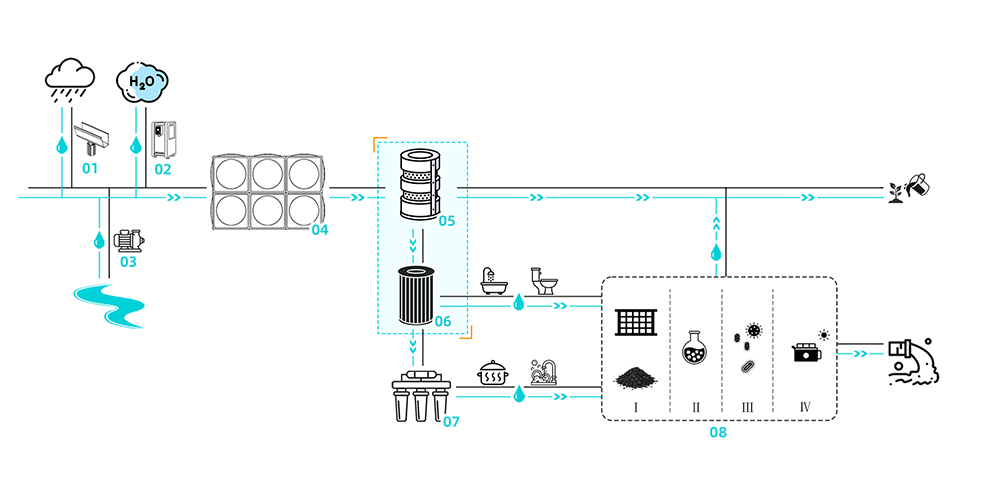

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit



Product Description


During lengthy pipeline transportation, collected water is prone to secondary contamination, containing large particles such as silt and rust. A pre-filter provides the initial filtration, serving as the “first line of defense for household water safety.” It removes harmful substances from domestic water, safeguarding family health and extending the lifespan of water-using appliances.


Key Advantages


1.Multi-stage filtration
2.Modular configuration
3.Various housing materials
4.Adaptable to different water sources


Core Filtration Structure

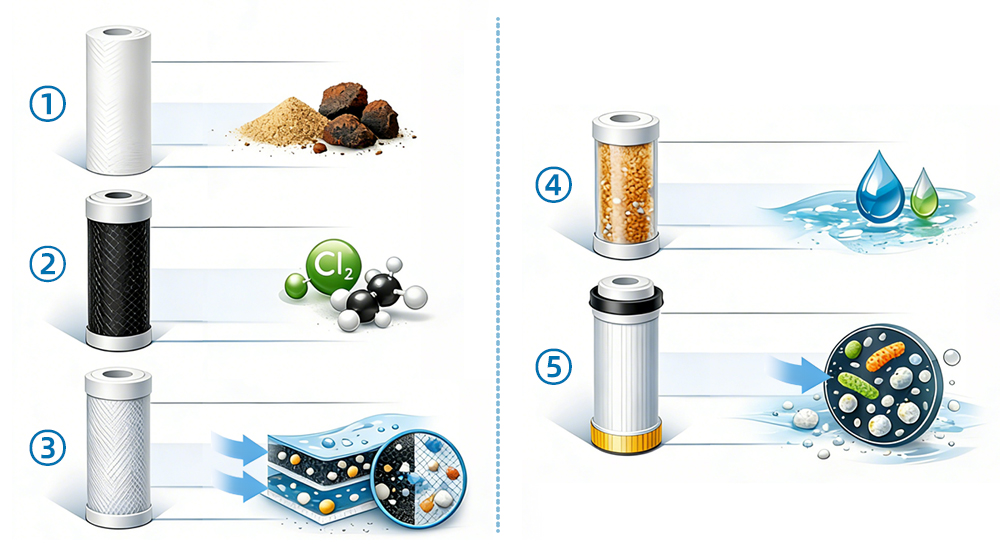

Typical Filtration Flow Structure：
Raw Water → PP → GAC → CTO → Resin → UF → Clean Water


① Stage 1 – PP Sediment Filter
Removes sand, rust, and large particles
② Stage 2 – GAC Carbon Filter
Removes residual chlorine, odors, and organic compounds
③ Stage 3 – CTO Carbon Block
Deep adsorption + precision filtration
④ Stage 4 – Ion Exchange Resin
Softens water and reduces hardness
⑤ Stage 5 – UF Membrane

Removes bacteria, colloids, and suspended solids



Product Line Strategy


1.Solution A – Rainwater Filtration System
Designed to Solve：
Removes particles and organic pollutants
Eliminates bacteria while keeping natural minerals
Filter Configuration:PP → GAC → CTO→UF→UV(optional)

2.Solution B – Groundwater Filtration System
Designed to Solve：
Hard water (scaling)
Iron and manganese
Possible heavy metals
Filter Configuration:PP→Quartz sand / manganese sand filtration (optional)→ GAC → CTO → Resin → UF/RO

3.Solution C – Atmospheric Water Filtration System
Designed to Solve：
No minerals
High risk of contamination during storage
Taste instability
Filter Configuration:PP→ GAC/CTO(optional) → UV → Mineralization filter cartridge(optional)


Product Dimensions

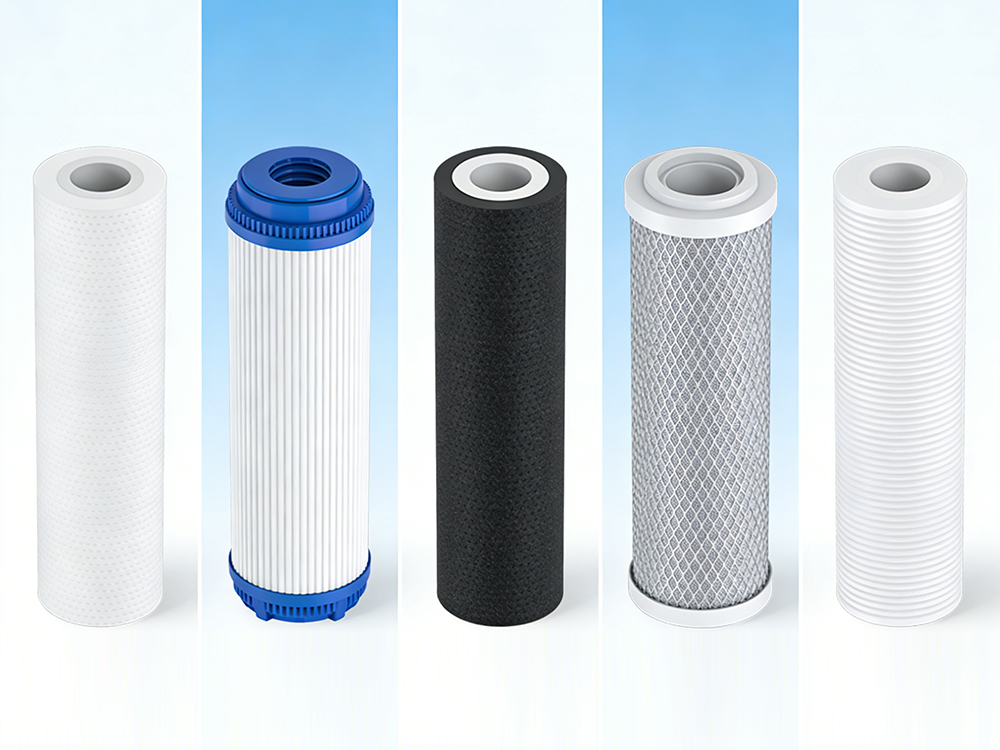

Filter Cartridge Type Dimensions Housing Material Recommended Flow Rate (LPM) Recommended Applications
PP Cotton 10″ Plastic/ABS 3–10 Under-counter water purifiers for home use, compact living spaces
CTO Activated Carbon 10″ Plastic/ABS 3–8 Under-counter water purifiers for home use, compact living spaces

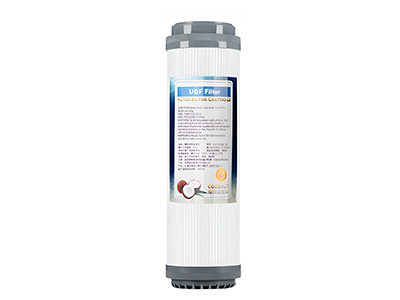

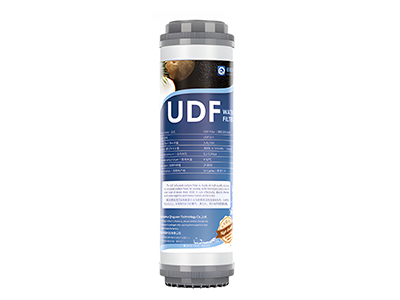

UDF Activated Carbon 10″ Plastic/ABS 3–8 Under-counter water purifiers for home use, compact living spaces
Ion Exchange Resin 10″ Plastic/ABS 2–8 Home water softening systems, compact living spaces
UF Membrane 10″ Plastic/ABS 2–6 Home ultrafiltration systems, compact living spaces

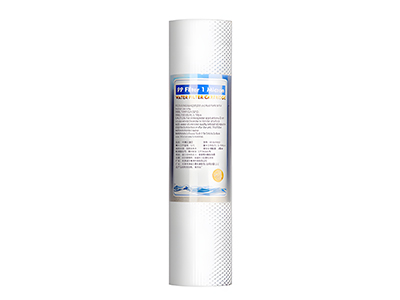

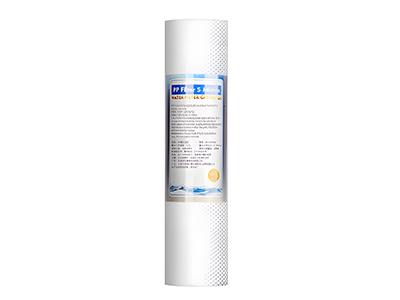

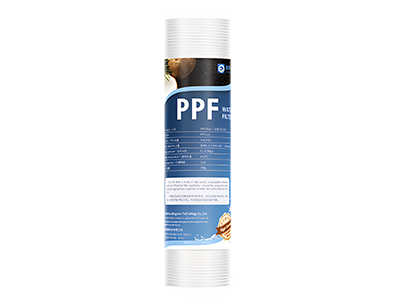

10-inch PP Cotton Filter Cartridge：

Filter Cartridge Style
Product Name 5-micron PP cotton 1-micron PP cotton Color Box PP Cotton
Filter Accuracy 5 microns 1 micron 1 micron
Filter Cartridge Weight 125g 135g 160g
Manufacturing Process Three-layer meltblown + needle-punched Three-layer meltblown + needle-punched Three-layer meltblown + grooved
Dimensions 253±1mm × 63±1mm
Filter Cartridge Inner Diameter 28mm
Filter Cartridge Function Removes large particles such as rust, silt, and turbidity
Service Life Approximately 3 to 6 months (actual service life depends on local water quality and usage volume)

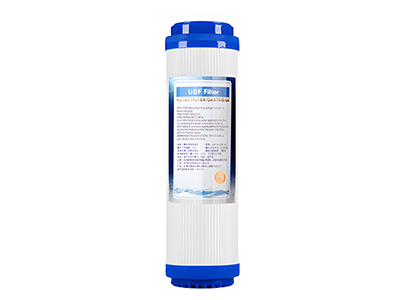

10-inch Granular Activated Carbon Filter Cartridge：


Filter Cartridge Style
Product Name Blue Cap Granular Activated Carbon Gray-capped granular activated carbon Color Box Granular Charcoal
Carbon Raw Material Blended Activated Carbon Domestic coconut shell carbon Sri Lankan Coconut Shell Charcoal
Iodine Adsorption Value <900 900+ 1000+
Dimension Specifications 251±1mm × 71mm
Filter Cartridge Inner Diameter 28mm
Filter Cartridge Function Removes residual chlorine from water, adsorbs odors and discoloration
Service Life Approximately 6 to 9 months (actual service life depends on local water quality and usage volume)

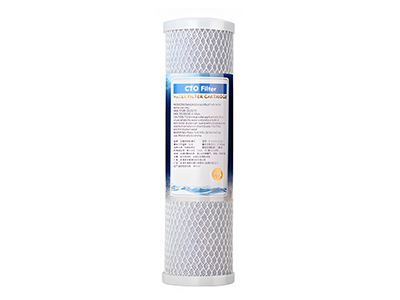

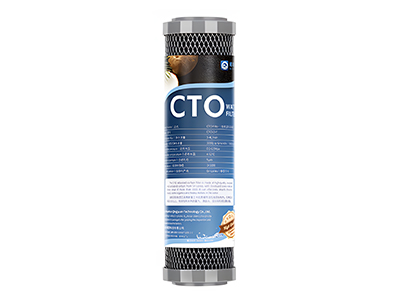

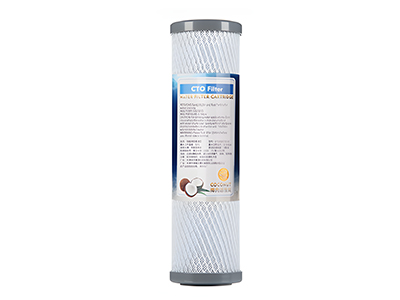

10-inch Compressed Carbon Filter Cartridge：

Filter Cartridge Style
Product Name White-capped compressed charcoal Gray-capped compressed charcoal Color Box Charcoal Sticks
Carbon Raw Material Blended charcoal Domestic coconut shell charcoal Sri Lankan Coconut Shell Charcoal
Iodine Adsorption Value <900 900+ 1000+
Dimensions 251±1mm × 69mm
Inner Diameter 28mm
Function Removes residual chlorine from water, deeply adsorbs odors and impurities
Service Life Approximately 6–9 months (actual lifespan depends on local water quality and usage volume)

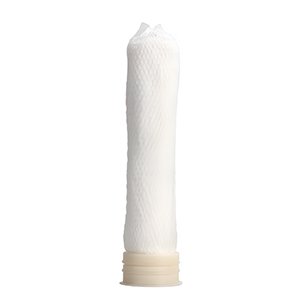

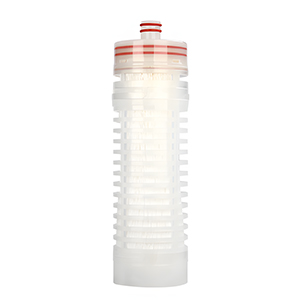

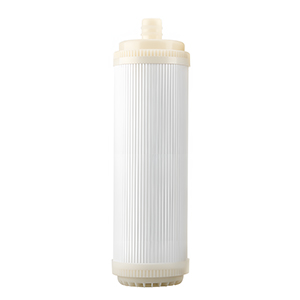

10-inch Ultrafiltration Membrane Filter Cartridge：


Filter Cartridge Style
Product Model 10-inch flat mouth 10-inch socket Model 1812 Washable Socket
Specifications & Dimensions 252*72mm 258*72mm 236*56mm 243*71mm
Filtration Precision 0.01 micrometers
Water Flow Rate 3500 mL/min (25°C, 0.2 MPa)
Product Material PES
Burst Strength ≤0.6 MPa
Operating Temperature 4–45°C
Replacement Cycle Recommended 9–12 months(Depending on local water quality and actual water consumption)

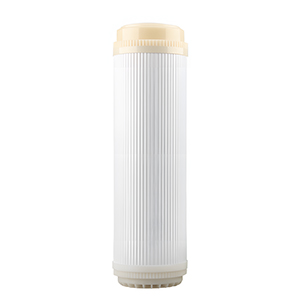

10-inch Ion Exchange Resin Filter Cartridge：

Product Material Cation Exchange Resin
Working Pressure 0.1~0.4 MPa
Replacement Cycle Approximately 6 months
Product Dimensions 250 mm × 70 mm
