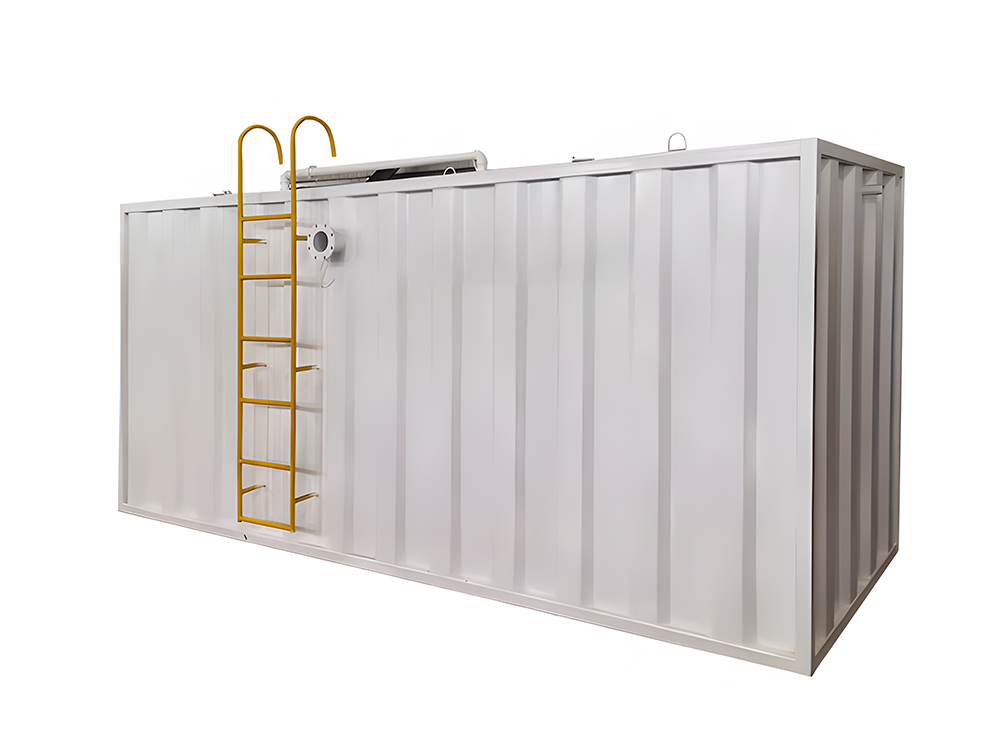

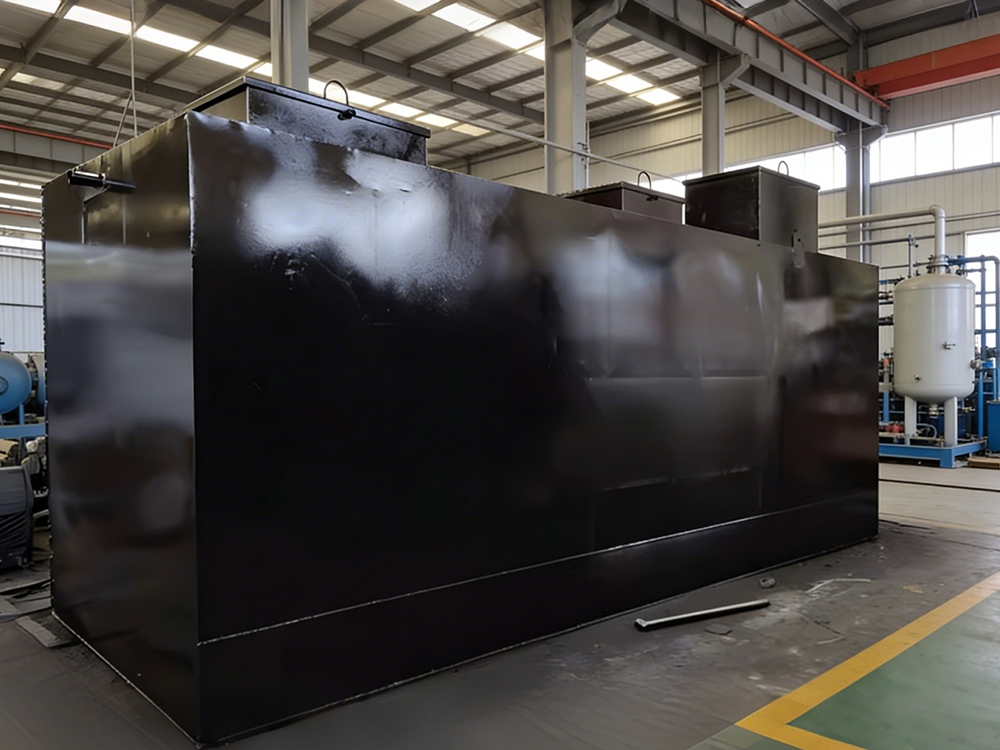

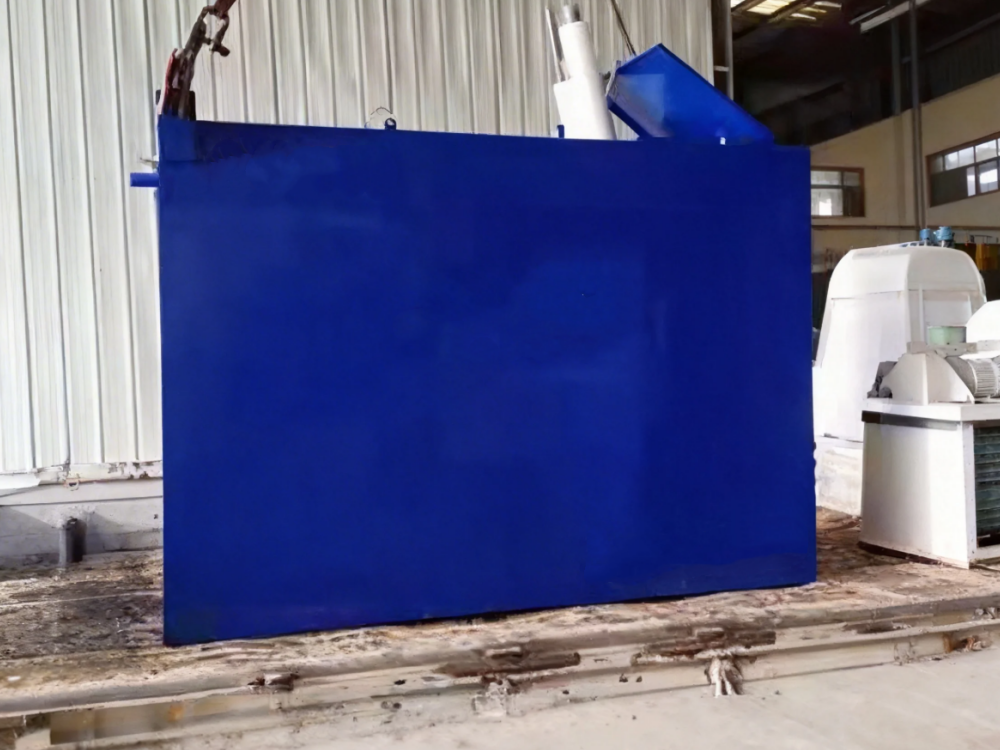

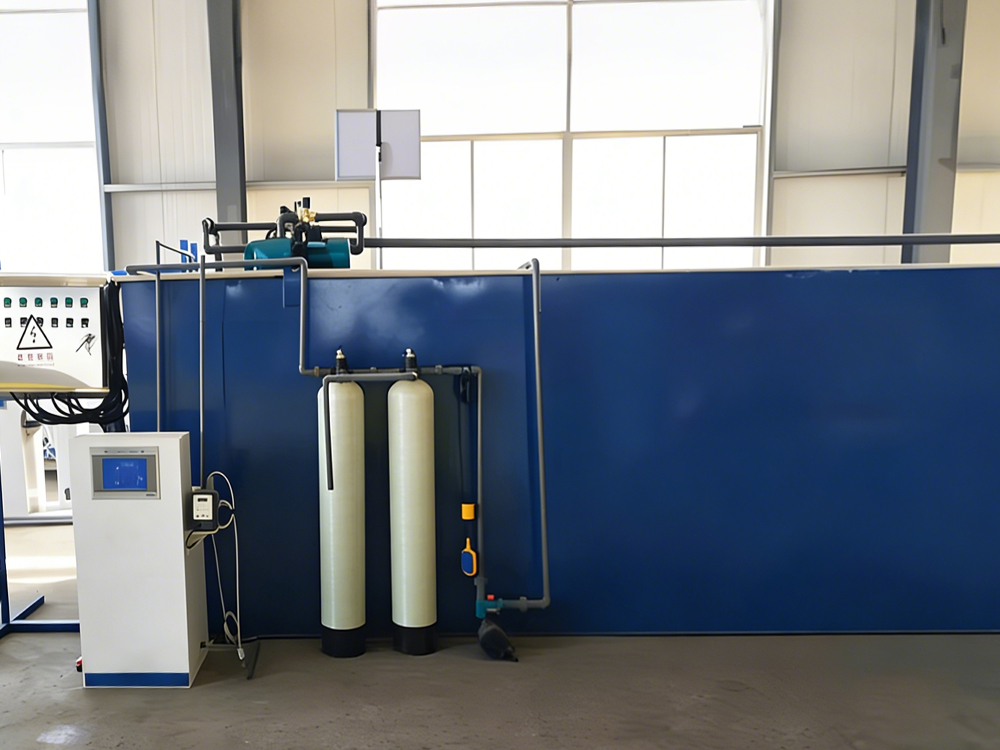

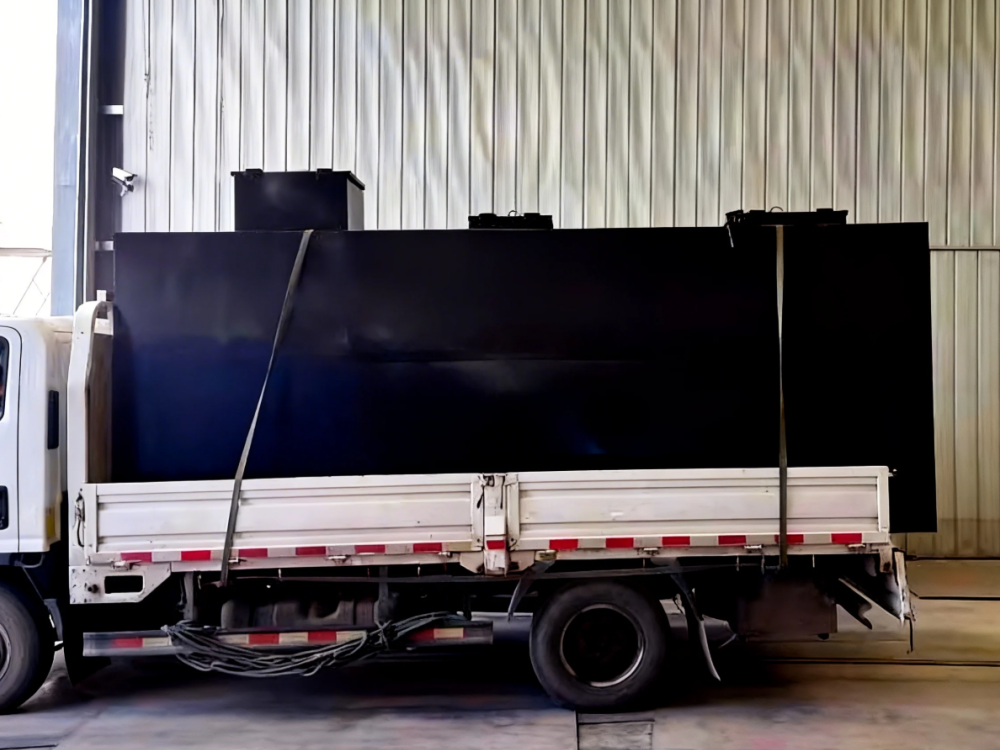

Integrated MBR Domestic Wastewater Treatment Equipment

Product Details

Integrated Housing Solutions

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

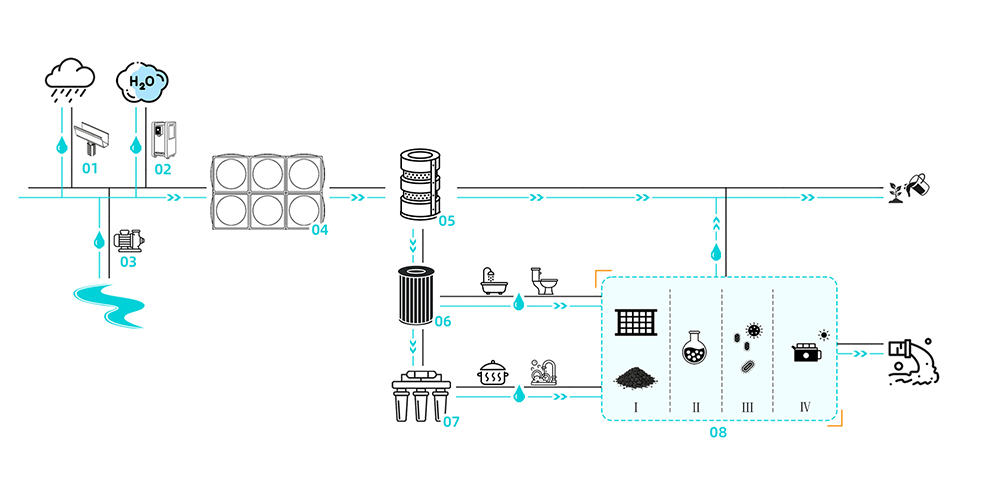

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

Product Description

This integrated wastewater treatment system adopts advanced MBR (Membrane Bioreactor) technology, combining biological treatment with membrane filtration. It delivers high-quality effluent, compact structure, and stable performance. Ideal for residential, rural, and small commercial applications, it ensures efficient removal of organic pollutants and suspended solids, enabling water reuse for irrigation and non-potable purposes.

Key Advantages

1.MBR Technology – Superior Filtration Accuracy (0.1μm)
2.Space Saving– Compact All-in-One Design
3.Stable Effluent – Meets Reuse Standards
4.Reduced Maintenance – Low Sludge Production
5.Smart Control – Fully Automatic Operation

Working Principle

The integrated wastewater treatment system combines physical, biological, and membrane filtration processes into a compact unit. Wastewater first undergoes pre-treatment to remove large particles, then enters the hydrolysis-acidification tank to improve biodegradability. In the biological tank, microorganisms decompose organic pollutants. The MBR membrane further separates contaminants, producing high-quality effluent, which is finally disinfected for safe discharge or reuse.

Treatment Process：

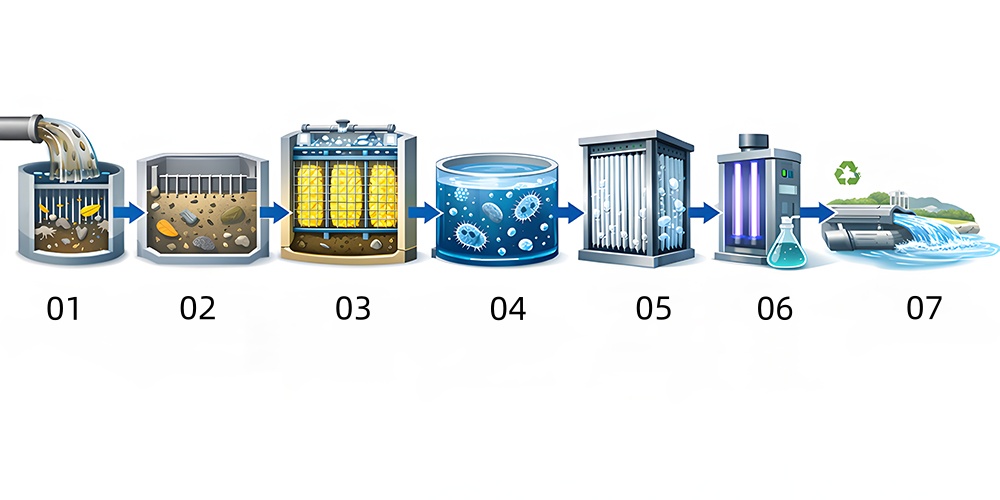

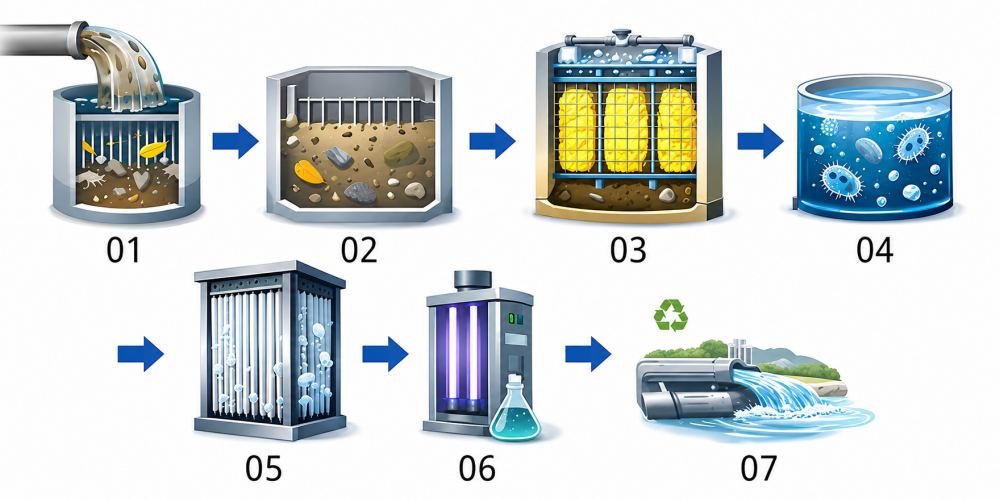

Influent → Pre-treatment → Hydrolysis Acidification → Biological Treatment → MBR Membrane → Disinfection → Reuse/Discharge

01 Influent
Raw Sewage Inflow
02 Pre-treatment
Removes large particles, suspended solids, and debris to protect downstream units.
03 Hydrolysis Acidification
Breaks down complex organic matter into smaller, more biodegradable molecules.
04 Biological Treatment
Microorganisms degrade organic pollutants such as COD, BOD, and ammonia nitrogen.
05 MBR Membrane
High-precision membrane filtration retains bacteria and suspended solids, ensuring clear and stable effluent.
06 Disinfection
UV or chlorine disinfection eliminates pathogens for safe reuse or discharge.
07 Clean Water
Reuse or Discharge

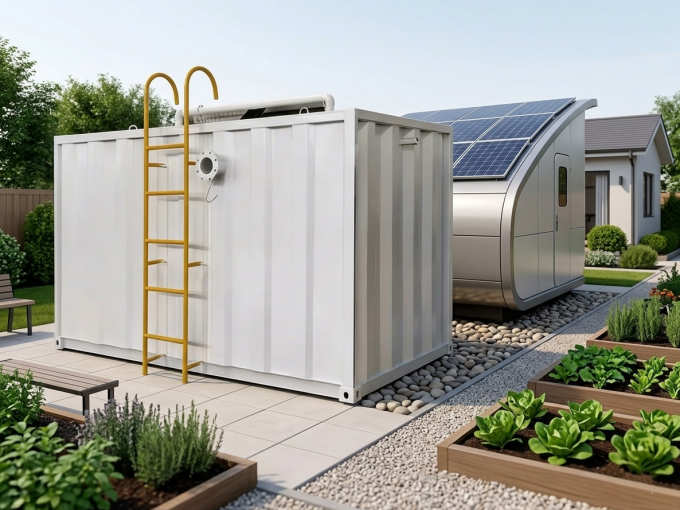

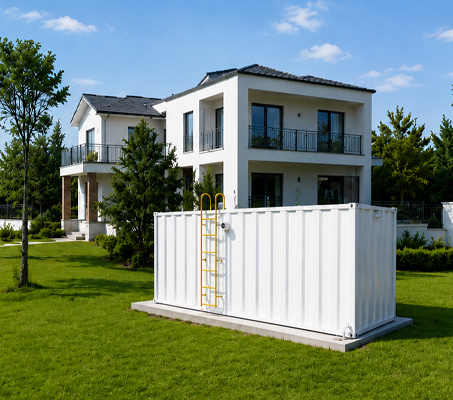

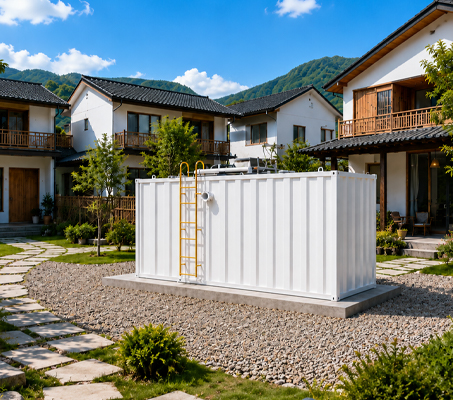

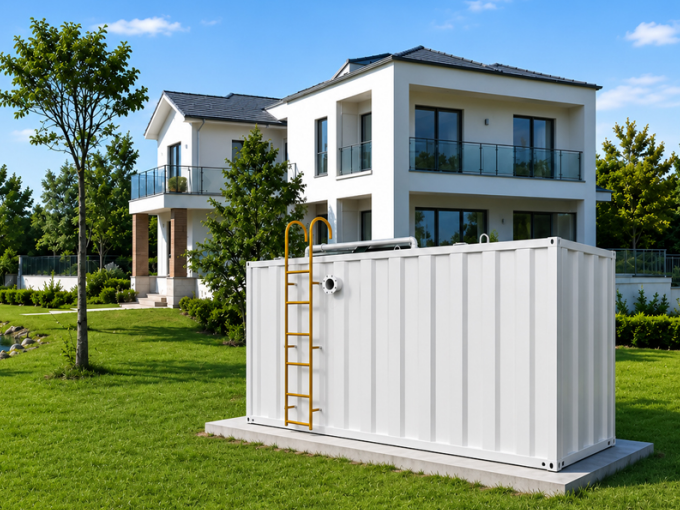

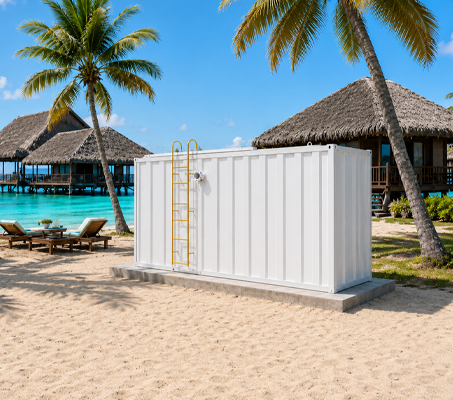

Application Scenarios

Suitable for Residential wastewater treatment , Rural wastewater treatment , Hotels / Bed-and-breakfasts , Schools / Hospitals , Campgrounds / Scenic areas , Areas without municipal sewer systems
