Effective sealing
The product can completely block out sunlight, boasts good sealing performance, prevents algae growth, and maintains clean water quality
Easy to assemble
Easy to assemble, with an attractive appearance, it can be assembled into different tonnages according to user needs
Strong pressure bearing capacity

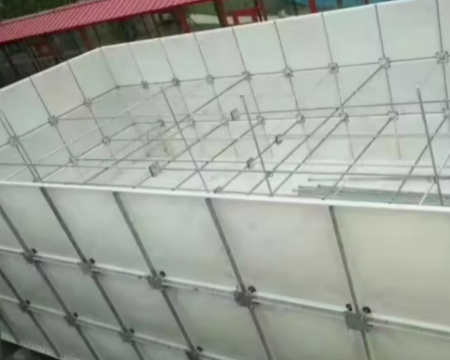

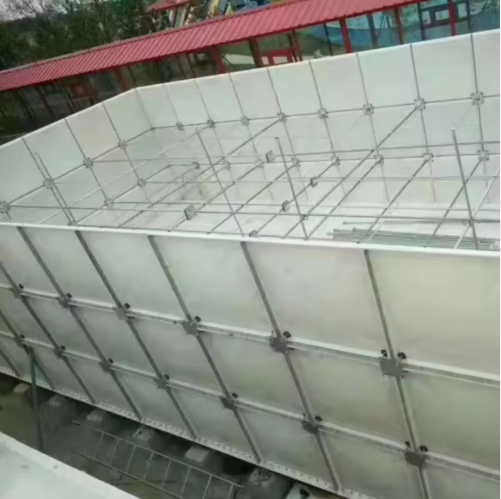

High strength stamping plates and evenly distributed stainless steel reinforcement inside the box ensure even and reasonable pressure bearing of the box.

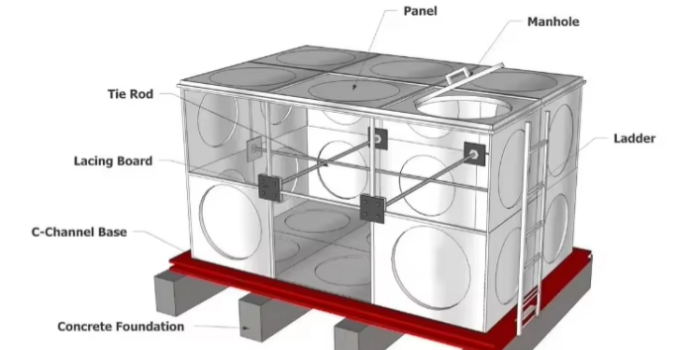

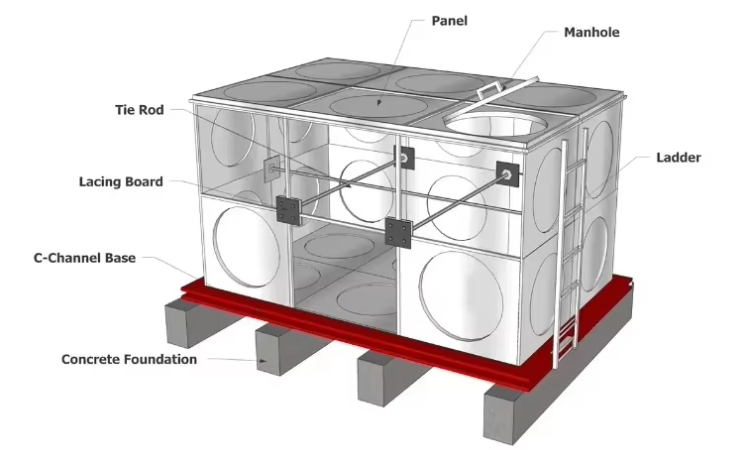

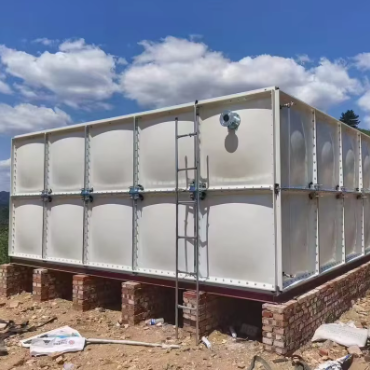

① Panel
② Manhole
③ Tie Rod
④ Ladder
⑤ Lacing Board
⑥ C-Channel Base
| Material | Fiberglass/SMC |
| Dimensions | 2×1m, 1.5×1m, 1×1m, 1×0.5m, 0.5×0.5m |
| Panel Shape | Spherical |
| Thickness | 6-20 mm |
| Note | Thickness tolerance: ±0.2 mm |
| Volume | 0.125–5000 cm³ |
| Color | White, blue, etc. |
| SMC Tank Physical and Chemical Properties | Compressive Strength (MPa) ≥ 60 |
| Flexural Strength (MPa) ≥ 100 | |
| Flexural Modulus (GPa) ≥ 7.0 | |
| Pap Hardness ≥ 60 | |
| Water Absorption Rate ≤ 1.0% | |
| Glass Fiber Content ≥ 25% | |
| Leakage | No leakage when filled with water |
| Water-Filled Deformation | After filling with water, maximum wall deformation does not exceed 1.0%. Maximum deformation at the center height of the tank bottom does not exceed 10 mm. |
