Galvanized Steel Rainwater Storage Tank

Product Details

Display

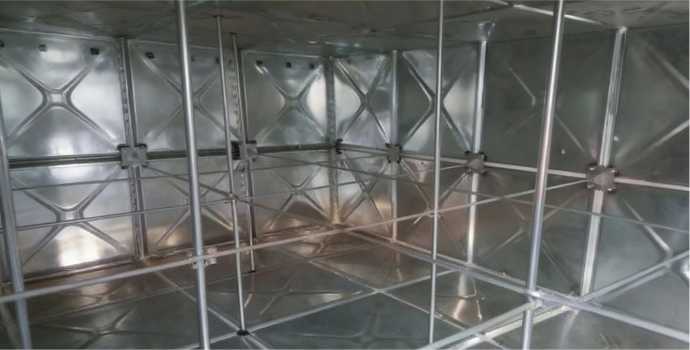

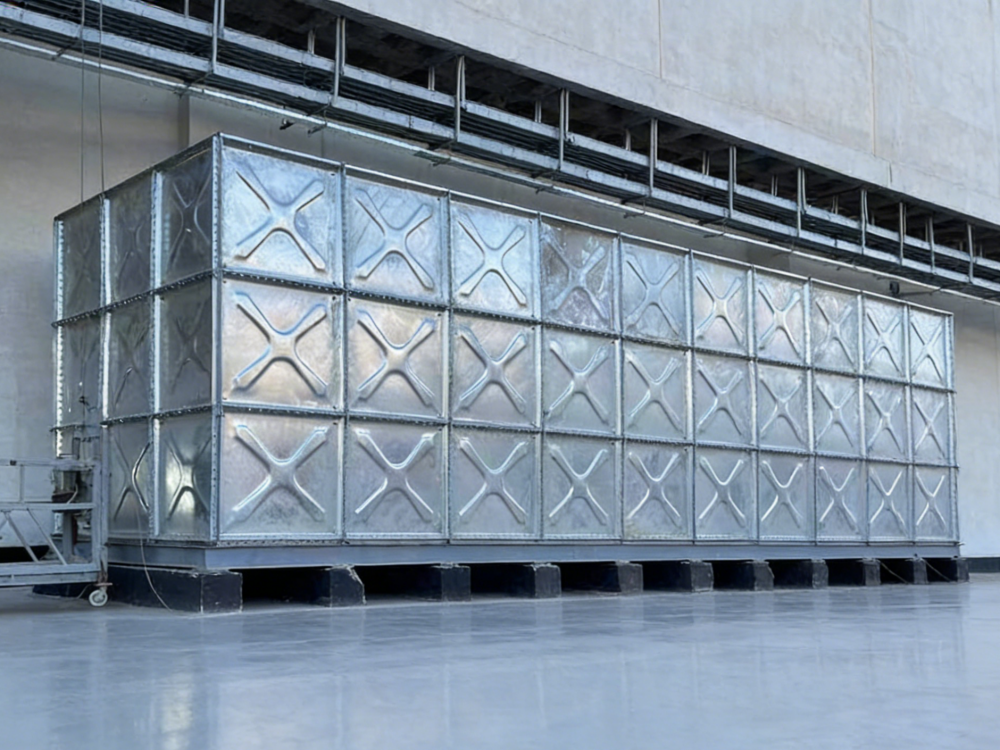

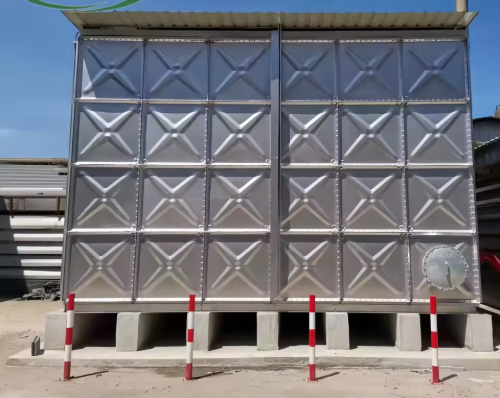

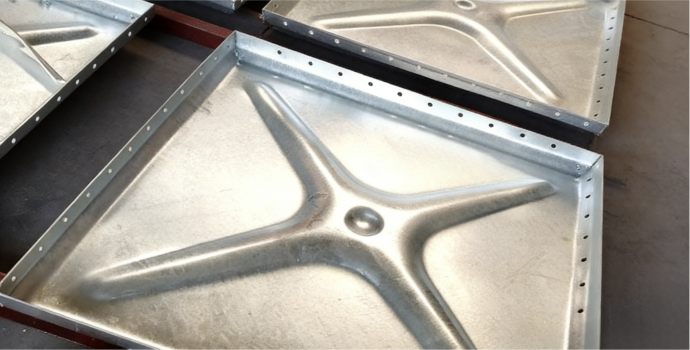

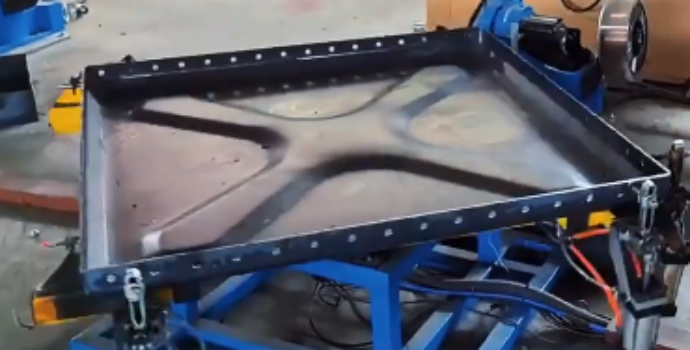

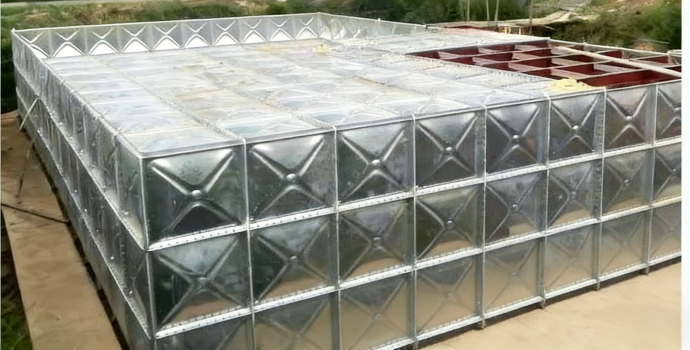

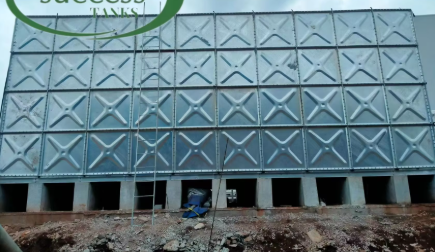

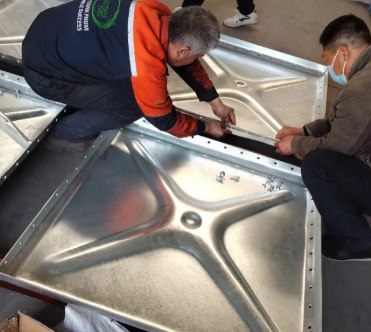

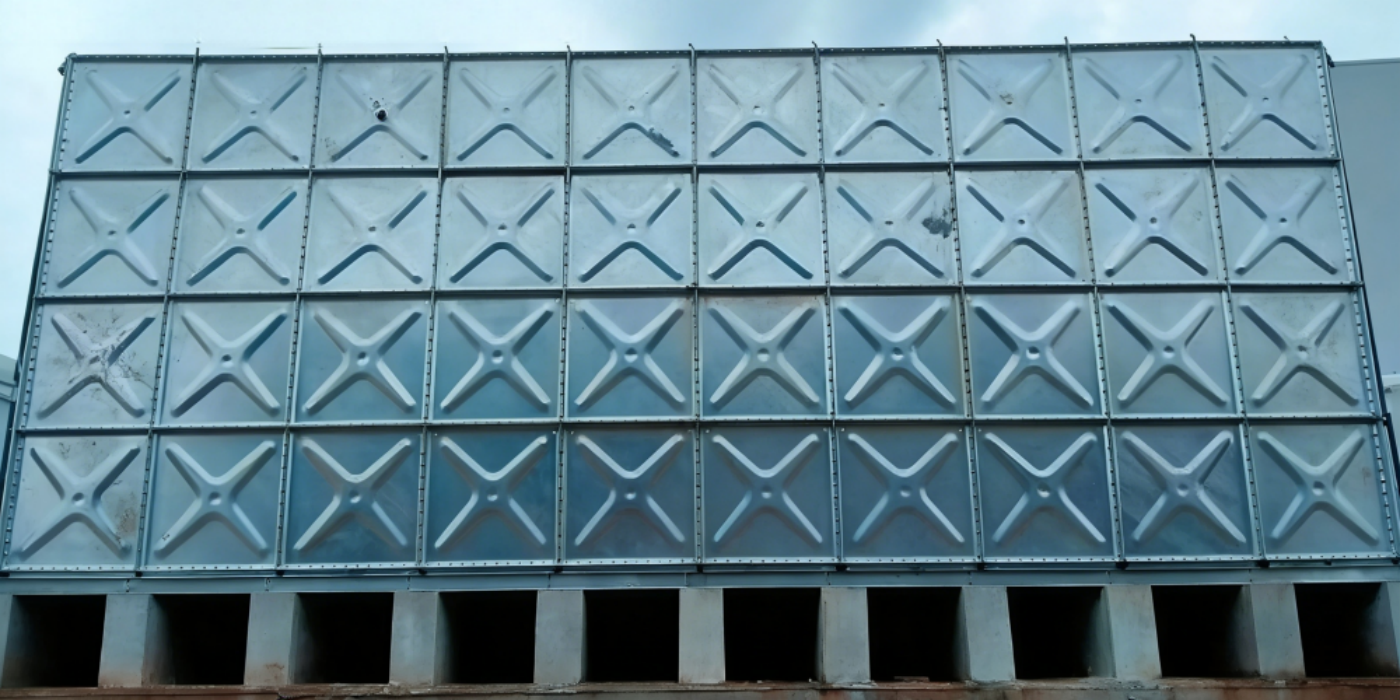

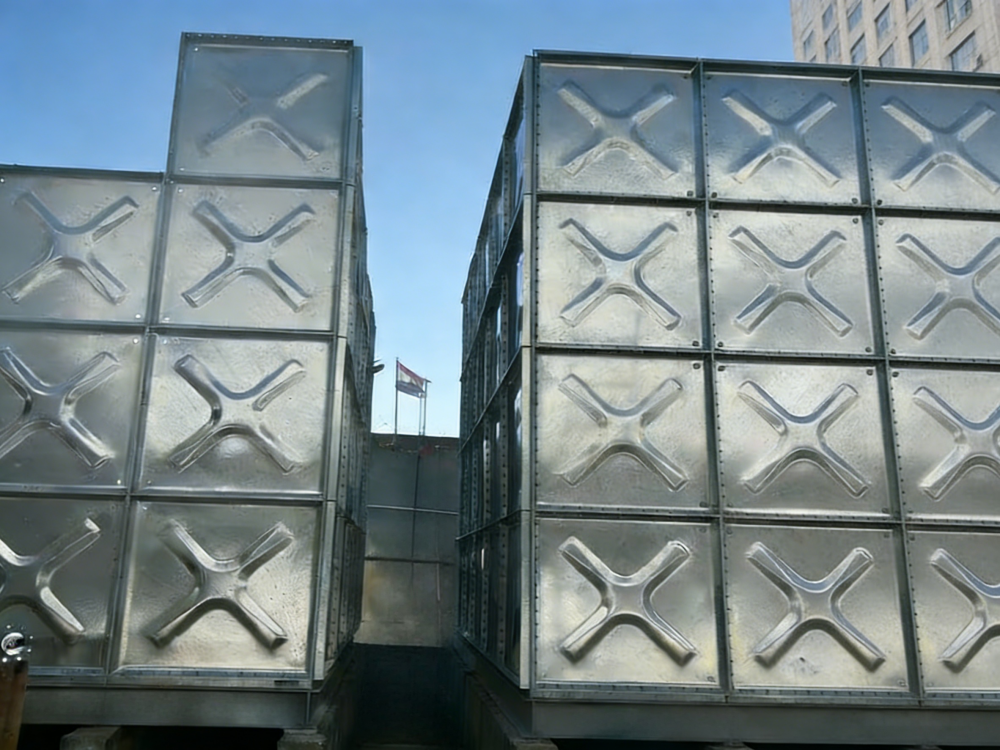

Galvanized steel water tanks are stamped from Q235A steel into standard plates measuring 1220mm × 1220mm, 1000mm × 1000mm, 1000mm × 500mm, or 500mm × 500mm. Perforations are drilled around the edges, followed by hot-dip galvanization (HDG) treatment. Assembly occurs on-site. When joined, the gap between two standard plates is sealed with silicone gaskets and secured with bolts.

Feature

1. Never Rusts

Utilizes premium GI technology with an extra-thick GI coating for superior rust resistance.

2. Never Leaks

Features a unique structure and fully welded construction for exceptional durability.

3. Flexible Configuration

Models and capacities can be customized to fit specific usage environments with no restrictions, making it ideal for retrofit projects.

4. Rational Structure

Unique sheet metal design and stamping processes, combined with optimized internal supports and high-strength galvanized steel, deliver outstanding structural integrity and a streamlined appearance.

Parameter Table

Panel dimension	weight of each panel
Panel dimension	2mm	2.5mm	3mm	4mm	5mm
500*500mm	5.3kg	6.9kg	9kg	11kg	13.9kg
500*1000mm	9.5kg	12.5kg	14.6kg	19.9kg	25.2kg
1000*1000mm	17.4kg	22.7kg	22.6kg	36.2kg	46kg
1200*1200mm	/	33.6kg	39.3kg	53.7kg	68kg

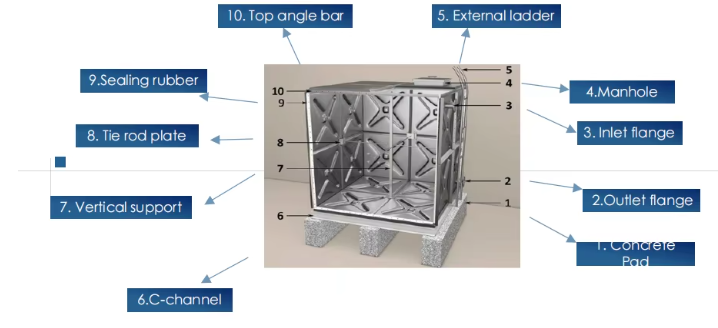

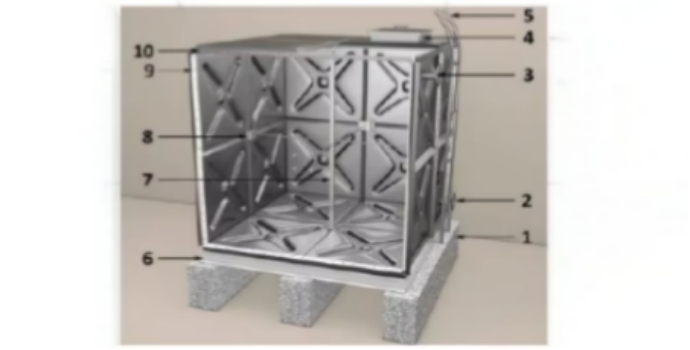

1.Concrere Pad
2.Outlet Flange
3.Inlet Flange
4.Manhole
5.External ladder
6.C-Channel
7.Vertical Support
8.Tie Rod Plate
9.Sealing Rubber
10.Top Angle Bar
