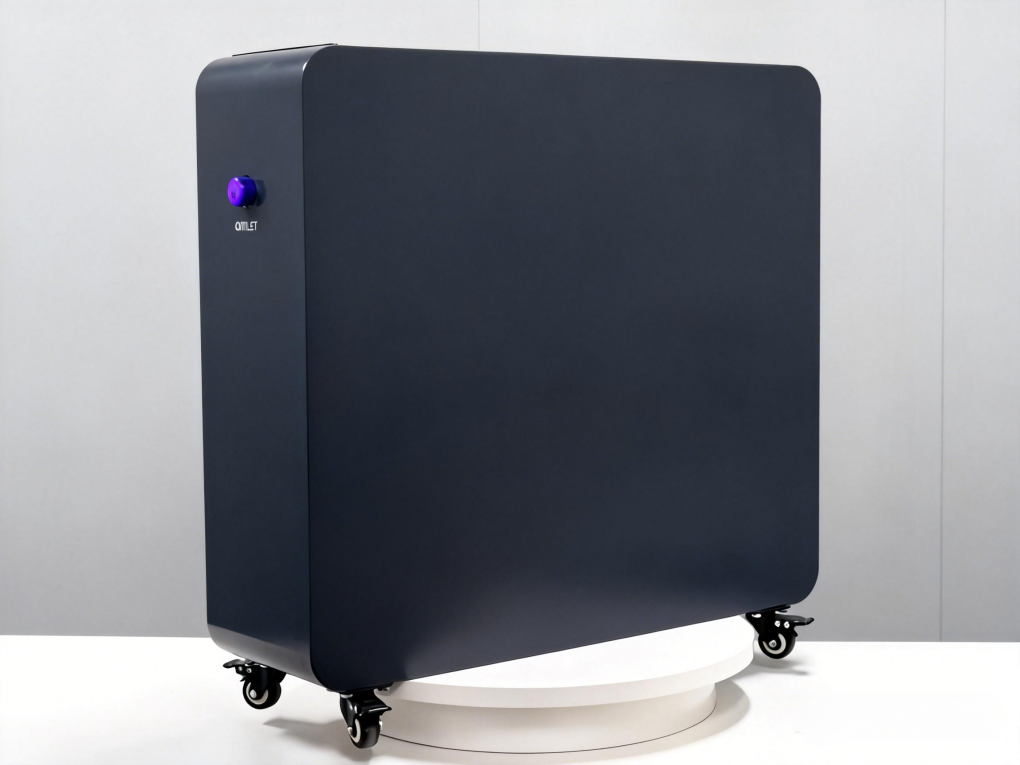

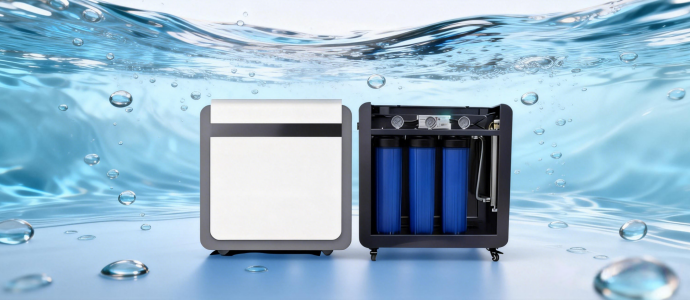

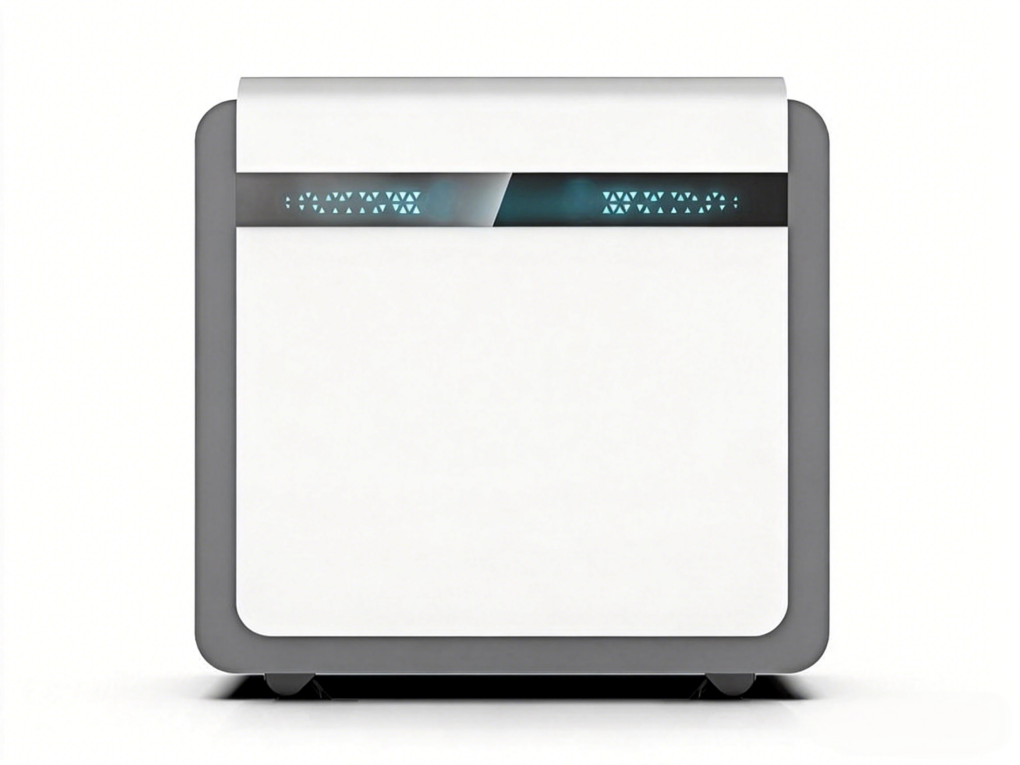

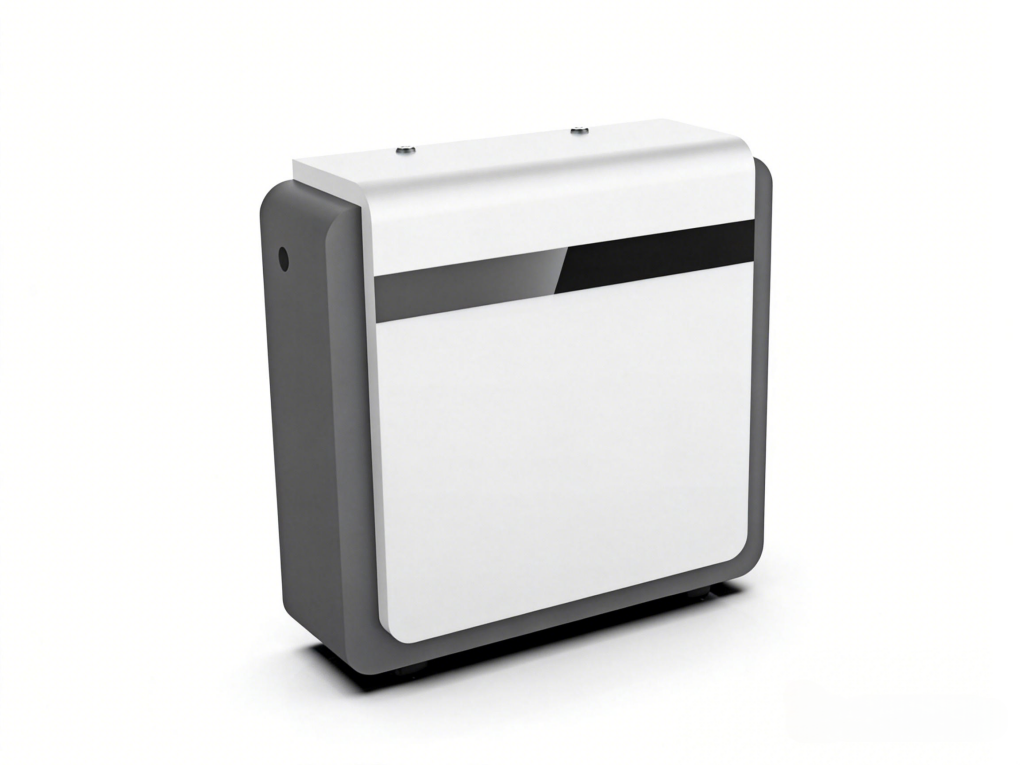

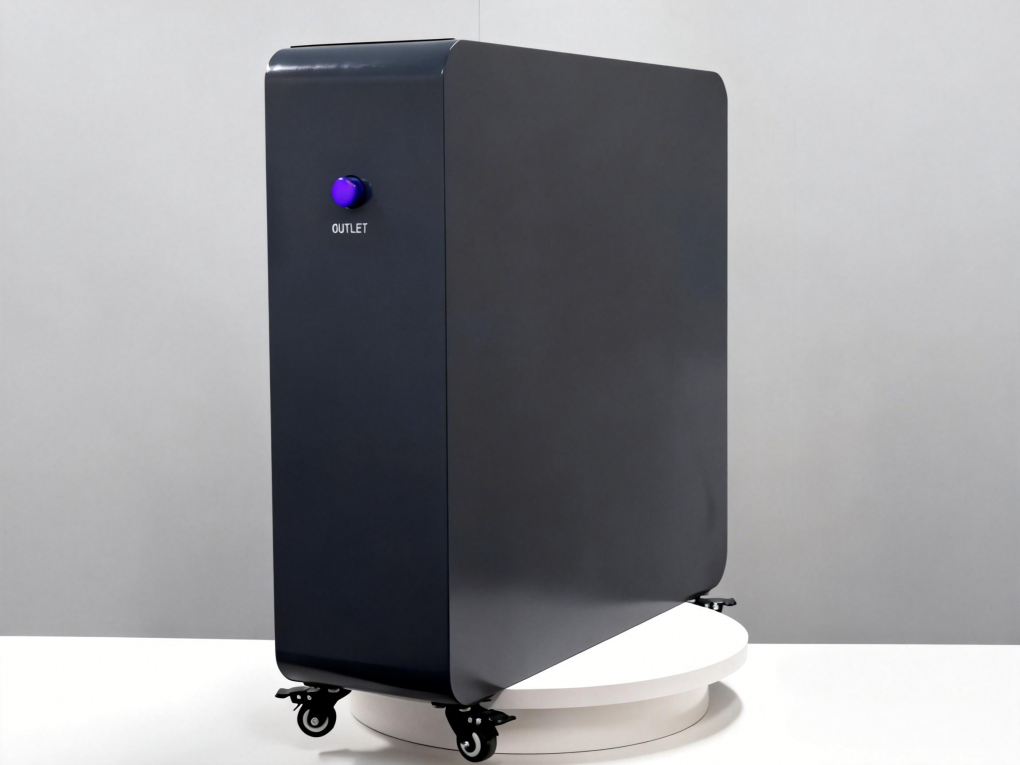

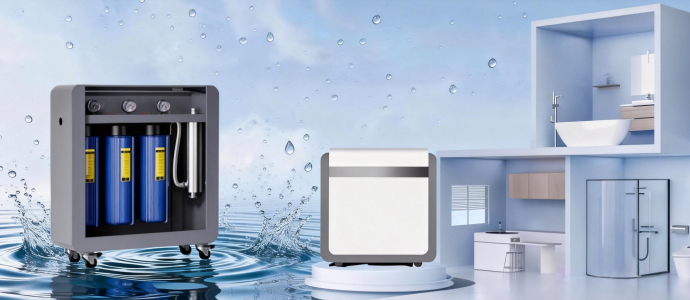

This pre-assembled standalone whole house water filtration system features a four-stage filtration process combined with high-output UV disinfection. It effectively removes sediments, chlorine, odors, and harmful pathogens. Suitable for municipal water, well water, and rainwater systems, it offers plug-and-play installation and reliable protection for household water use.
1. Eliminates up to 99.99% of pathogens without chemicals
2. 4-stage filtration for comprehensive water improvement
3. Pre-assembled steel frame for fast installation
4. Compatible with multiple water sources
5. Long filter life and low maintenance cost

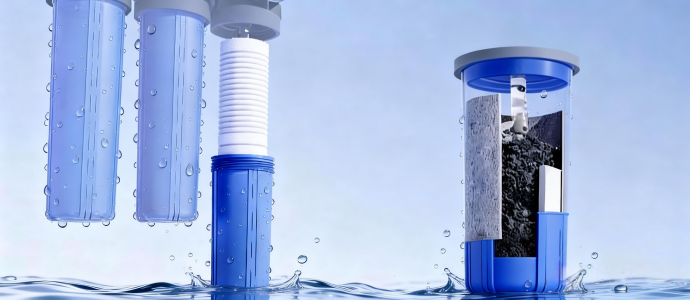

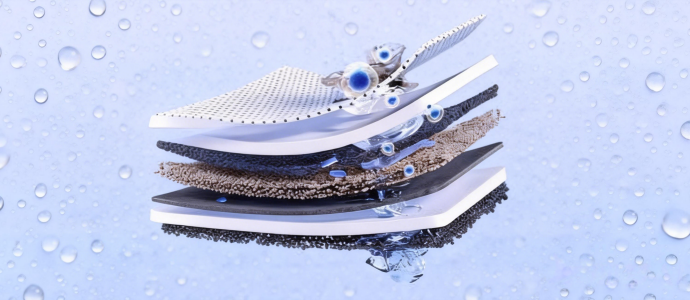

Sediment, activated carbon, carbon block, and UV disinfection for multi-layer water protection.
High-output UV sterilization inactivates bacteria, viruses, and parasites without chemicals.
PP sediment filter and high-efficiency carbon filters remove up to 97.7% of chlorine, odor, rust, and sand.
Digital controller with delay timer and brass flow sensor for automatic flow shut-off.

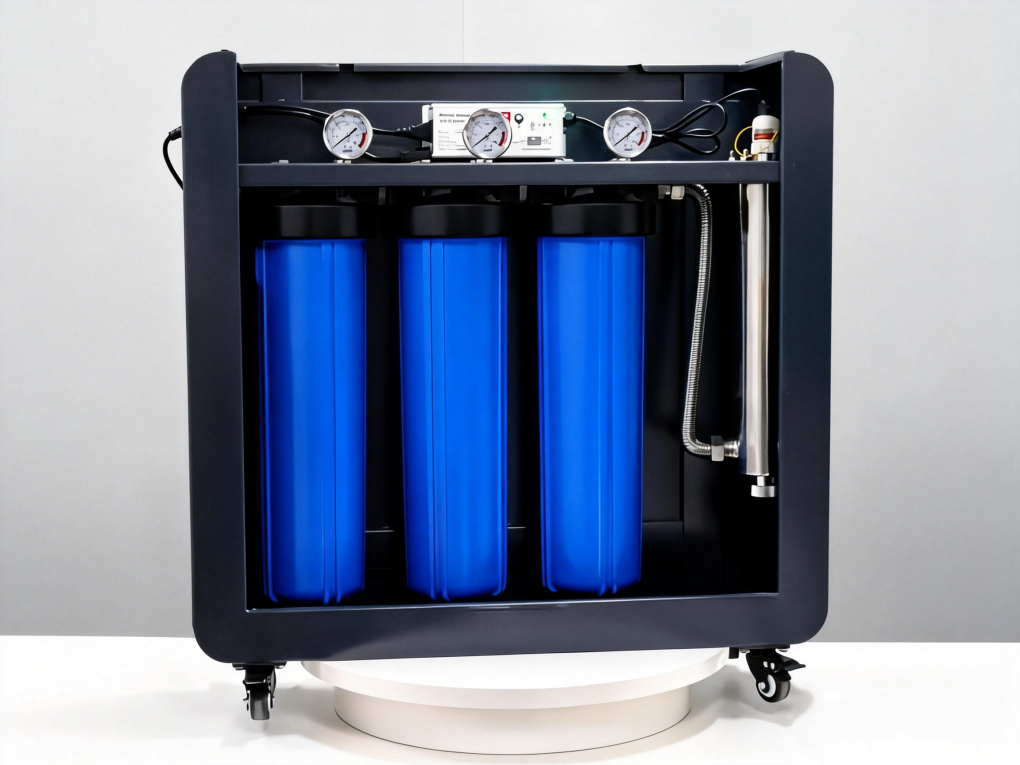

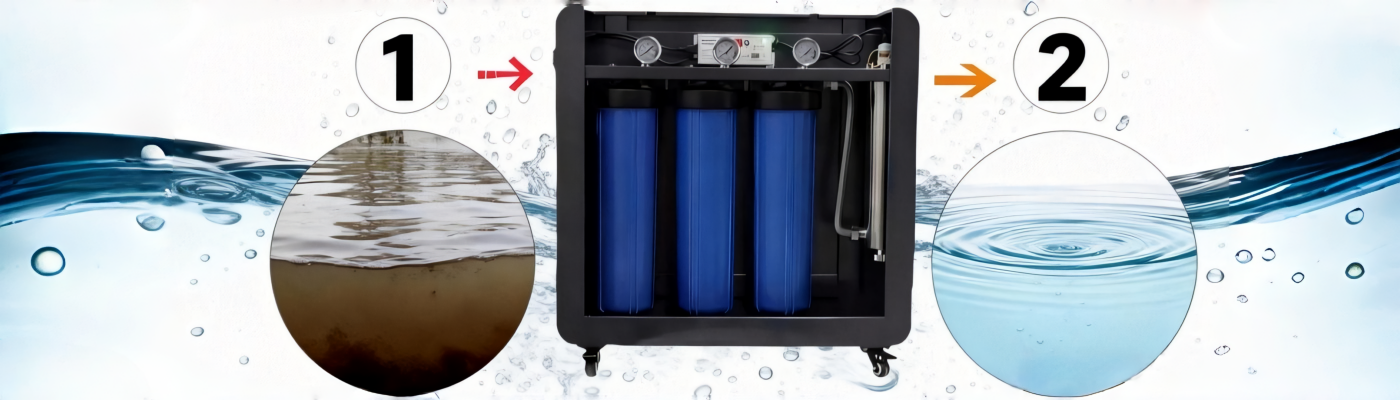

Water enters through the 1(inlet), passes through sediment filtration, carbon filtration, carbon block filtration, and UV disinfection, and exits from 2(outlet) as clean, safe water for the entire house.
| Materials | Activated Carbon, PP, Brass, Stainless Steel, Quartz |
| Function | Eliminates 99.9% of bacteria in water |

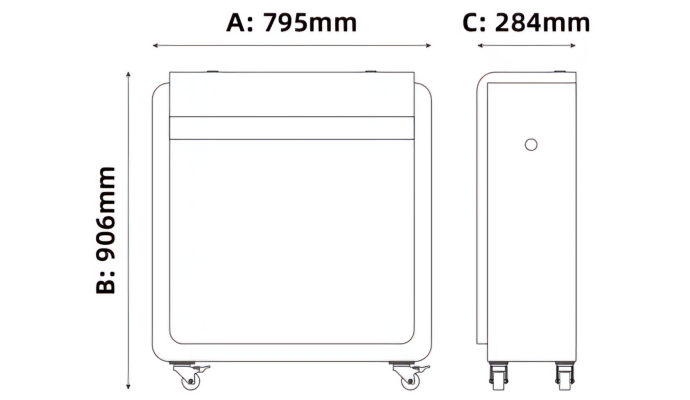

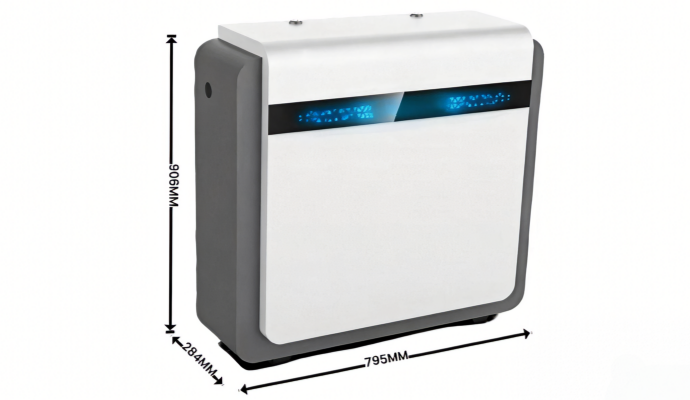

| Dimensions | 795*906*284 mm |
| Filtration Stages | 4-Stage: PP + GAC + CTO + UV |
| Lamp Specifications | 48W UV Lamp with Quartz Sleeve |
| Applications | Pools and spas |
| Water features | |
| Life sciences | |
| Drinking water | |
| Pools and spas | |
| Water treatment | |
| Features | * 99% elimination rate |
| * No chemical additives | |
| * Zero wastewater | |
| * Eco-friendly alternative to chlorine treatment | |
| * Cost-effective-low power consumption |
| Specifications | ||
| Item | Parameters | |
| UV Dose Flow Rates | 16mj/cm2 | 78lpm(20GPM) |
| 30mj/cm2 | 45lpm(20GPM) | |
| 40mj/cm2 | 31lpm(20GPM) | |
| Inlet | 1 Female | |
| Outlet | 1 Male | |
| 1st Stage | 5 micron sedinent filter(20*4.5) | |
| 2nd Stage | GAC Filter(20*4.5) | |
| 3rd Stage | CTO Filter(20*4.5) | |
| UV Lamp | 48W | |
| Maximum Pressure | 10bar | |
Ideal for whole house water supply, including drinking, bathing, kitchen use, laundry, and appliance protection. Suitable for municipal water, well water, and rainwater harvesting systems.
