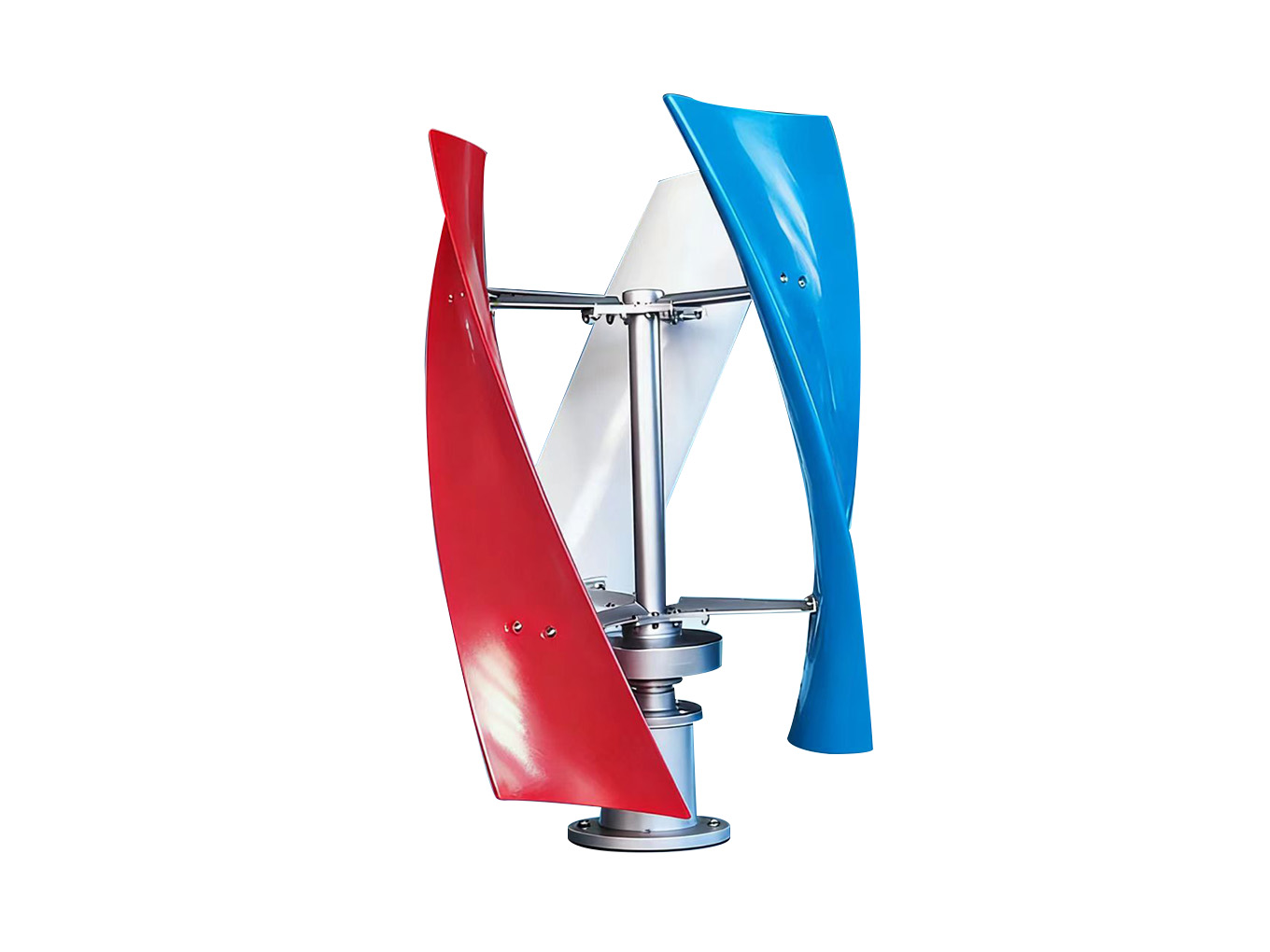

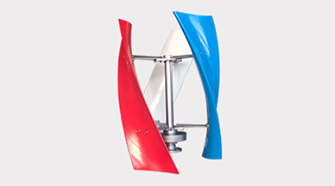

Micro-Breeze Wind Turbine
Low start-up wind speed
High wind energy conversion efficiency
Long service life

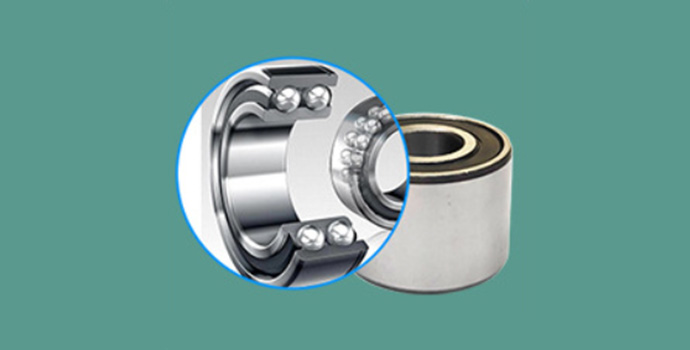

Double-row deep groove ball bearings
feature a larger width and low operational vibration
High groove capacity and large diameter
| Model | NE-100 | NE-200 | NE-300 | NE-400 |
| Rated Power | 100W | 200W | 300W | 400W |
| Maximum Power | 130W | 220W | 320W | 420W |
| Rated Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Start-up Wind Speed | 3.0m/s | 3.0m/s | 3.0m/s | 3.0m/s |
| Rated Wind Speed | 10m/s | 11.5m/s | 11.5m/s | 11.5m/s |
| Safe Wind Speed | 45m/s | 45m/s | 45m/s | 45m/s |
| Net Weight of Main Unit | 9kg | 10kg | 11kg | 12kg |
| Rotor Diameter | 0.53m | 0.53m | 0.53M | 0.53M |
| Number of Blades | 3 | |||
| Blade Material | Nylon fiber | |||
| Generator | Three-phase AC permanent magnet generator | |||
| Braking Method | Electromagnetic brake | |||
| Operating Temperature | -40°C--80°C | |||

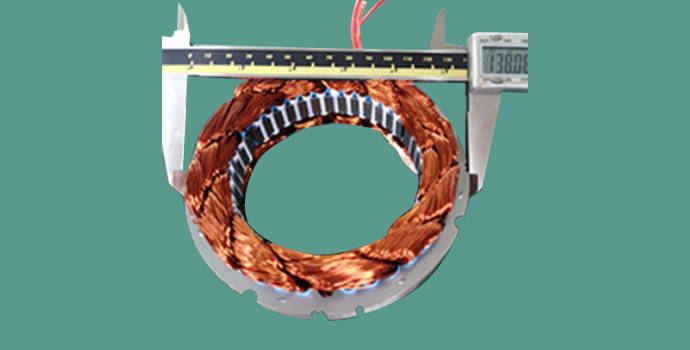

Generator
Rare Earth Permanent Magnet Generator
Fan Blade
New Plastic/Fiberglass Reinforced Plastic Blade

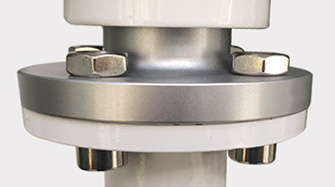

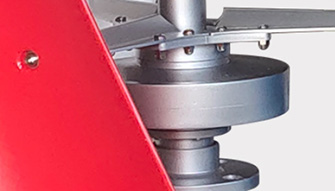

Flange Connection
Secure and Stable
