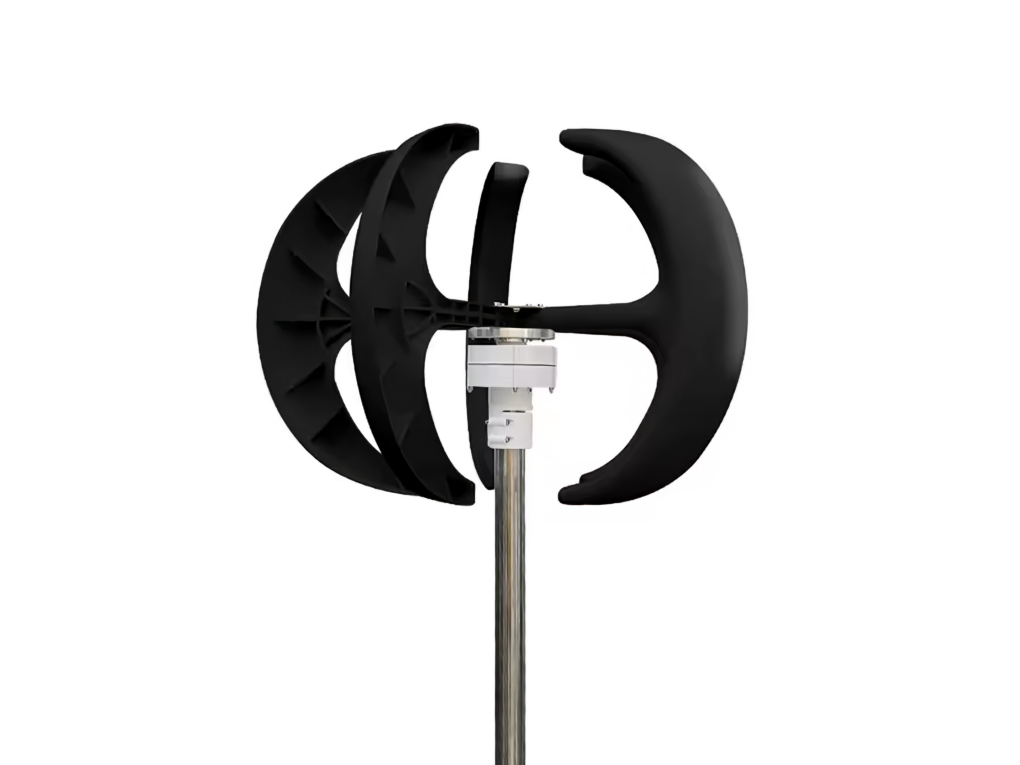

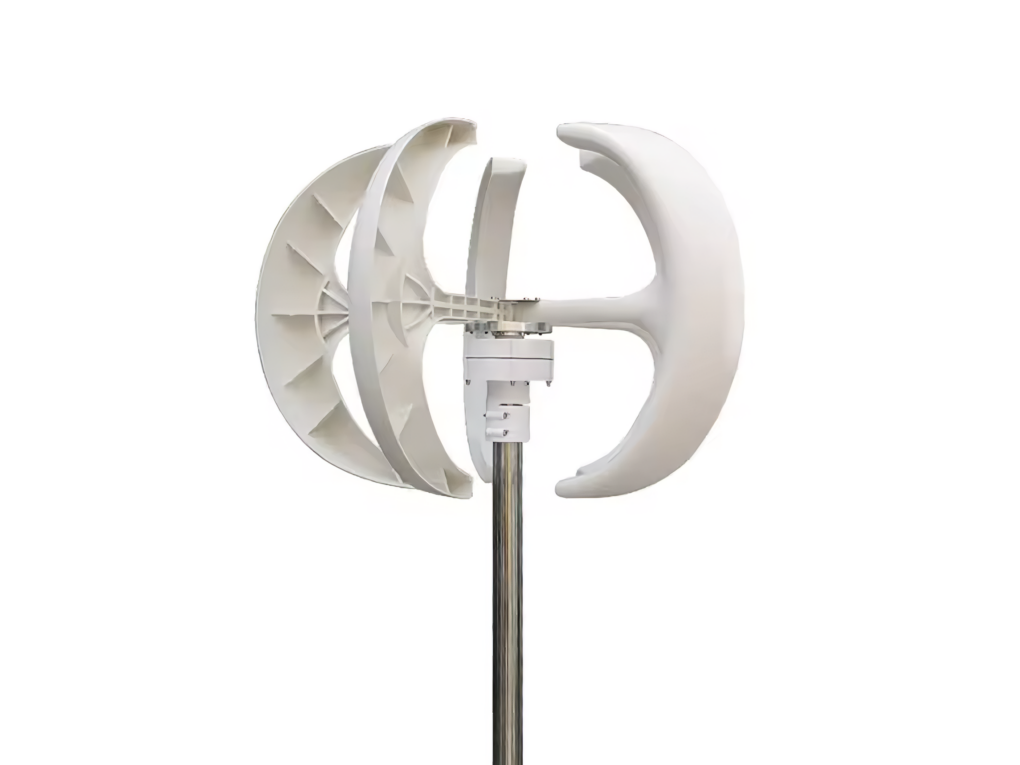

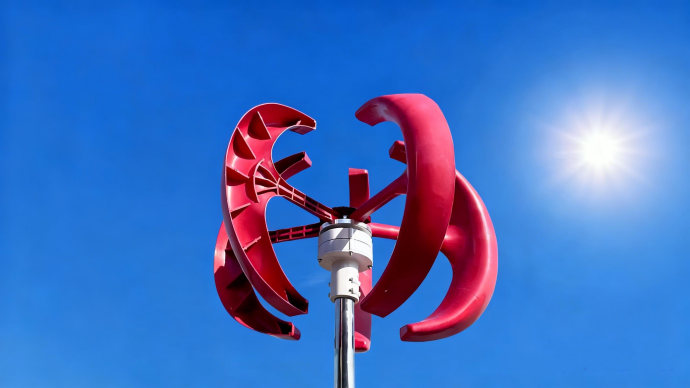

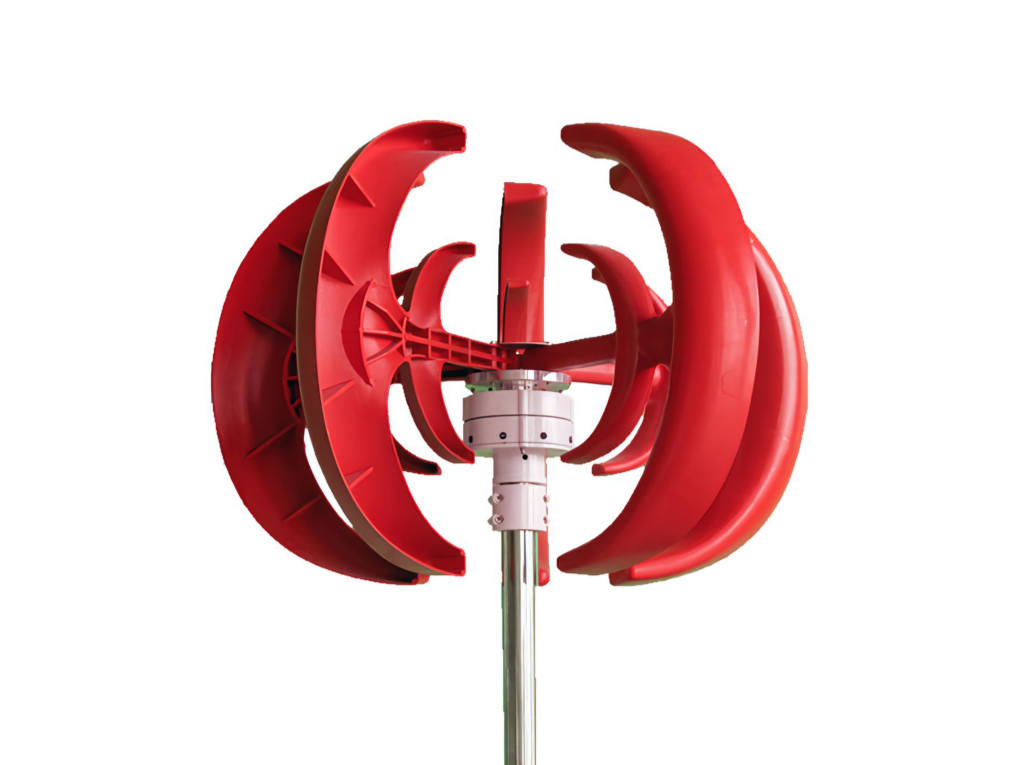

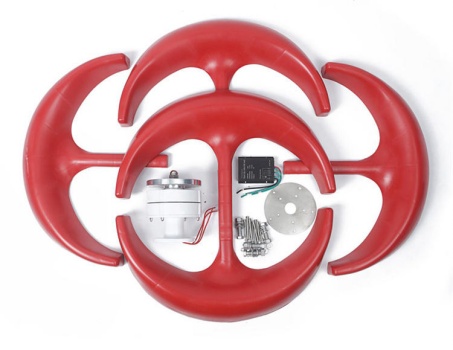

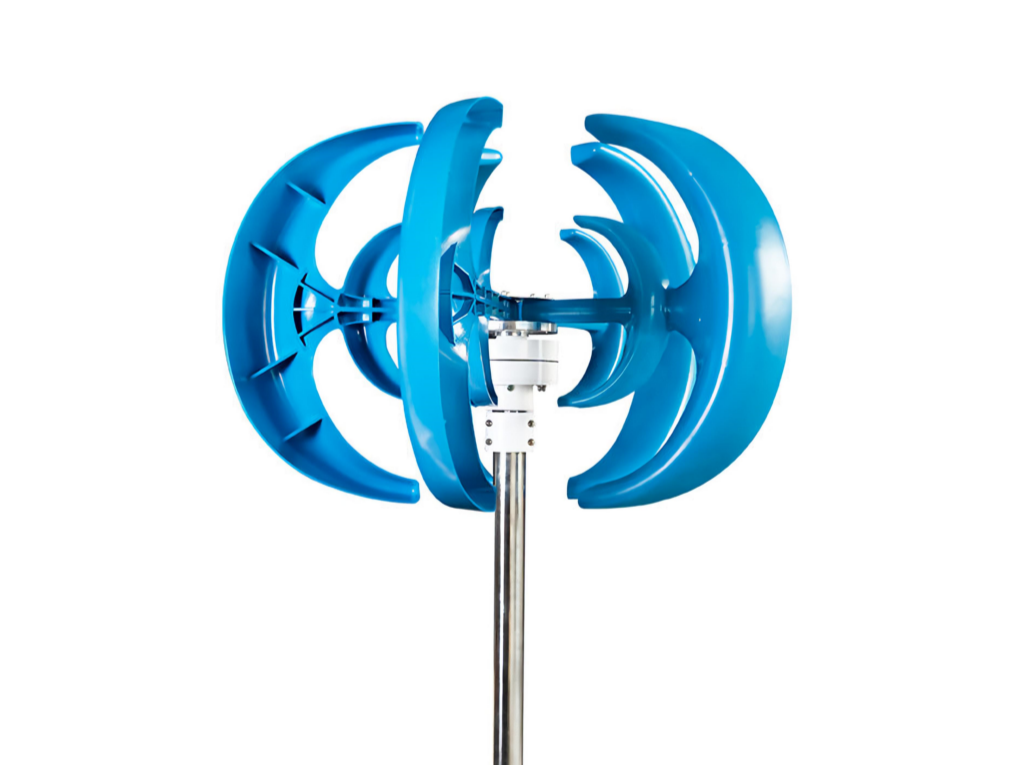

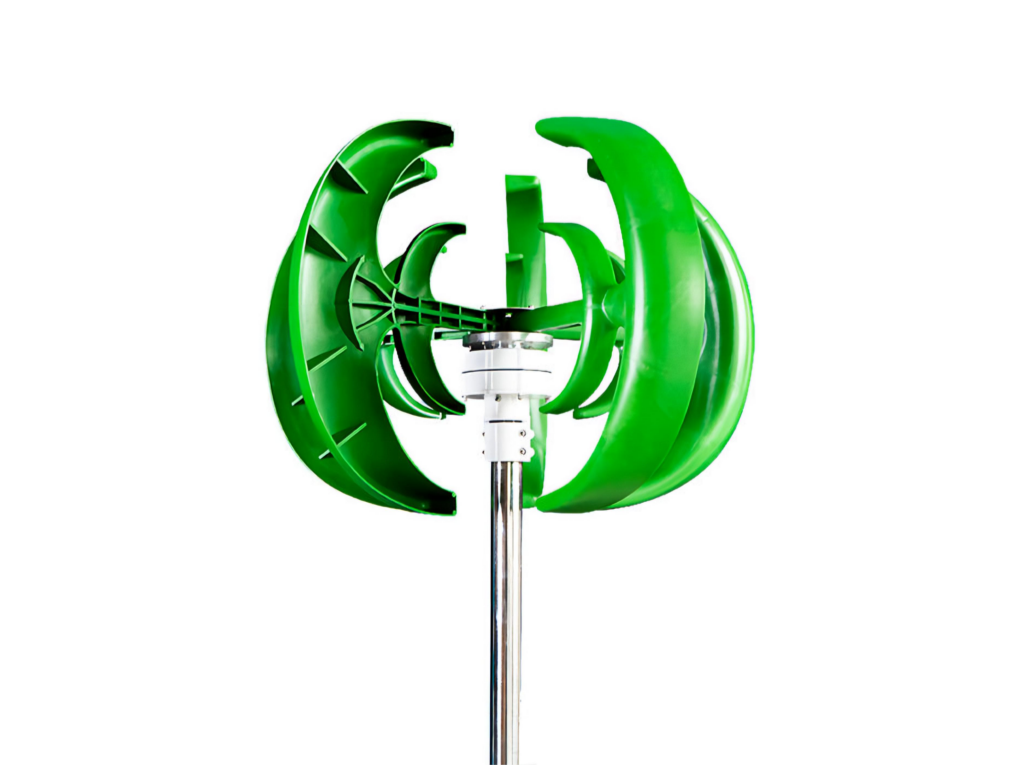

VT Series Vertical Axis Wind Turbine Generator with Motor Kit and Lighting for Camping and Home Use

A low-noise and high-efficiency vertical axis wind turbine designed for camping and home distributed power generation.
Rated Voltage: 12V / 24V / 48V
Rated Power: 100W / 200W / 300W / 400W / 500W / 600W / 800W / 1000W
Rated Wind Speed: 12 m/s
Net Weight: 12 kg
SEND INQUIRY WHATSAPP

Product Details

Integrated Housing Solutions




Product Description

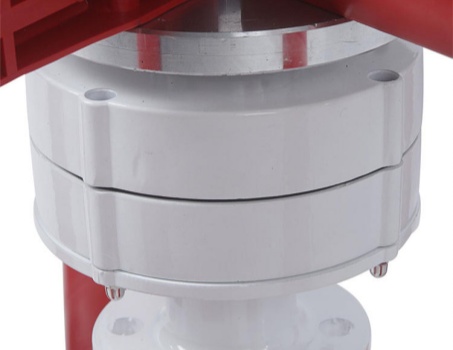

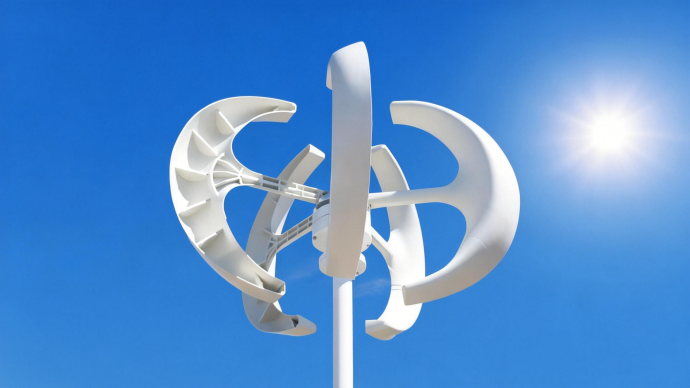

This VT series Wind Turbine Generator adopts a three-phase AC permanent magnet generator with magnetic levitation technology, enabling low start-up wind speed and stable operation. The vertical axis design automatically adapts to changing wind directions without manual adjustment. Equipped with a motor kit and lighting system, it can supply power for lighting, battery storage, and small household appliances, making it an ideal solution for home distributed wind energy systems and outdoor camping power needs.

Key Advantages

1.Low-noise operation, suitable for residential and camping use;
2.Vertical axis design, automatically adapts to wind direction;
3.Strong wind resistance and stable performance;
4.High cost-performance ratio with wide power range;
5.Aluminum alloy shell with three-layer coating protection for leakage and corrosion resistance;
6.Elegant appearance for outdoor and home installation.


Product Parameters

Model VT300 VT400 VT500 VT600 VT800 VT1000
Rated power 300W 400W 450W 600W 800W 1000W
Max power 350W 350W 500W 650W 850W 1050W
Rated voltage 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V 12V
Start-up wind speed 2m/s 2m/s 2m/s 2m/s 2m/s 1.3m/s
Rated wind speed 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s
Survival wind speed 45m/s 45m/s 45m/s 45m/s 45m/s 45m/s
Net weight of main engine 12kg 12kg 12kg 12kg 12kg 12kg

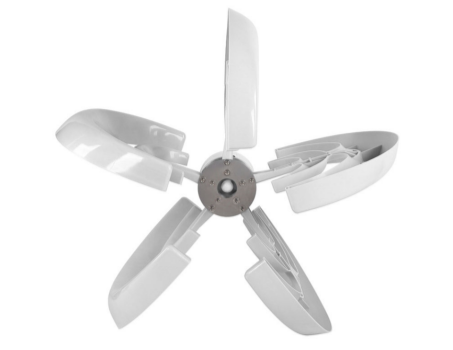

Number of blades 5 pieces 5 pieces 5 pieces 5 pieces 5 pieces 3 pieces
Blades material nylon fiber nylon fiber nylon fiber nylon fiber nylon fiber nylon fiber
Body material nylon fiber nylon fiber nylon fiber nylon fiber nylon fiber nylon fiber
Generator three phase AC permanent magnet generator/maglev generator three phase AC permanent magnet generator/maglev generator three phase AC permanent magnet generator/maglev generator three phase AC permanent magnet generator/maglev generator three phase AC permanent magnet generator/maglev generator three phase AC permanent magnet generator/maglev generator
Control System electromagnetic brake electromagnetic brake electromagnetic brake electromagnetic brake electromagnetic brake electromagnetic brake
Yaw Mode automatic windward angle automatic windward angle automatic windward angle automatic windward angle automatic windward angle automatic windward angle
Lubrication mode self lubrication self lubrication self lubrication self lubrication self lubrication self lubrication
Working temperature -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃

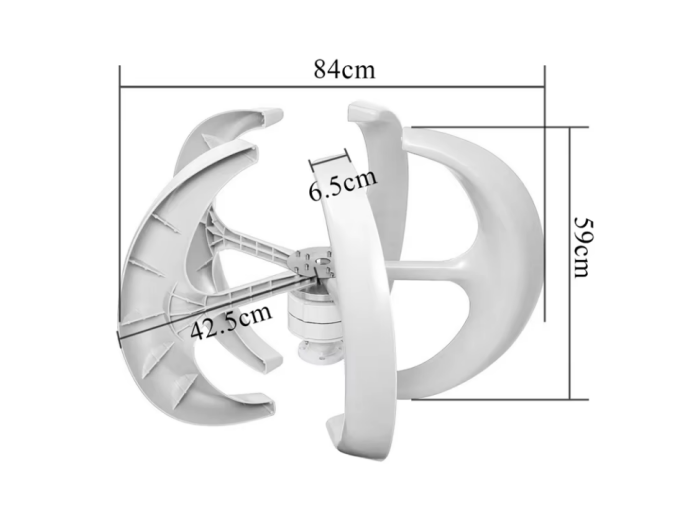

Dimensions



Applications

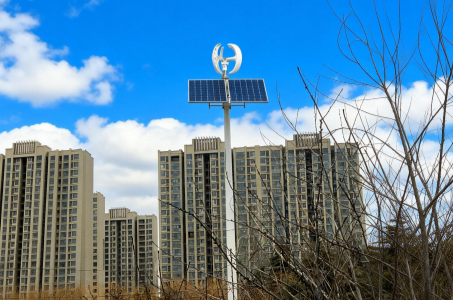

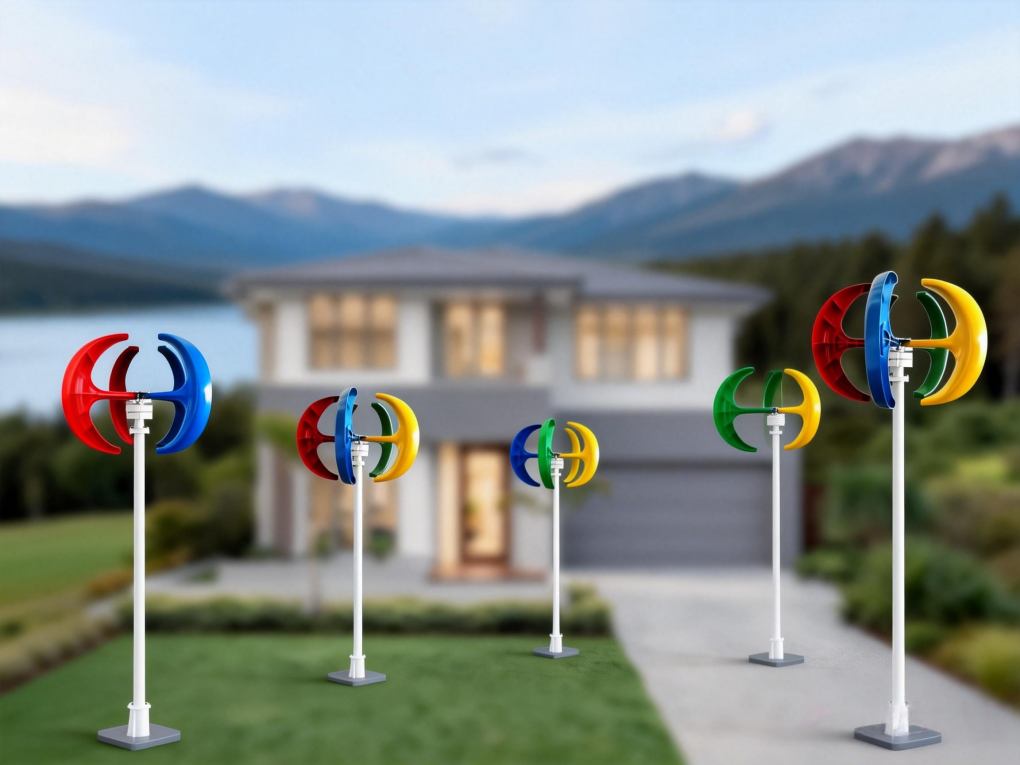

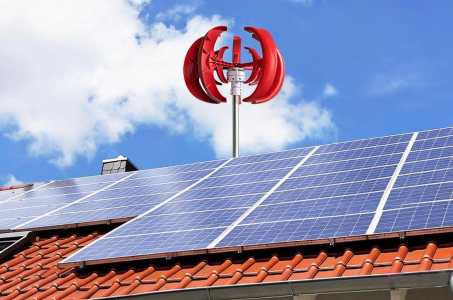

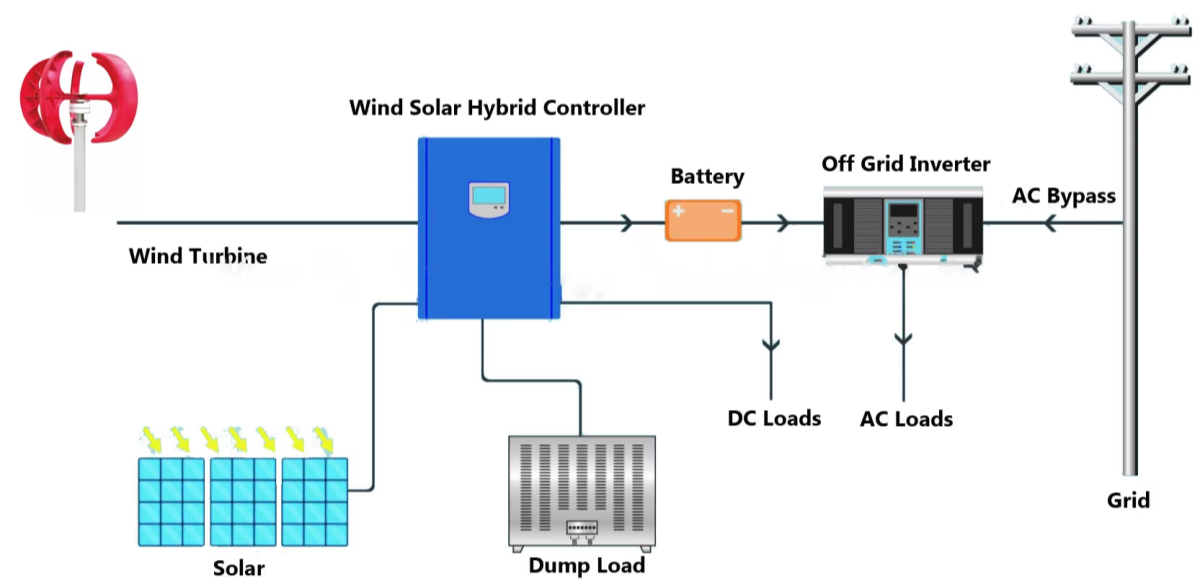

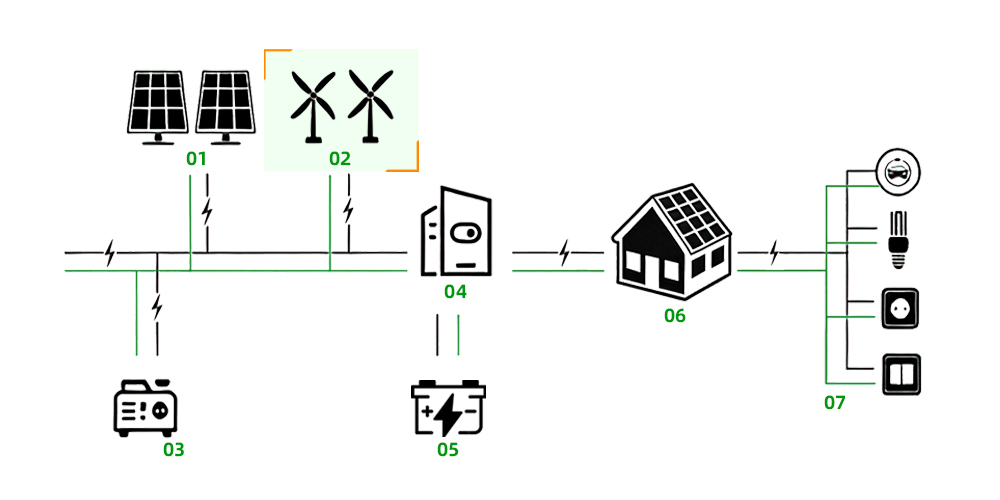

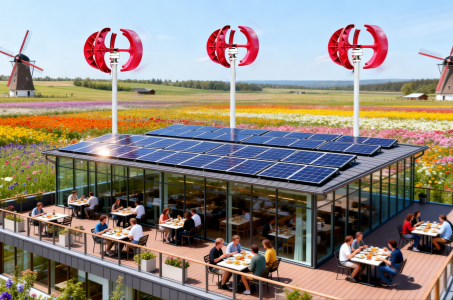

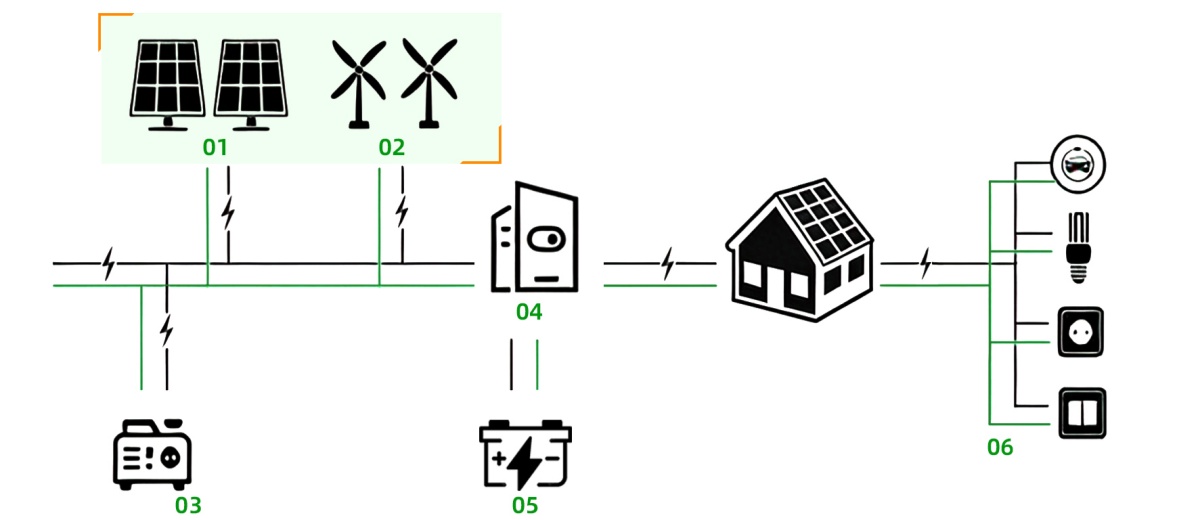

Widely used in camping power supply, home backup power, off-grid houses, container houses, mobile homes, and modular buildings. It can be integrated with solar systems and battery storage systems to provide a one-stop clean energy and housing power solution, supporting lighting, basic appliances, and daily electricity needs.
