VH Series Vertical Axis Wind Turbine Generator with Motor Kit and Lighting for Camping and Home Use

Product Details

Integrated Housing Solutions

Product Description

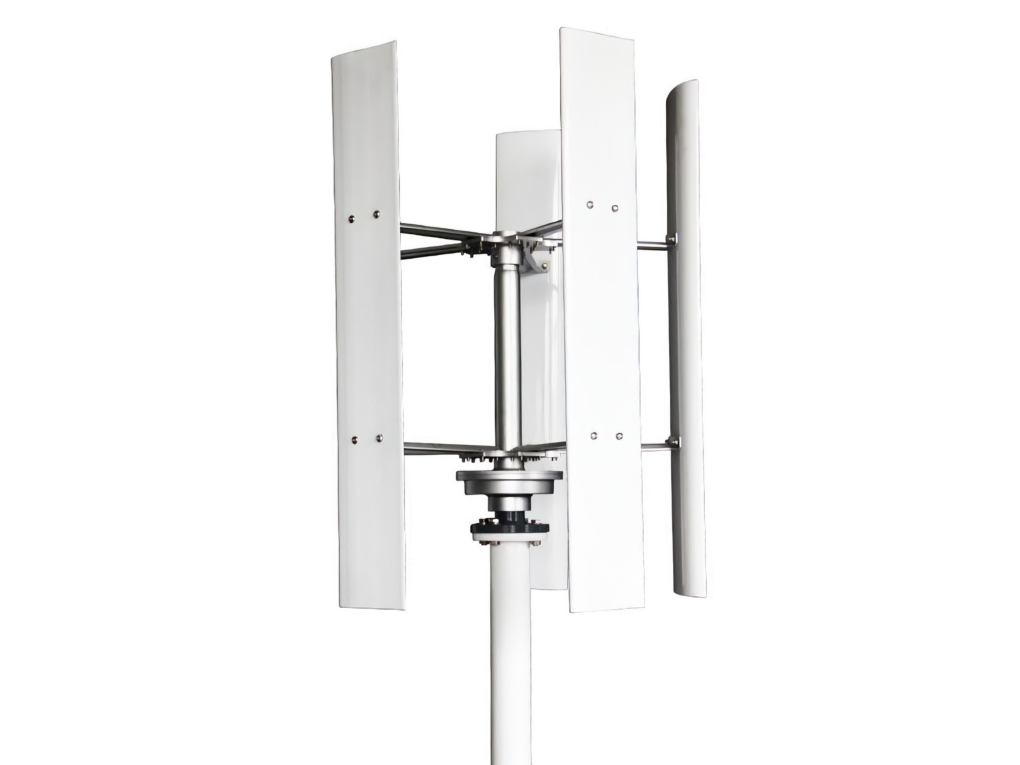

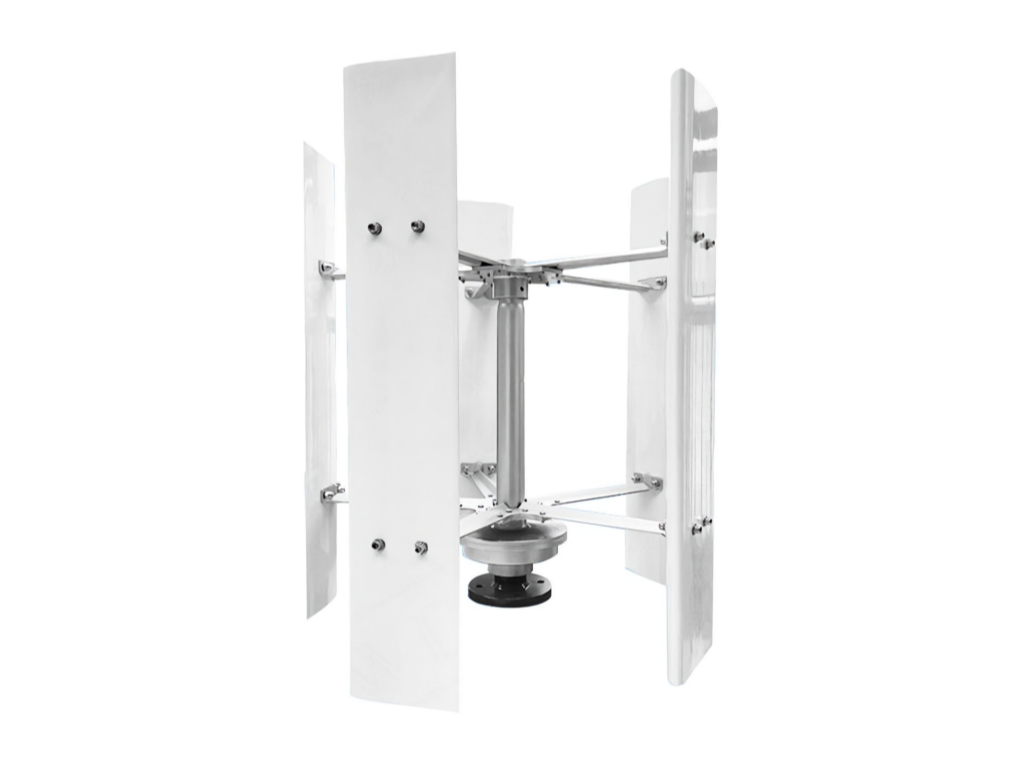

The VH series wind turbine generator is designed with a three-phase AC permanent magnet generator and magnetic levitation structure, enabling low start-up wind speed and stable power output. Its H-type vertical axis configuration automatically adapts to changing wind directions without manual adjustment, making it suitable for multi-directional and complex environments. Available in models ranging from 100W to 5KW with voltage options from 12V to 380V, it serves as a reliable wind power unit for home and small-scale alternative energy systems.

Key Advantages

1.Low-noise operation, suitable for home and outdoor applications;
2.H-type vertical axis design with automatic wind direction adaptation;
3.Strong wind resistance with stable and reliable performance;
4.Wide power range with high cost-effectiveness;
5.Aluminum alloy housing combined with 8A3 carbon steel body and triple-layer coating for 6.corrosion and leakage protection;
7.Simple and elegant appearance for residential and outdoor installation.

Product Parameters

Model	VH800	VH1500	VH2000	VH5000
Rated power	800W	1500W	2000W	5000W
Maximum power	850W	1800W	2500W	6000W
Rated voltage	12V/24V	12V/24V/48V	24V/48V/96V/220V	24V/48V/96V/220V
Start-up wind speed	2.5m/s	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	13m/s	13m/s	13m/s	13m/s
Survival wind speed	40m/s	40m/s	45m/s	45m/s
Number of blades	3/5 pieces
Body material	Aluminium alloy
Generator	Three phase AC permanent magnet generator/maglev generator
Control system	Electromagnetic brake
Yaw mode	Automatic windward angle
Lubrication mode	Self lubrication
Tower form	Guyed tower/independent tower
Working temperature	-40℃-80℃

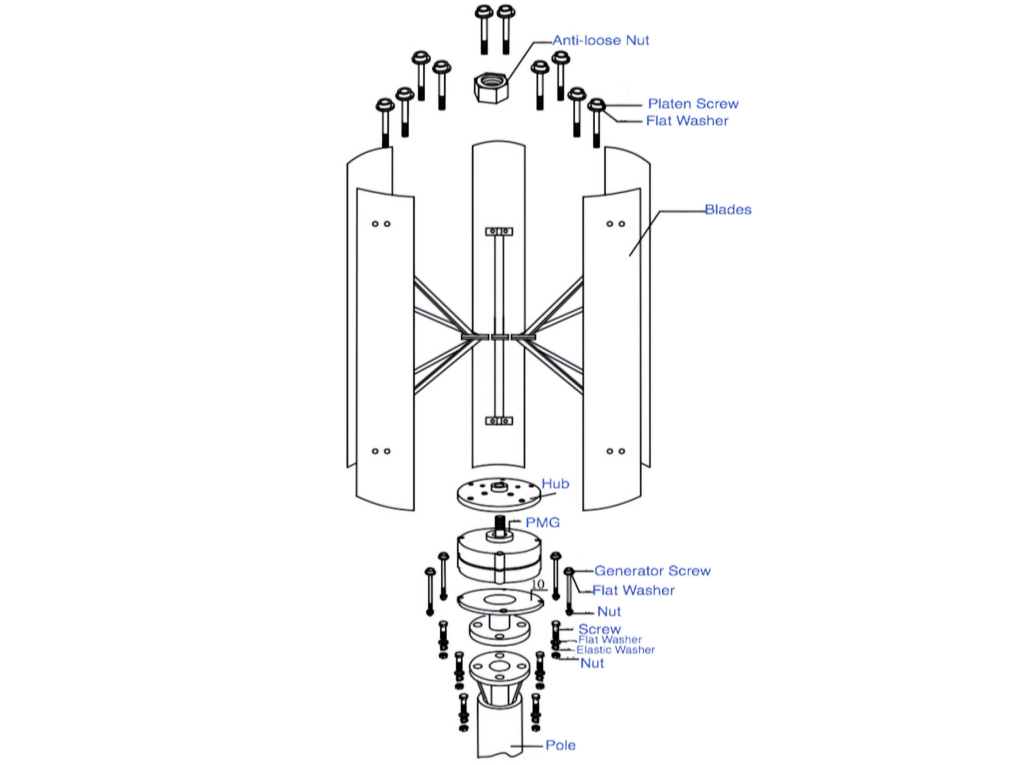

Product Detail

Applications

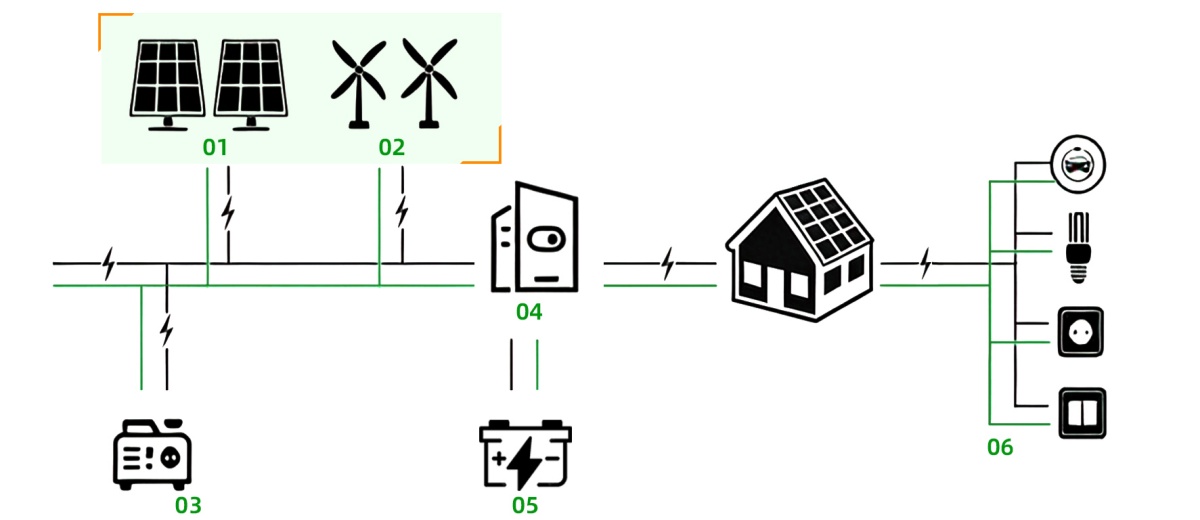

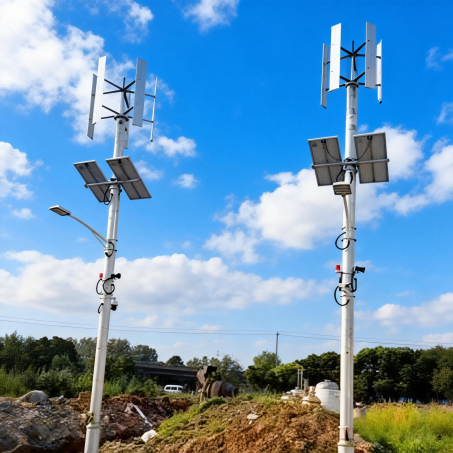

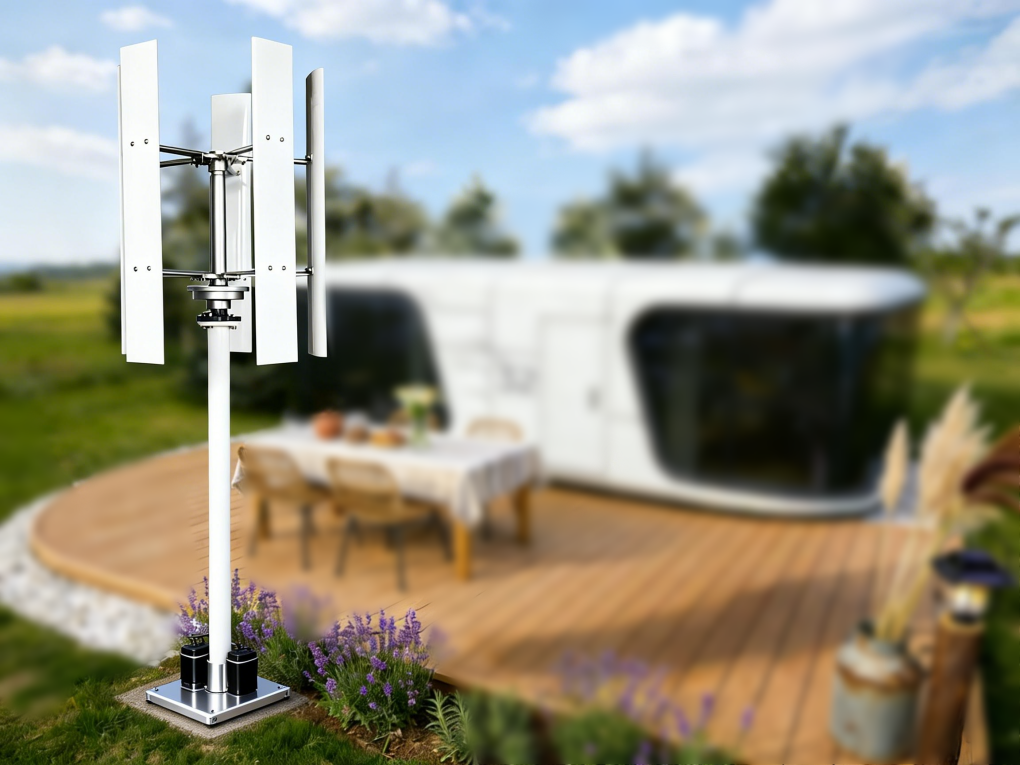

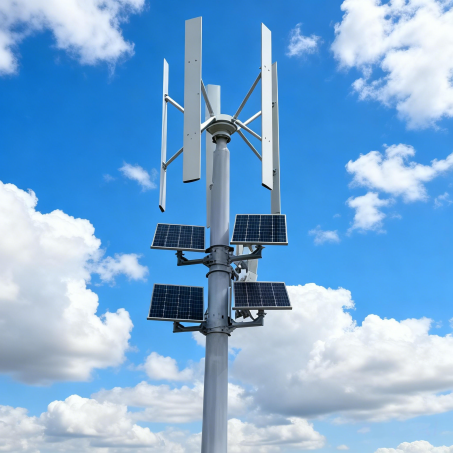

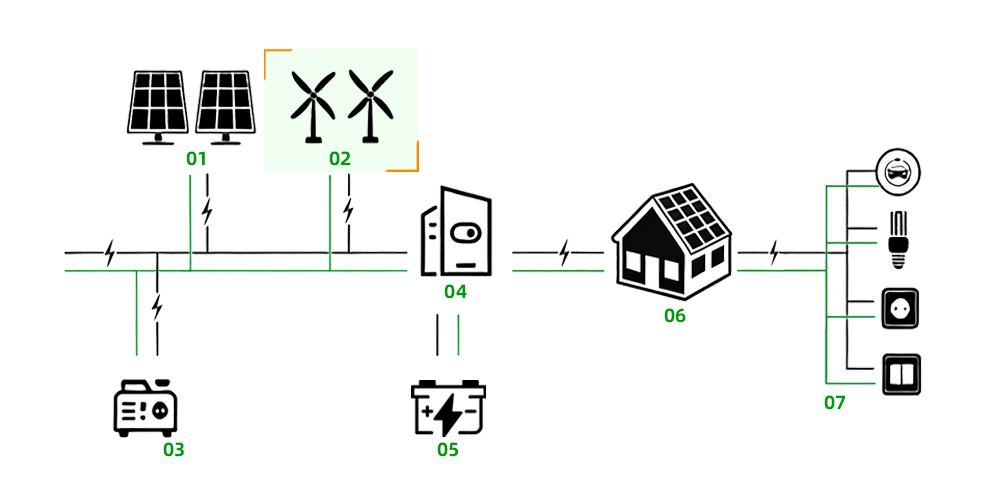

The VH series wind turbine generator is widely used in home backup power systems, camping and outdoor electricity supply, off-grid houses, container houses, mobile homes, and small modular building projects. It can be integrated with solar power systems and battery storage units to provide a one-stop clean energy and housing power solution, meeting daily electricity needs for lighting and basic household appliances.
