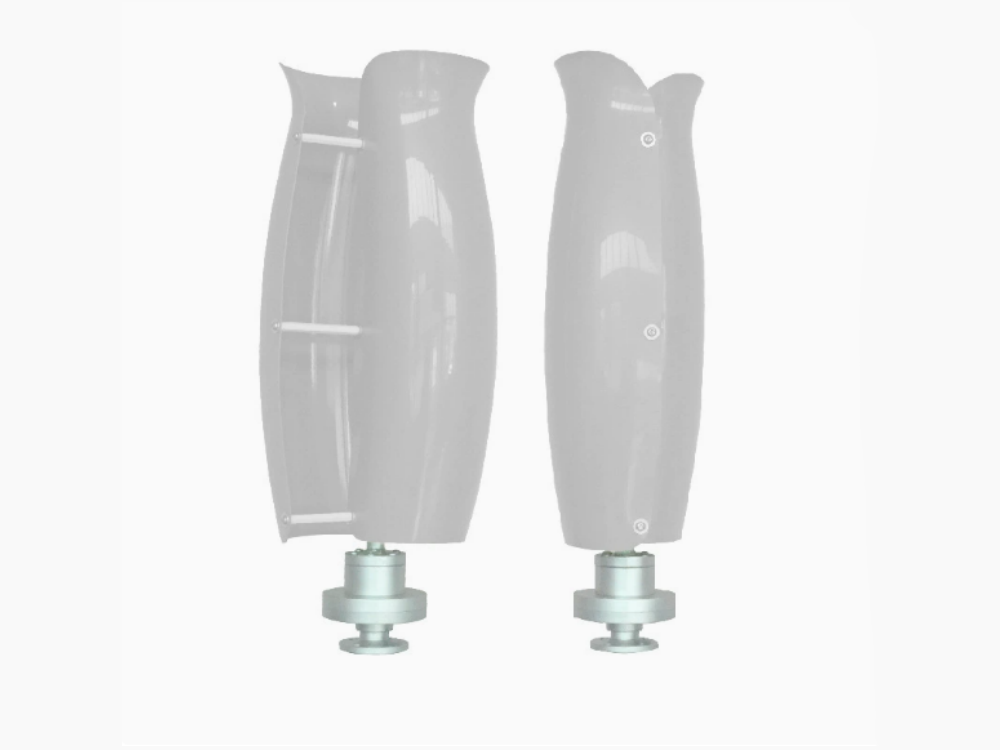

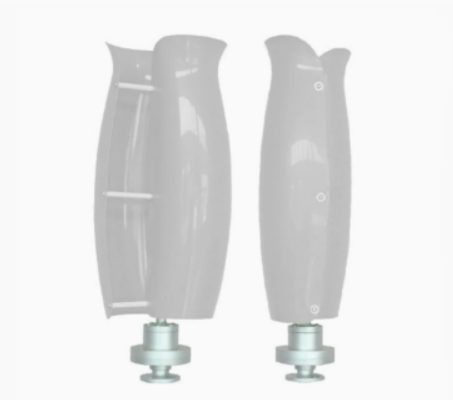

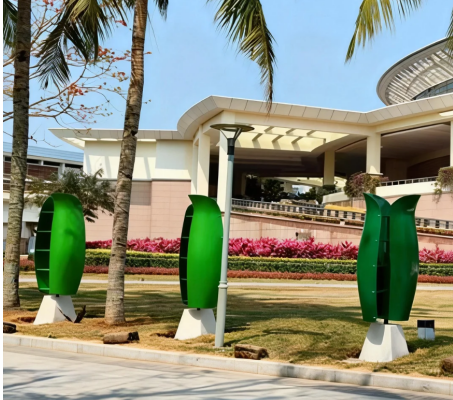

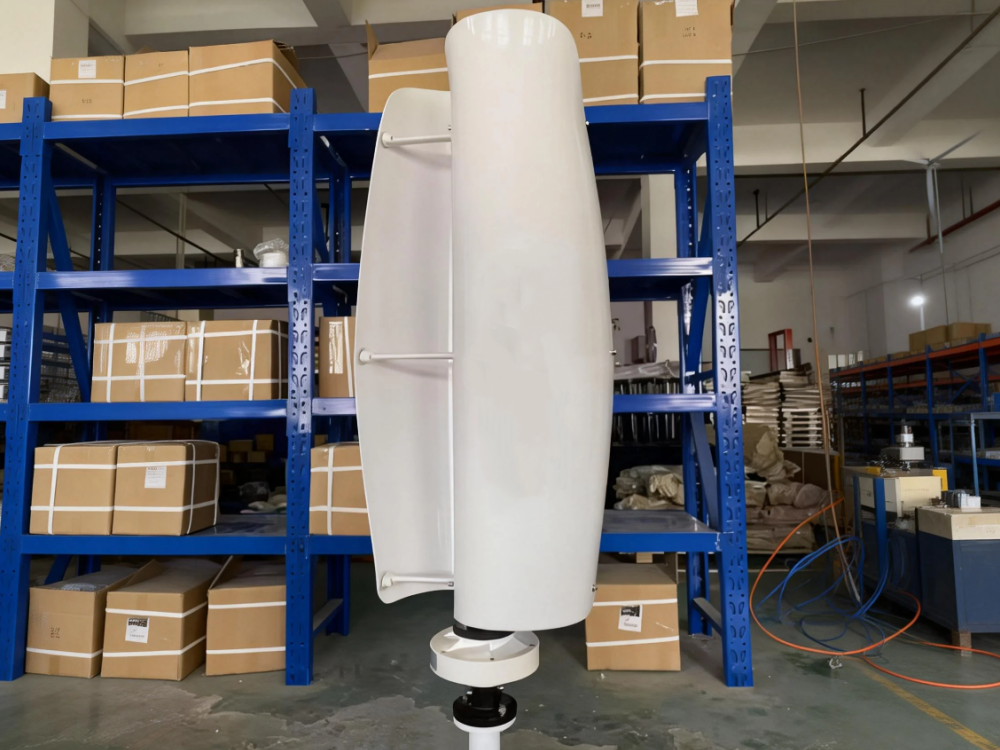

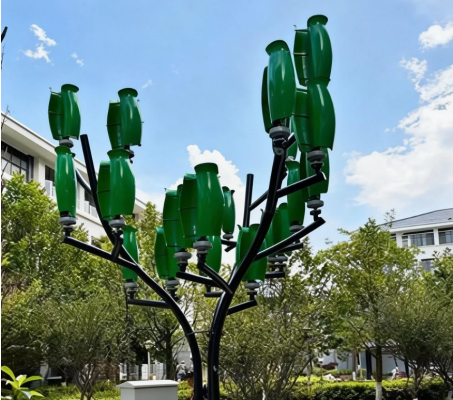

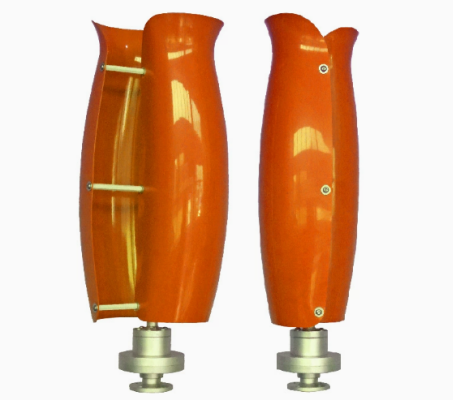

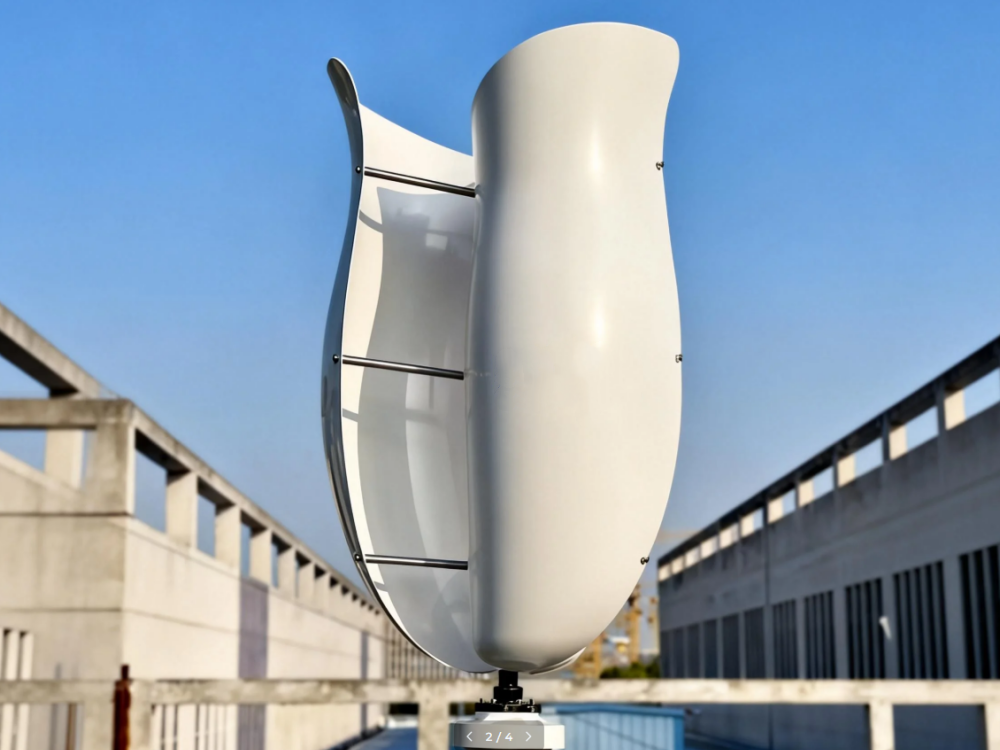

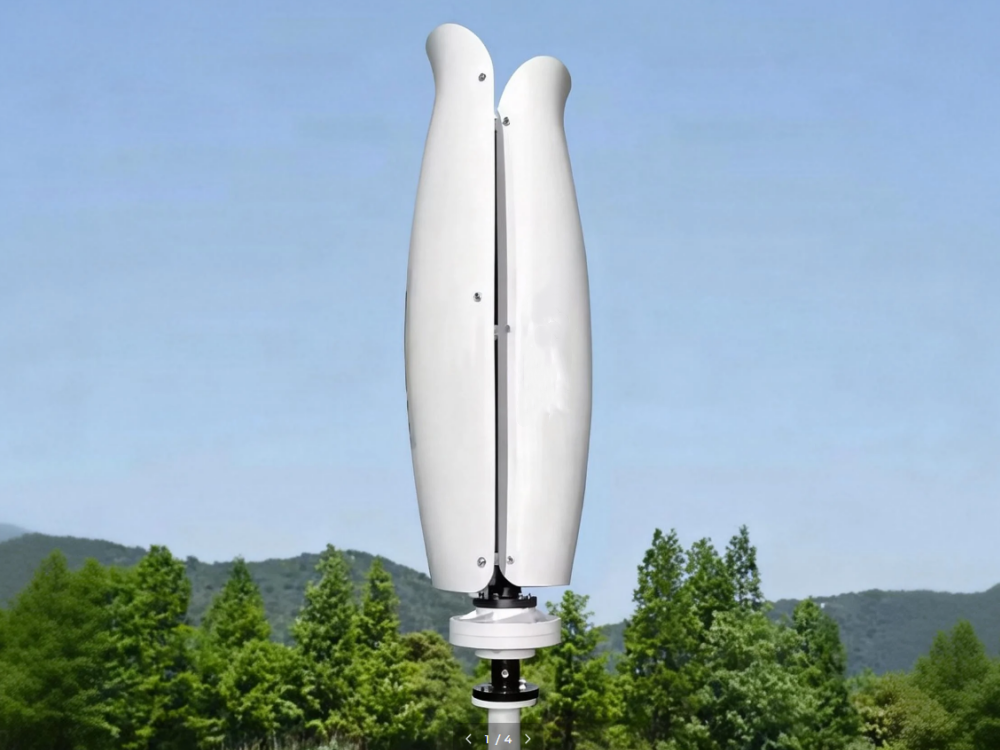

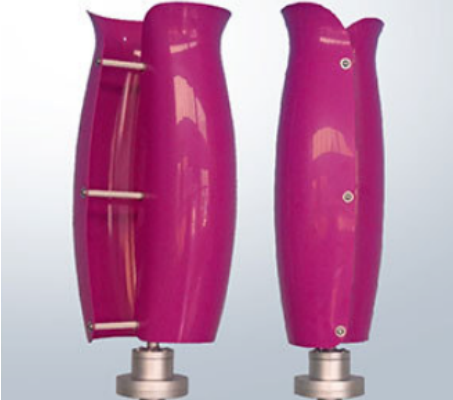

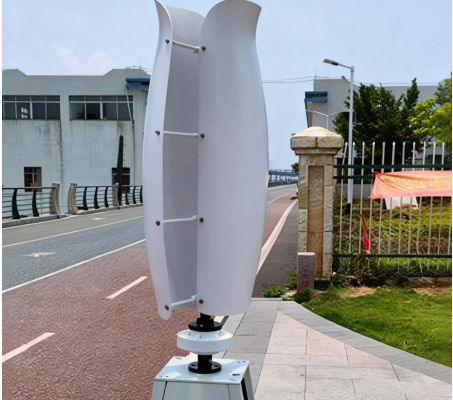

The Tulip-shaped Wind Turbine offers an innovative, sustainable solution for harnessing wind energy. Designed with a unique tulip-inspired structure, it enhances airflow efficiency, making it effective in low-wind environments. Its compact and visually appealing design is perfect for urban spaces, providing a quiet, eco-friendly energy source. Ideal for residential, commercial, and industrial applications, this wind turbine combines cutting-edge technology with aesthetic appeal to deliver reliable and renewable power.
| Rated Power | 100w | 200W | 600W | 1000W |
| Rated Wind Speed | 11m/s | 11.5m/s | 11m/s | 12m/s |
| Rated Voltage | 12/24V | 24/48V | ||
| Start-up Wind Speed | ≤2m/s | |||
| Rotor Diameter | 0.38m | 0.52m | 1m | |
| Overall Height | 0.85m | 1.25m | 2.015m | |
| Safe Wind Speed | 25 m/s | |||
| Braking Method | Electromagnetic unloading | |||
| Connection Method | Flange connection | |||
| Generator | Three-phase AC magnetic levitation generator | |||
| Blade Material | ABS | Reinforced fiberglass | ||
| Number of Blades | 2 | |||
| Operating Temperature | -20℃-60℃ | |||
| Design Life | 25years | |||
| Insulation Class | F | |||
| Protection Rating | IP54 | |||
| Weight | 7KG | 18.5KG | 50KG | |
