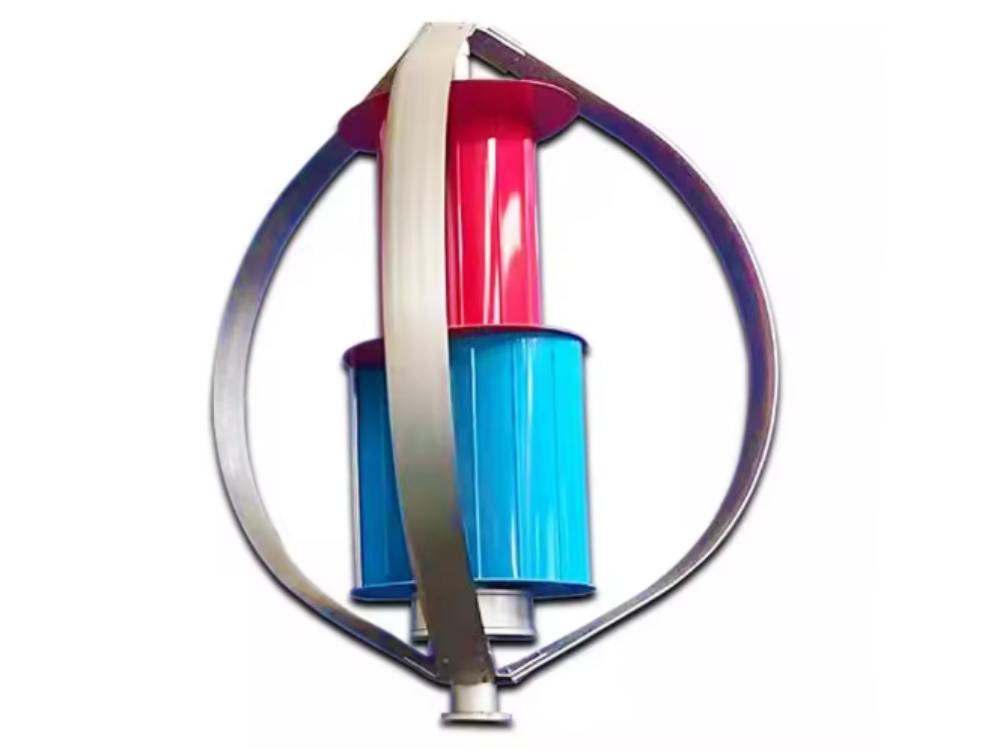

The Q-type wind turbine features a unique Q-type blade structure design that enables rapid startup and stable operation in low-wind-speed environments, significantly enhancing power generation efficiency. Its vertical-axis configuration operates independently of wind direction, making it suitable for urban, coastal, and complex terrain applications. The equipment operates with low noise and minimal vibration, ensuring greater environmental friendliness. Modular design facilitates easier installation and maintenance while delivering outstanding weather resistance and long-term reliability, making it an ideal choice for distributed clean energy solutions.
| Rated Power | 100W | 200W | 300W |
| Maximum Power | 130W | 220W | 310W |
| Rated Voltage | 12V/24V | ||
| Start-up Wind Speed | 1.5m/s | ||
| Rated Wind Speed | 10m/s | 11.5m/s | 13m/s |
| Safe Wind Speed | 45m/s | ||
| Net Weight of Main Unit | 12kg | 12.5kg | 13kg |

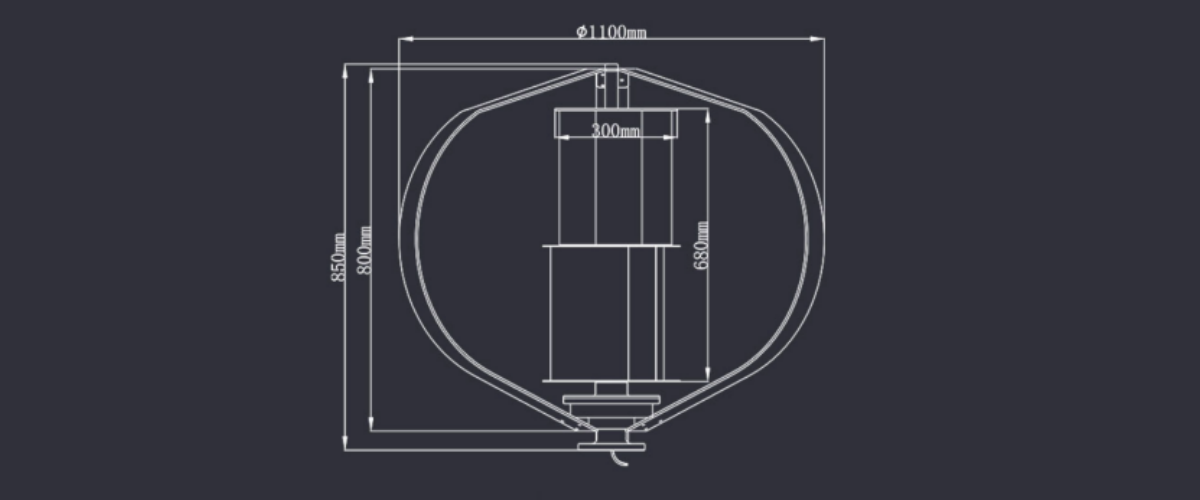

| Rotor Diameter | 1.1m | ||
| Number of Blades | 6 pieces | ||
| Blade Material | Aluminum alloy | ||
| Generator | Three-phase AC permanent magnet generator/permanent magnet levitation generator | ||
| Braking Method | Automatic wind-seeking | ||
| Operating Temperature | -40°C~80°C | ||

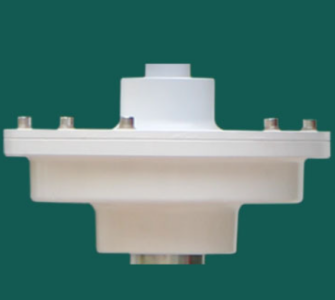

Rare Earth Permanent Magnet Spherical Generator
Low starting torque with high power conversion efficiency; high power output and low losses

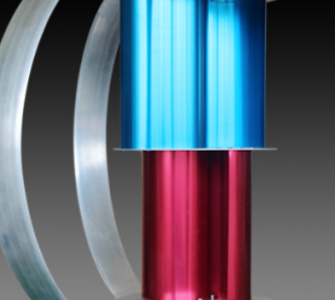

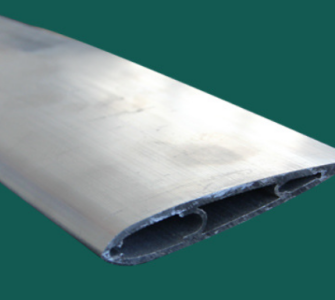

Premium Aluminum Alloy Blades
Enhanced corrosion resistance and improved wind resistance
Low operating vibration
Low Start-Up Wind Speed, Compact Size, Aesthetic Design, Low Operational Vibration, Ultra-Quiet Operation

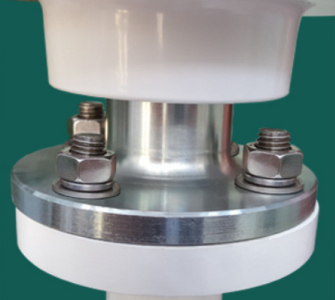

User-Friendly Flange Design
Features ergonomic flange mounting for simplified installation and maintenance

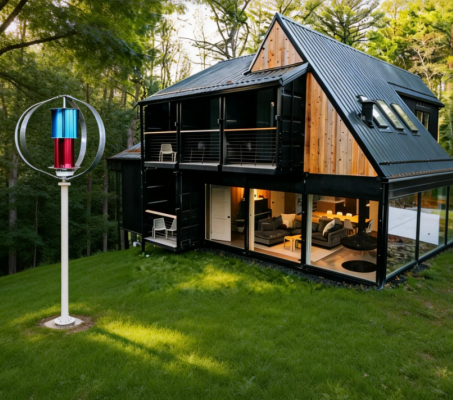

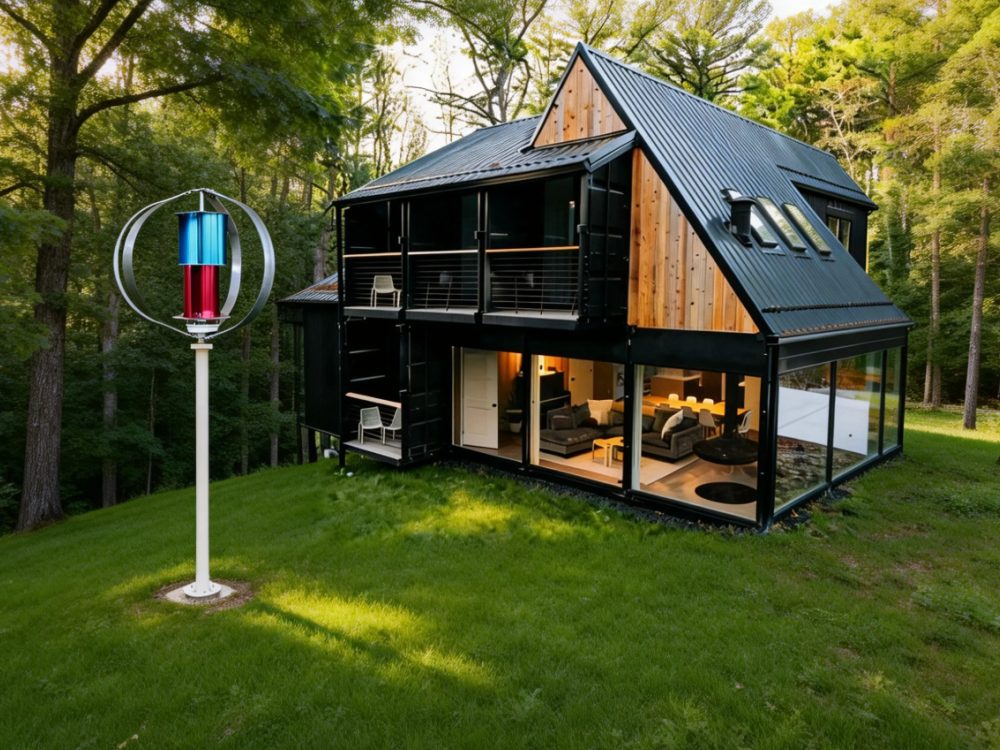

Residential

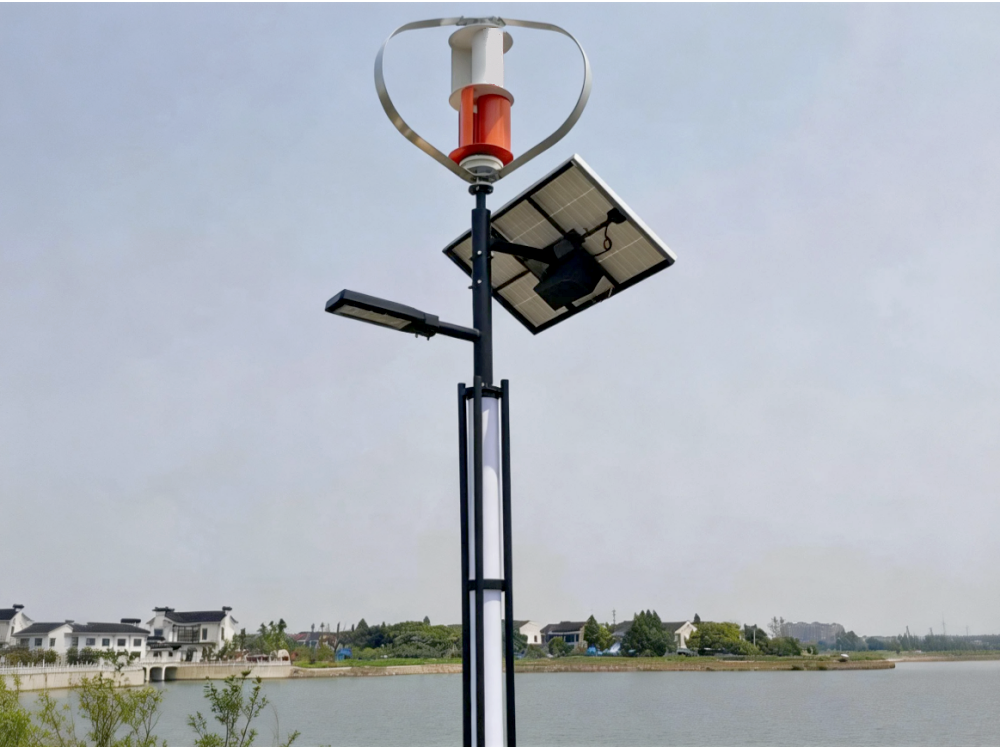

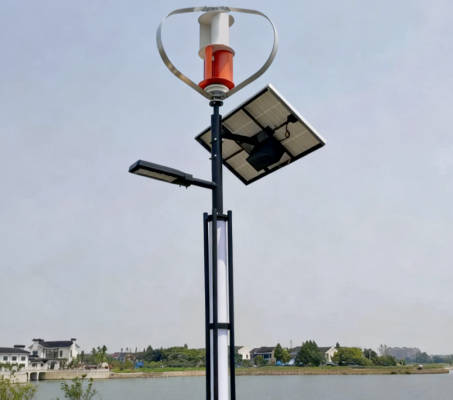

Streetlights
Landscape Islands
