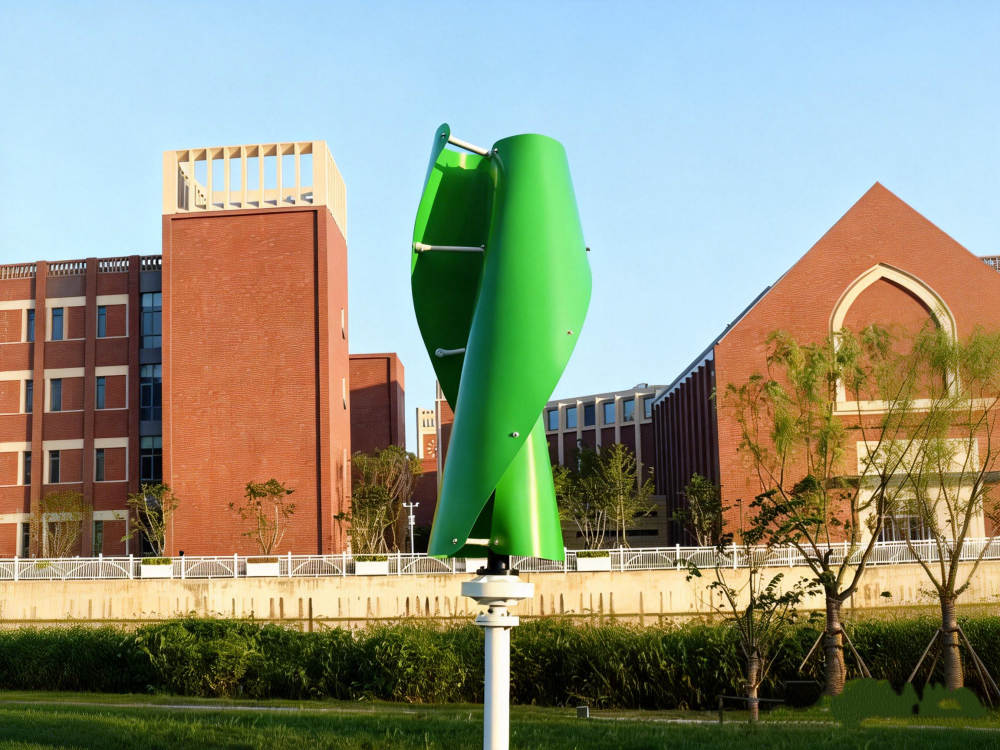

Helical Wind Turbine Residential Vertical Axis Wind Turbine

The spiral wind turbine is an omnidirectional, quiet, and aesthetically modern energy solution, ideal for generating power in turbulent urban environments.

Rated Power: 100W / 200W / 300W / 400W

Rated Voltage: 12 / 24V

Start-up Wind Speed: 1.5 / 2.0m/s

Rated Wind Speed: 11m/s

SEND INQUIRY WHATSAPP

Product Details

Integrated Housing Solutions

Product Description

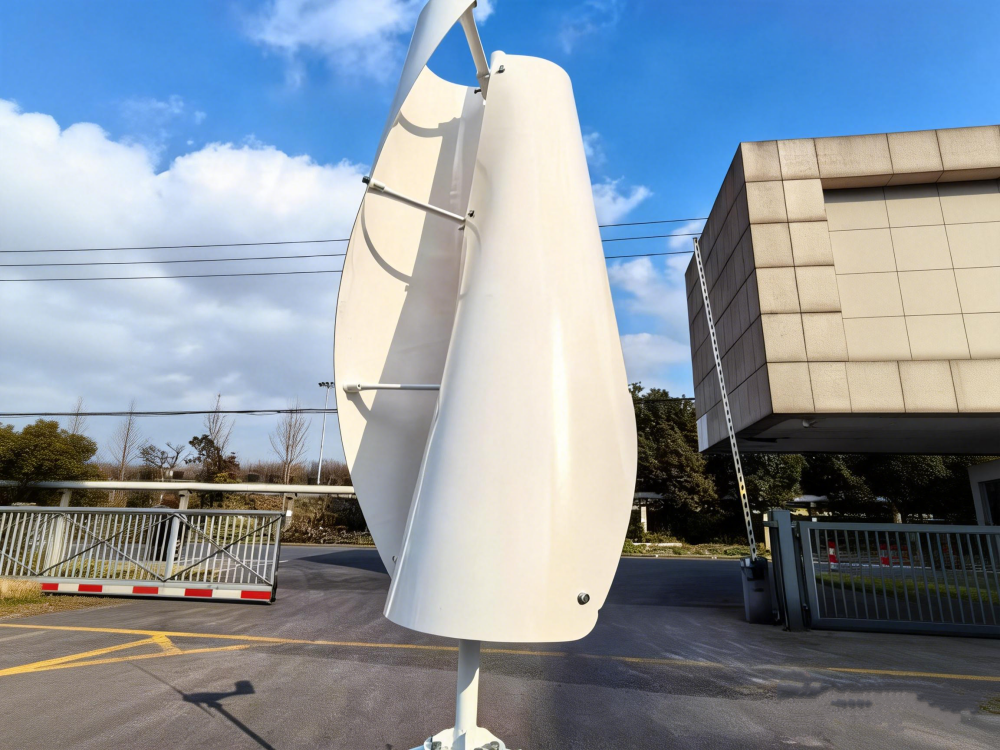

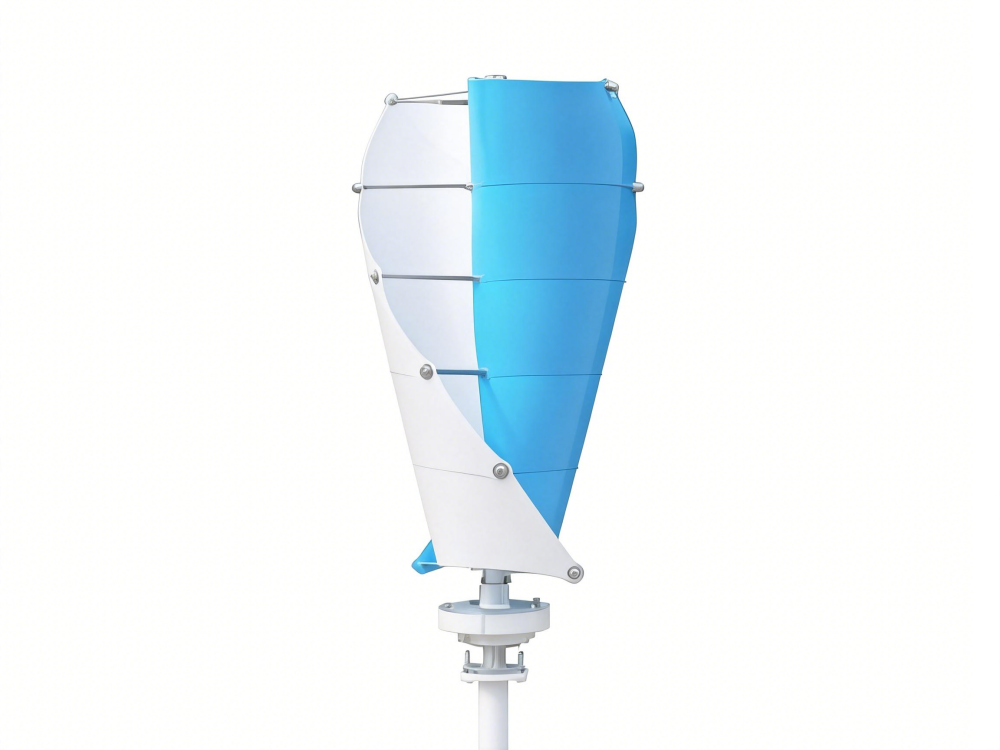

The spiral wind turbine infuses renewable energy with a modern aesthetic through its striking vertical spiral design. Its twisted blades capture wind from any direction without needing to face the wind, making it an ideal choice for dynamic urban environments. This creates a versatile, low-impact energy solution.

Key Advantages

1. Full-range operation.
2. Low noise, low vibration.
3. Compact structure, easy maintenance.
4. Low start-up wind speed.
5. Artistic integration with space.
6. High safety standards.

Parameter Table

Model	JH-100	JH-200	JH-300	JH-400
Rated Power	100W	200W	300W	400W
Maximum Power	130W	220W	310W	410W
Rated Voltage (V)	12/24	12/24	12/24	12/24
Start-up Wind Speed	1.5m/s	1.5m/s	2.0m/s	2.0m/s
Rated Wind Speed	11m/s
Safe Wind Speed	45m/s
Net Weight of Main Unit	10kg	10.5kg	11kg	12kg
Rotor Diameter	0.47m

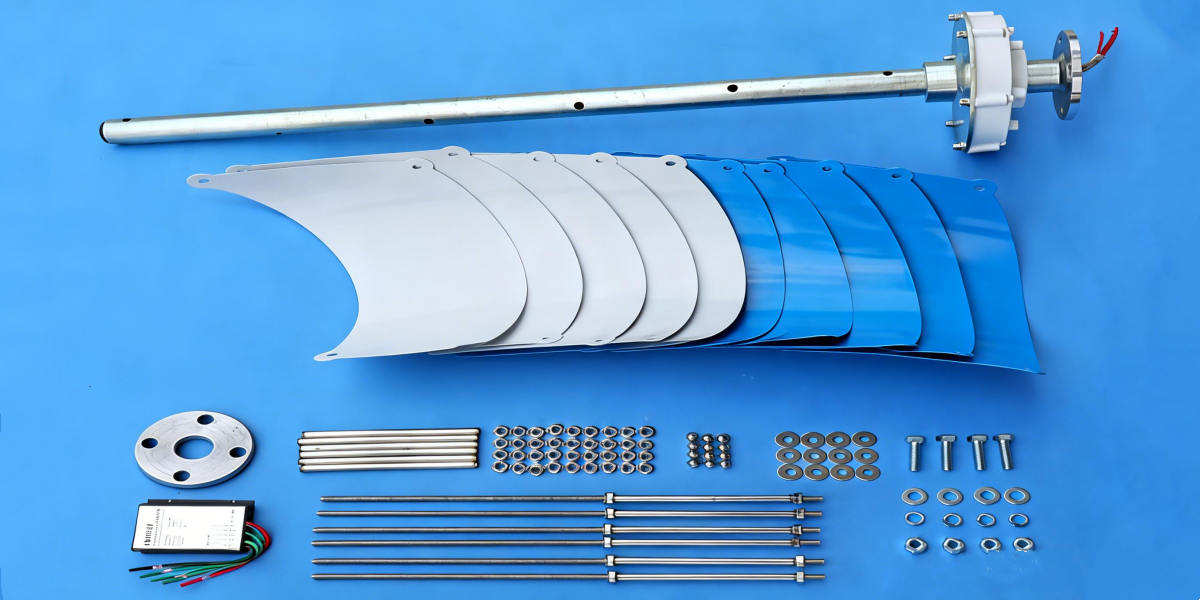

Number of Blades	10 pieces
Blade Material	Aluminum alloy

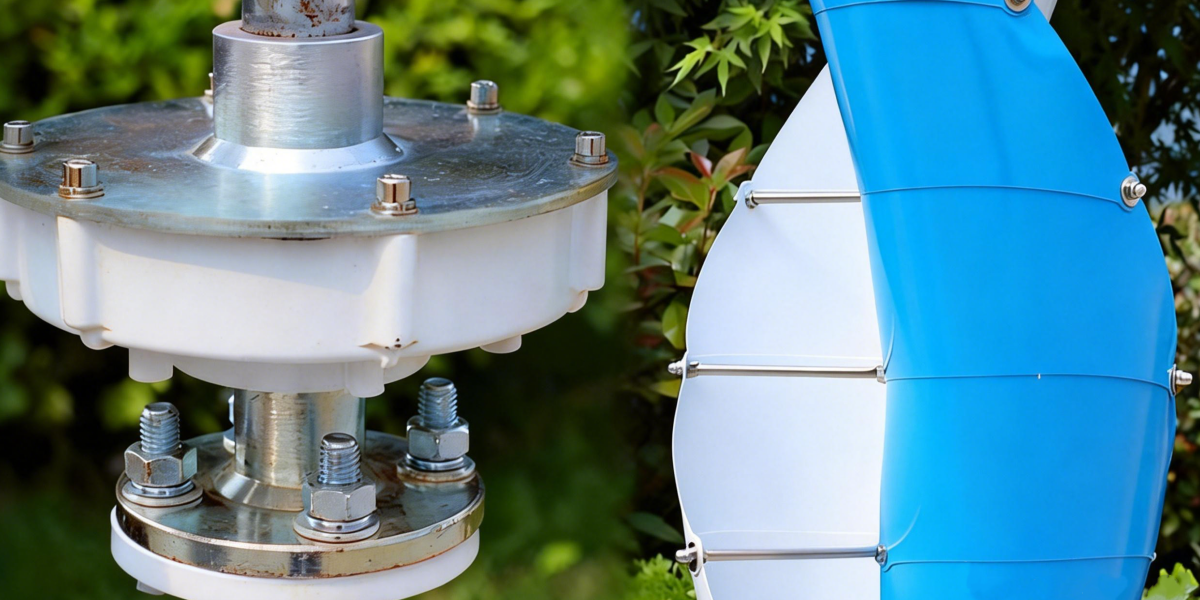

Generator Type	Three-phase AC permanent magnet generator/permanent magnet levitation generator
Braking Method	Electromagnetic
Wind Direction Adjustment	Automatic wind direction adjustment
Operating Temperature	-40°C to 80°C
