Product Details

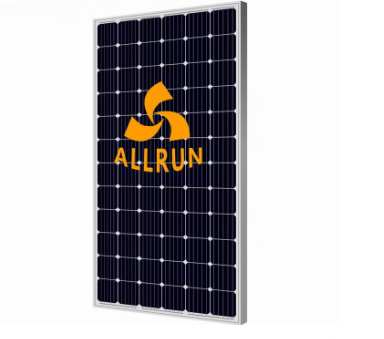

1. Solar Panels: All panels are Grade A, high-efficiency, full-power modules featuring MC4 connectors, cables, junction boxes, aluminum frames, etc. Various solar panel options are available from 100W to 550W, with polycrystalline or monocrystalline styles. All come with a 30-year warranty.

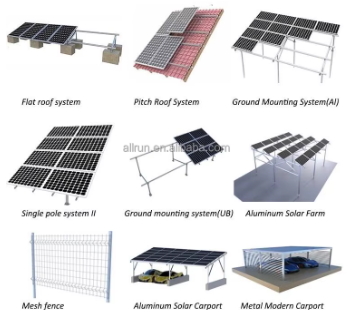

2. Mounting Bracket:
Roof-mounted, wall-mounted, or floor-mounted to your desired location
Material: A16005-T5
Extruded aluminum profile
Premium anodized aluminum
Warranty: 30 years
Withstands high wind speeds

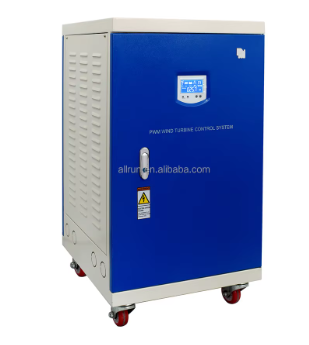

3. Hybrid Controller:
Capacity: 10 kW
DC Input: 216 V (adjustable per your requirements)
Overcharge Voltage: 500 V
Rated Charging Current: 100 A
PV Power: 20 kW
PWM or MPPT Selectable

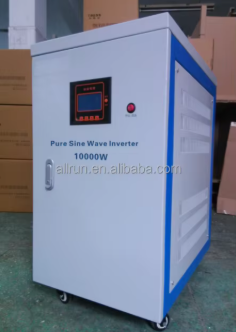

4. Inverter:
Capacity: 10KW
DC rated input 216V (adjustable as needed),
Outputs pure sine wave,
Output 100/115/125V AC or 220/230/240V AC ±3%,
Single-phase or three-phase selectable, Wi-Fi optional
Rated frequency: 50Hz/60Hz ±1%
Warranty: 5 years

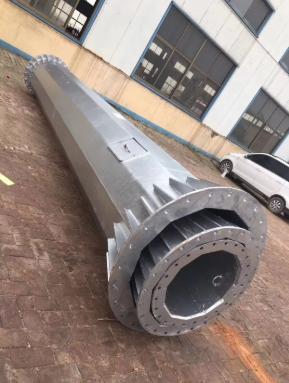

5. Wind Turbine Tower
Pole Height: 6/9/10m (adjustable as required)
Thickness: 6mm
Tower Diameter: 325mm
Flange: 370*16mm
Tower Sections: 3
Material: Q235 Steel Pipe
Surface Treatment: Painted to prevent corrosion
6. 10KW Turbine
Blade Diameter: 5.8 m
Rated Rotor Speed: 150 r/min
Rated Wind Speed: 8-10 m/s
Rated Power: 10KW
Maximum Power: 20KW
Output voltage: 380V or 220V
Start-up wind speed: 3 (m/s)
Operating speed: 3-40 (m/s)
Safe wind speed: 50 (m/s)
Generator housing material: Pressure-cast iron
System Optional

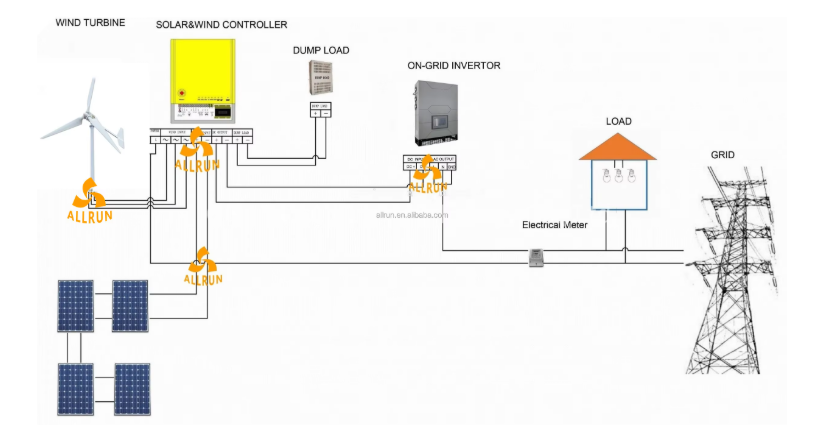

Grid Tie System

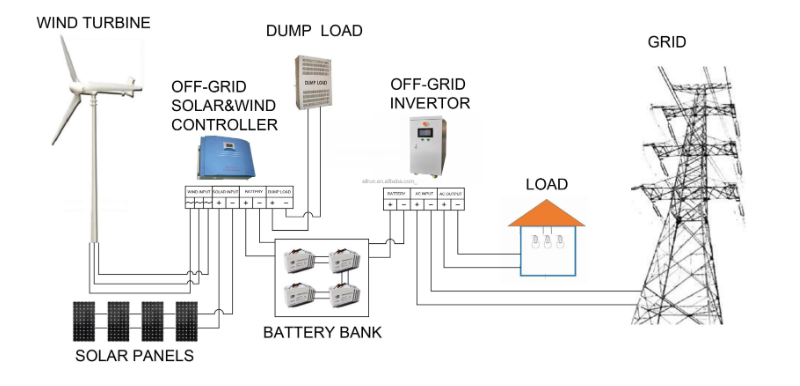

Off-Grid System
