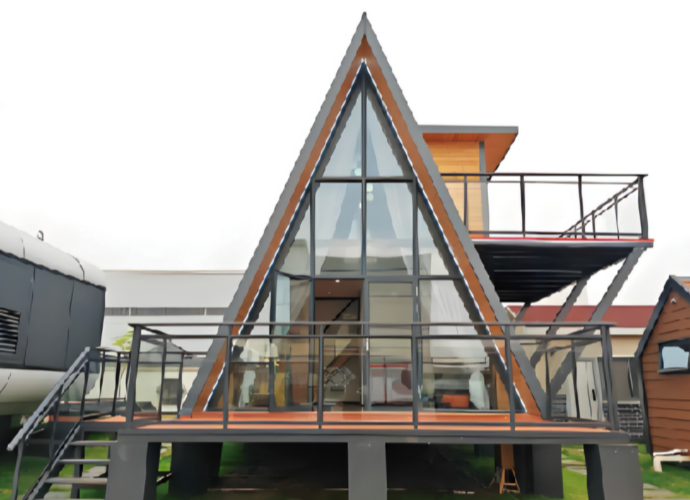

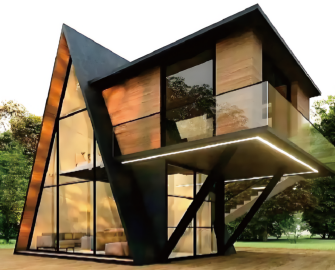

Prefab Triangular Garden Home Steel Structure Wooden Cottage Pod Prefabricated House

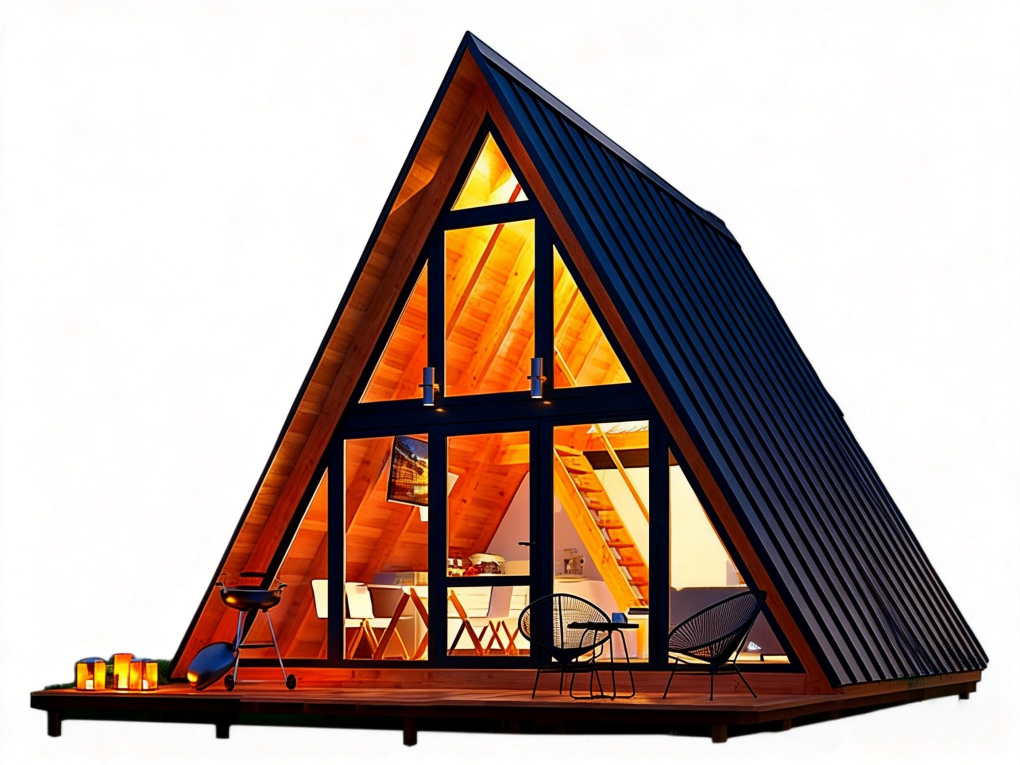

A modern A-frame steel structure prefabricated house designed for fast installation, durability, and flexible customization.
Dimensions: L4500*W6500mm*H5500mm
Roof loading: 0.5KN/sqm
Wind loading: 0.45KN/sqm
Snow loading: 0.5KN/sqm
SEND INQUIRY WHATSAPP

Product Details

Integrated Housing Solutions

Product Overview



A building system that uses cold-formed thin-walled steel components as the main load-bearing framework, combined with new structural panels as the structural system, and integrated with insulation and finishing materials. The system is manufactured in factories and assembled on site.



1. Fast installation and customization
This A-frame steel structure prefabricated house is designed for quick and easy installation. The size, layout, and exterior design can be customized to meet different project needs.
2. Durable and eco-friendly
Constructed with a galvanized steel frame, the house offers high strength and corrosion resistance. Steel is recyclable, making it an environmentally friendly building solution.
3. Modern design and wide application

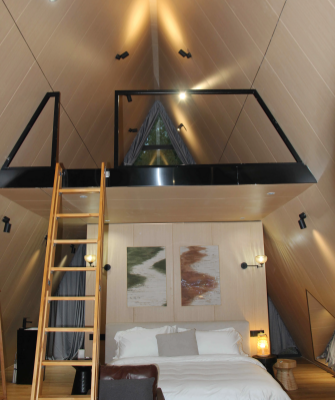

With its modern A-frame design, the house is suitable for vacation homes, garden houses, resorts, hotels, and residential use. The interior layout can be customized according to user requirements.
4. Quality and safety
Manufactured under strict quality control, the house ensures structural stability and complies with relevant building standards for safe and reliable use.
5. After-sales support
The product comes with over five years of warranty and professional online technical support.

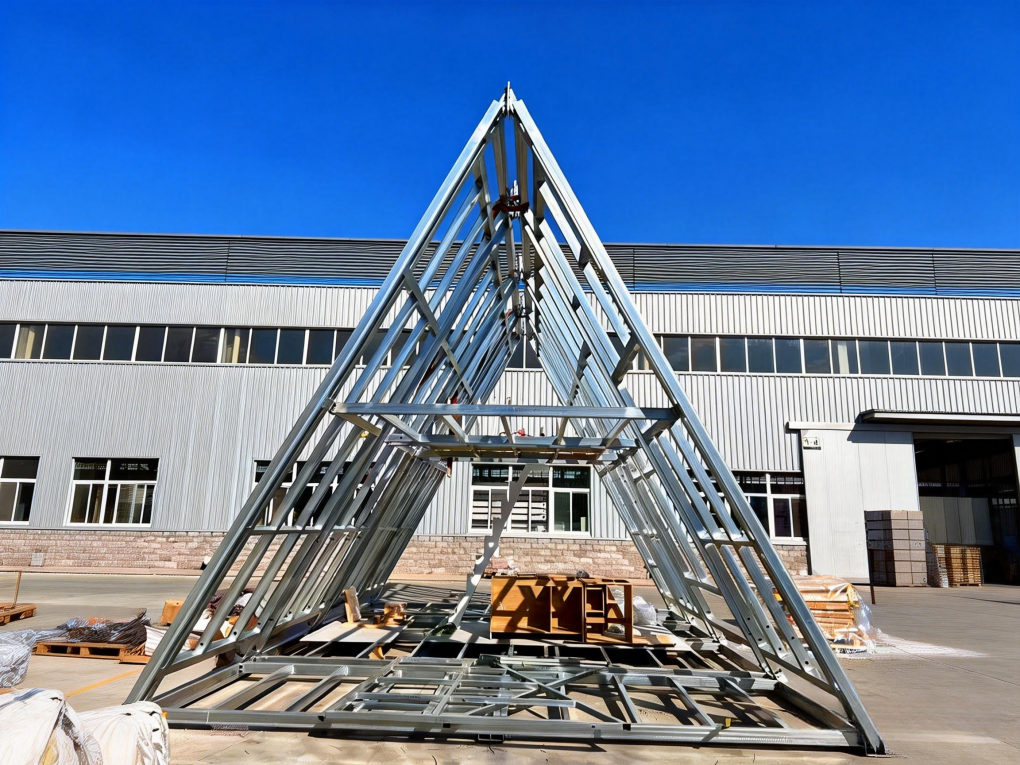

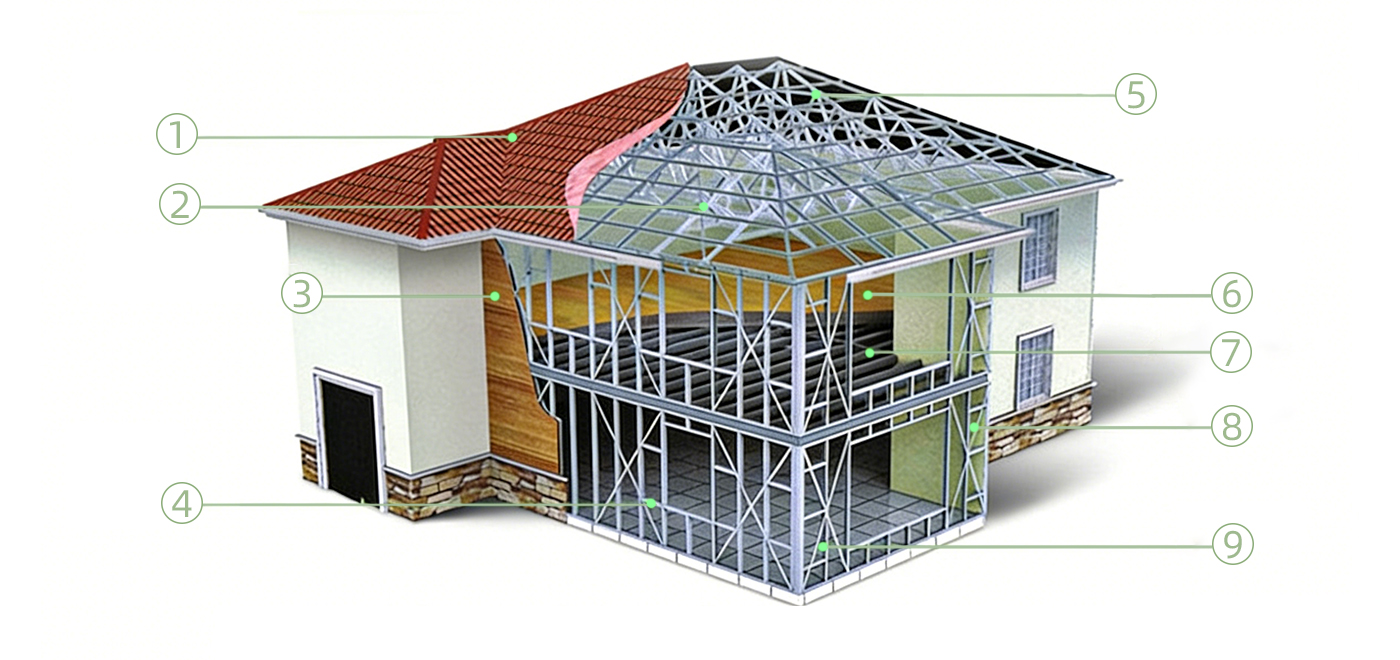

Structural System



① Metal Roof Tile ④ Rigid Bracing ⑦ Floor Joist
② Roof Batten ⑤ Roof Truss ⑧ Cross Bracing
③ Structural Wall Sheathing ⑥ Floor Structure ⑨ Wall Assembly

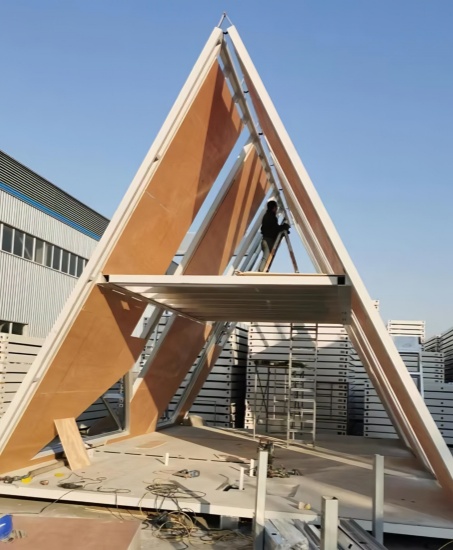

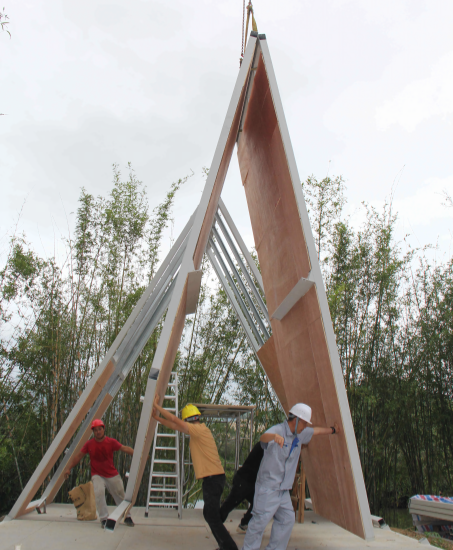

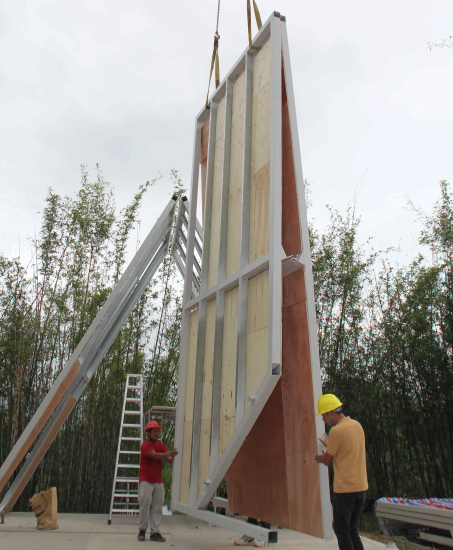

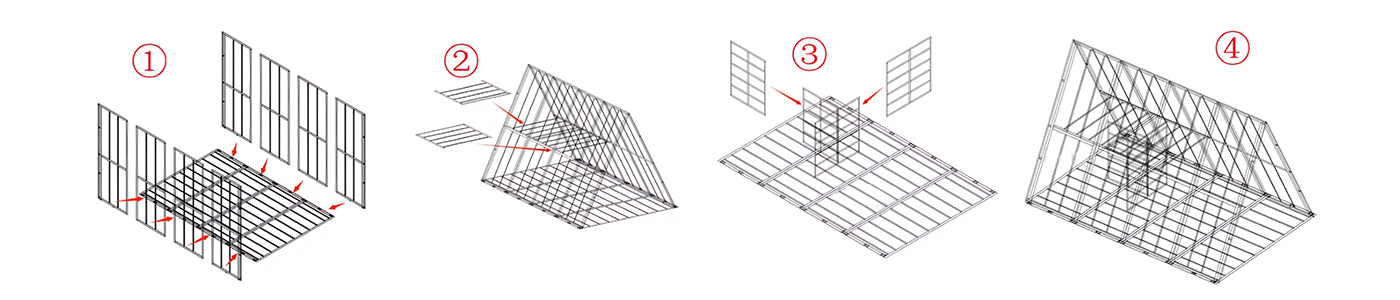

Structural Installation Steps









Parameters

Roof Type Pitched roof with natural drainage system
Designing Life-Span 20years
Floor Loading 2.0KN/m2
Roof Loading 0.5KN/m2
Wind Loading 0.45KN/m2
Snow Loading 0.5KN/m2
1 floor-29m2 Dimensions(mm) L4500*W6500mm*H5500
Building area 29.25m2
Loading 1*40HQ can load 2sets
2 floors-38m2 Dimensions(mm) L6500*W4500*H5500-Ground floor
L3400*W2820-Second floor
Building area 38m2
Loading 1*40HQ can load 2sets
2 floors-68m2 Dimensions(mm) L9000*W6000*H5500
Building area 68m2
Loading 1*40HQ can load 1 sets
2*4HQ can load 3sets

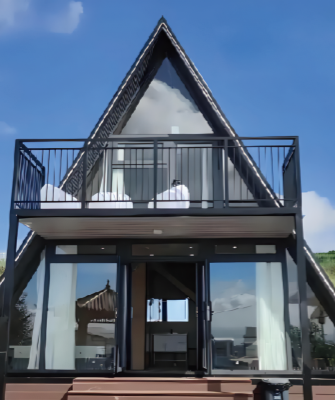

Case
