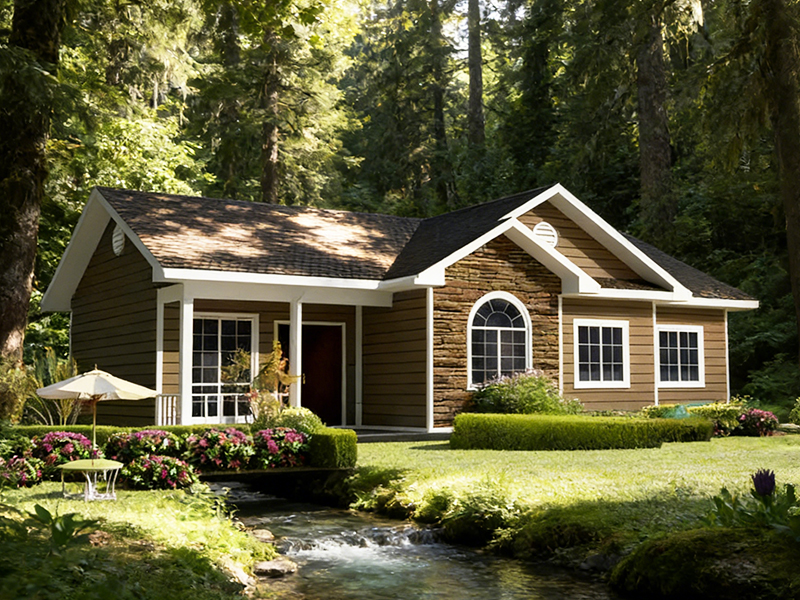

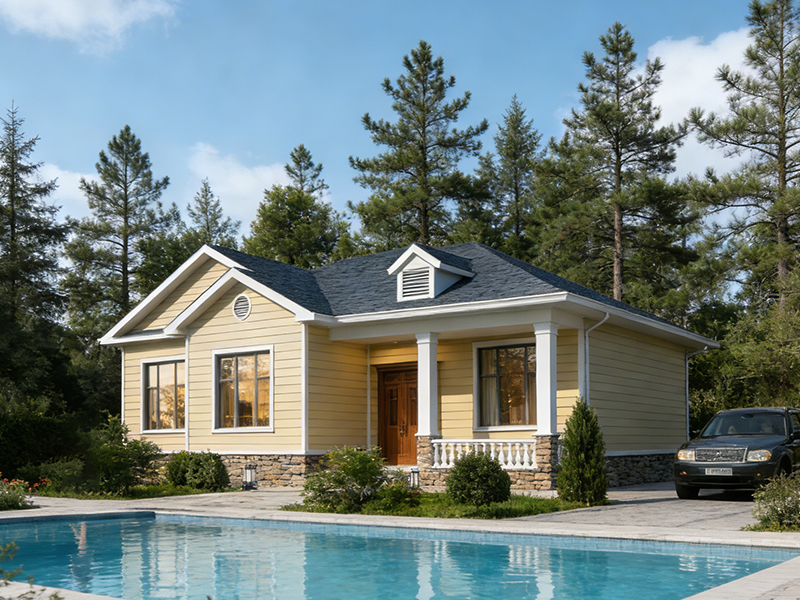

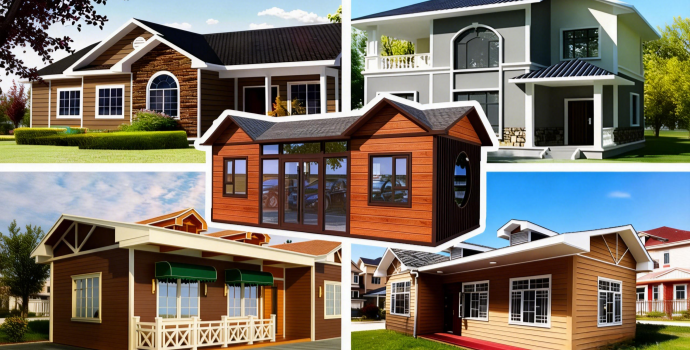

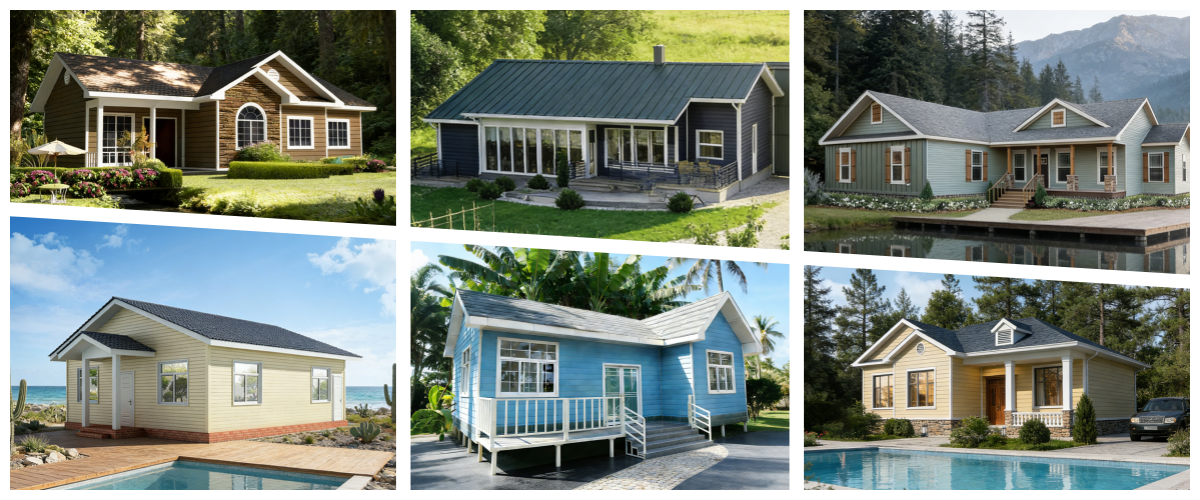

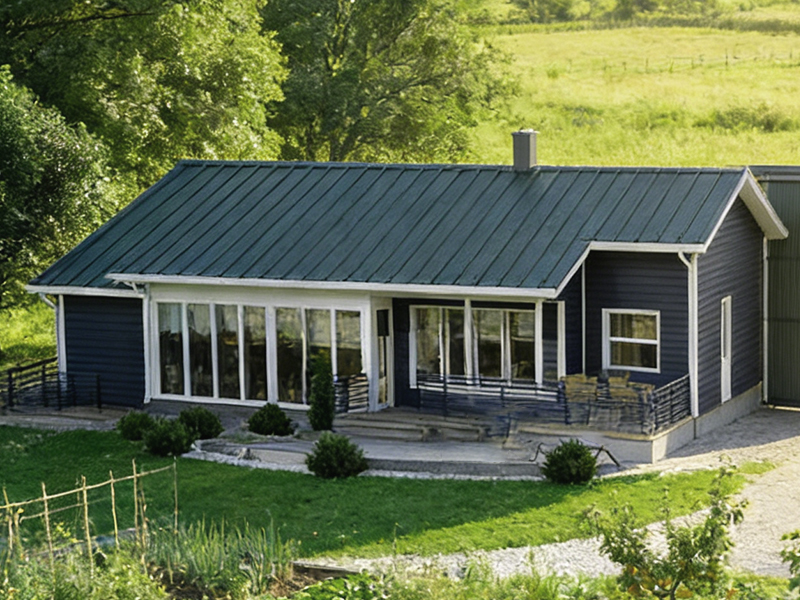

Single-Storey Sloped Roof Light Gauge Steel Villa

Product Details

Integrated Housing Solutions

Product Overview

Light guage steel villas, also known as light steel frame houses, primarily utilize light steel studs made from hot-dip galvanized steel strips through cold-rolling technology. Through precise calculations and supported by auxiliary components, they achieve optimal load-bearing capacity, serving as a replacement for traditional housing structures. Mainly used for houses, home, resort, holiday, hotel, hospital and other long life span residential buildings.

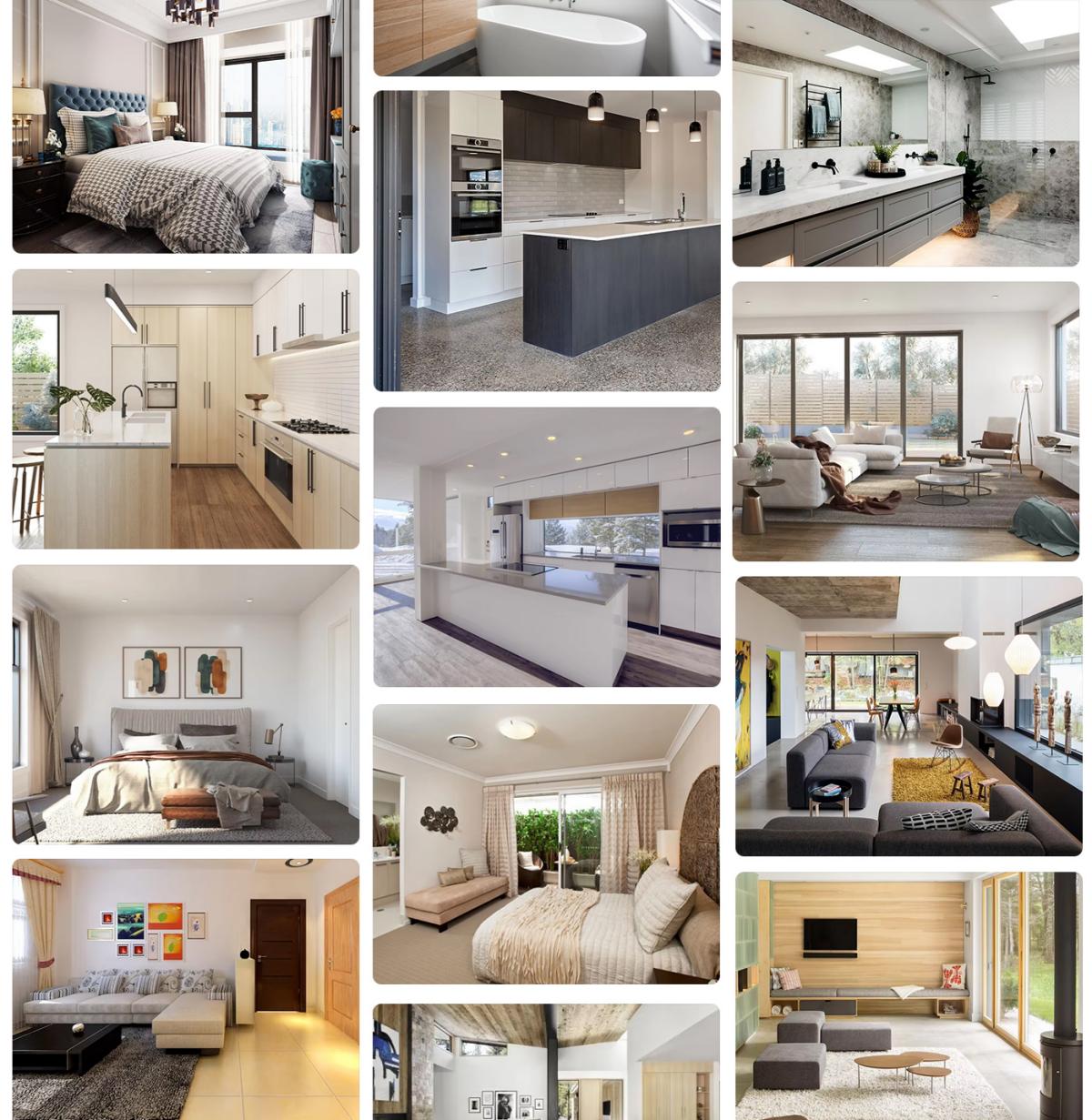

With luxury decoration and various types, it’s been more and more popular of middle & high standard market. It’ s a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, other components such as windows and doors, can be chosen by the customers.

Product Detail

Key Advantages

1. Convenient to assemble and disassemble.
2. Easy to design and decorate.
3. Almost dry construction which is environmental friendly.
4. Light and reliable, the steel structure is strong and firm.
5. Practical, good space utilization and high price performance.
6. Long life span capacity which could be reach over 80years.
7. Withstands seismic forces up to Intensity 9 for enhanced structural safety.
8. Resists typhoon winds up to Level 12 (117–134 km/h).
9. Provides fire resistance performance of up to 3 hours.

Technical Specifications

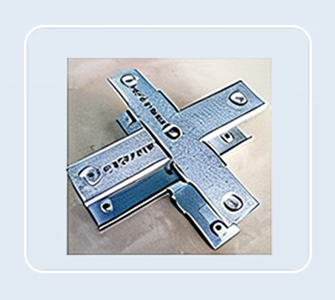

Steel Structure	Light Guage Steel villa is more stable than the one that made of welding frame steel. Besides, it is cheaper, more economic. with long lifespan, which can last almost 80years，all the materials of light guage steel villa is Q550. It is locked with bolts, which can be used repeatedly with out any maintenance.

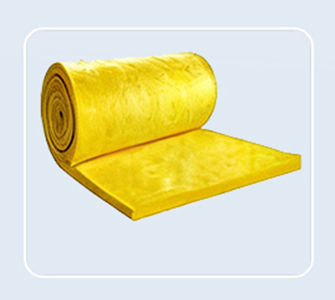

Flooring	Decoration: PVC flooring, carpet, laminated flooring, solid wood flooring Floor: Plywood, galvanized deck+concrete, calcium silicate board lnsulation layer: Glass wool Floor beam: Rectangular tube, pipe truss, truss angles, hot-rolled steel Floor purlins: Rectangular pipes and C-shaped steel Ceiling: calcium silicate ceiling
Windows and Doors	Windows: Double glazing plastic-steel or aluminum alloy thermal-insulating frames Doors: steel security gate doors; wood or molded doors

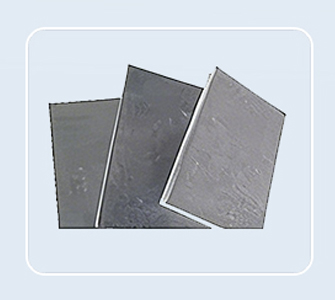

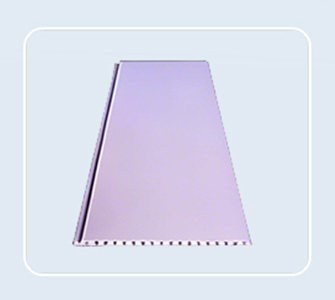

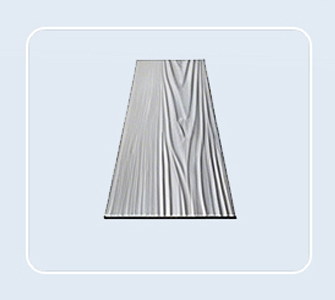

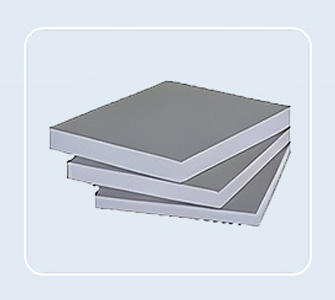

Composite Wall System (thickness:150-250mm)	Decorative layer: PVC cladding, PU metal cladding, single metal cladding, calcium silicate board lnsulation: EPS sandwich panel, PU sandwich panel, glass wool sandwich panel Ring beam: Cold rectangular tube, pipe truss. Steel column: Cold rectangular pipe, hot rolled steel H

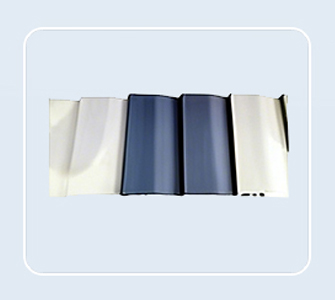

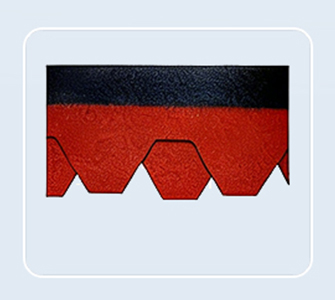

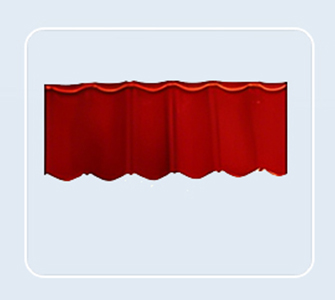

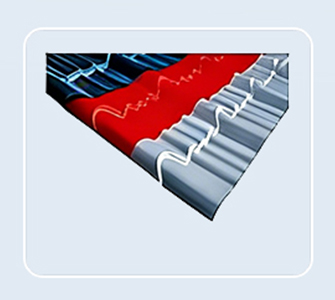

Roofing System	Asphalt tile Cement tile Clay tile Color steel tile Glass fiber tile
Please contact us for your specific requirements.

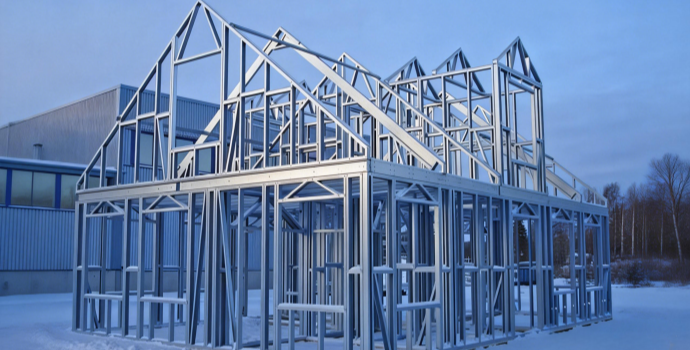

Structural System

1	Metal Roof Tile	4	Rigid Bracing	7	Floor Joist
2	Roof Batten	5	Roof Truss	8	Cross Bracing
3	Structural Wall Sheathing	6	Floor Structure	9	Wall Assembly

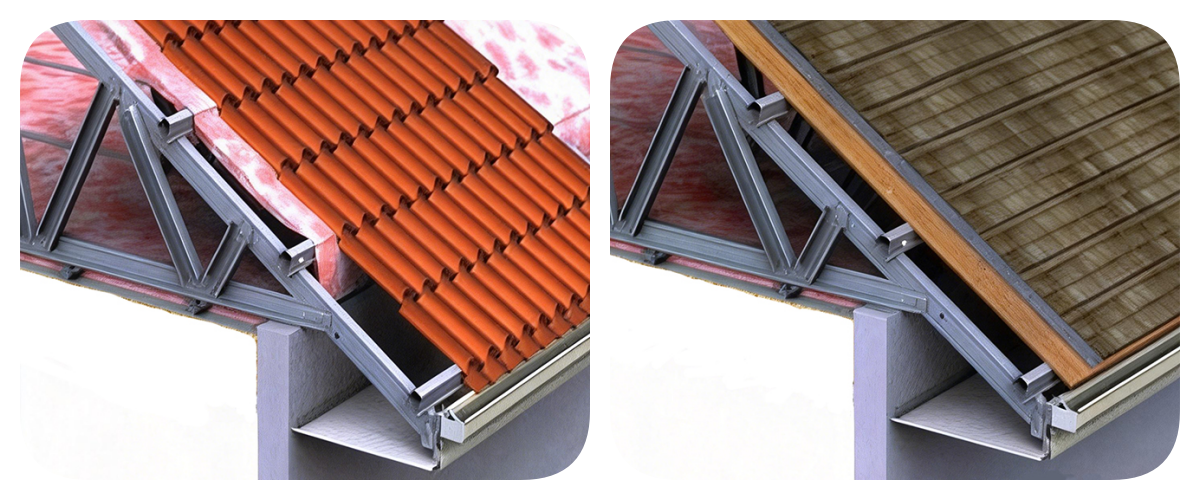

Roof type

Wall Assembly

Wall system

1	Emulsion Paint	6	Vapor Barrier
2	Putty	7	Batten

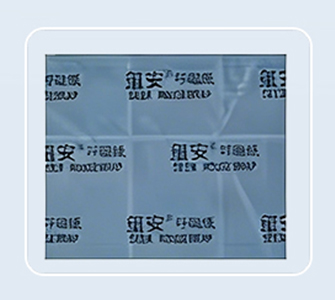

3	Gypsum Board	8	Breathable Membrane

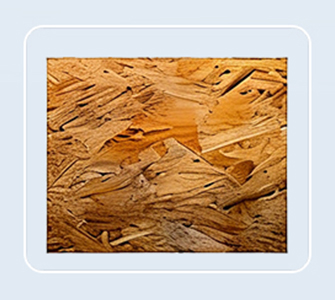

4	Light Gauge Steel Framing	9	OSB Board

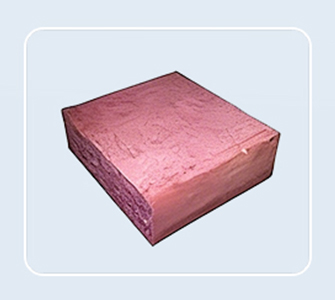

5	Rock Wool	10	Metal Decoration Panel

Grouting

1	Light Gauge Steel Framing
2	Grouting material
3	Batten
4	Cement Mortar
5	Decorative Layer

Product Features

Flexible and Customized Design

Supported by an in-house architectural design team, we provide complimentary customized design services based on your site conditions, floor area, and functional requirements—creating a home that is truly tailored to your needs.

Excellent Cost Performance

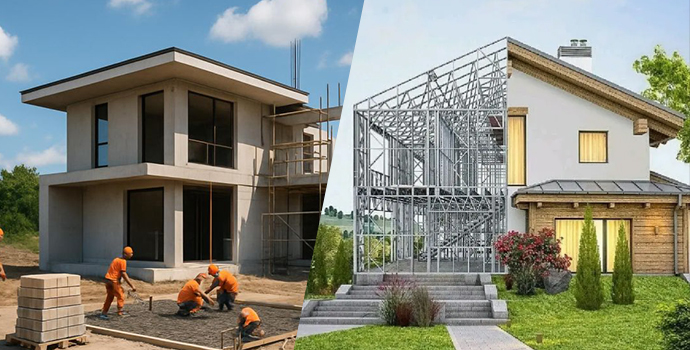

Under the same seismic performance standards, the overall construction cost of light gauge steel villas is typically 20%-30% lower than that of traditional brick-concrete buildings. In addition, the construction period can be reduced by 40%-60%, significantly improving overall project efficiency.

Efficient Assembly · Structural Safety

Prefabricated light gauge steel construction enables fast, low-impact installation. High-strength galvanized steel framing forms a stable, seismic-resistant structure with a design lifespan of up to 80 years, delivering long-term durability and sustainability.
