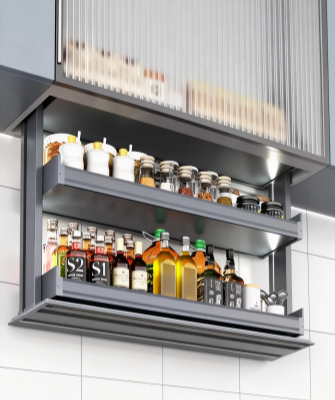

This smart electric lift-up cabinet features a vertical lifting design to maximize overhead kitchen space and provide concealed, easy-access storage. It integrates touch control, voice control, and intelligent lighting for intuitive operation. Equipped with a high-performance motor and safety anti-collision system, it supports up to 30kg load with smooth and quiet movement, ideal for storing food, beverages, and kitchen essentials.
1.Motor-driven lifting system;
2.Compatible with other kitchen systems;
3.Intelligent sensor lighting;
4.Remote control operation;
5.Smart voice control system;
6.Thickened aluminum alloy structure;
7.Load capacity up to 30kg.
Product Features

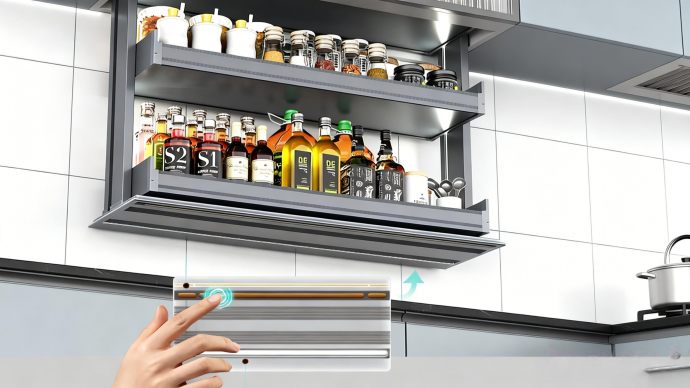

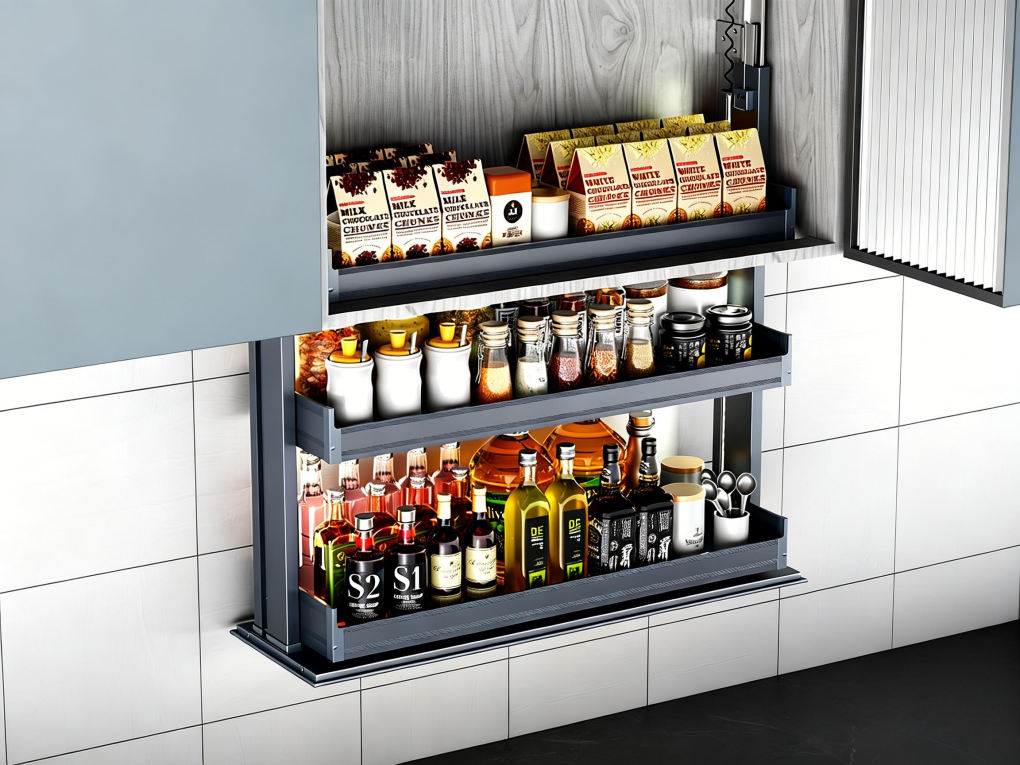

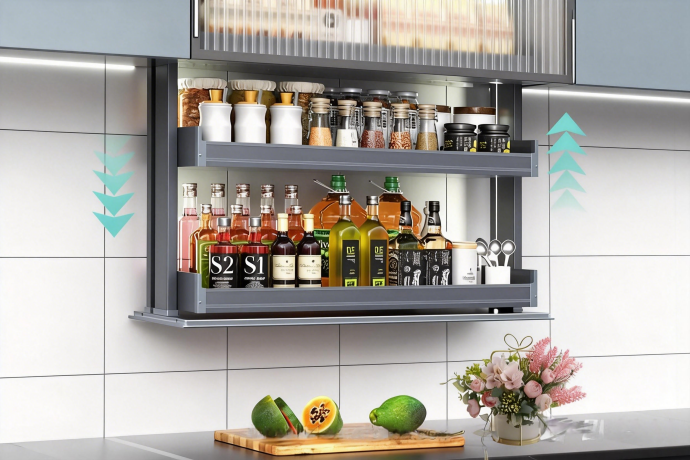

One-touch vertical lifting with integrated bottom lighting

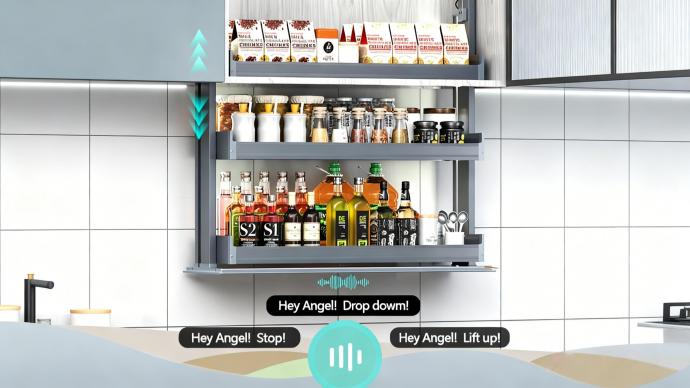

Supports both Chinese and English voice commands

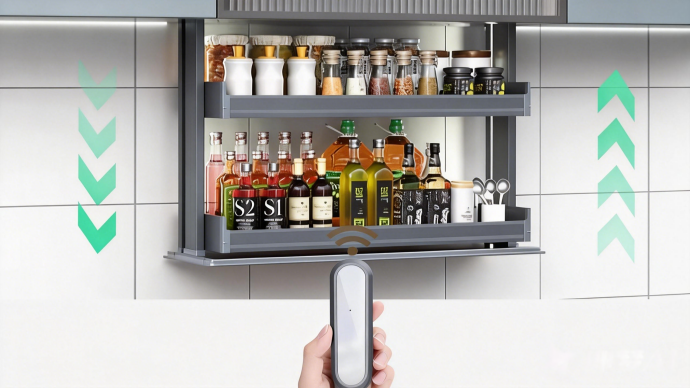

2.4G wireless remote with magnetic attachment

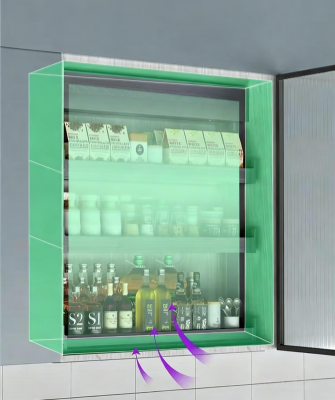

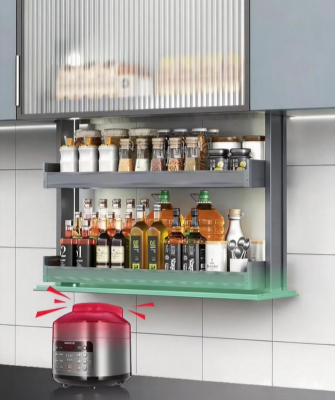

Safety Anti-Collision System
Automatically stops when
detecting obstacles

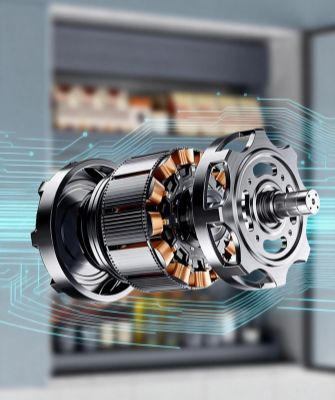

High-Performance Silent Motor
30kg load capacity, about 45dB noise level, 8s lifting time

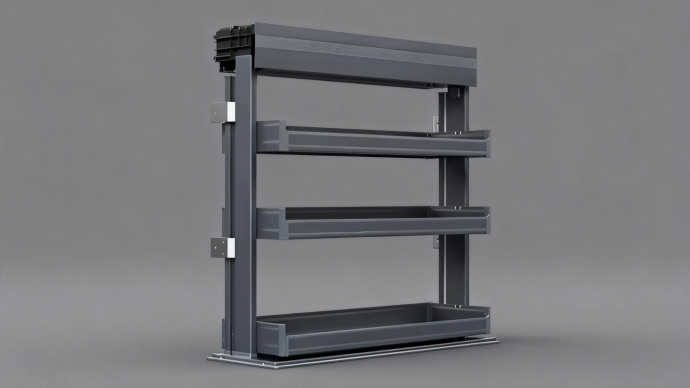

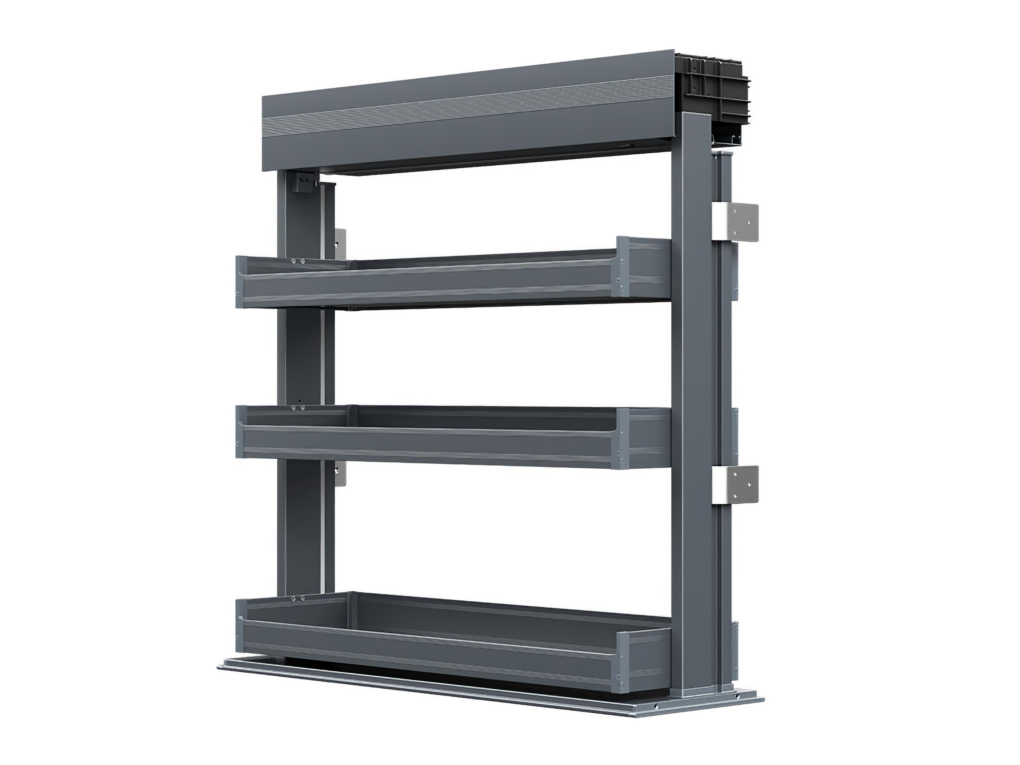

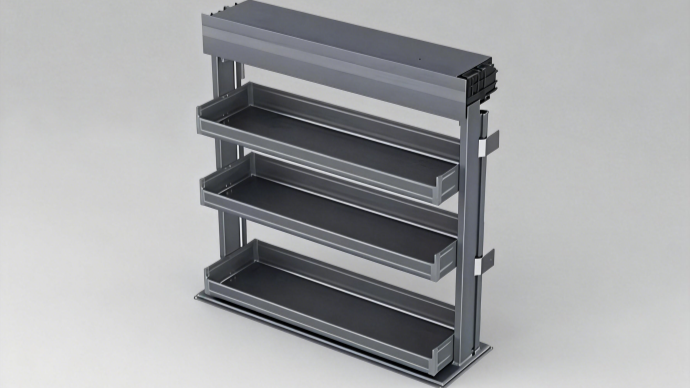

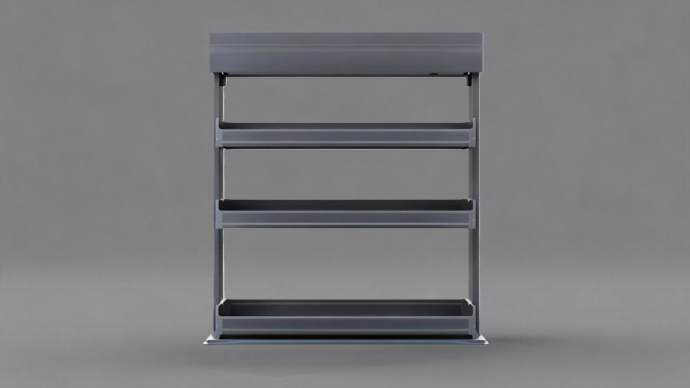

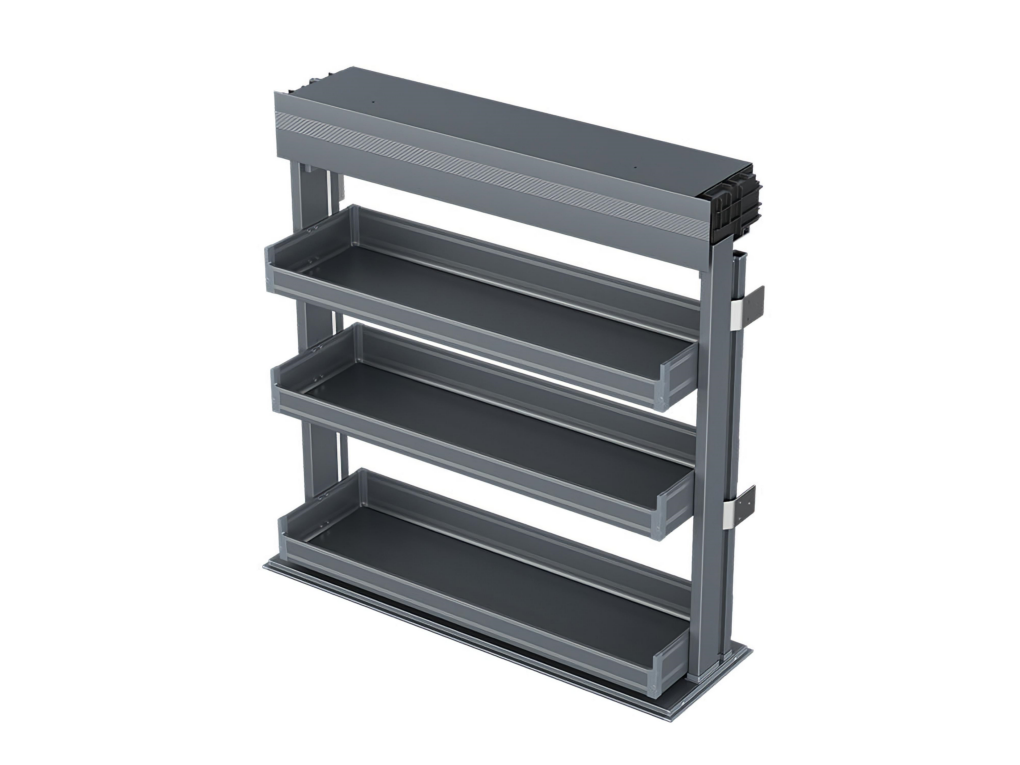

Three-Layer Storage Design
Classified storage for
efficient space utilization

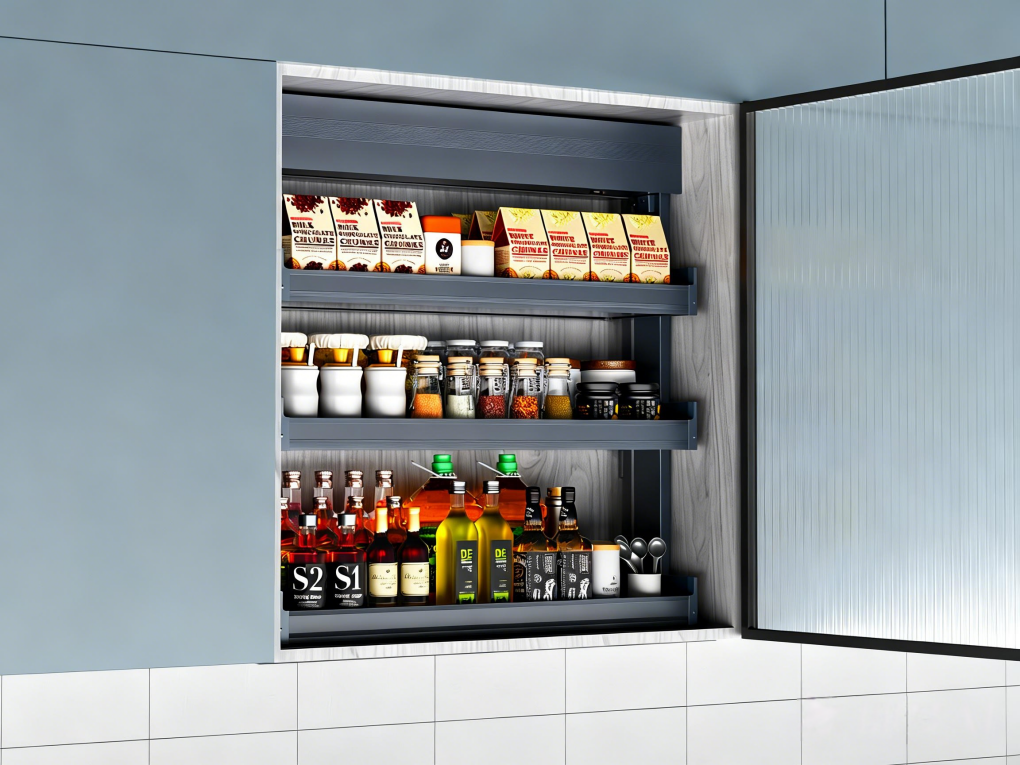

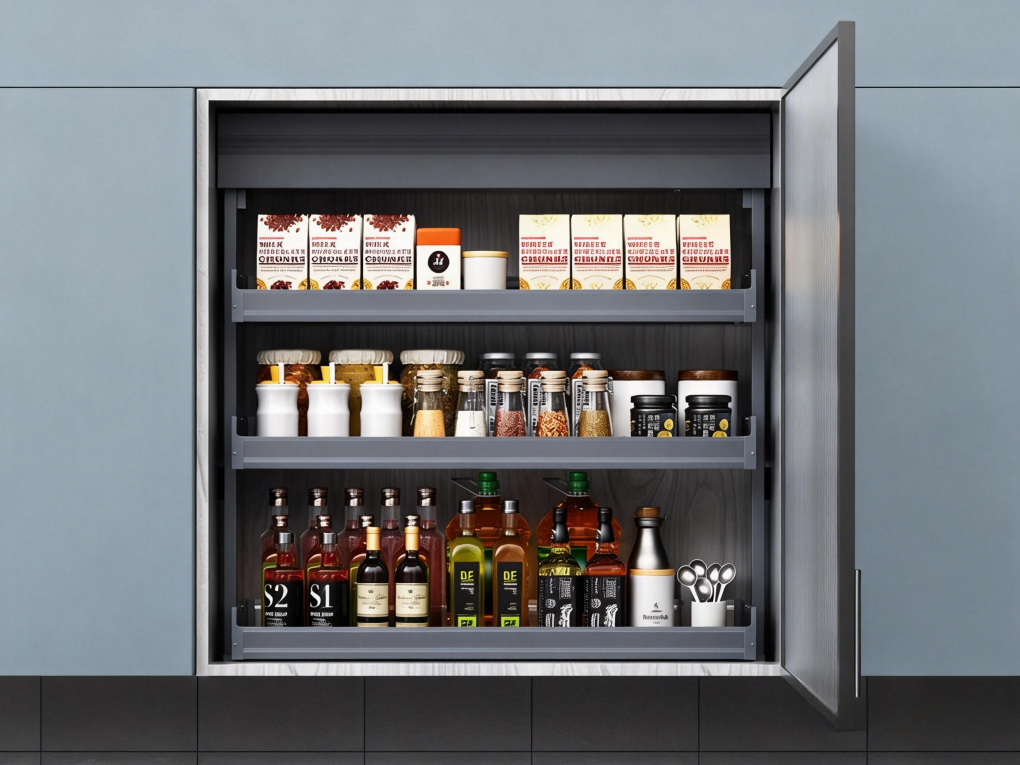

Large Storage Capacity
Ideal for food, beverages,
and kitchen essentials


| Installation Diagram | |||
| Lifting distance | 550 + 30mm | Weight-bearing | 30KG |
| Noise DB | 45db | Rate of descent | 8s |
| Rated power | 75W | Rated load | 500N |
| Rated voltage | 100-240V | Descent stroke | 550mm |

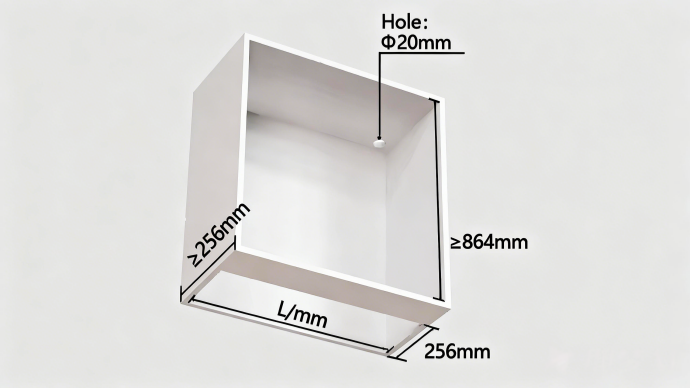

| Electric lift installation requirements (unit: mm) | ||||
| Cabinet body(size) | Inner width | Inner height | Net opening size of the base plate | |
| Holes length | Holes width | |||
| 600 | 564 | ≥864 | 564 | 256 |
| 700 | 664 | 664 | ||
| 800 | 764 | 764 | ||
| 900 | 864 | 864 | ||
