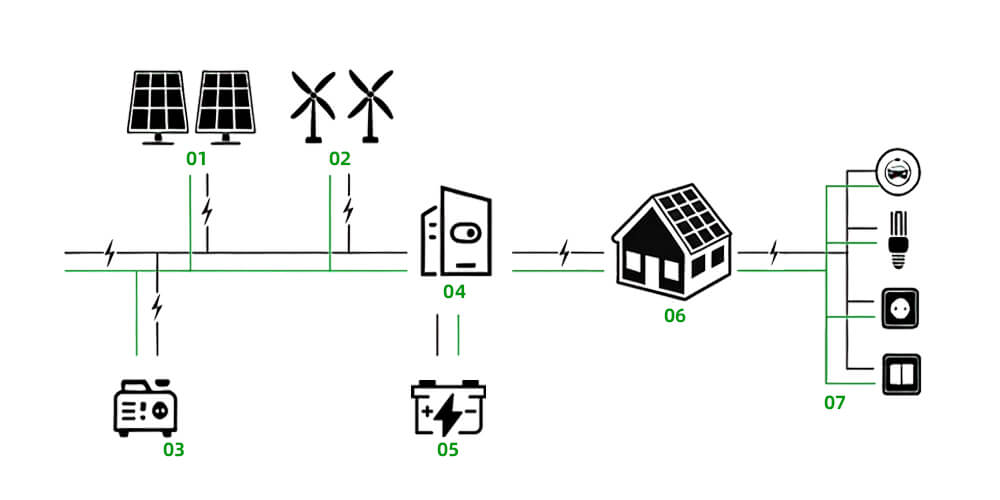

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

Product Description

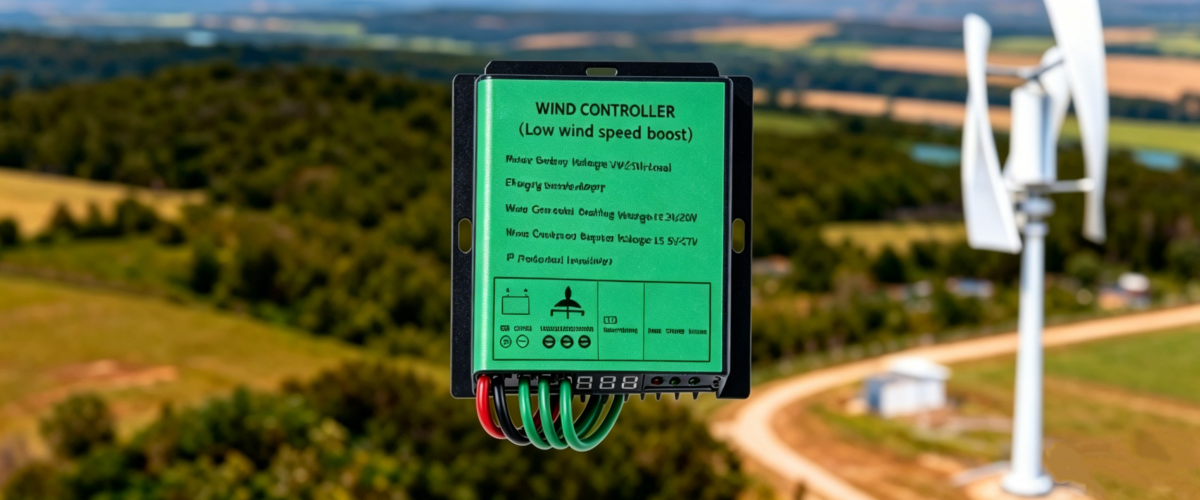

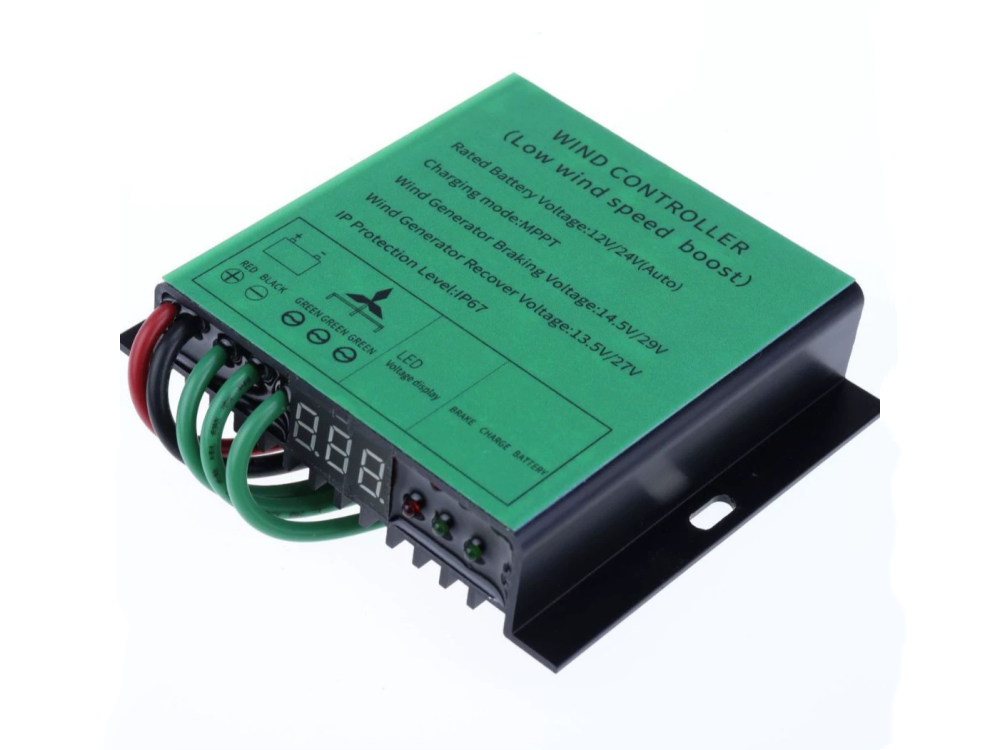

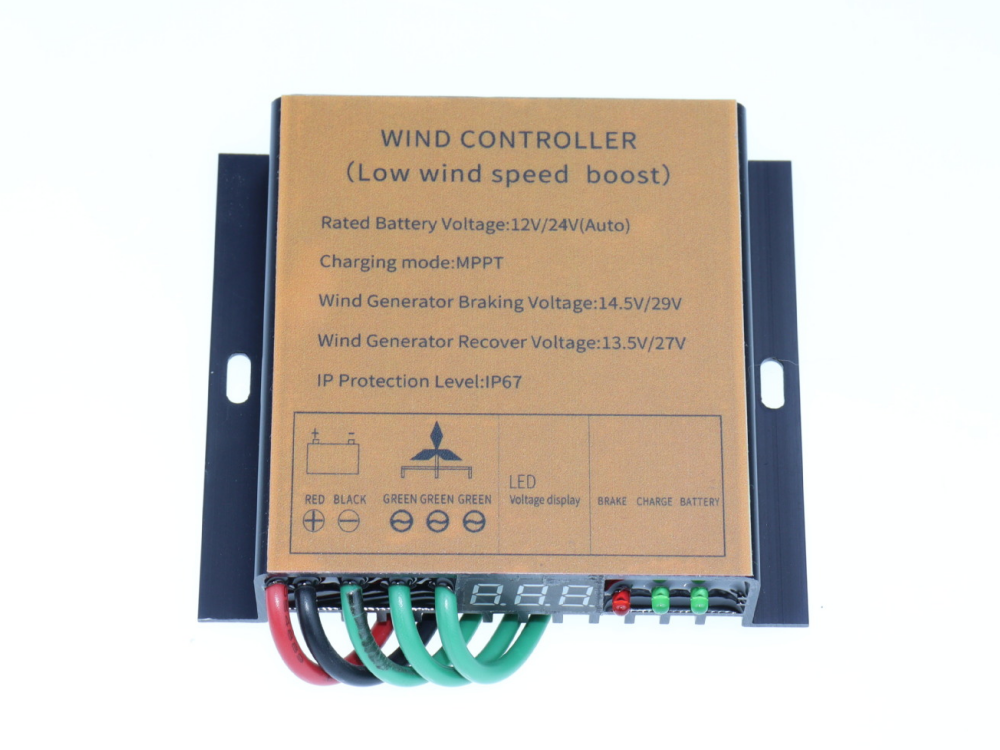

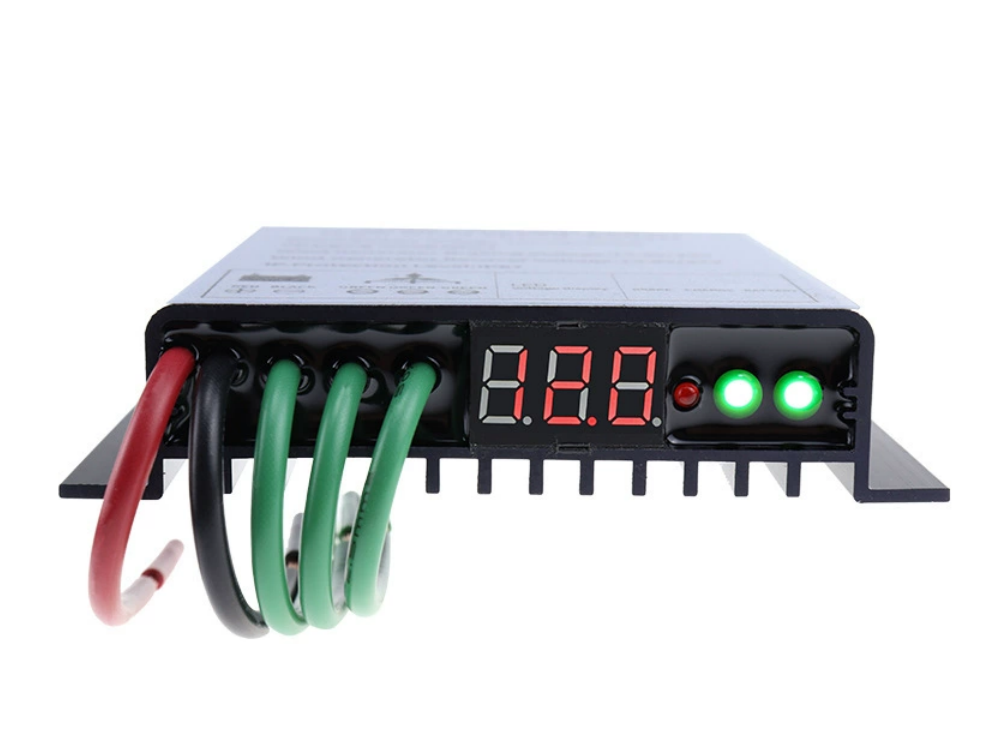

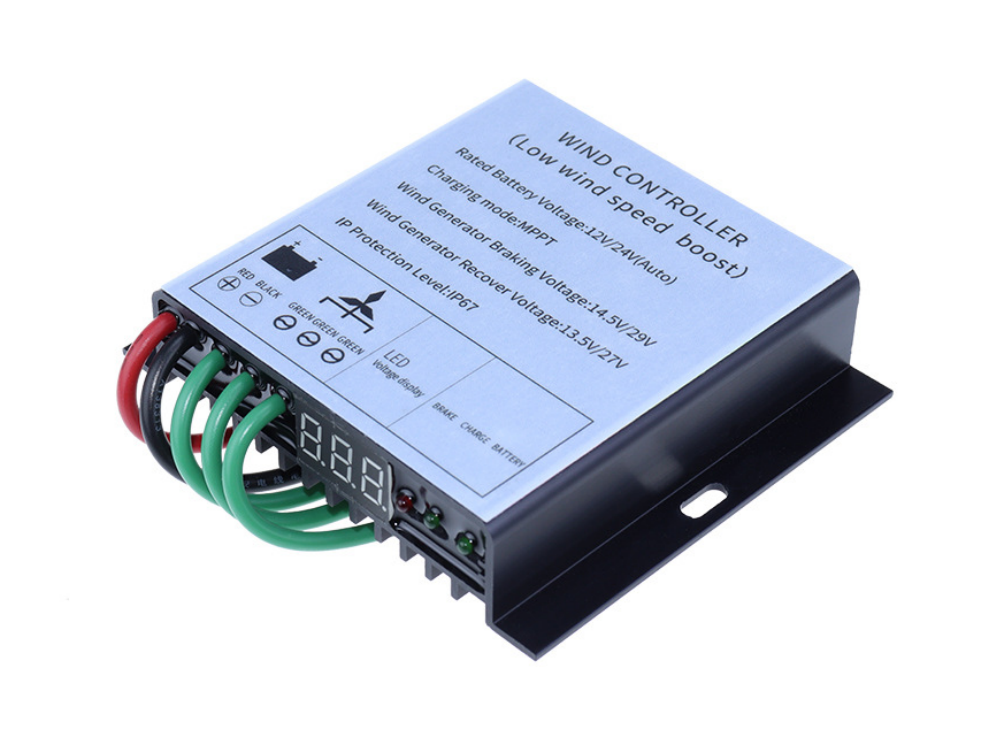

This wind turbine controller features an intelligent battery protection system with automatic charging, braking, and recovery functions to ensure safe and efficient operation. Its modular design integrates the rectifier and braking circuits, improving heat dissipation and overall reliability. Built with a fully sealed IP67 waterproof structure, it performs reliably in harsh environments, including high humidity, salty air, and even temporary submersion, making it ideal for demanding outdoor and off-grid applications.


Key Advantages

1.Intelligent Battery Protection System – Auto charge, auto brake, auto recovery
This controller enables the wind turbine to automatically charge the battery. When the battery is fully charged, the internal circuitry automatically activates the wind turbine’s braking system. Once the battery voltage drops to the recovery threshold, the wind turbine resumes charging the battery, thereby protecting both the turbine and the battery.
2.Integrated Modular Design
The modular design ensures optimal performance of the entire system.The rectifier and braking circuits of this controller are integrated into a single module,which offers significant improvements over traditional designs in terms of both heat dissipation and reliability.
3.Comprehensive Waterproof Protection
This controller features a fully sealed, waterproof design, eliminating concerns about operating environments with high humidity, high salinity, or standing water. There is absolutely no risk of short circuits or burnout due to water ingress. With a protection rating of IP67 or higher, it can operate normally for extended periods even when submerged in water, significantly enhancing stability and reliability.


Parameter Table

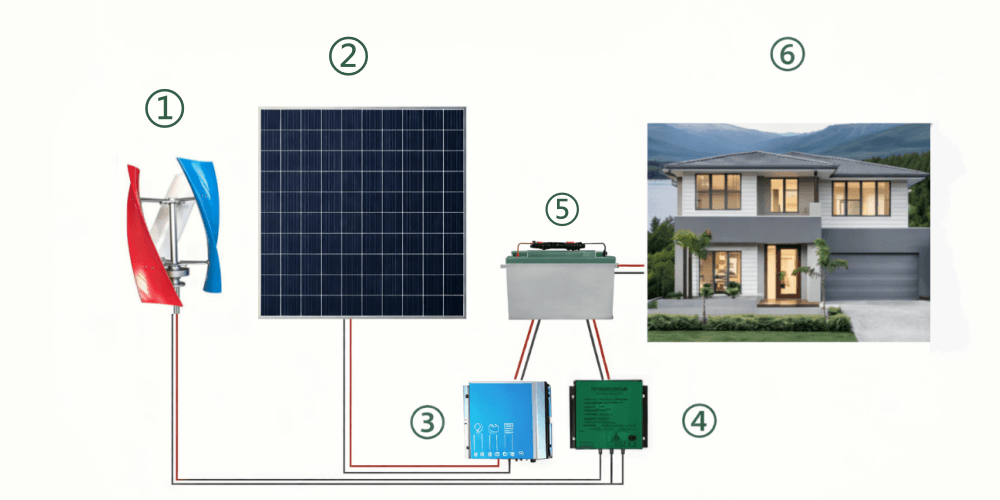

① Wind Turbine
② Solar Panel
③ Photovoltaic Controller
④ Wind turbine Controller
⑤ Battery Bank

⑥ Various Home Appliances For Prefabricated Villas

Connection Procedure

Always connect the battery first, then the wind turbine to avoid potential damage and ensure proper startup.Simple setup in just 2 steps：
1. Connect the Battery First
Attach the battery’s positive (+) and negative (−) terminals to the corresponding terminals on the controller.
Ensures the controller powers up safely before operation.

2.Connect the Wind Turbine
Connect the wind turbine’s three-phase wires to the controller’s input terminals.
Ready to start generating and charging power.


Important Notes

1. Match Voltage Correctly
Make sure the wind turbine output voltage matches your battery system (12V or 24V).
2.Follow the Wiring Order
Always connect the battery first, then connect the wind turbine.
3.Install with Care
Incorrect wiring may damage the controller, battery, or wind turbine. Please follow the instructions carefully.


Application Scenarios

Light-Gauge Steel Villas

Modular Container Homes

Space Capsules

Houseboats
