Helical Wind Turbine Residential Vertical Axis Wind Turbine for Remote Off-Grid Homes

Product Details

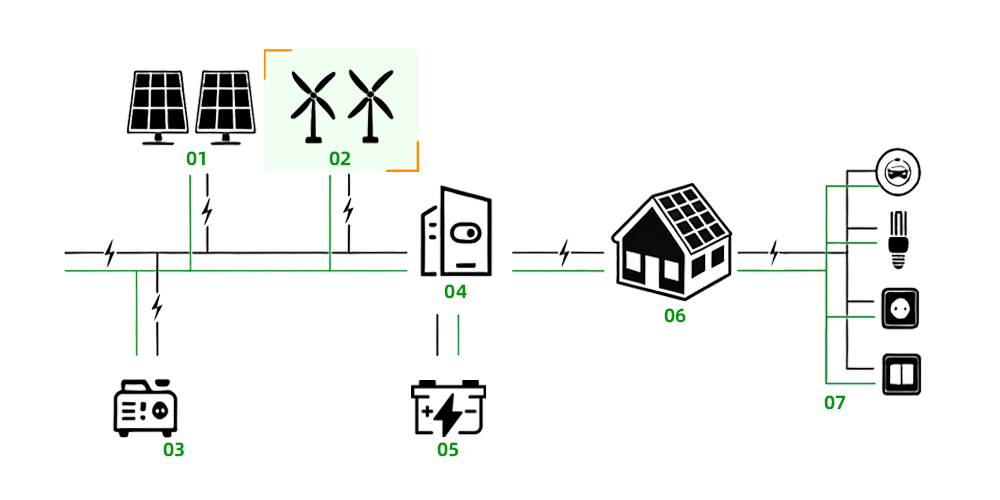

Integrated Housing Solutions

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

Product Description

The spiral wind turbine infuses renewable energy with a modern aesthetic through its striking vertical spiral design. Its twisted blades capture wind from any direction without needing to face the wind, making it an ideal choice for dynamic urban environments. This creates a versatile, low-impact energy solution.

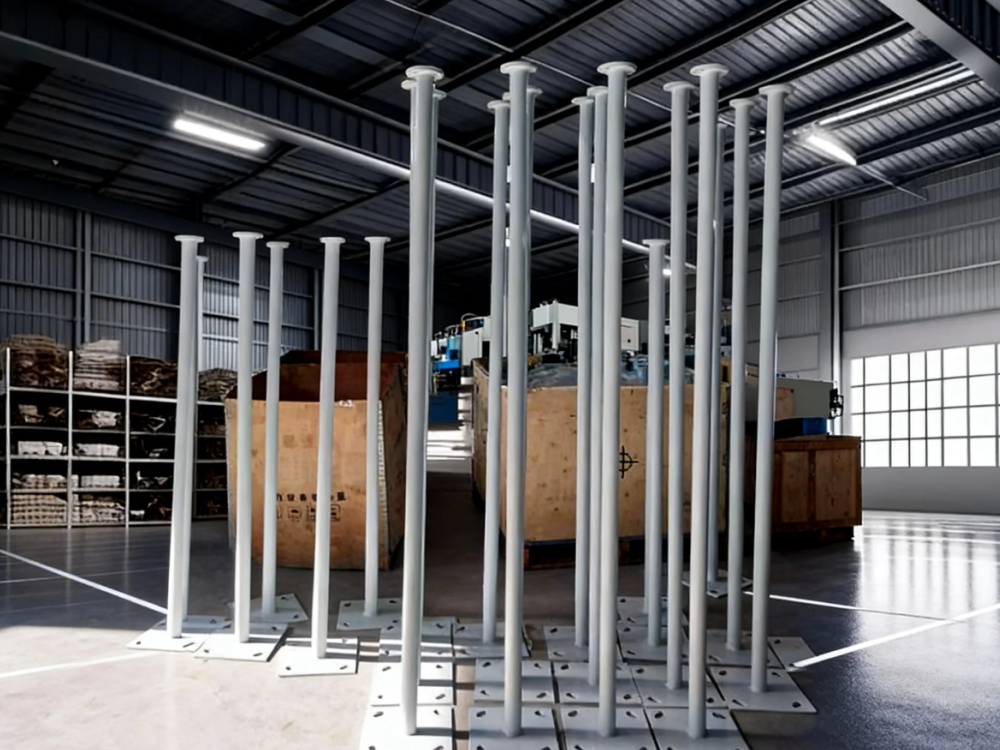

This wind turbine mounting pole is designed to provide a stable and durable support structure for small to medium-sized wind generators. Made of high-strength steel and treated with anti-corrosion coating, it ensures long-term performance in outdoor environments.Ideal for off-grid systems, residential use, and hybrid wind-solar installations.

Recommended Complete Kits

1 kW fan + 6 m pole
3 kW fan + 9 m pole
5 kW fan + 12 m pole

Key Advantages

1. Full-range operation.
2. Low noise, low vibration.
3. Compact structure, easy maintenance.
4. Low start-up wind speed.
5. Artistic integration with space.
6. High safety standards.

Parameter Table

Model	JH-100	JH-200	JH-300	JH-400
Rated Power	100W	200W	300W	400W
Maximum Power	130W	220W	310W	410W
Rated Voltage (V)	12/24	12/24	12/24	12/24
Start-up Wind Speed	1.5m/s	1.5m/s	2.0m/s	2.0m/s
Rated Wind Speed	11m/s
Safe Wind Speed	45m/s
Net Weight of Main Unit	10kg	10.5kg	11kg	12kg
Rotor Diameter	0.47m
Number of Blades	10 pieces
Blade Material	Aluminum alloy
Generator Type	Three-phase AC permanent magnet generator/permanent magnet levitation generator
Braking Method	Electromagnetic
Wind Direction Adjustment	Automatic wind direction adjustment
Operating Temperature	-40°C to 80°C

Wind Turbine Power	Recommended Pole Height	Pole Diameter	Wall Thickness	Support Type
300W – 500W	3m – 6m	60–76mm	2.0–2.5mm	Free-standing / Optional guy wire
600W – 1kW	6m – 9m	76–89mm	2.5–3.0mm	Guy wire recommended
2kW – 3kW	9m – 12m	89–114mm	3.0–4.0mm	Guy wire required
5kW	12m – 18m	114–140mm	4.0–5.0mm	Reinforced + guy wire
10kW	18m – 24m	140–219mm	5.0–6.0mm	Tower structure (not simple pole)

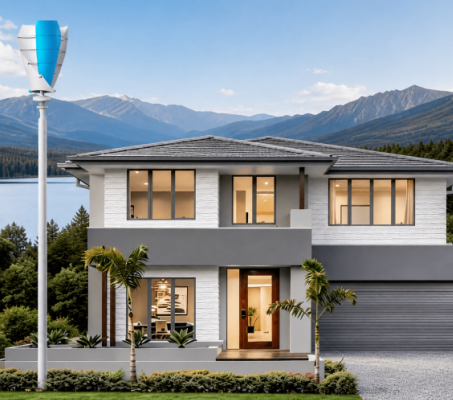

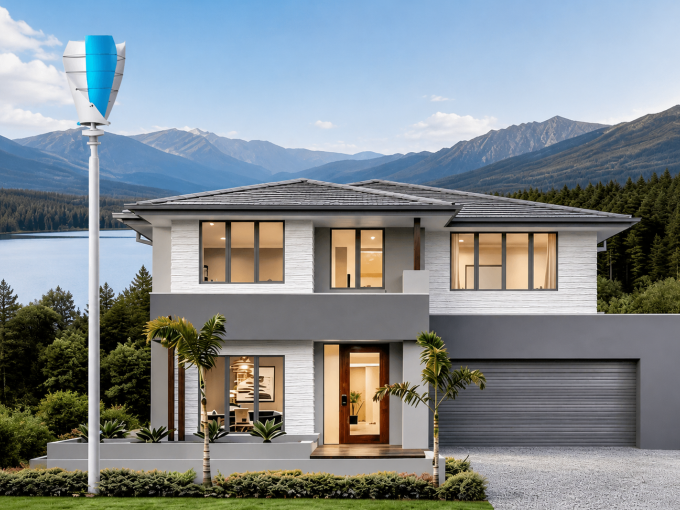

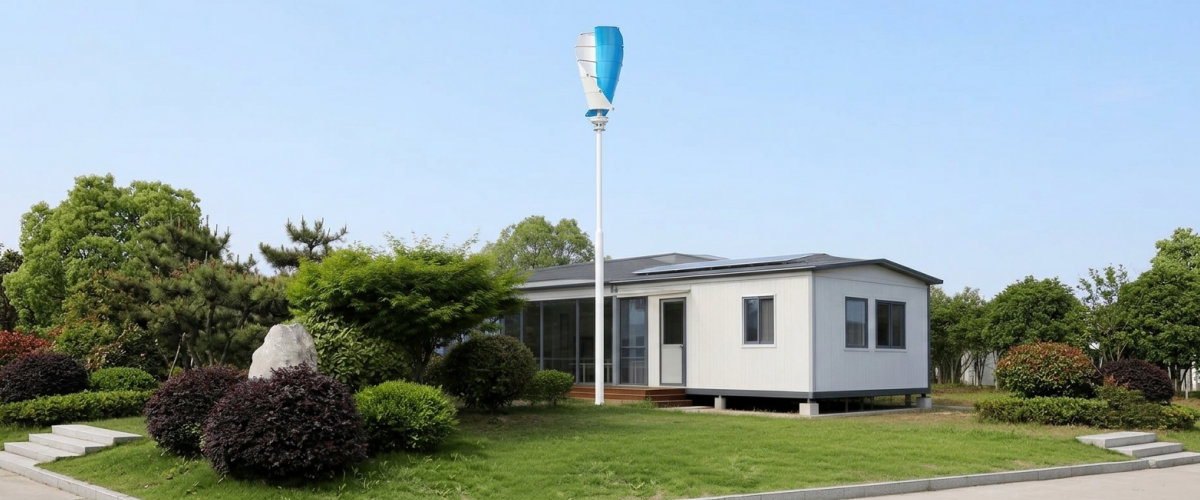

Product Photos

Application Scenarios

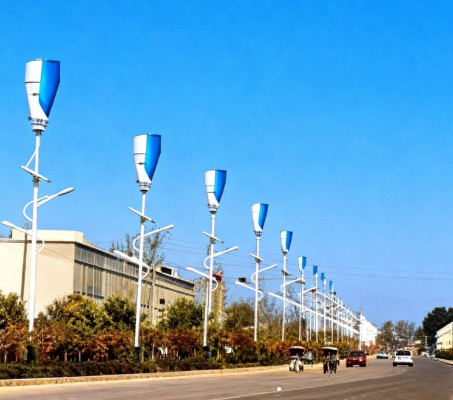

Ideal for off-grid, remote, and distributed energy applications , including islands, rural homes, farms, and telecom systems.
