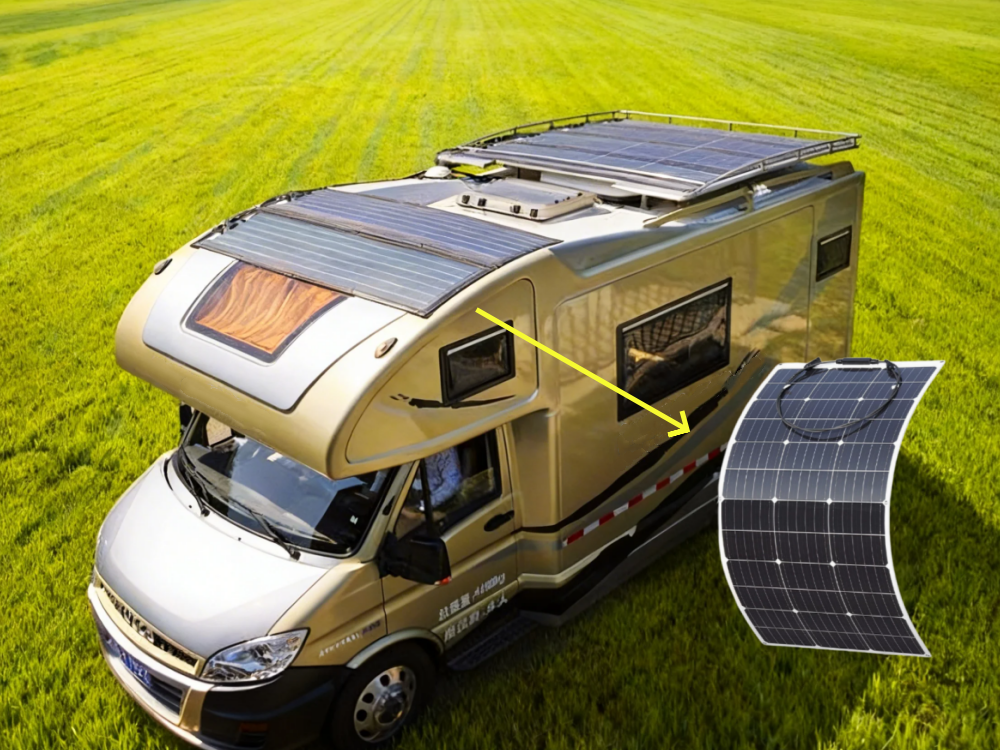

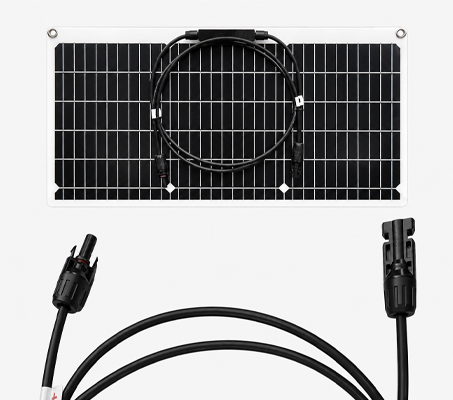

Flexible solar panels are lightweight, slim, and highly adaptable photovoltaic modules designed specifically for a wide range of off-grid and mobile applications. Manufactured using advanced monocrystalline silicon cells, they deliver stable power output while offering exceptional flexibility, allowing them to conform perfectly to curved or uneven surfaces. These panels are ideal for use in RVs, boats, cabins, and outdoor settings, and can be easily installed using adhesives or simple mounting methods. In situations where traditional rigid panels are impractical, flexible solar panels offer an efficient and space-saving solution for sustainable energy generation.
1. Lighter and thinner
70% lighter than traditional glass panels
2. Easy to install
The installation process is simple and straightforward

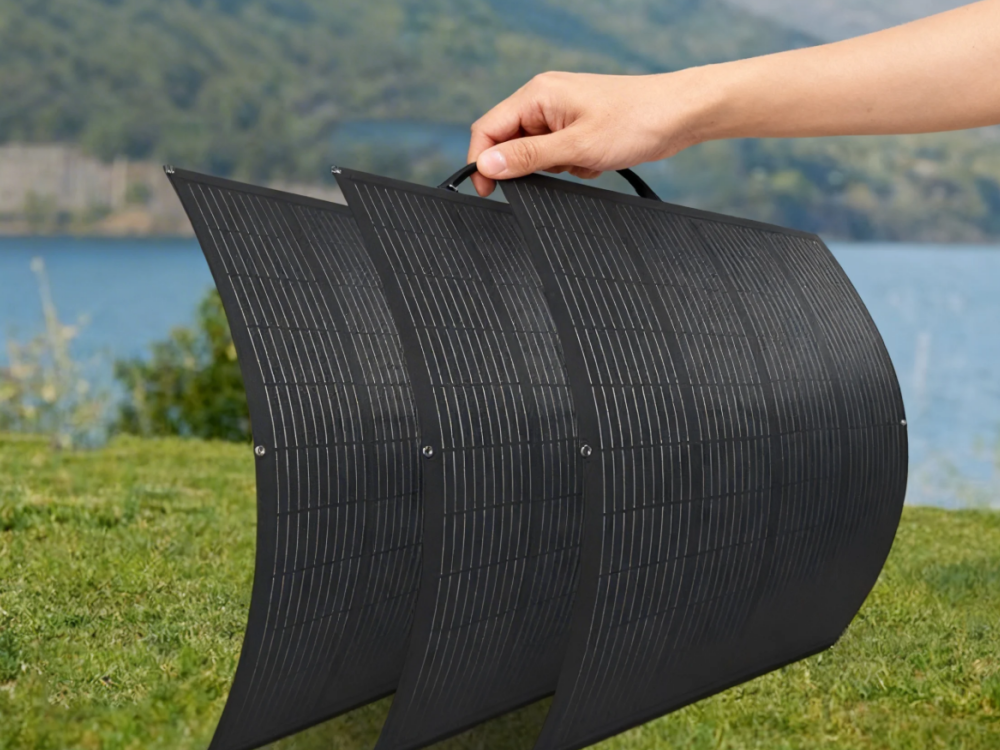

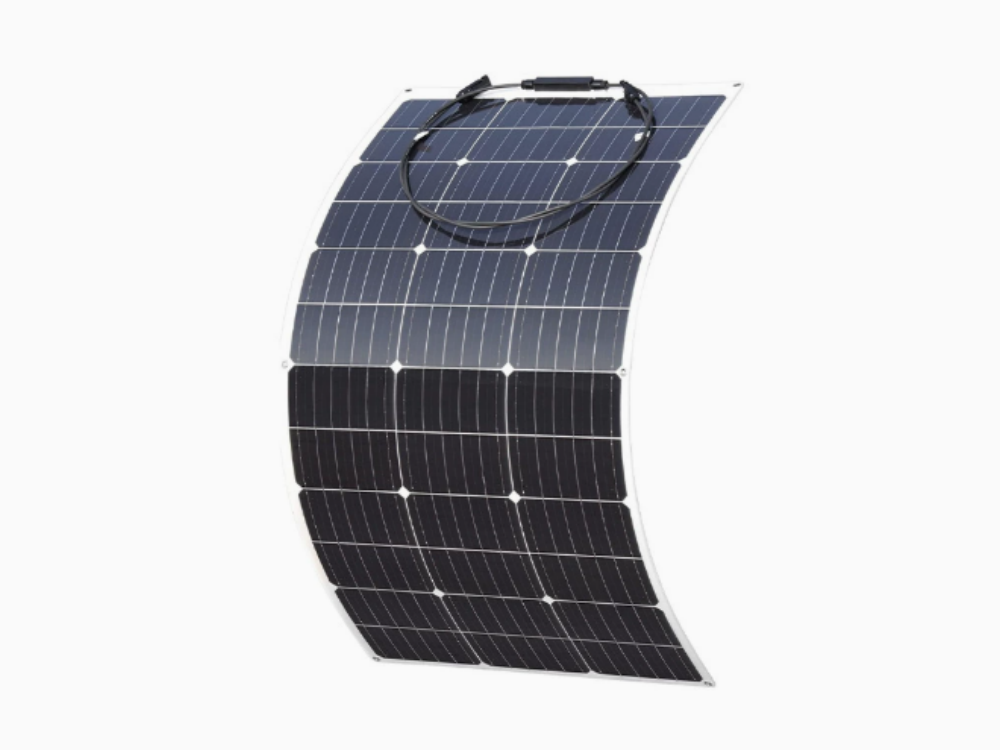

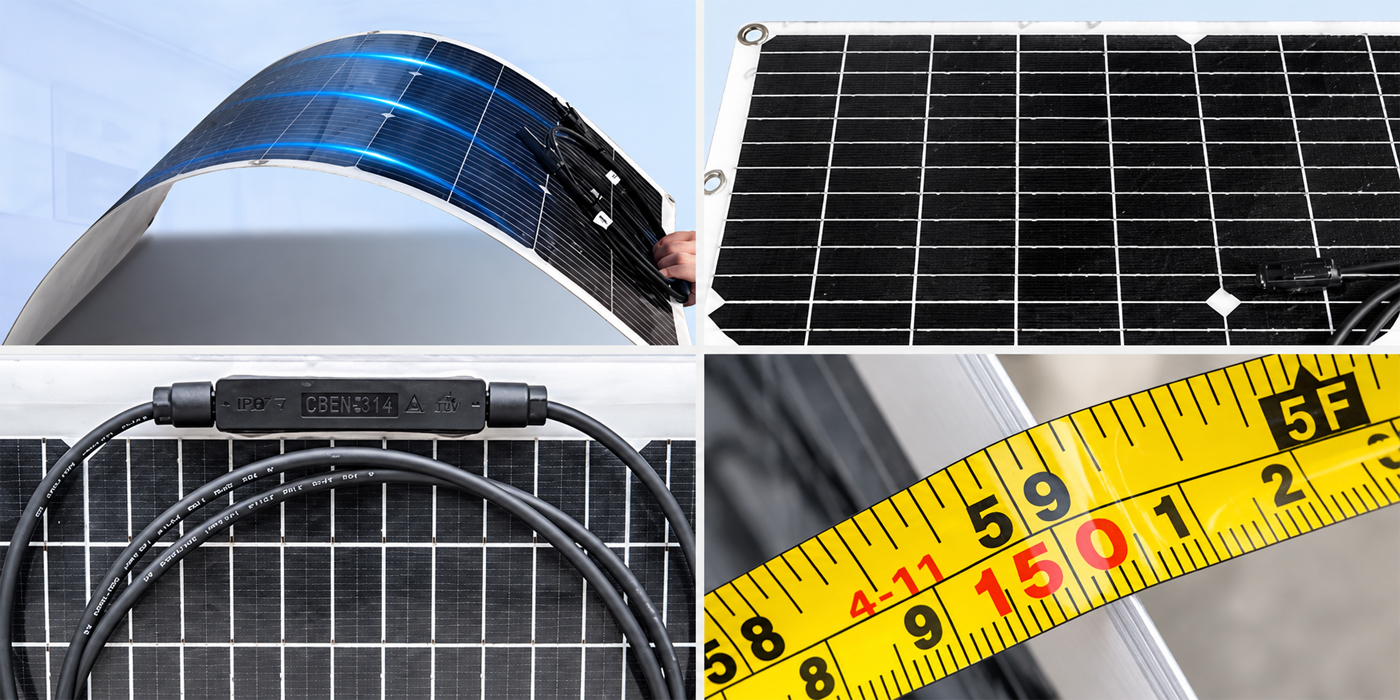

3. Highly flexible
Excellent flexibility, capable of bending up to 60°.The 60° curved design is just right—it increases the light-receiving area while allowing the chip to bend and providing excellent protection.
4. Upgraded Busbar Design
Enhanced busbar design improves power output and energy efficiency.

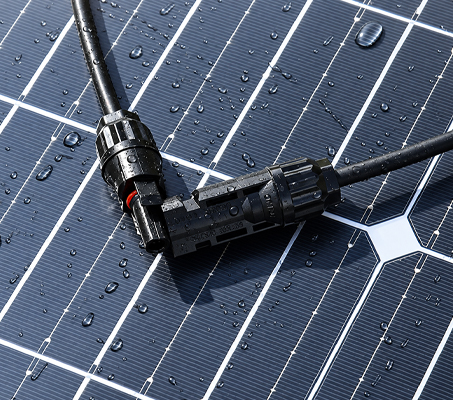

5. Water and Moisture Resistant
IP65-rated protection provides reliable resistance against water and moisture.

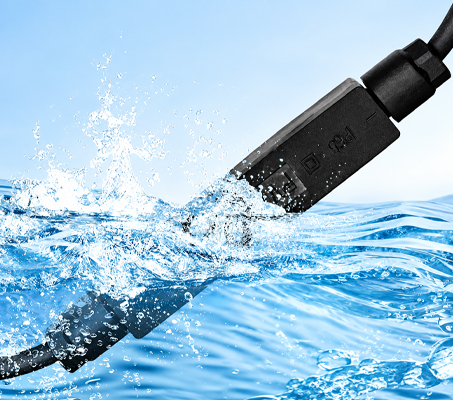

6. Waterproof Junction Box
Protects the wiring and helps prevent rainwater from entering.
| Model | M50 | M100 | M200 |
| Conversion Efficiency | 23% | ||
| Maximum Power | 50W | 100W | 200W |

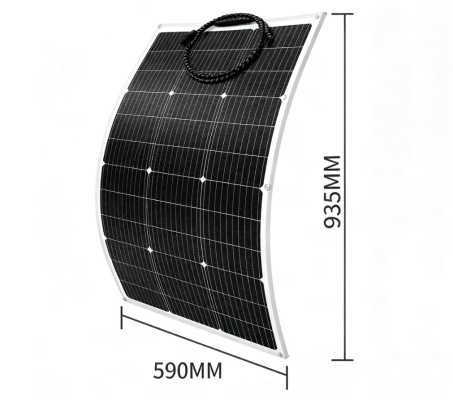

| Dimensions (mm) | 460*590 | 590*935 | 780*1280 |
| Module Weight (KG) | 0.91 | 2.49 | 2.8 |
| Operating Current(A) | 2.57 | 5.5 | 11.1 |
| Power Tolerance | 0-3% | ||
| Waterproof Rating | IP67 | ||

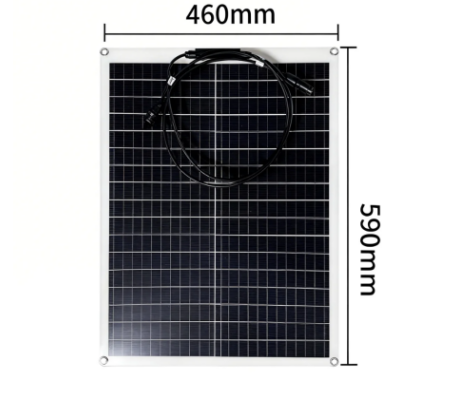

50W
100W

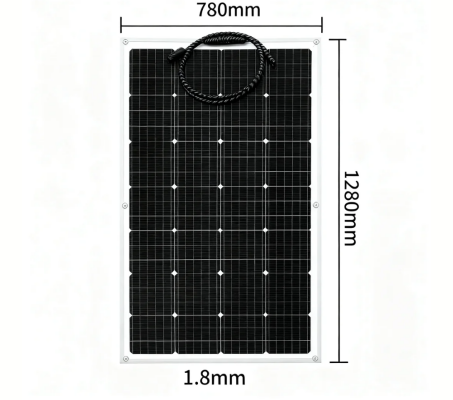

200W

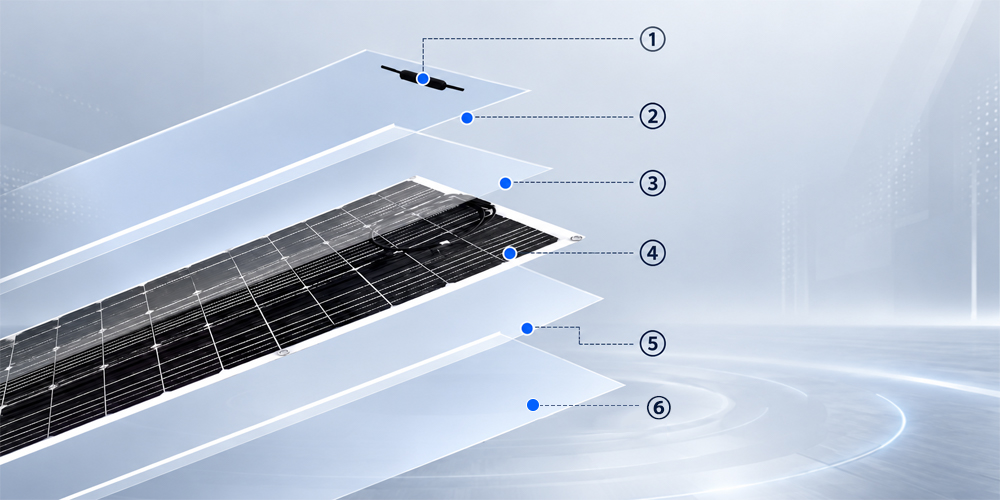

① Waterproof Junction Box
② PET/ETEF
③ EVA
④ Solar Cell
⑤ EVA
⑥ PET
Monocrystalline Silicon Solar Cells
Low reflectance, high conversion efficiency
Pure Copper Waterproof Junction Box
Enhanced Diode Protection

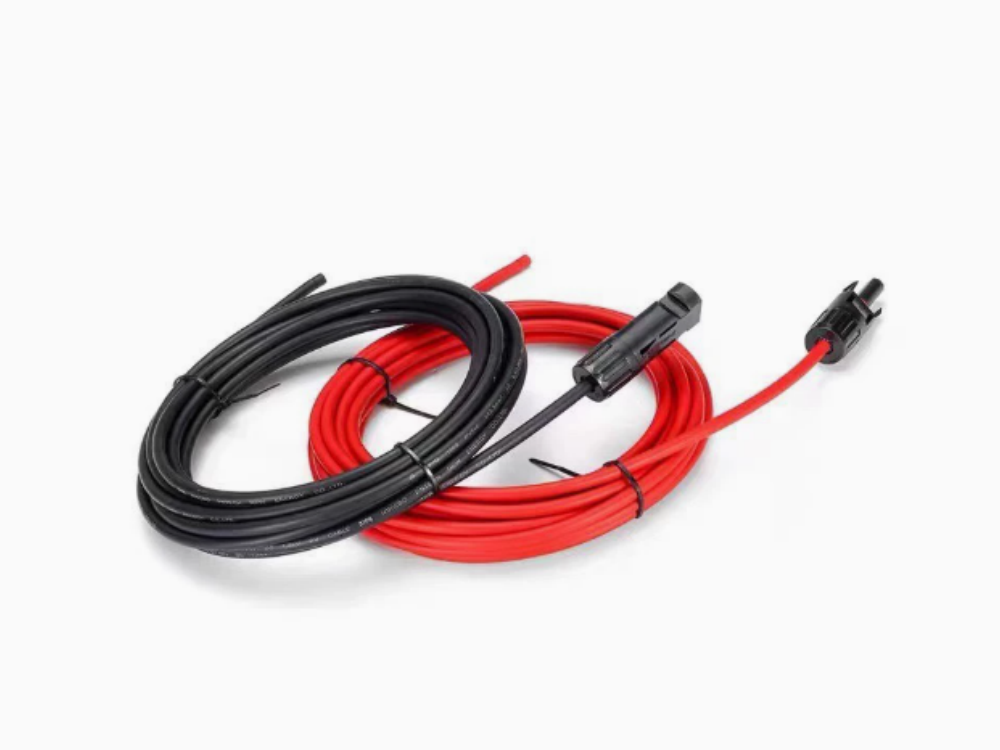

MC4 Sealed Connector
Waterproof / Electrically Insulated / Tear-Resistant
The solar panel should be mounted on a flat surface at an angle of 25–35 degrees, facing directly toward the sun. Be sure there are no obstructions in front of the solar panel, as this will result in very low power output.
Be sure to keep the solar panel fully exposed to sunlight.
① Wind Turbine
② Flexible Solar Panel
③ Photovoltaic Controller
④ Wind turbine Controller
⑤ Battery Bank
⑥ Various Home Appliances For Prefabricated Villas

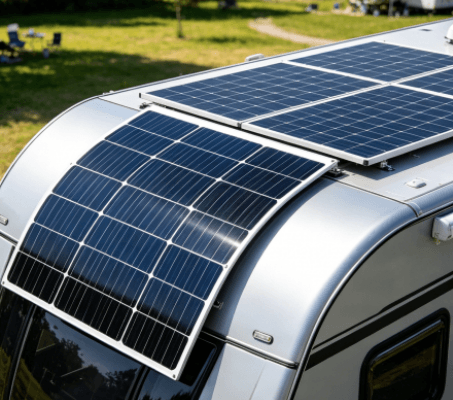

Flexible solar panels are ideal for RVs, boats, outdoor camping, off-grid cabins, and curved or lightweight structures. Their lightweight and bendable design makes them perfect for mobile, temporary, and space-limited installations where traditional rigid panels are not suitable.
